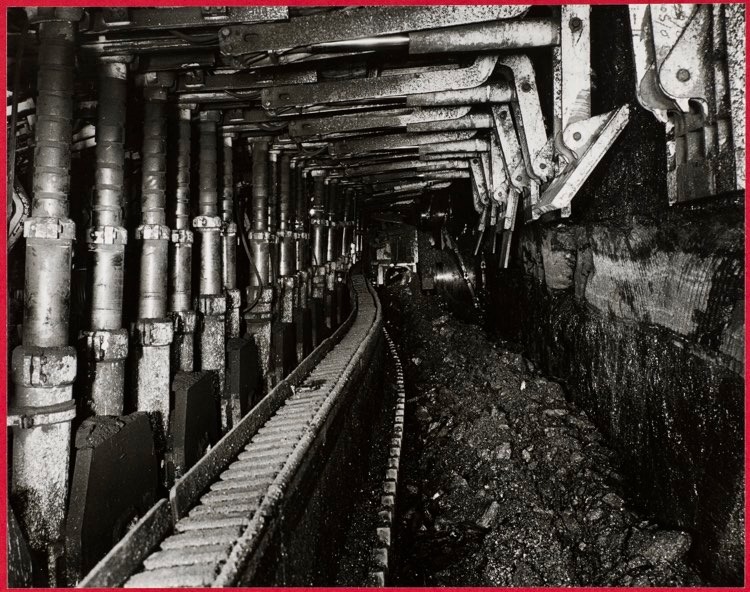

  • Underground photographs
  • The Famous innovative Deep Navigation Pit head Baths
  • A collection thanks to Ray Locke
  • Items associated with the colliery and often used by the workforce
  • 1991 an Epitaph to the colliery and the final days
  • Open day and pit visits before closure
  • The March through Treharris 1991 ( June Morgan)
  • Preparing to Demolish the colliery
  • The days of the Demolition
  • Treharris miners recieving lamps after colliery closed
  • After demolishision clearing the surface for the new park

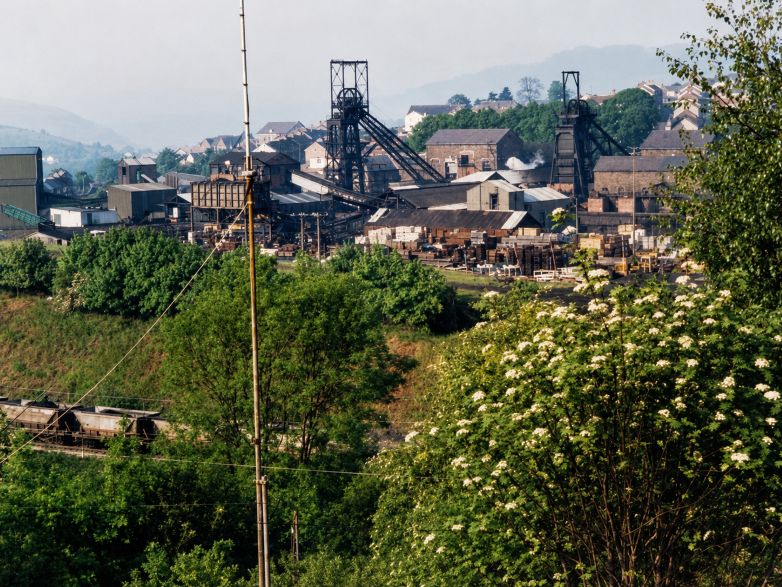

Deep Navigation Colliery, the history

A mineral lease of over 3,000 acres of land, owned by 3 farms, Twyn-y Garreg, Pantanas and Cefn Forest was exploited by a group of businessmen, headed by Frederick. W. Harris, other gentlemen involved at the time included Webster, Hill, Hacket and Jenkins. There was no such place as Treharris in those days just a beautiful green valley which was dissected by the small Taff Bargoed river.

Treharris_theHuts_New

A row of small houses was built for the families and men who were to be employed to sink the pit. This small street was named the Twyn-y-Garreg huts, they mostly consisted of a kitchen and two bedrooms, although No1 the Huts had four bedrooms, which the Minnett family of 2 adults and ten children occupied. These houses were made of wood and had hessian ceilings which were whitewashed, stone or brick chimney stacks and slate roofs. Remarkably these huts survived until the 1950’s when they were finally demolished. A new street is built on the site now, it is called Navigation close.

Sinking commenced in 1873, and the colliery was to be named Harris’s navigation colliery, the village was subsequently names Harris’ town or Treharris. It was a very dangerous operation sinking the shafts and it is thought to have cost a staggering £300,000 to complete the job, during this time massive financial problems were experienced and the sinkers were not paid at times but the potential huge profits expected if coal was found ensured the sinking continued. The depth of the colliery was a major factor in the problems and a reason for the huge expenses. It took until 1879 before the first saleable coal was raised from the colliery, 165 men had been employed during the six years developing the colliery and sadly seven lost their lives. The shafts were built 180 feet apart, the were sunk to a depth of 760 yards. Colliery buildings needed to support the new development had to be built and there was a large wooded area that had to be cleared, this was done and the river which run through the valley was also buried in a tunnel under the surface of the valley for a third of a mile, the materials to create the arched tunnel were found from the collieries own quarry which was to the North of the site.(The river is now running through the valley once again)

One of the major problems the men encountered was water, due to the great depth of the shafts , they were 200 yards deeper than other south Wales pits and it was reported that over a 1,000 gallons of water was entering the pit every minute. This was not just a problem in 1879 but all through the life of the colliery. The first thing that was done was to install a Cornish pumping engine, this could remove water at a rate of over 200 gallons a stroke, the water was lifted in stages to different levels until it reached the surface and was dispersed.

Treharris Stone Breakers, 1898

???????????????????????????????

Breaking Stones at Treharris for one shilling (five pence) a day in 1898 During 1898, the Treharris Colliery needed stone to line the floors of the mine and the stones had to be broken up into small pieces, this was a laborious task. Listed below are the names of some of the men who were hired to break the stones. I found this list in an old mining book and it accredits the research to Mr Arthur Adams of 53 Fell Street Treharris. Arthur included the nicknames of some of the men. It is an interesting list and no doubt some people still living in the area, may recognise relatives amongst the list.

William Jones (“Check”) William Jones, Brynteg (“Groano”) Dai Walter Davies (“Brecon”) Tom Williams (“Becker”) Dai Francis, Fell Street Ben Andrews Tom Jones, Webster Street (“Ogmore”) William Evans (“Sneedles”) Dai Jones (“Cardi”) Tom Theophilus Sam Davies, Railway Terrace John Prosser John Williams (“Troedyrhiw”) John Harris, Gresham Place Will Lowe Tom Clapham Danny Williams (”Ponty”) Ned Jones Dai Parcel (“Crow”) Will Nicholas Johnny Evans Joe Phillips (“J.P.”) Ben Davies (“Cefn”) Will Tovey Jack Davies (“Carter”) Dai Walter Griffiths Jack Walters Gwilym Evans’ father Rees Griffiths (“Swansea”) John Broadstock Jack Carlick Dan Tanner Walter Manuel Danny Evans (Ginger”) Penry Morgan George Morgan John Thomas (“Shoni”) Trotman Rowlands Dick Jones (“North”) Hugh Edwards (“Hugh the Northman”) father of Allan Edwards Rees Jones (“Traffic”) Will Davies, 1 Railway Terrace Mike Keenan John Harding Dai Edwards Jim Rees (father to Jimmy the Rouge) Will Davies (“Willie Black pipe”) Will Curtis Banfield Morgan Phil Sam John Humphries Tom Sherry Gabriel Evans “Old Excel” John Phillips (“Morriston Monkey”) Will Morgan Tom Roberts (“Tom Merthyr Vale”) Dai Thomas Griffiths Lewis Jones (“Lewsin short”) Bob Thomas (“Dubber”) Dick Owen Tom Evans (“Fe”) Enoch Davies (Beech”) George Evans(“Pug”)

Later in the history of the colliery the famous Deep Navigation “Castle” was carved out of solid rock, part of the way down the shaft. It was a massive cavern approximately 70 yards long ,15 feet high and had a width of nearly 30 yards, a fantastic piece of work headed by a chap called Castell, who the area was later named after. Inside this huge cave was a pump that lifted the water to the Castle area, it was stored there before being pumped to the surface and finally it used to be stored on the surface to the north of the colliery in the pit pond.

Ocean coal company became interested in the Harris mine as early as 1890, but almost a million tons of coal were raised by 1893, but there was a definite decline in coal production and debts were starting to mount up. Inspectors were sent to the pit and they reported back saying that there was good coal there and the colliery was in quite a good shape although investment would be needed…on January 17, 1893 Ocean Colliery company took over the colliery on the recommendation of their inspectors.

The Ocean coal company invested in the colliery and the bases of the shafts were repaired, there was also a warning to the men from the new owners that discipline had to improve. Production significantly increased in the years that followed, 2,500 men were now employed and around 1897 over 590,000 tons were raised in one year At the start of the new century the company wanted to improve production and to modernise the colliery, a lot of money needed to be invested and over half a million pounds was put into this purpose. It made the colliery more economical and coal was produced quicker with less manpower, The men were paid an average of £1.50p a week, or 30 shillings in those days, a report from 1902 stated that the colliery was now producing an annual output of 327,000 gross Tons, this was being achieved by approximately 2,000 men. The report also mentioned the fact that over 100 horses were now being used at the colliery, mostly underground, but some were used on the surface. The horses were very well looked after by the miners. Ostlers oversaw the horses and they groomed, fed, and stabled their horses with great care and pride. Just like the vast majority of other collieries in Wales, the working conditions for the men was hazardous, many of the women in the community worried that their husbands or sons would come home injured or even worse get killed in the colliery. Wages were not great either and strikes were starting to occur at Deep Navigation on a regular basis. The police and soldiers were brought in to control the striking miners who were often locked out of the colliery, hardship normally meant the striking miners had no choice other than to return to work with no increase in pay.

In 1898 the south Wales miners Federation was formed, just two years later the borough of Merthyr Tydfil, which Treharris is part of, saw the election to parliament of Keir Hardy, a working-class Labour MP. Within 5 years the Federation had made some inroads in getting better wages for the miners and they were also negotiating for safer and better working conditions for the men, but despite these improvements by 1910 most Welsh pits were on strike and the infamous Tonypandy riots were to follow.

For two difficult years the Federation fought hard to get a good deal for the miners but to no avail. There was more trouble in 1912 and again the police were at the pit as the great strike began. Finally, a decent wage was agreed, and the men went back to work. For the following Years and through the great war and beyond and once again in 1921, there was a lock out of the men at Deep Navigation. Just before the first world war, the coal produced at the Deep Navigation colliery was being hailed as being the best for steam navigation and was use on railways.

The most rapid Atlantic crossings made by the famous Cunard liners at the time used coal that was mined at the Treharris colliery. During the war in 1916, the first pit head baths in south Wales were built on the colliery site, that meant the men could clean up at the colliery rather than having to go home and bathe in front of a fire in a tin bath 1n 1926 the general strike hit the country and it was to have a devastating effect on the Treharris miners.

They were very strong and united, they were staunch socialists and believed in what they were fighting for, they had a saying at the time “Not a penny of the pay, not a second on the day”. They were well organised and the champion Treharris silver band performed concerts to raise money, jazz bands performed including the famous Treharris Zulus, sports days were held and soup kitchens were opened but the truth of the matter was that the men and their families were suffering terrible hardship, they were scraping away trying to get food and fuel for their families and by December more and more Treharris men had no choice other than to go back to work, the strike was lost and the owners had won.

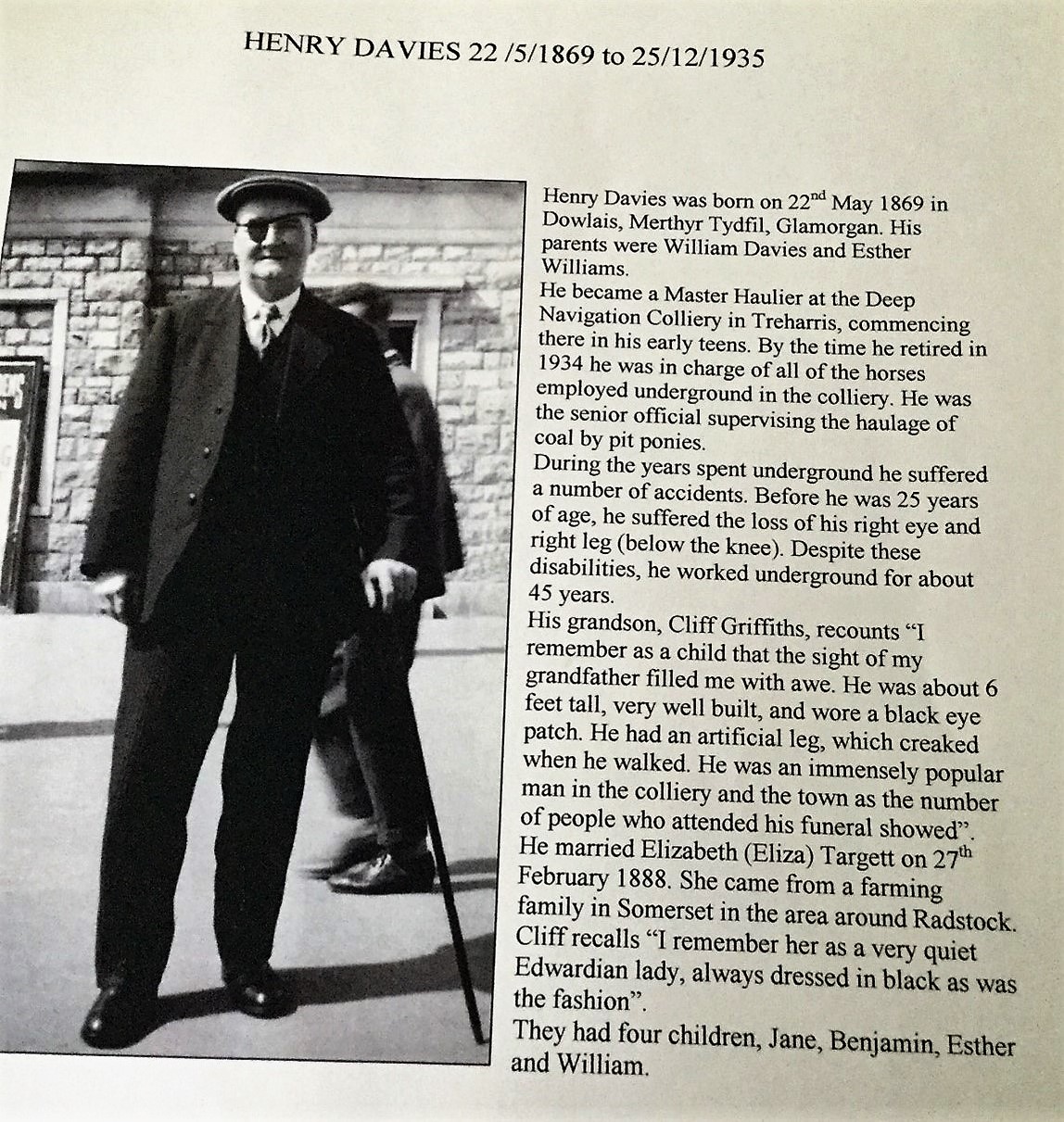

Henry Davies of 82 Webster Street was in charge of the pit ponies for many years and was a very popular character in the town and at the colliery in its early years.

They reduced the wages of the miners and increased the working hours. The subsequent few years that followed were exceedingly difficult for the miners and industrial relations with the Federation and mine owners was never amicable for a long period following the strike. In 1935 the colliery employed 363 men on the surface and 1,875 underground. During the early part of World war two, Treharris colliery became particularly important to the war effort, just like the other collieries and a new law came about called the essential work order. This tied the miners to their reserved occupation. Earnest Bevin ordered one in ten young men of eighteen years of age to be employed in the coal industry, no doubt some of the Bevin boys came to the Treharris area. Once again, the Deep Navigation colliery was producing large quantities of quality steam coal, it was a diamond of the coal mines, in 1947 the colliery became nationalised under the leadership of prime minister Clement Attlee. Almost 70 years of private ownership was finally over and the message to the miners and their families from both the government and the unions was…” the bad old days are over”

Nationalisation 1947

Nationalisation was a good thing and changes were made by the new NCB (National coal board) Managers and bosses were switched between collieries and strangers were seen running Deep Navigation for the first time. The good relationship between the union and NCB, added to the fact there was a labour government boded well with the miners but there would always be the undercurrent of industrial action at the colliery for the rest of its working life.

During the 1950’s youngsters were trained in Aberaman before choosing a colliery to work in, the sixties and seventies arrived and young lads were still being trained up to join the mining industry but now at the nearby Britannia colliery in Pengam, provided new fresh faced “trainees” to add to the DN workforces every few months.

Due to Modernisation and new mining methods the manpower at the colliery dropped from the pre-war 2,200 to almost half that figure by 1960. The terrible disaster of 1966 at Aberfan, saw the men of the colliery travel up the valley to help in the fight to save lives, coal tips were a sad legacy and blight on the landscapes of the south Wales valleys, these tips four miles from Treharris, the waste from the Merthyr Vale colliery, land sliding down on top of Pant Glas school, caused a disaster of the highest order, and so many children lost their lives, another tragic price of coal. 144 people were killed in the disaster,116 of the dead were children between the ages of 7 and 10 years old.

The conservative party was in power in the early 1970’s and there was a growing feeling of unrest in south Wales, Deep Navigation stayed strong in the never ending fight for better wages and conditions and in 1972 and again in 1974 the powerful mineworkers unions defeated the conservatives but it proved to be battles won and the war lost when you look back now.

1979 was celebrated in the town, it was the centenary of the Deep Navigation colliery and the miners and their families. Around 2,000 people attended an open day at the colliery and the public were allowed to travel down in the shaft, road races and parties were held and a brass band contest, they were good times. The colliery continued through more troubled times in the eighties and the 1984 strike lasted many months and once again the miners and their families suffered hardships

100 years had passed, and the Deep Navigation colliery remained the centre of employment for the Treharris area, so many miners and businesses relied on the pit. British coal (In1987 the NCB became the British Coal Corporation.) officials were reported as saying that Deep Navi was one of the most productive of all its collieries in Wales. At this time almost 8,500 Tonnes was being produced, with most of the coal being used at Aberthaw power station in the Vale of Glamorgan. 1982 saw the construction of a brand new canteen on the colliery site, it cost around £75,000, with £23,000 being spent on Kitchen equipment, it was seen as another sign of confidence in the pit. Better news again came in 1983, a massive £6 million was said to be invested into the colliery, this money meant that a new high-speed system could be installed which enabled coal to be raised quicker. At this time, it was estimated that there was still approximately 11 million tons of coal reserves accessible to the Treharris mine.

There were new coal seams, 2,500 feet underground which could be developed, it was estimated that these new “Gellideg” seams would guarantee that the colliery could operate in profit for at least another 20 years. It was planned to invest money in the best technology for the new coal face, a double sided shearer which saved time was to be used also the coal was to be transported to the surface by a rapid skip winding system.

Everything really did look good once again and optimism was the order of the day, little did the miners know at the time, but the most bitter industrial strike in history was just around the corner and the government were determined not to be defeated again by the miners, it would prove to be the beginning of the end for Deep Navigation and indeed the collieries of south Wales.

The 1984-85 Miners Strike Miners from Treharris pit in South Wales who have been striking for 11 months.
The strike was led by  Arthur Scargill and the National Union of Mineworkers, Coal mining, though nationalized in Britain by Clement Attlee’s Labour government in 1947, was encouraged to gear itself toward reduced subsidies in the 1980s following the 1979 election of Prime Minister Margaret Thatcher. Tensions between the Thatcher government and the public unions mounted as the administration considered the NUM to interfere with the market, risking public inflation.

Two million manufacturing jobs were lost between 1979 and 1981, which some ascribe to Thatcherian policies, and others see as the inevitable result of decades of nationalization of unproductive industries in the face of rising competition from lower cost producers. Following a narrowly averted strike in 1981, the government announced on 6 March 1984 their intention to close 20 coal mines, revealing the plan as well in the long-term to close over 70 pits. Mass walk-outs and strikes began following this revelation in March, including the widely reported Battle of Orgreave between 5,000 miners and 5,000 police officers. The strike became a symbolic struggle, as the National Union of Mineworkers (NUM) was one of the strongest unions in the country, viewed by many, including Conservatives in power, as having brought down the Heath government in the union’s 1974 strike. The 1984-1985 strike could not match the force of earlier strikes in the 1970s.

The strike ended on 3 March 1985 following a NUM vote to return to work. It was a defining moment in British industrial relations, and its defeat significantly weakened the British trade union movement. It was also seen as a major political victory for Margaret Thatcher and the Conservative Party.

Following the hardship of the 1984-85 strike the men got back to producing coal and in 1986 another £2 million was invested in the colliery by British coal. Once again, the colliery was making a profit and coal production was rising. 1987 and once again the men found themselves on strike, this time in dispute over the new technology at the new coalface, the strike cost British coal around £150,000.

There was more investment in the colliery but targets started to get disappointing, British coal said that they were expecting at least 5,000 more tonnes production a week from the mine, on top of this the miners were unhappy and another strike took place in the November of that year, a week-long strike which was said to have lost 100,000 tonnes of coal production, British coal were now warning the men that the disputes were putting the colliery at risk to closure.

1989 Britain and in particular south Wales, nearby pits were closing including the drift in Trelewis, and Merthyr Vale both local pits who also employed some men from the Treharris area. Although no Welsh pits closed in 1990, it really was a worrying time for the Treharris area. March 1990, a decision was made by British coal not to add Deep Navigation to the list of closed mines, and once again the communities breathed a sigh of relief. Later that summer and reports were circulating that the colliery had made a £1 million profit already that year and production was once again high, but there was bad news to come as it was revealed that British coal had discovered that coal reserves would only last until 1994.

1991 came and it was looking bleak again for Deep Navigation, the community it served and of course the miners and their families. An announcement was made early in the year and it was the last nail in the coffin for the colliery. It had been decided by British coal that the colliery was to close, the day chosen was March 29, Good Friday 1991…the end of an Era for a wonderful colliery Many lost their lives working at the pit and many more suffered injury and harm working at the pit, that must never be forgotten and the fact it is now closed means the local lads of the area never have to face the dangers their forefathers experienced. It is also true that the green valleys have returned and the Taf Bargoed river now flows proudly through the middle of the newly developed Taf Bargoed. Deep Navigation colliery provided work and homes for thousands of people in its long history Mr Harris will always be remembered because the town is named after him, Harris town= Treharris.

Early fatalities at the colliery

Deep Navigation Colliery, Treharris…the following pages are dedicated to the men who worked at this great coal mine and to the men who lost their lives there, may they all rest in Peace.

Below is a list of fatalities at the colliery 1873-1914…Please take a moment to remember these miners who lost their lives for the price of coal…It was a sad day when all the mines closed but no more of our children can be taken from us by the coal mines in our district.

deaths_at_the_pit_one

deaths_100

Here is a story of a Nelson man who sadly passed away whilst working at the colliery in 1926 sent to me by his great grand daughter Marian Gill (nee Hopkins)

Death of Daniel Williams 1926. Evidence of identifiaction was give by Mr J Hopkins
Source: THE EXPRESS SATURDAY FEBRUARY 26th.

While following his employment as an overman at the local colliery Mr Daniel Williams, 2 Blackbrook, was fatally injured by a fall of roof on Wednesday morning. Deceased who was 52 years of age was a native of Llantrisant but who had resided in Nelson for about 40 years prior to coming to reside at Blackbrook about a year ago. Was well know in the district and was a a very popular official at the colliery. The sympathy of all is extended to his widow and family of three daughters. The funeral takes place on Monday at Llanfabon.

Source MERTHYR EXPRESS March 13th.

INQUEST .

The District Coroner (MR R.J. RHYS) without a jury conducted an inquest at the Police Station, Treharris, on Friday, concerning the death of Mt Daniel Williams (51) of 2 Blackbrook, who was fatally injured by a fall of roof at the Ocean Colliery on February 24th. Evidence of identification was given by Mr J Hopkins (son-in-law). Mr Chris John, a  firemen who was accompanying Mr Williams who was an overman on his rounds, explained that Williams hit out a brick with a bar when the fall occurred completely burying him. When extracted from beneath the fall he was found to be quite dead. A verdict of accidental death was returned

Colliery Managers

This list is incomplete if you know any that I may have missed please let me know

1878 Mr Brown

1878 Mr Adams

1881 T. J. Evans.

1884 John Price

1893 J.P. Gibbon

col_man_2

1901 David Hughes ( photo)

1908 William Jenkins

1911 W. Phillips

1926 L. Lewis

1930 D.G. Richards

1938 C.A. Harlow

1947 H.Jarman

1954 W.J.Strong

1960 Donald Davies

1962 V.D.Savage

1972 R. Elliot

1980 D. Preece seen here with McGregor

1990 Steve Rees the last manager, congratulating Jess Davies (Cilhaul)  who had worked at the colliery for 50 years

???????????????????????????????

This page will now concentrate on the hundreds of photographs taken over many years by various contributors and kindly donated to this web site

The Deep Navigation N.U.M. lodge banner

edit_girls

Headlines from the Merthyr Express in June 1976

(Thanks to Pauline Pope of Trelewis for finding this article)

Many miners marching behind the magnificent, new, South Wales area N.U.M. Deep Navigation Lodge, Treharris banner, in the South Wales miners’ Gala in Cardiff last Saturday will nave gazed with pride on the work of their own, or neighbours’ 14 year old daughters from Afon Taf High School, Troedyrhiw. When, only a month ago, Councillor Vernon Davies approached headmaster Mr John Isaac, to investigate the possibility of the school providing the urgently needed new banner. Pupils of Form 3 c begged their needlework tutor, Miss G Bound, to be allowed to carry out the exacting work, since they were so closely associated with the lodge. For the ensuing month, Sharon Arthur, Alison Cowdell, Donna Felton, Sharn Ford, Jennifer Hares, Pamela Phillips, Denise Pope, Karen Richards, Julie Veale, Dawn Watkins and Melanie Wiltshire dedicated their lunchtimes to the work and even offered to give up their holiday time to ensure the ten foot banner would be completed in time for the June 10th parade.

deep_navi_banner

Working with very difficult fabrics, the girls supervised by Miss Bound, applied and embroidered every letter and symbol separately on to the cerise background; repeating the detail identically on the reverse side. On Friday, June 9th , lodge Chairman Mr John Hawke, vice Chairman Mr R Tanner and secretary Mr B Jones  were called to Afon Taff High School to receive the new banner, which will not only symbolise the dedication of the miners to their difficult task but that of our often maligned modern teenagers.

10149279_802228629806411_754900062_n

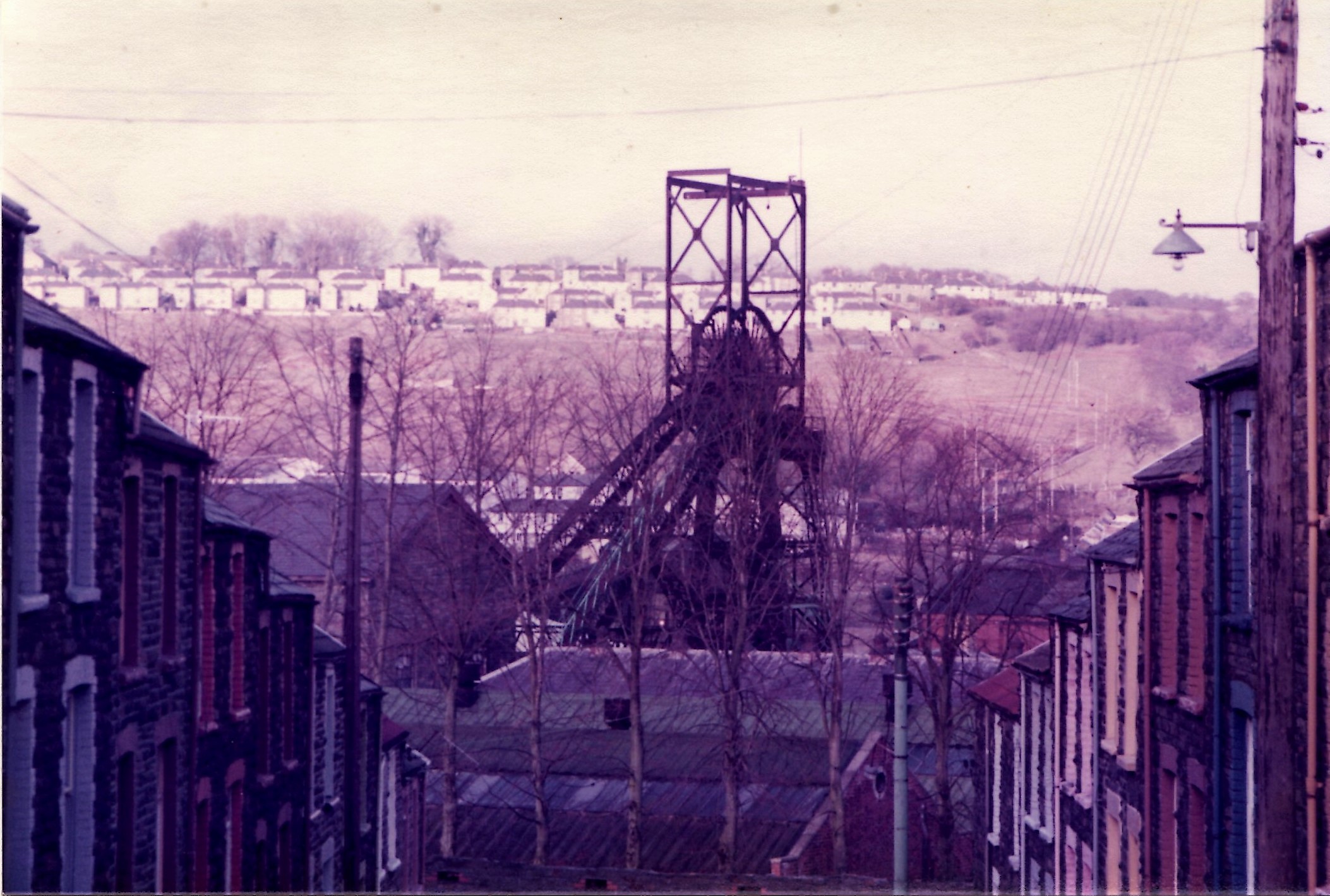

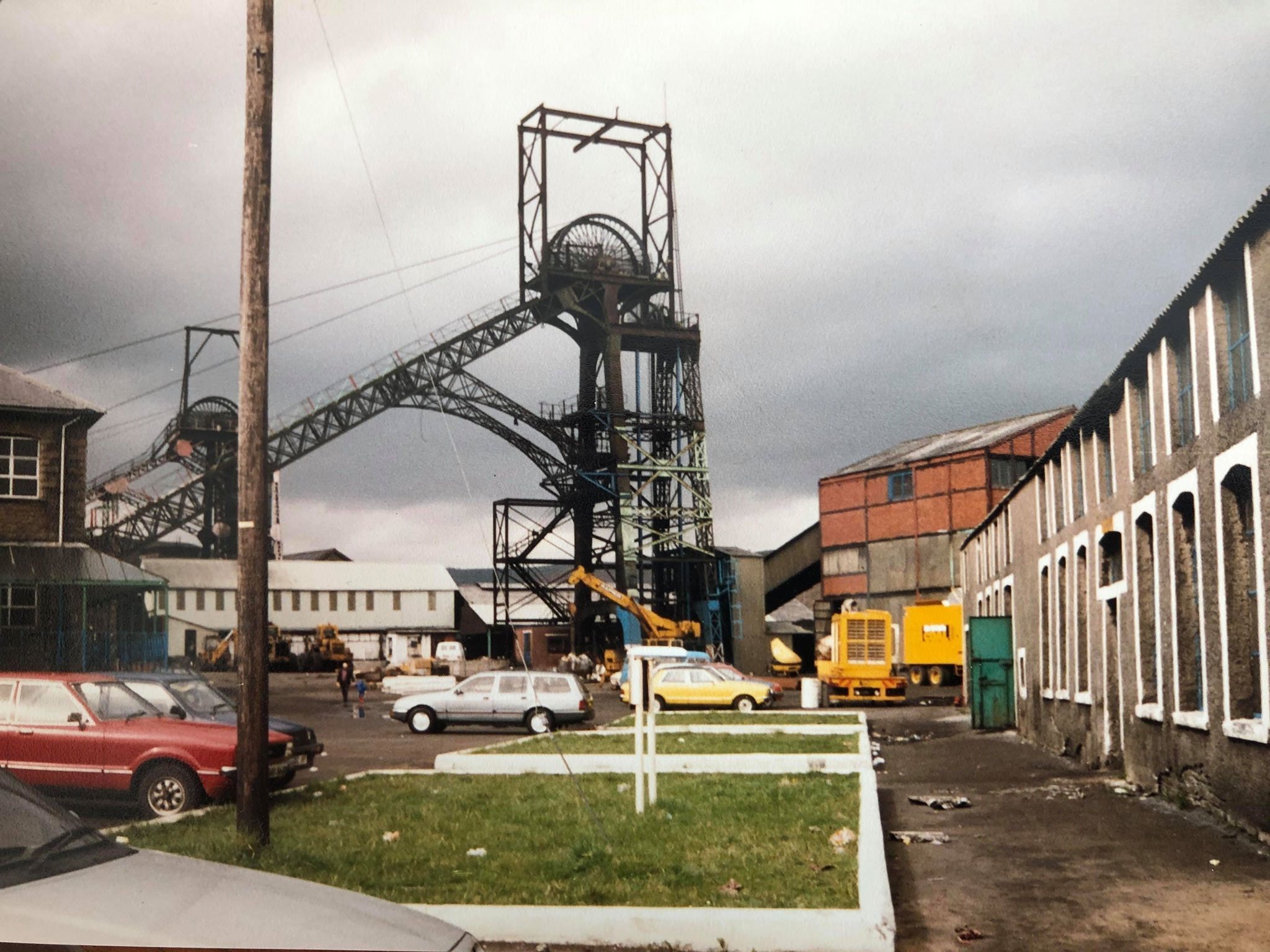

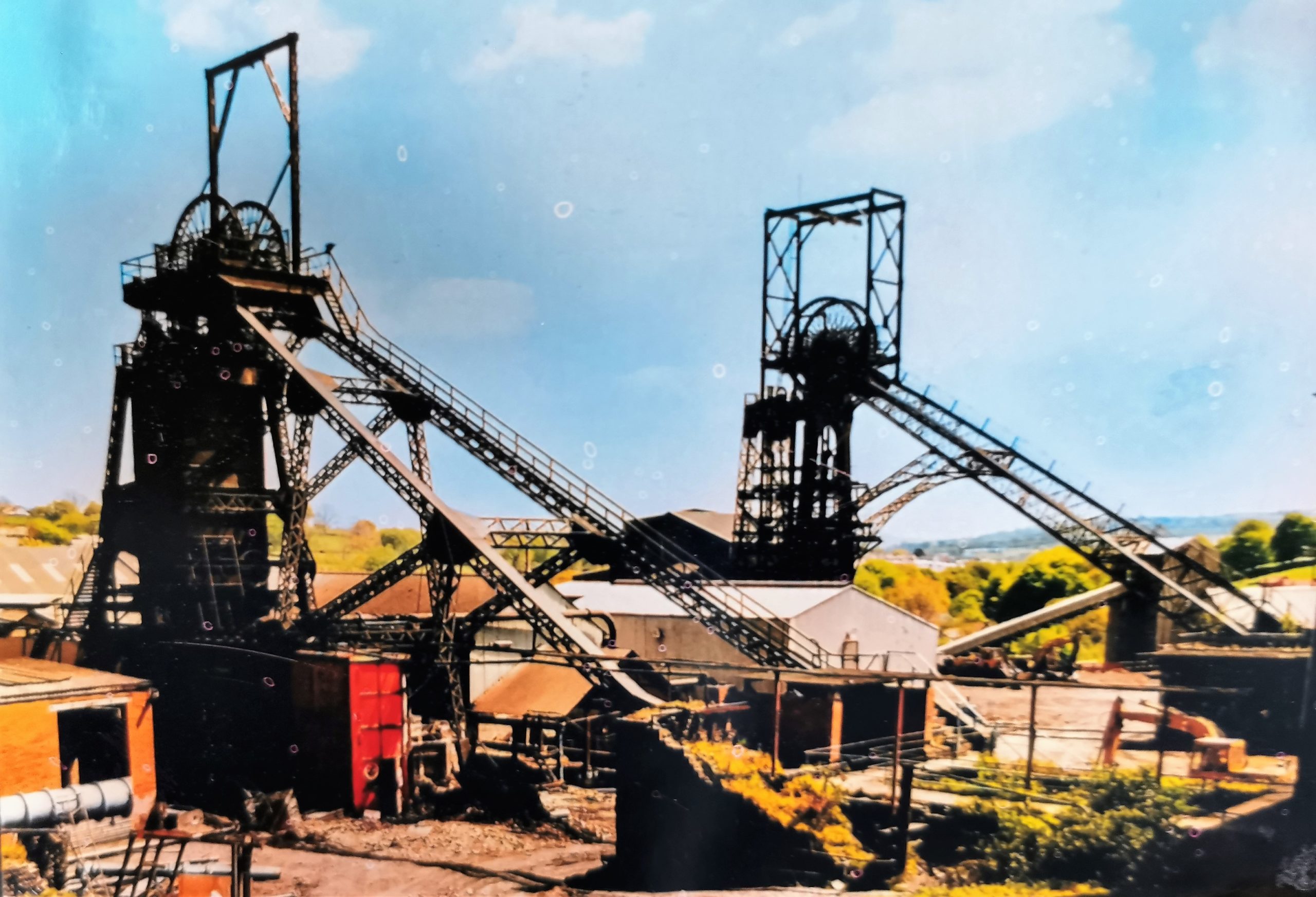

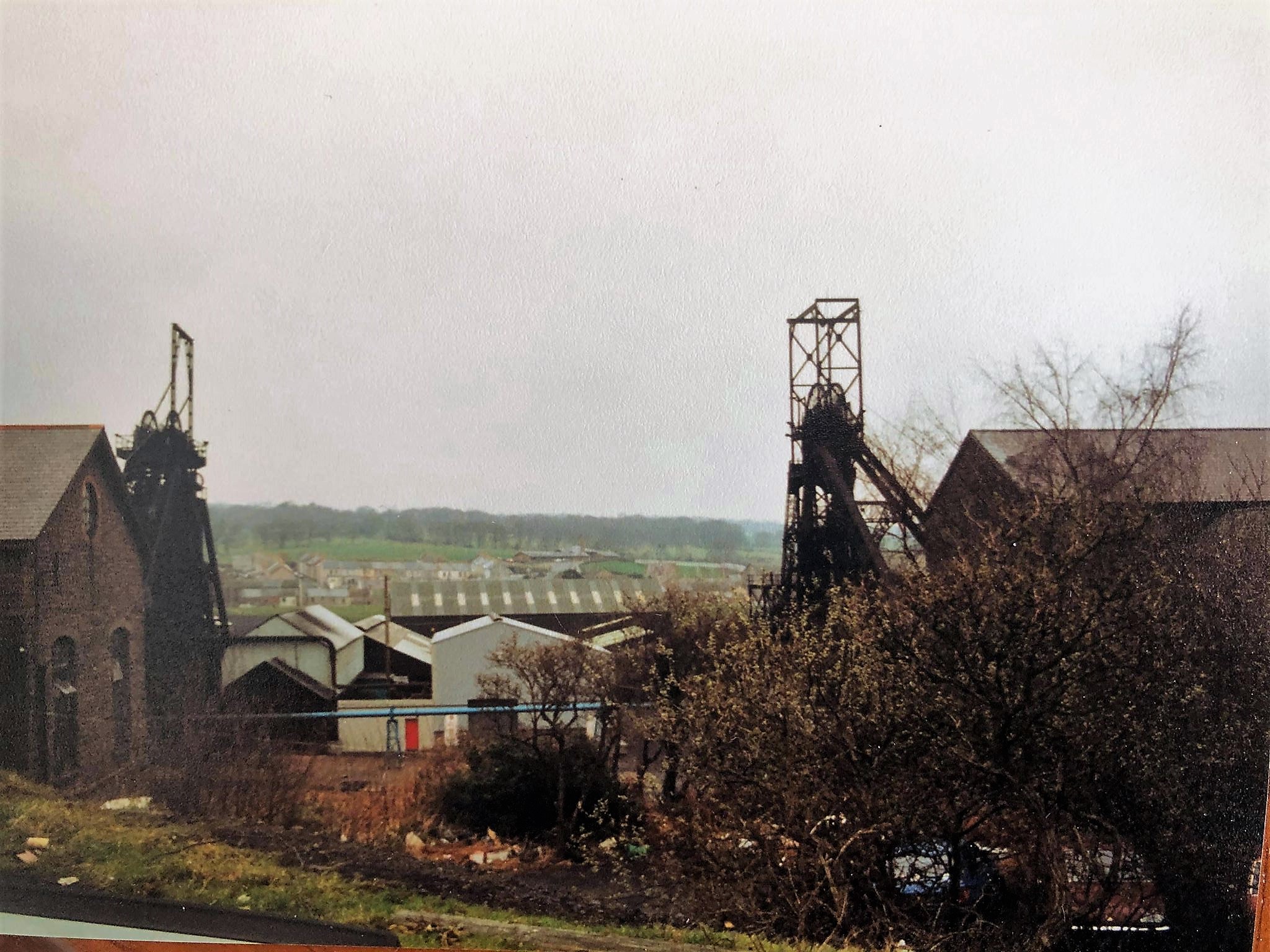

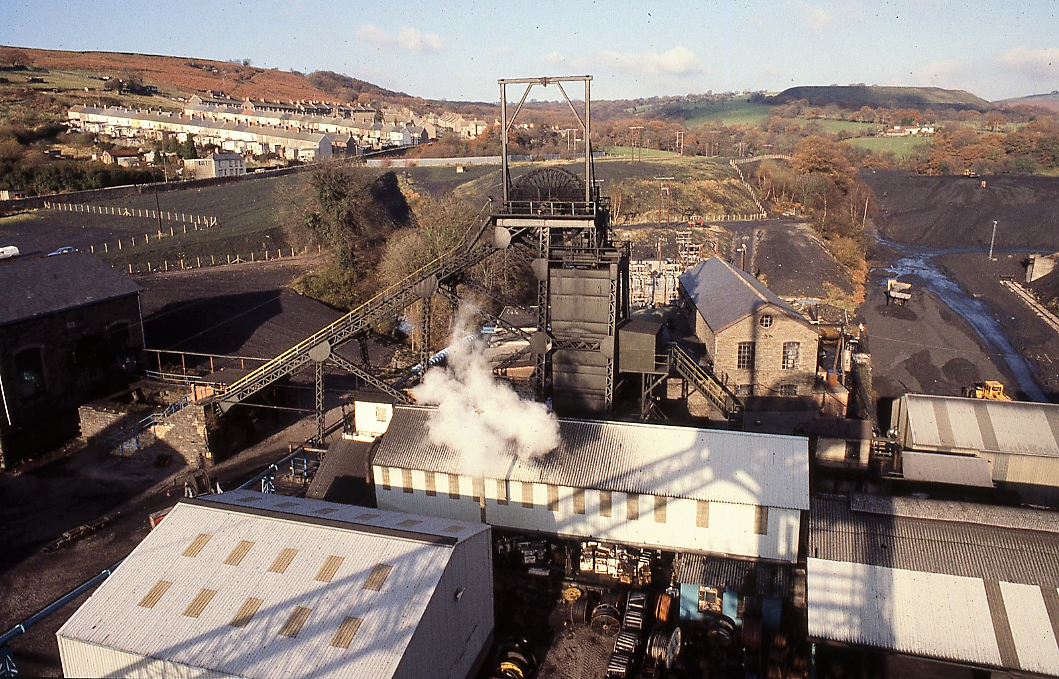

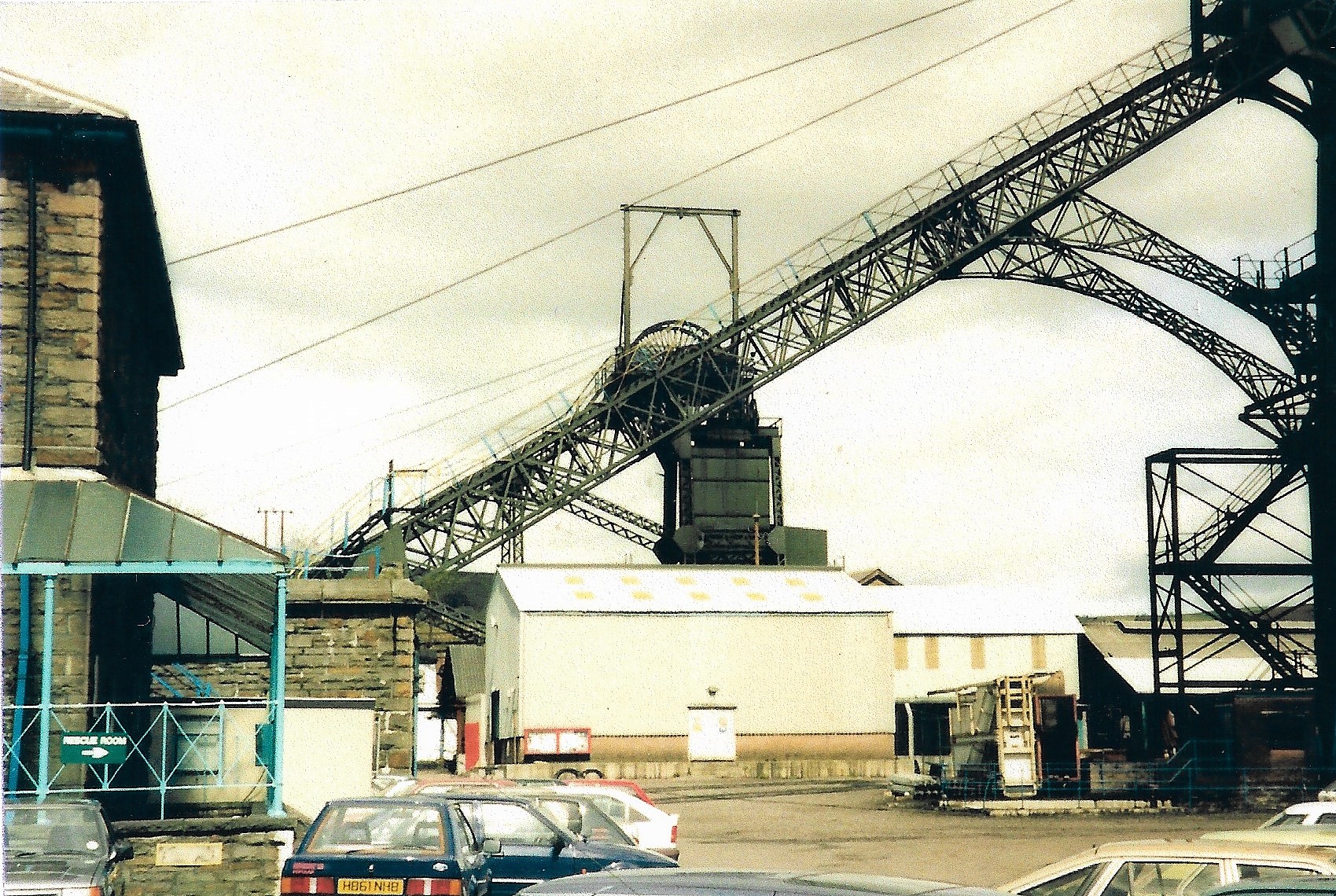

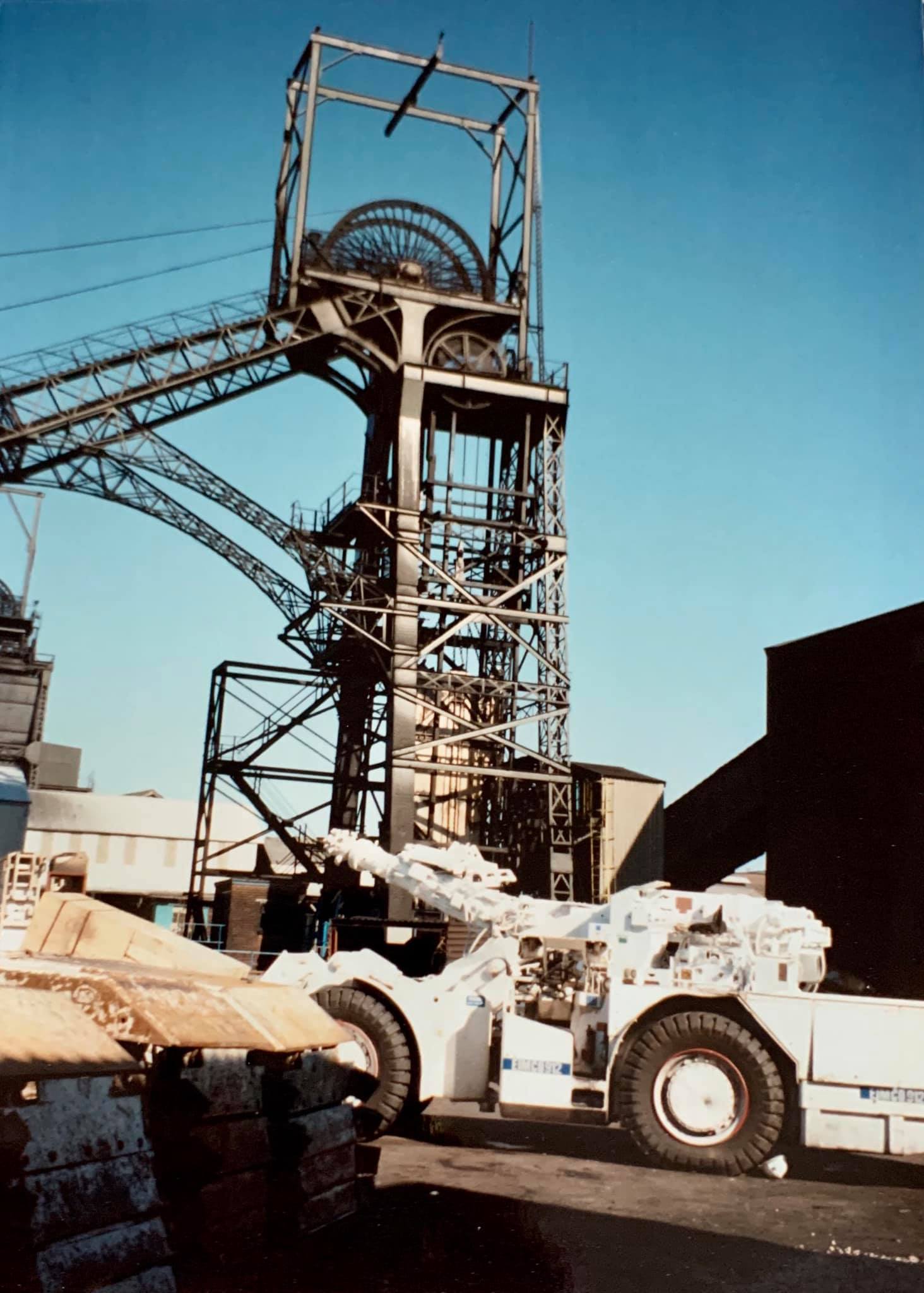

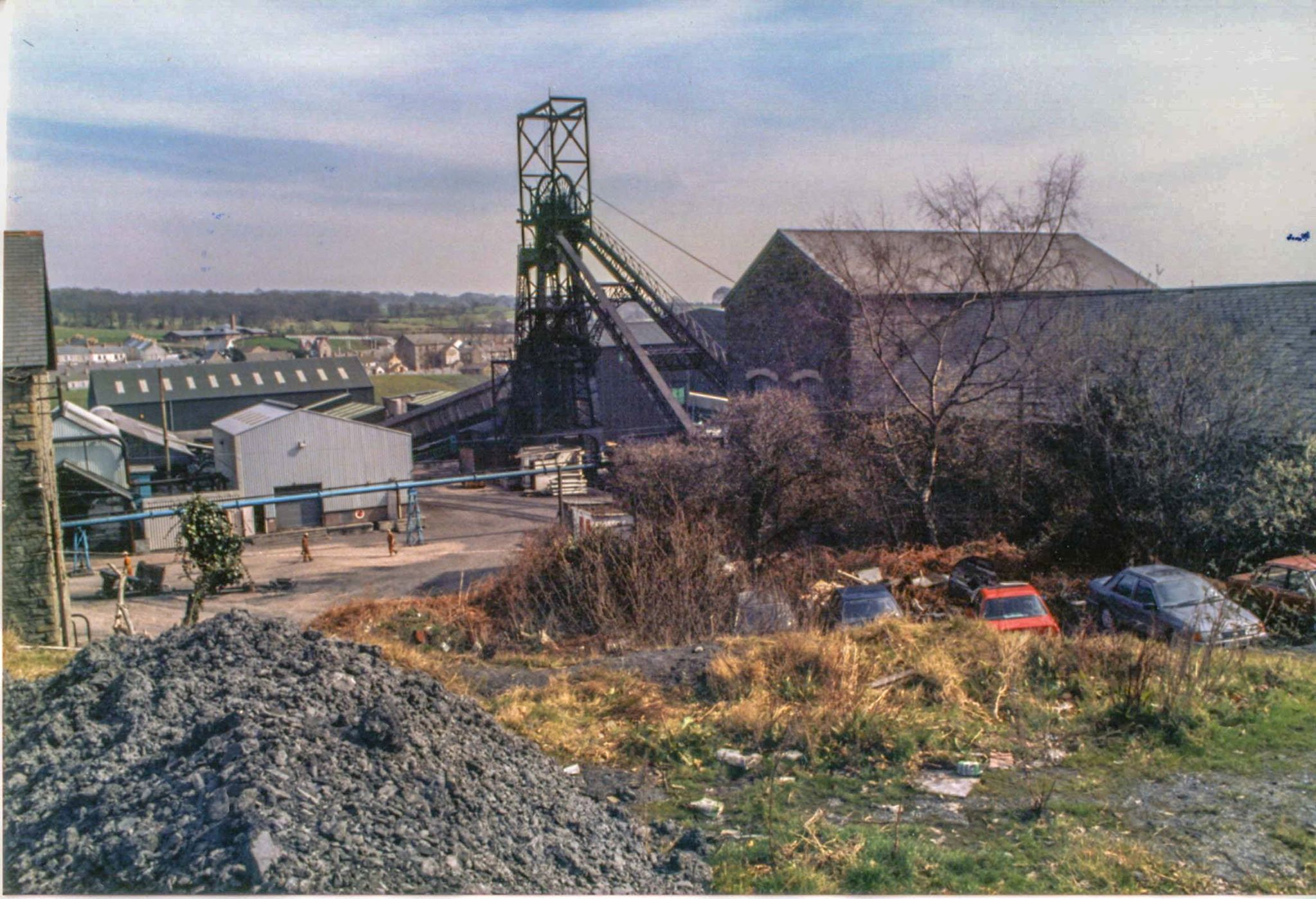

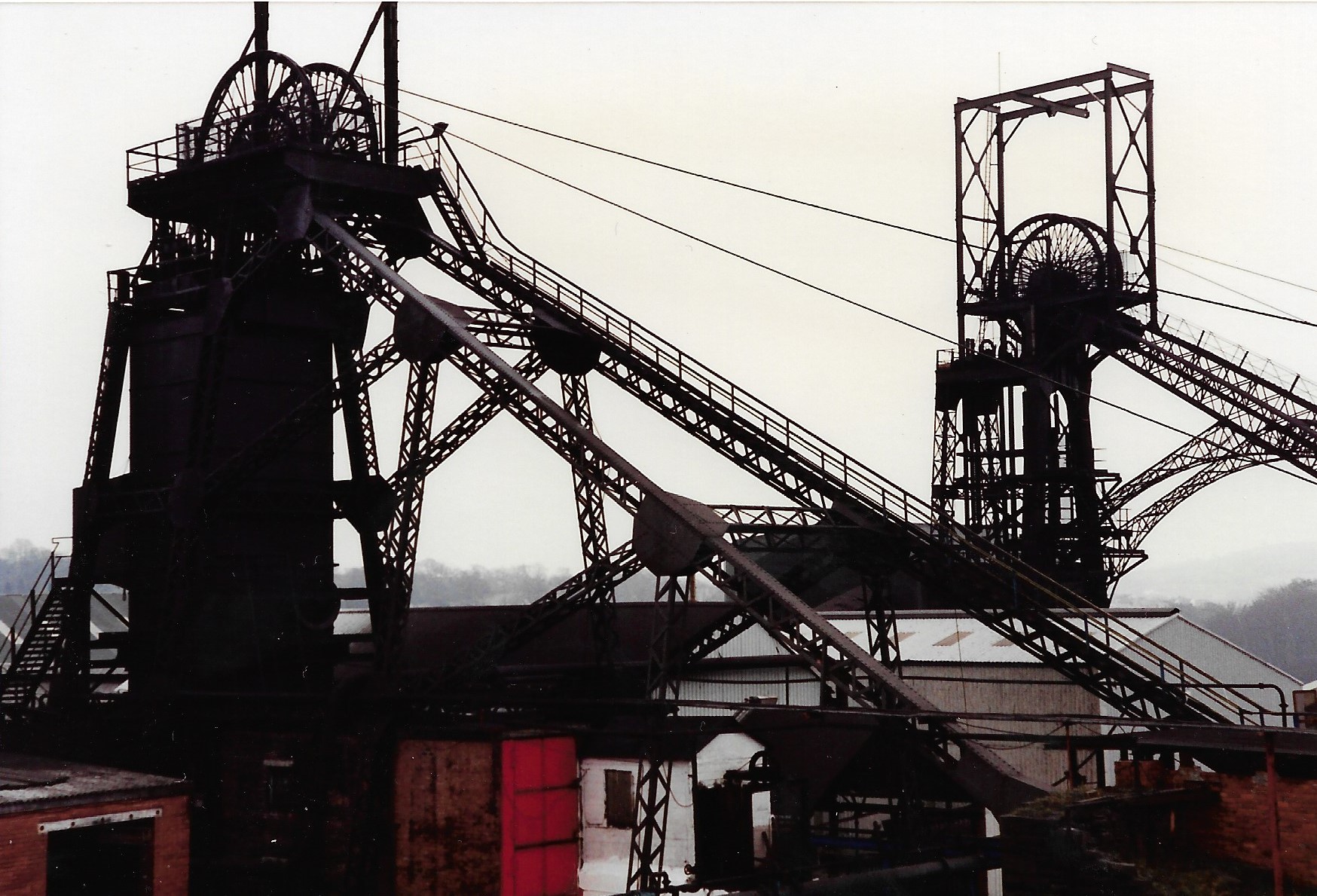

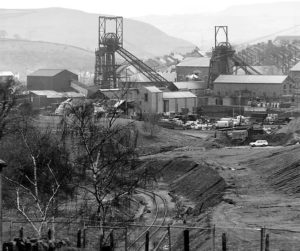

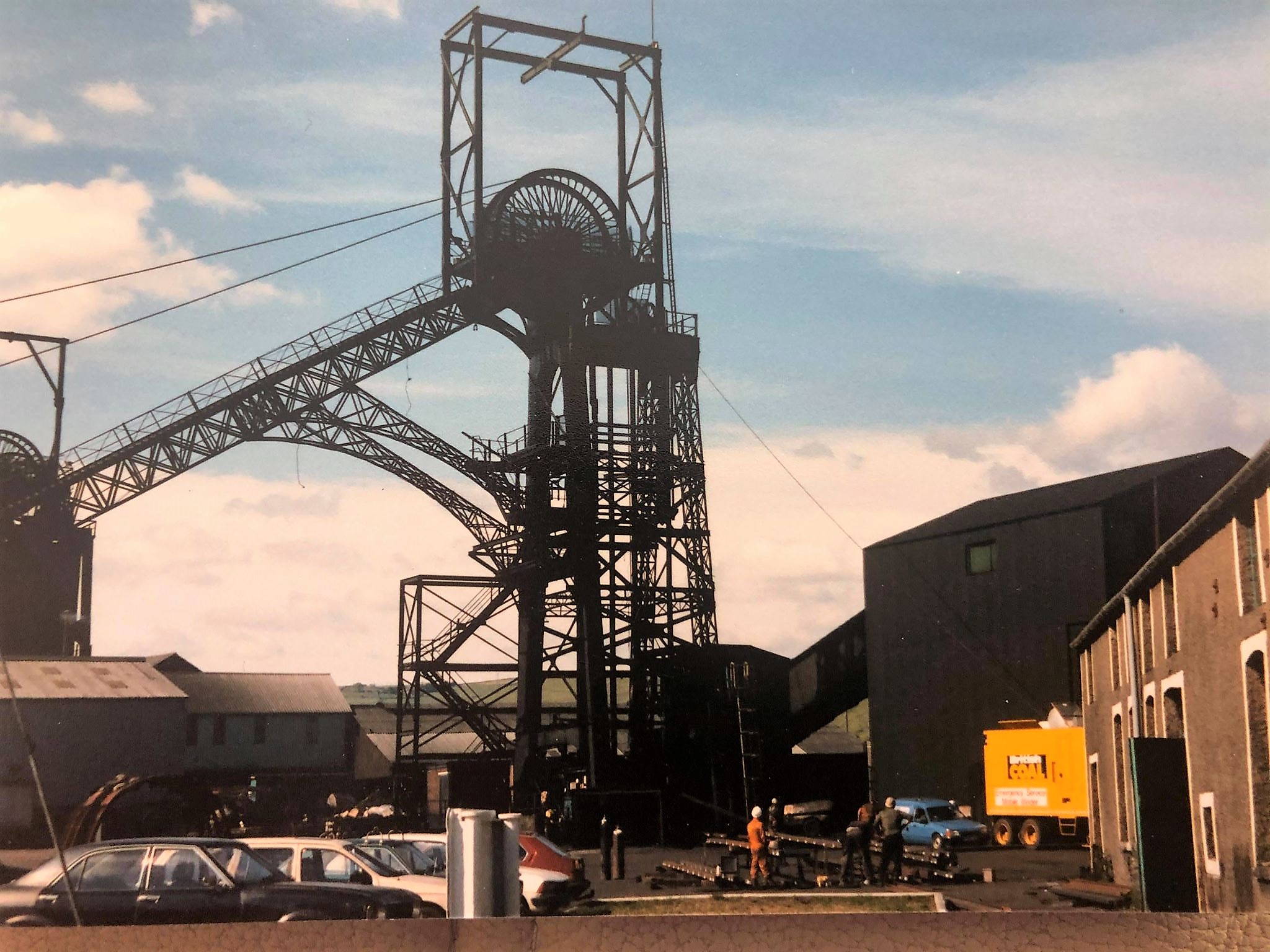

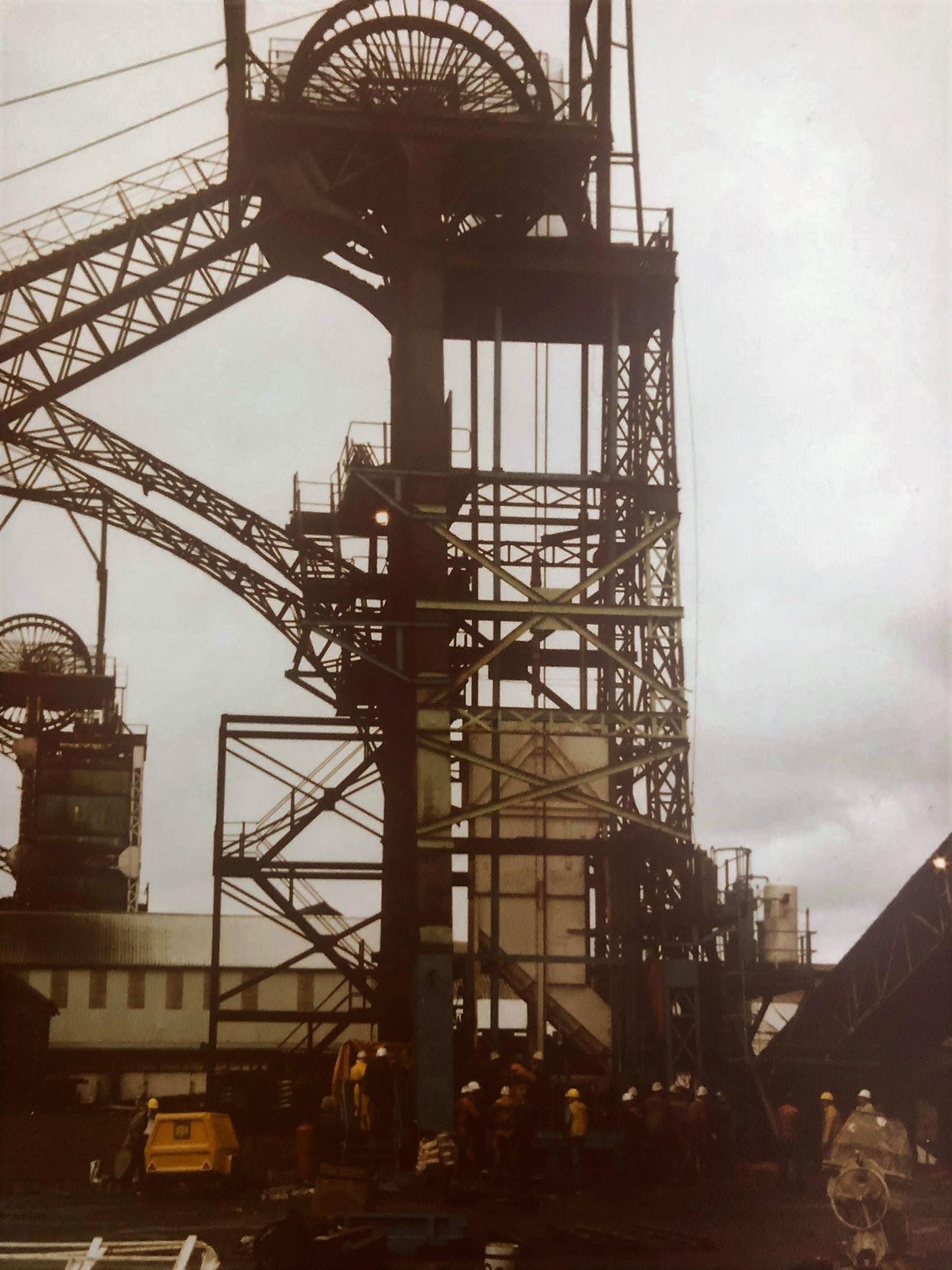

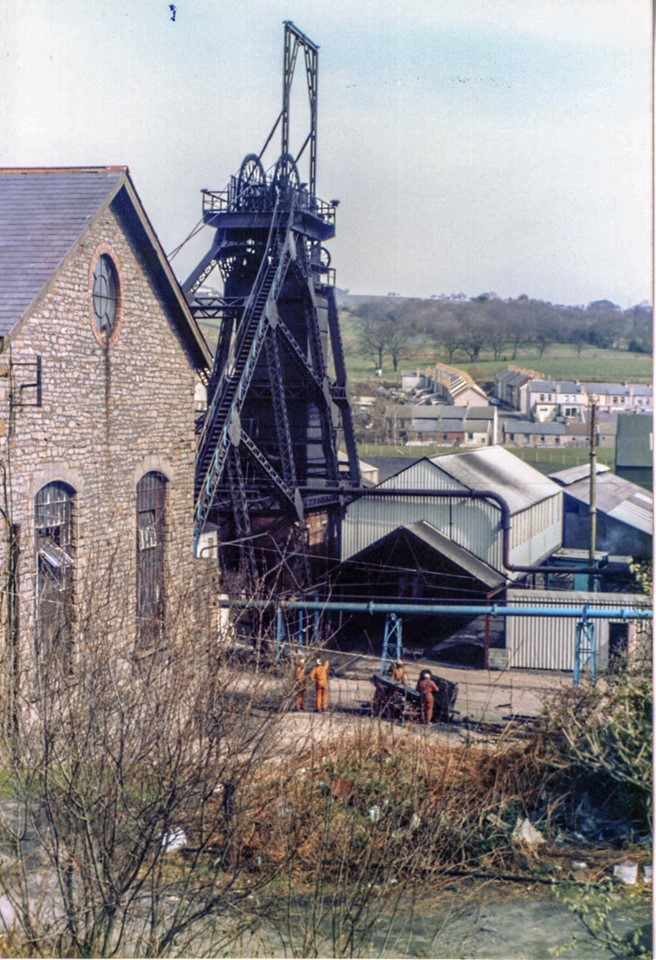

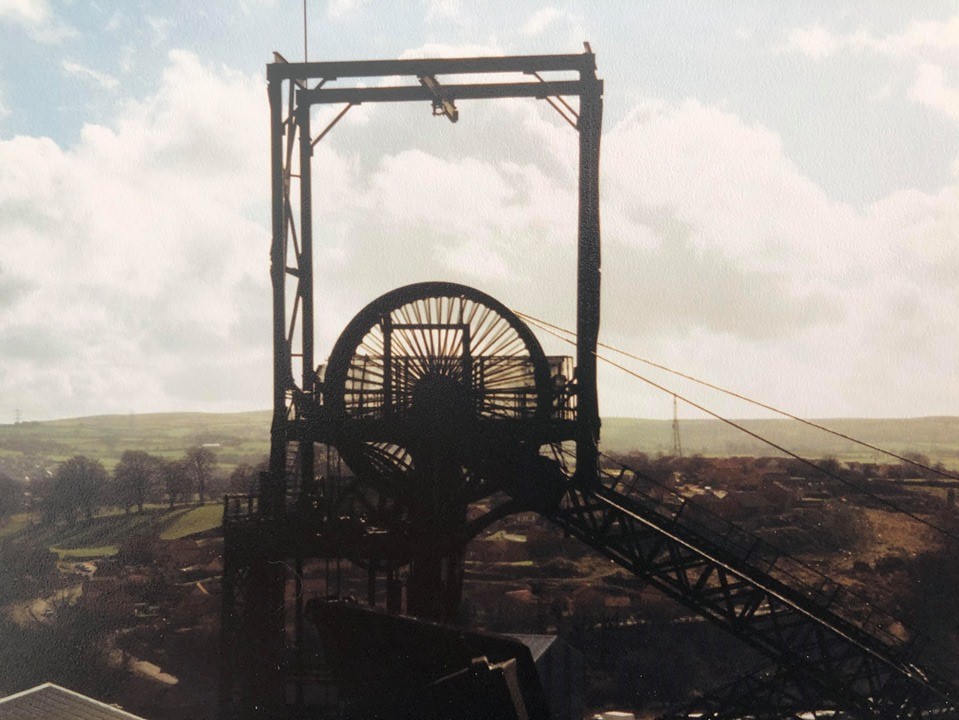

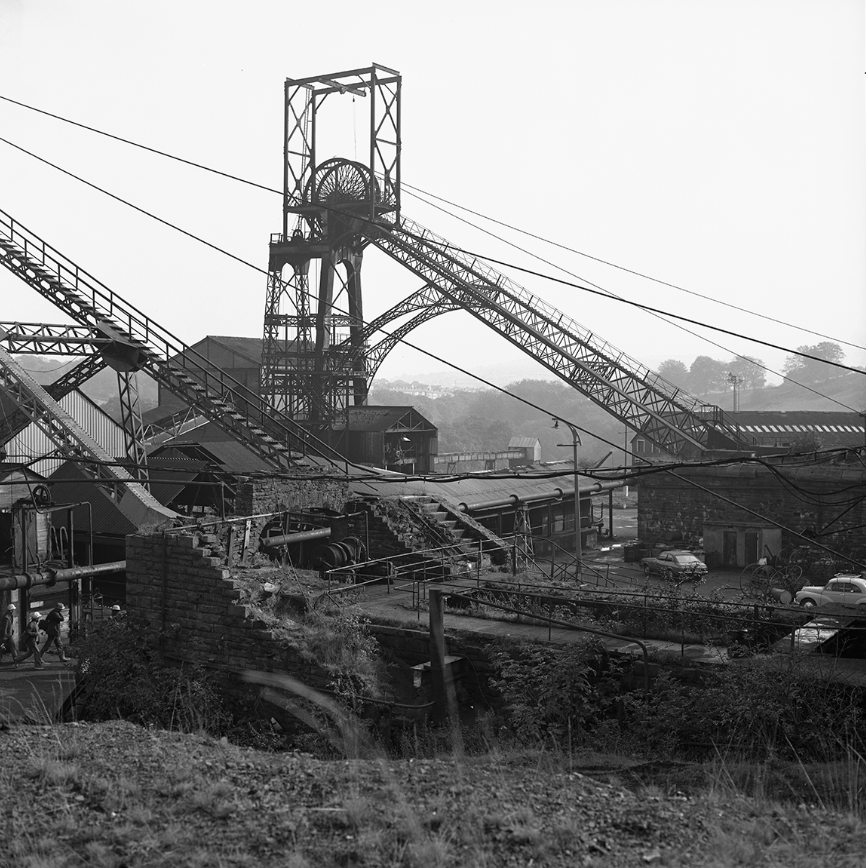

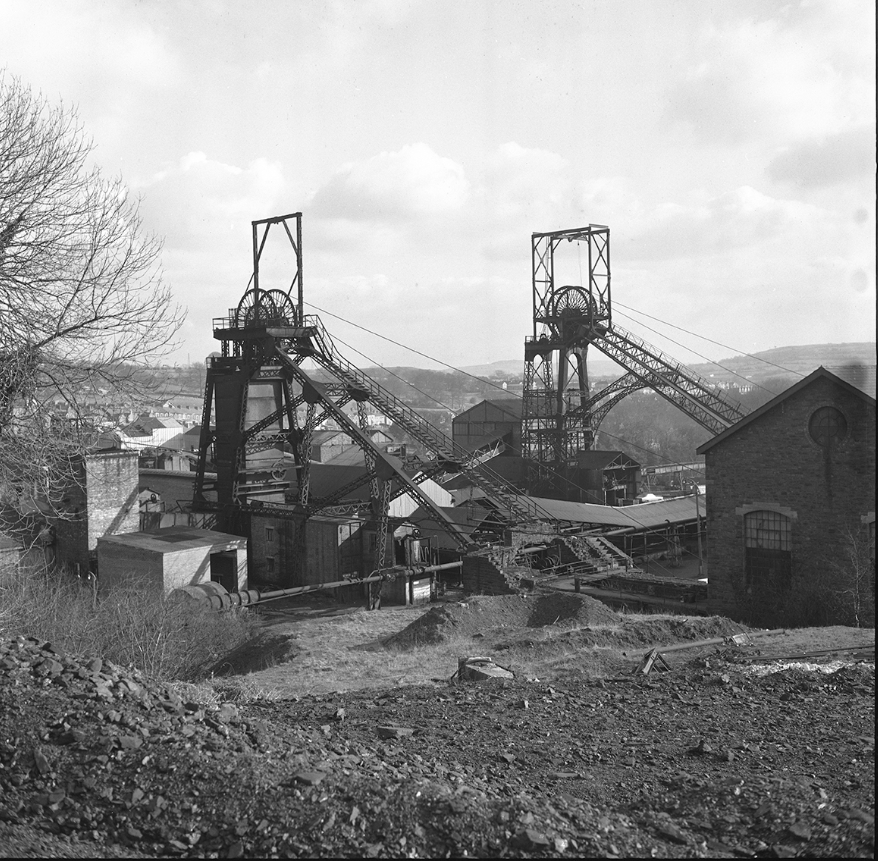

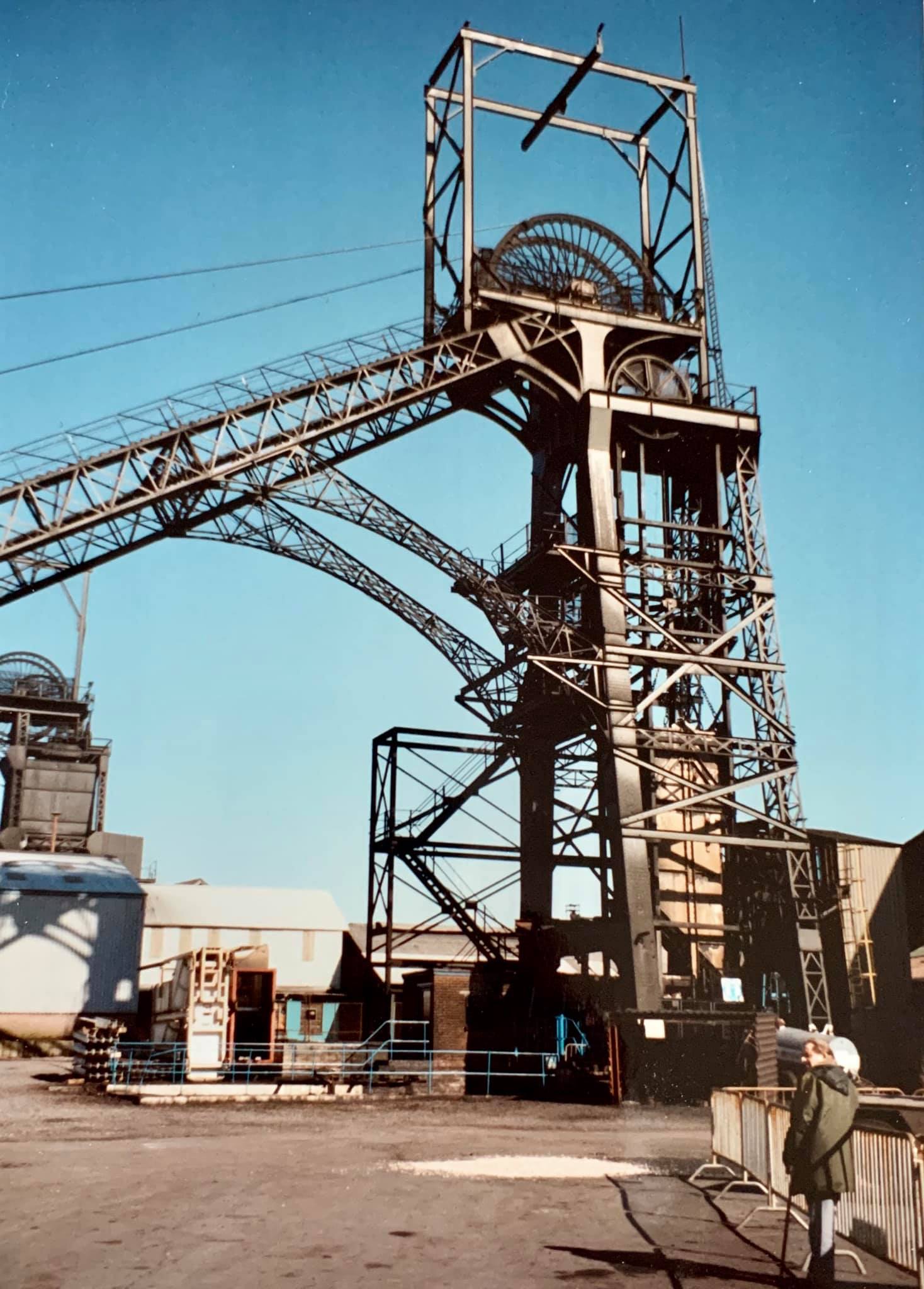

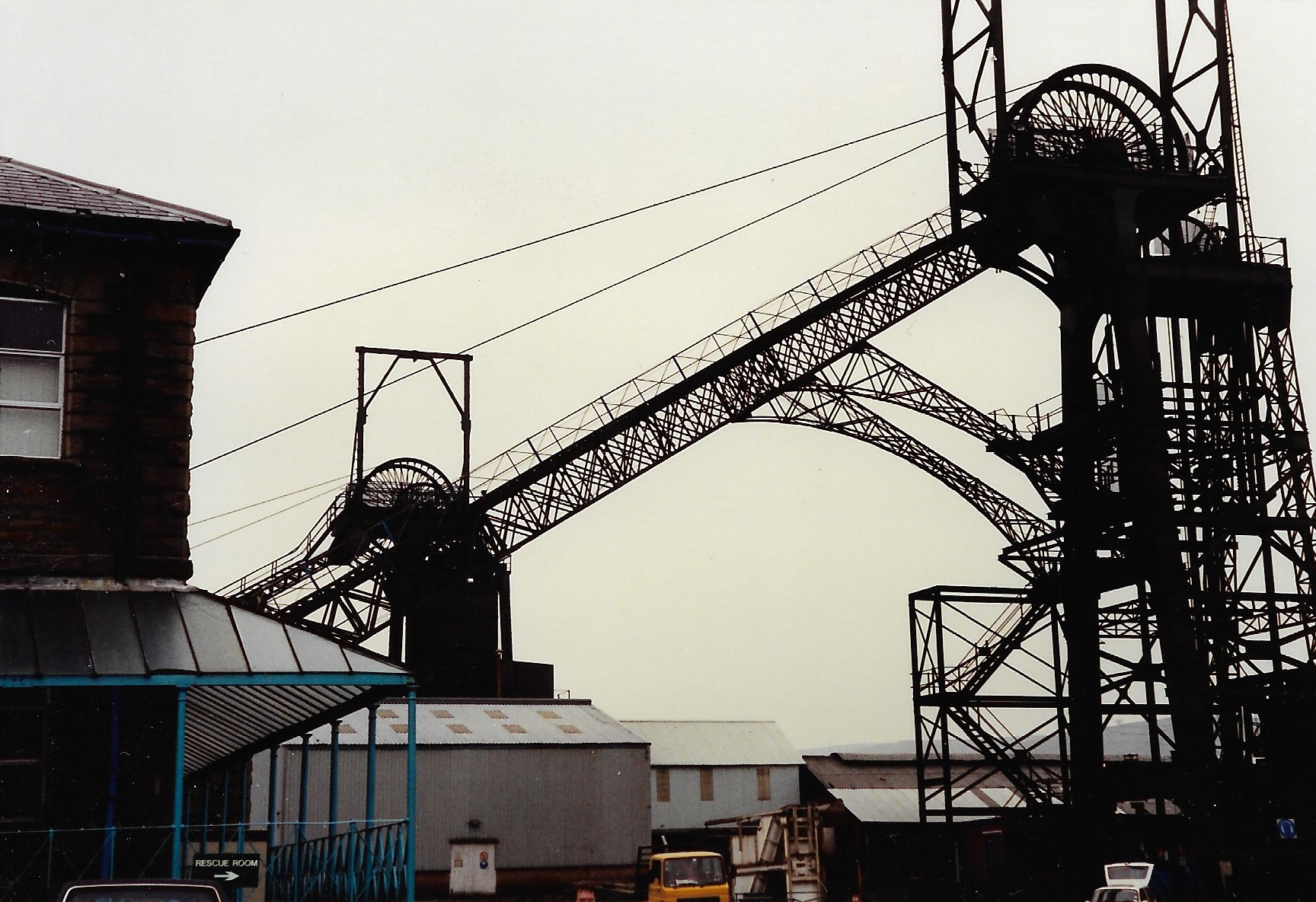

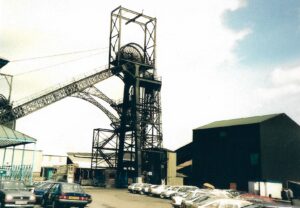

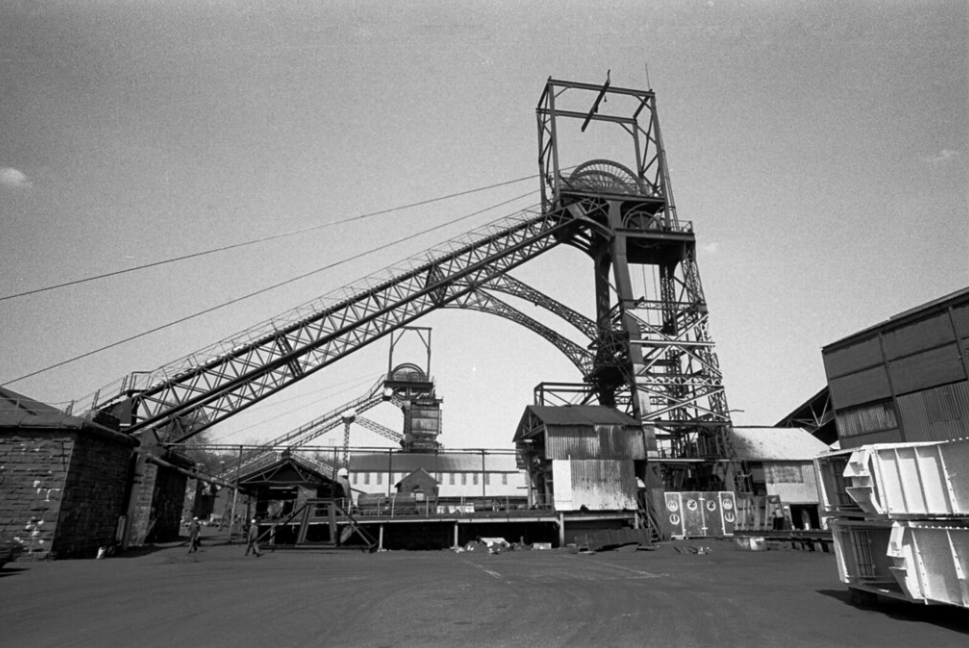

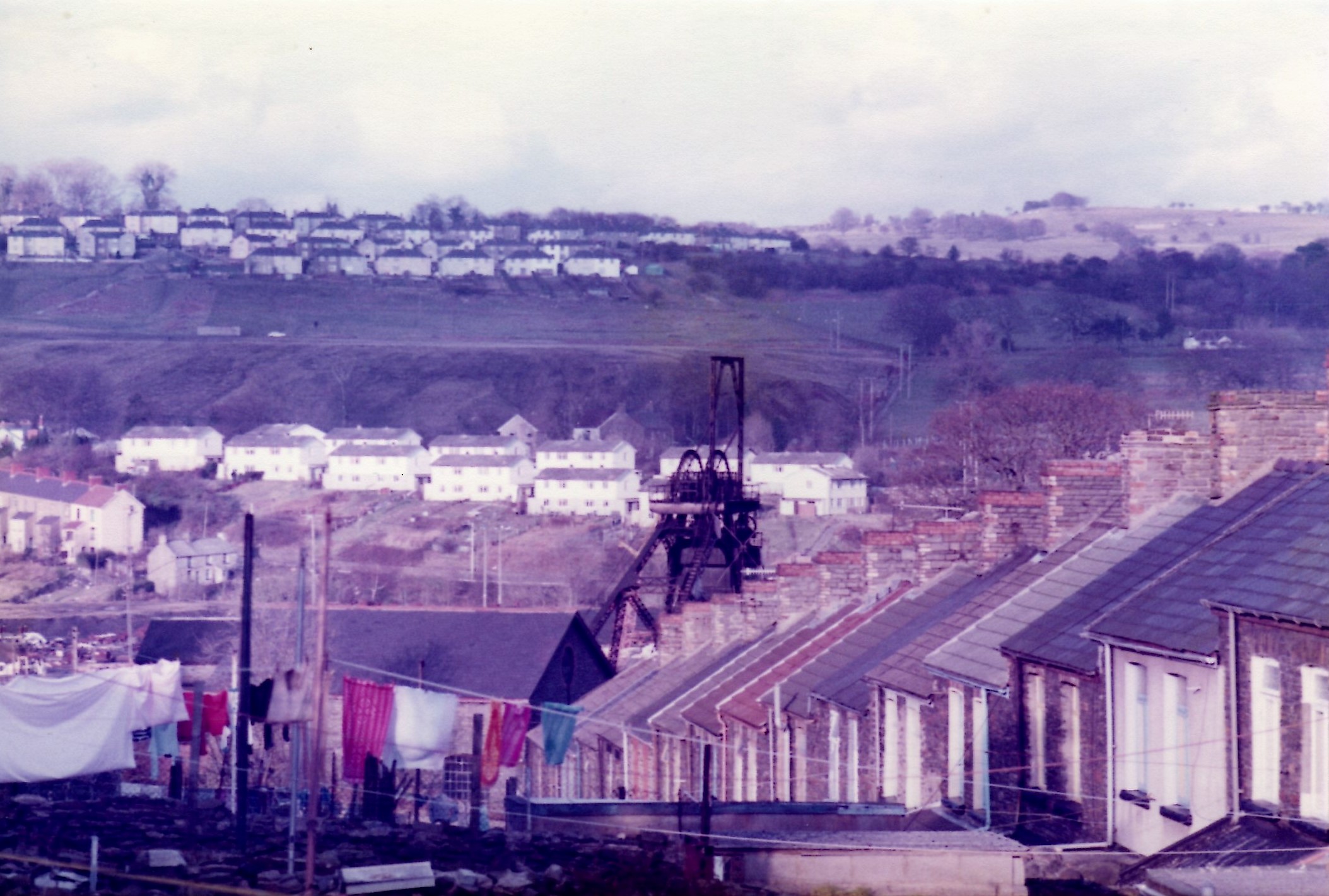

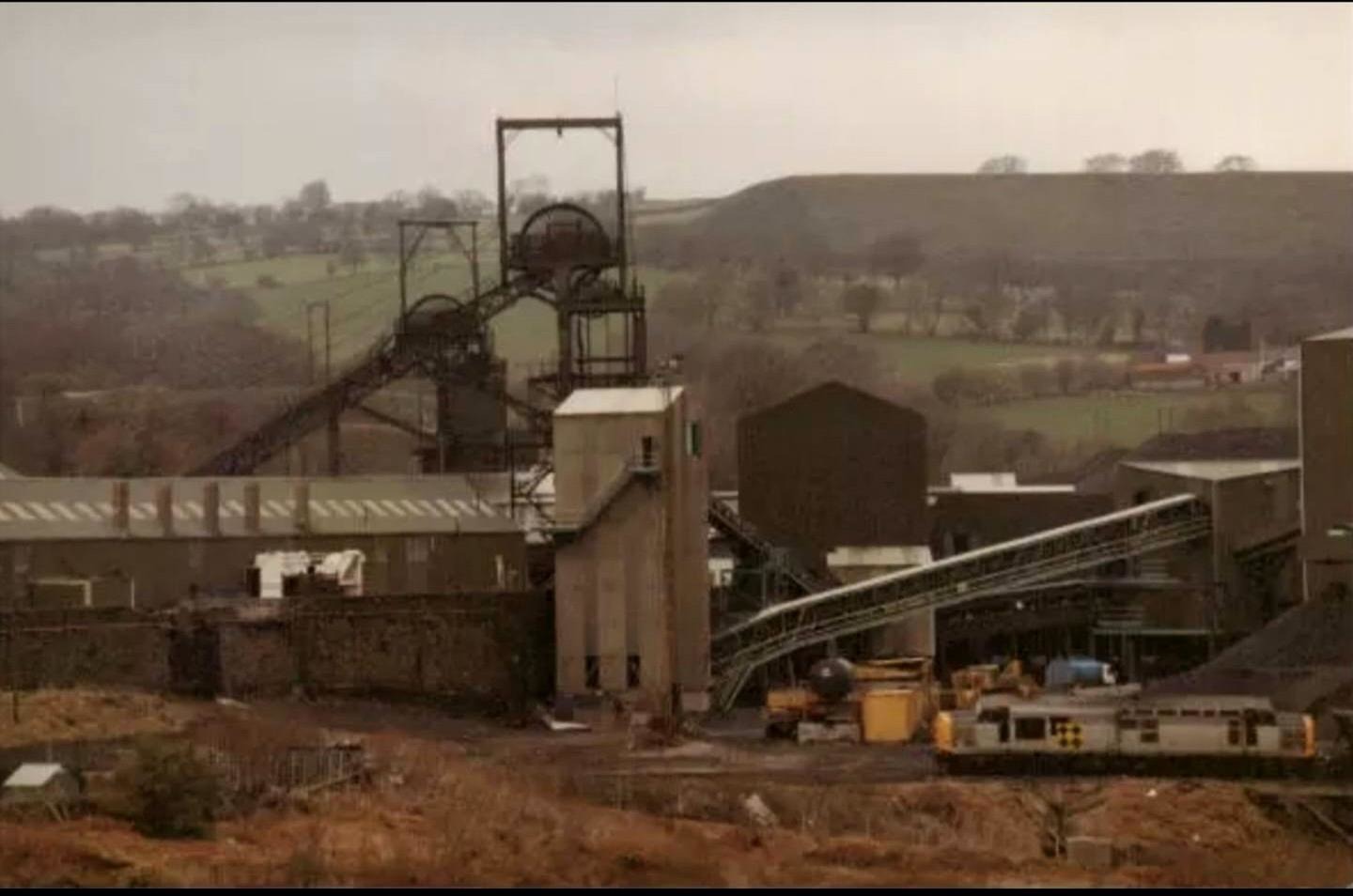

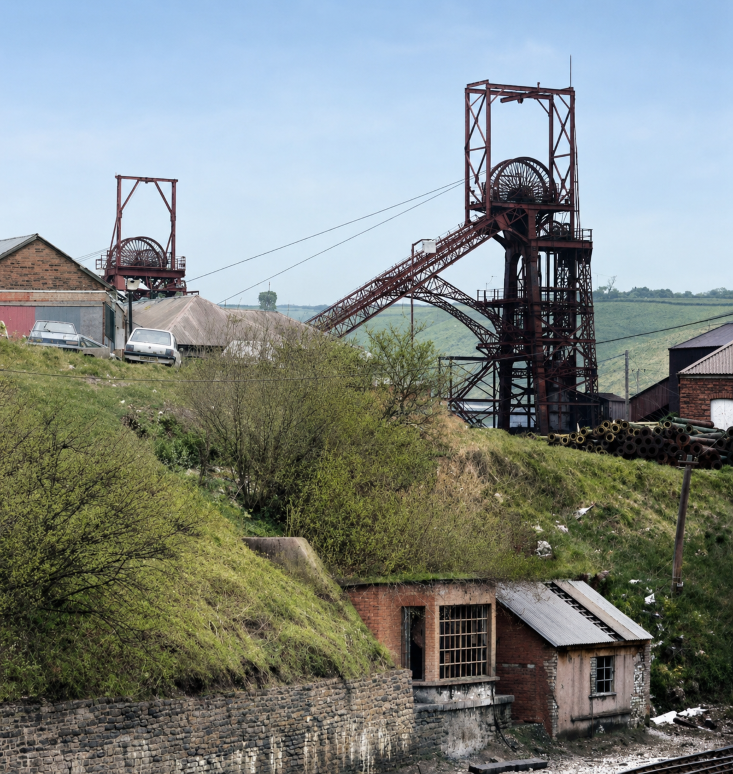

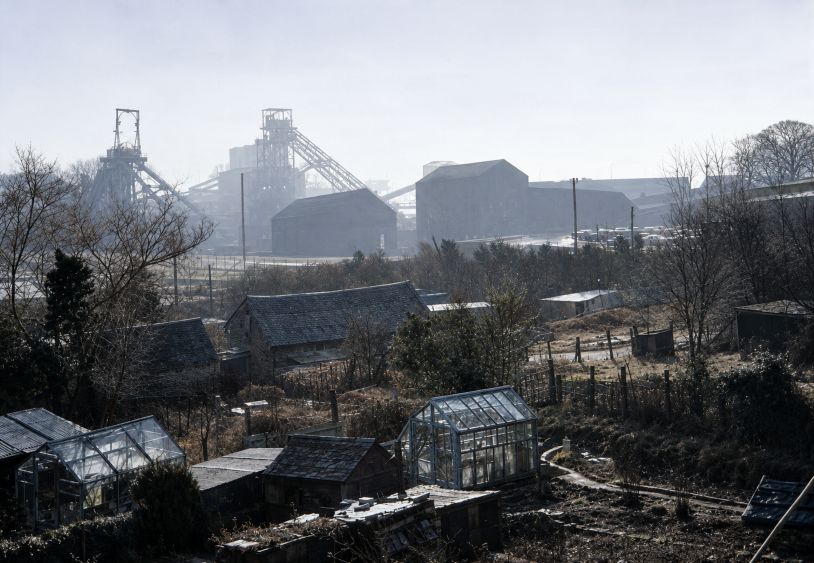

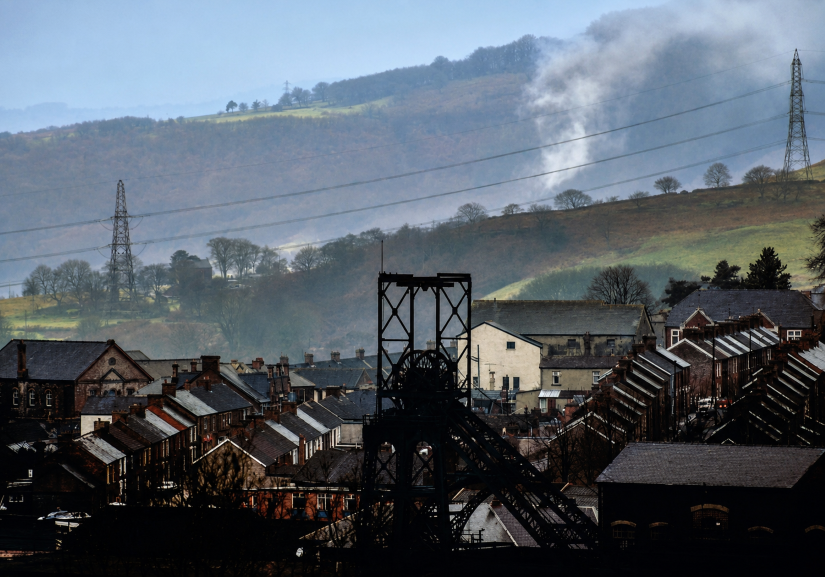

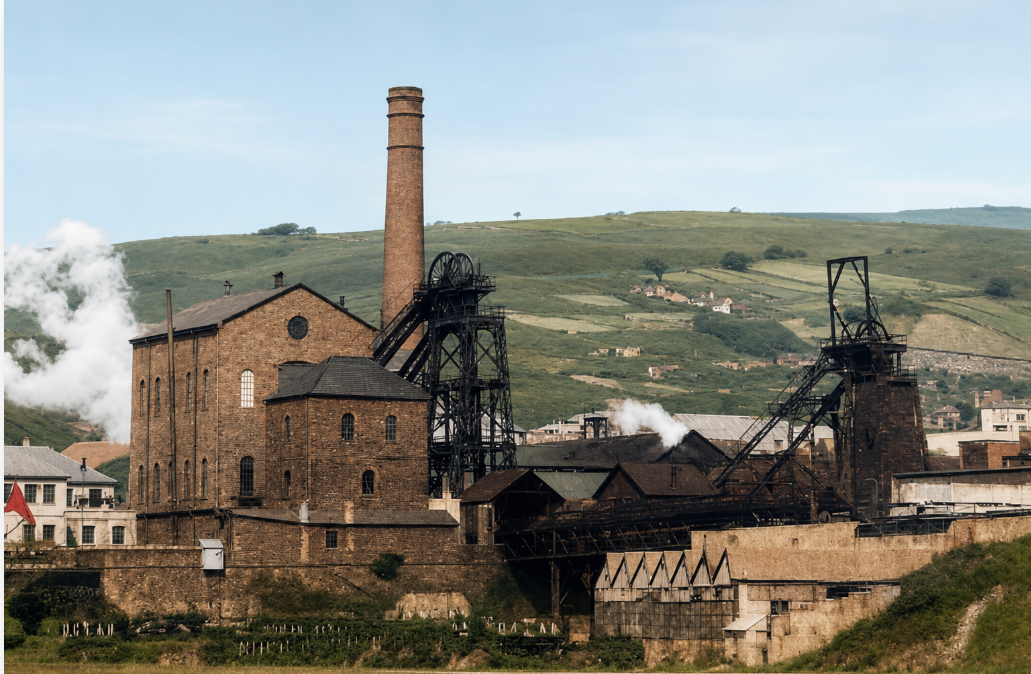

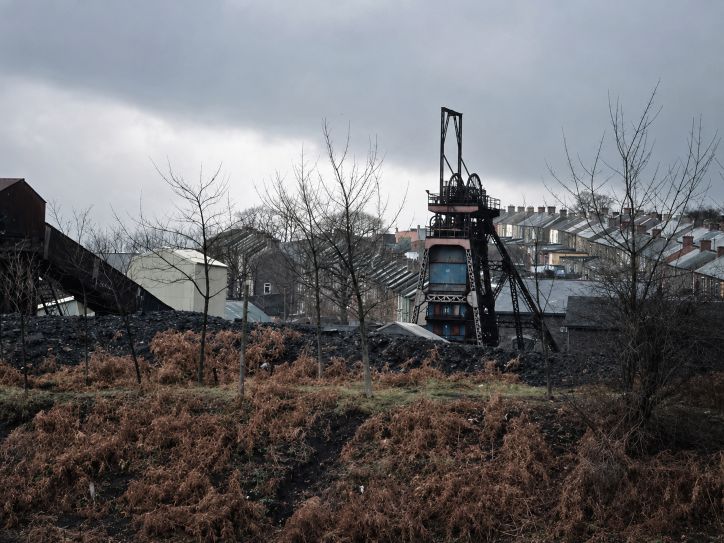

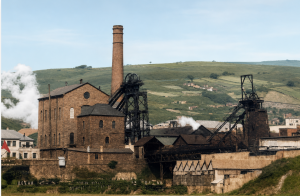

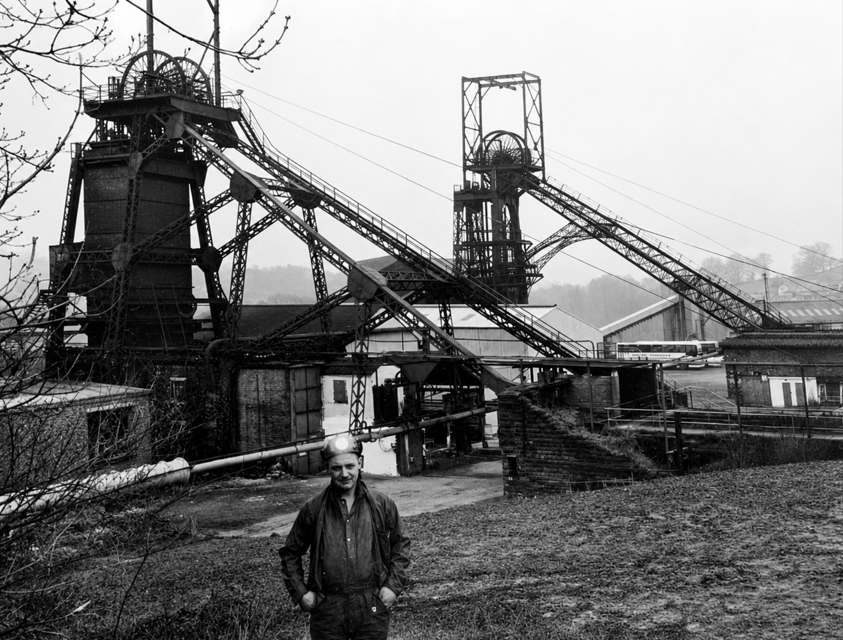

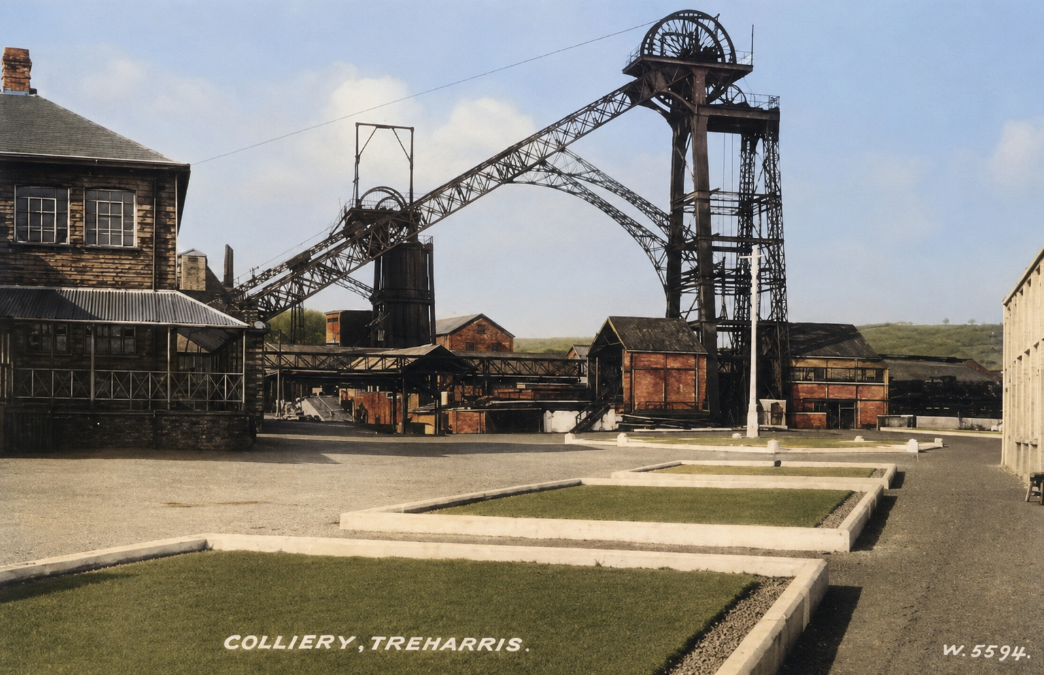

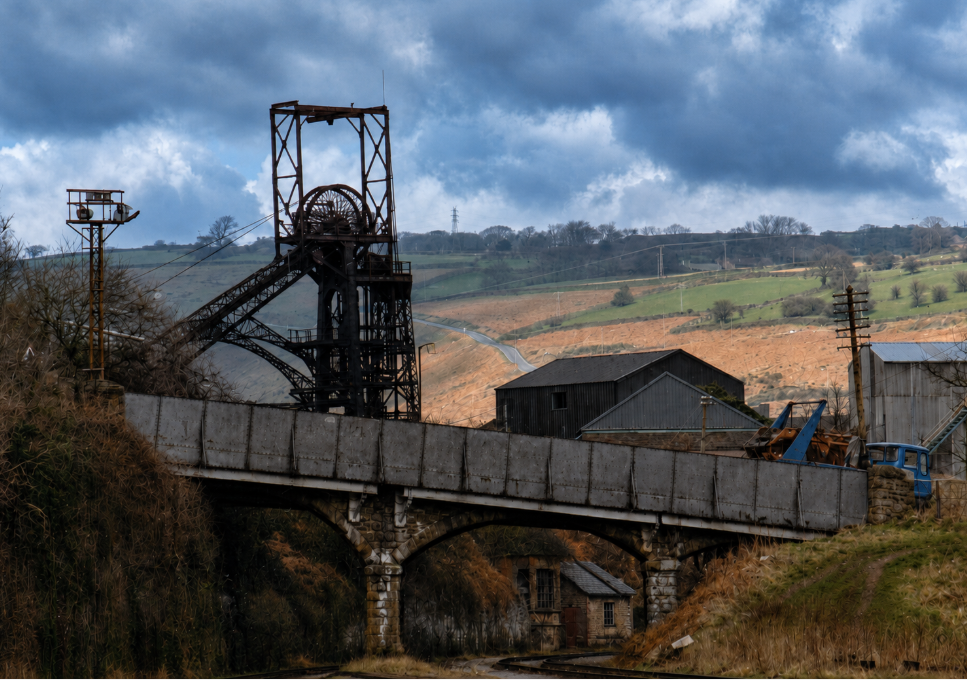

The famous Deep Navigation head gear

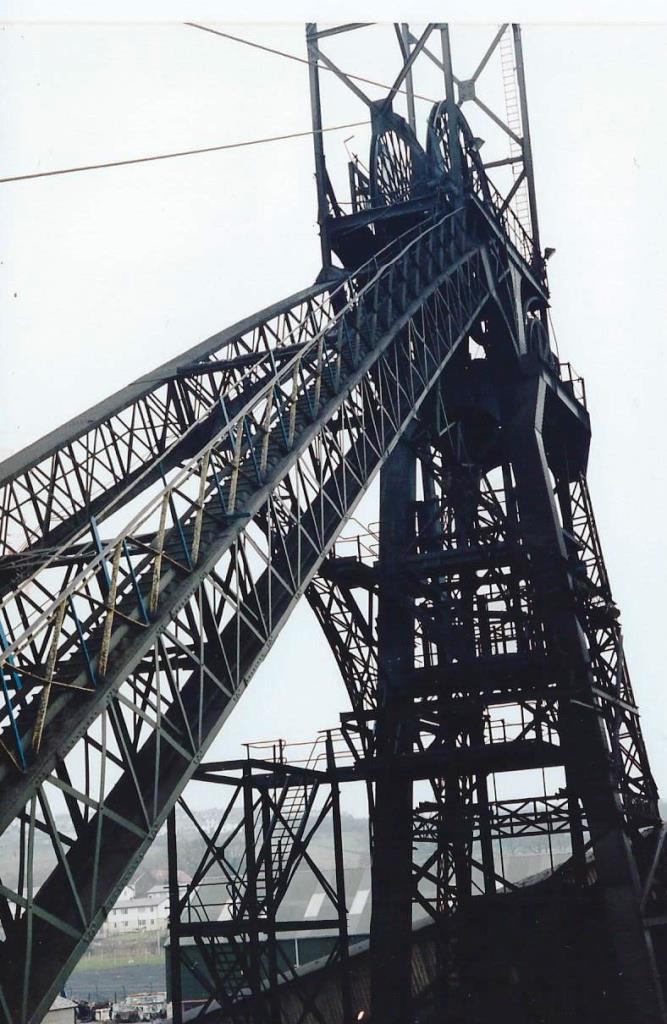

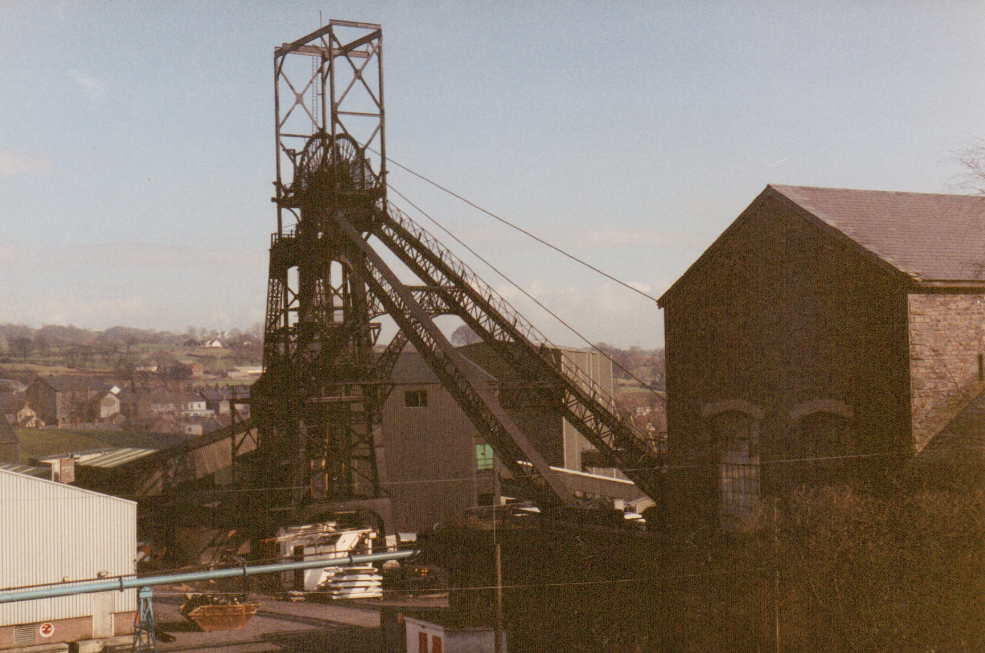

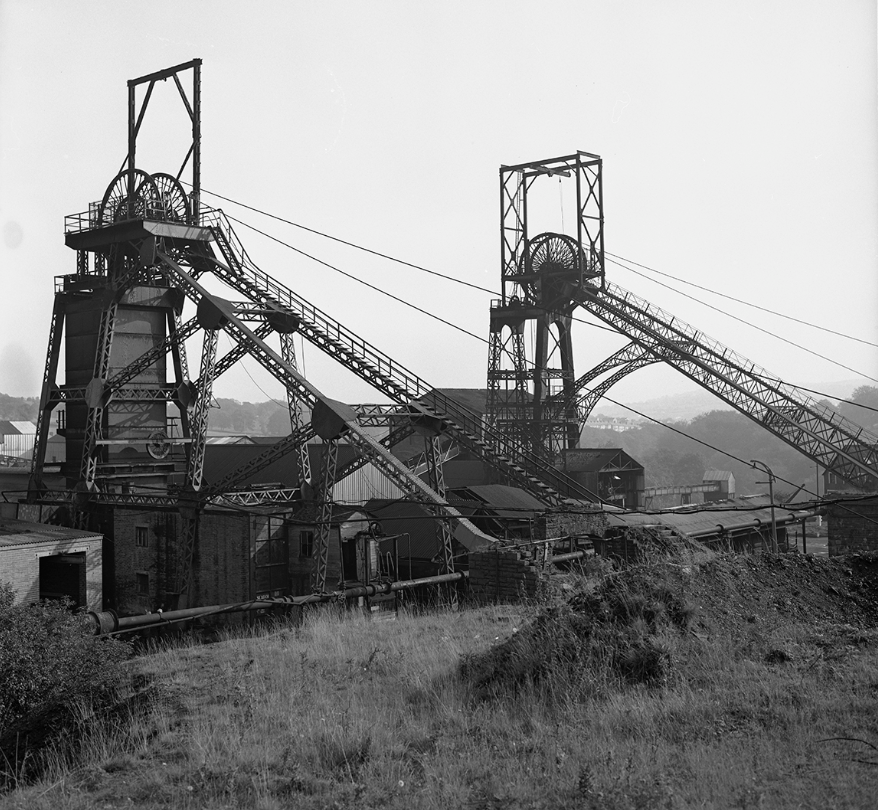

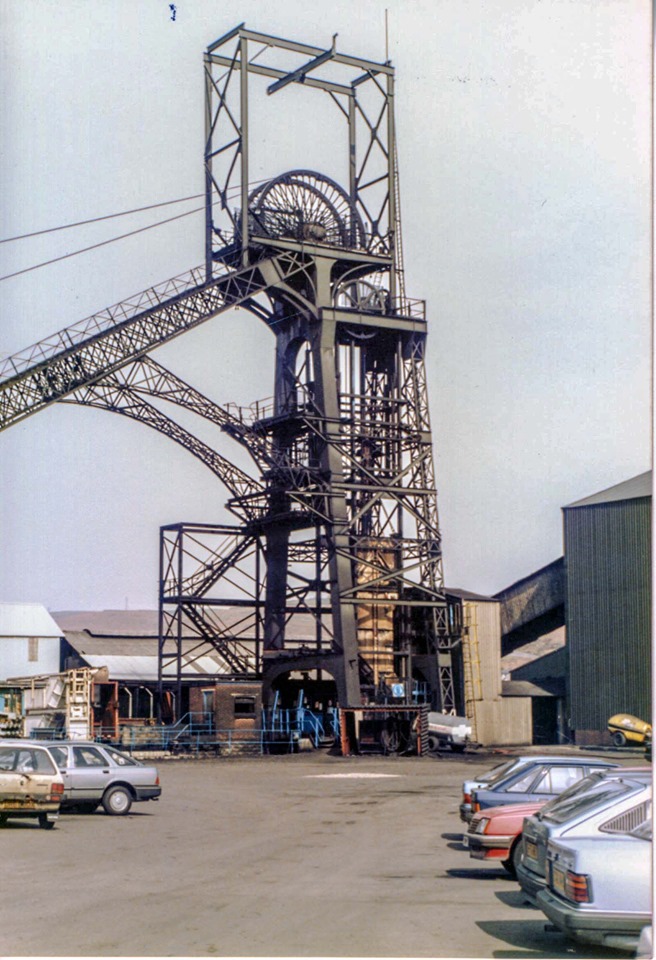

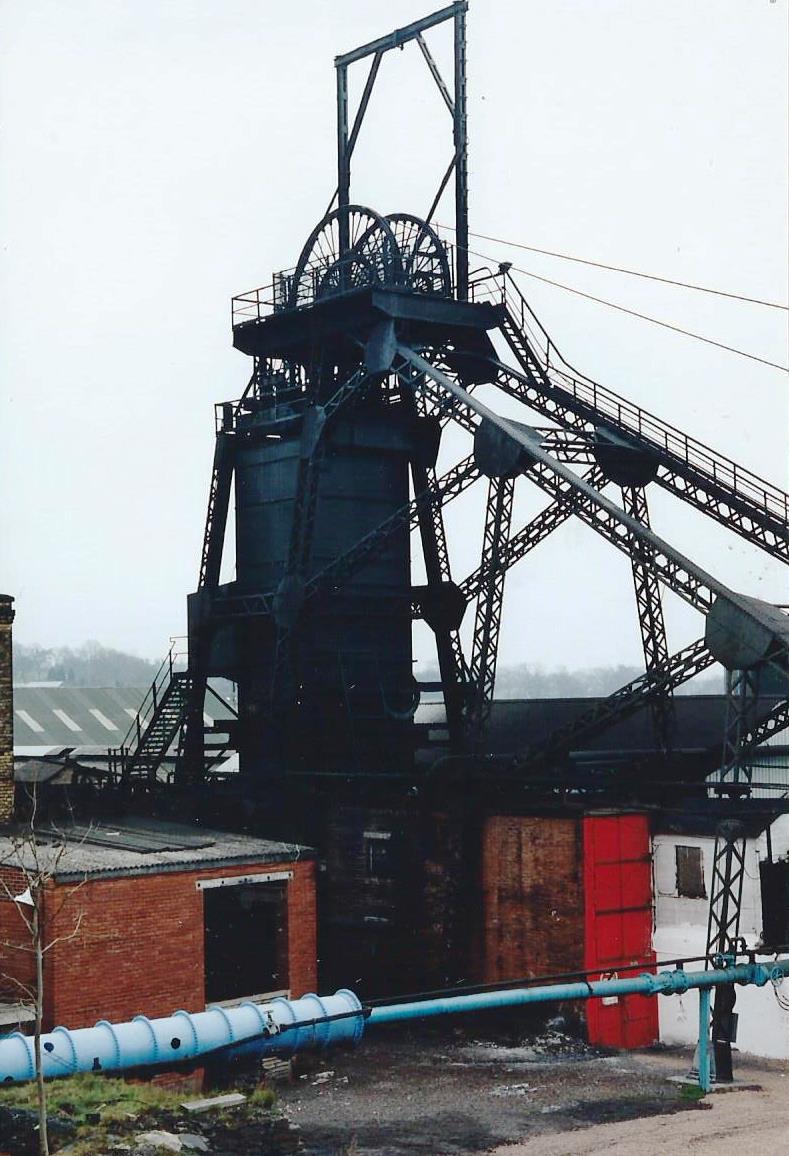

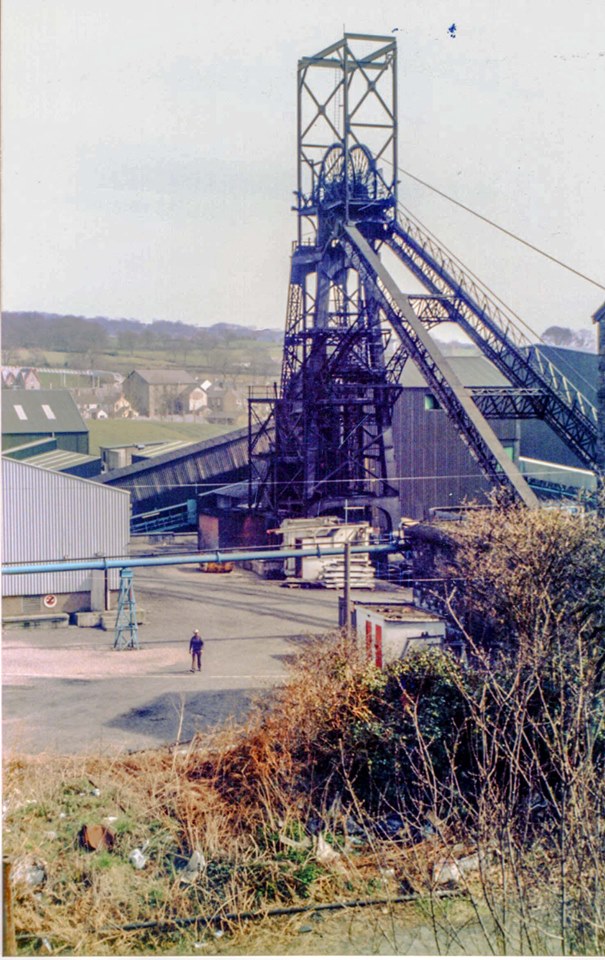

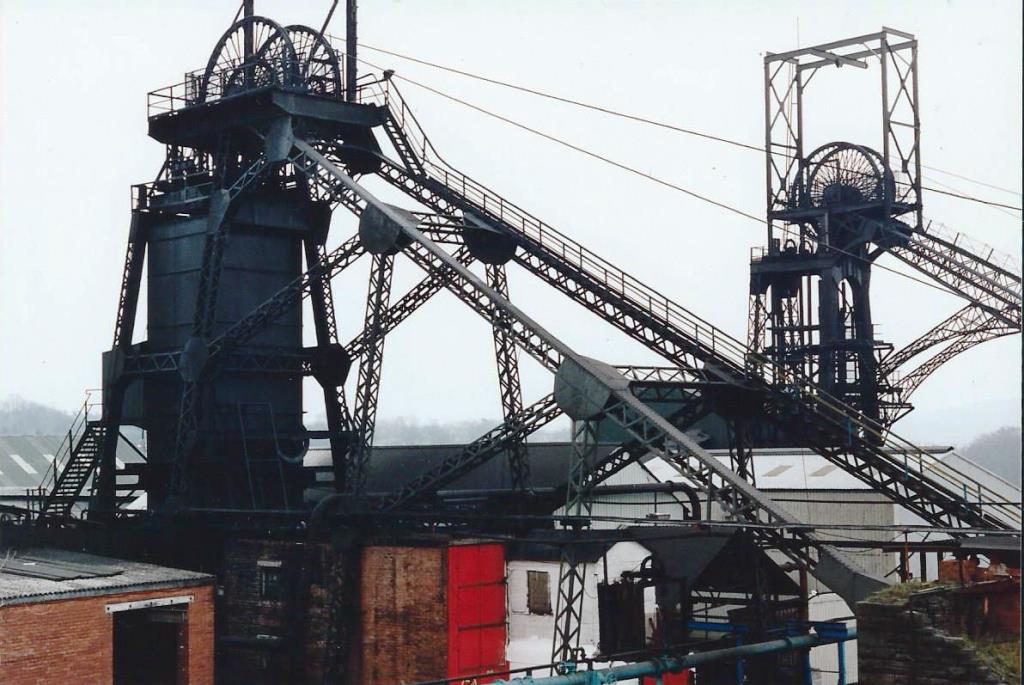

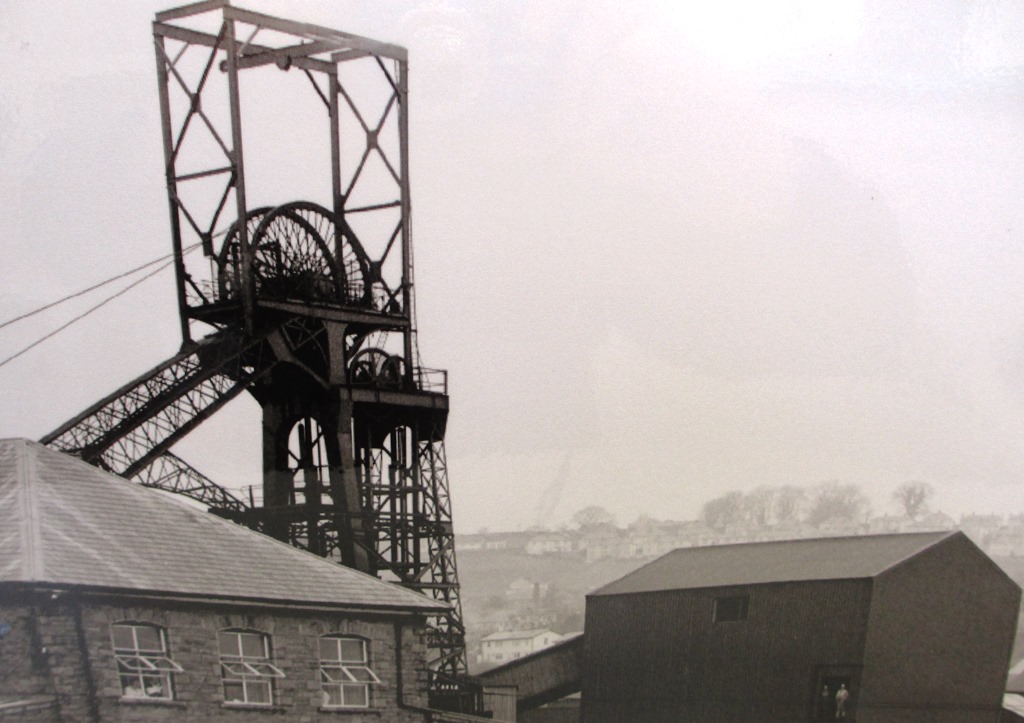

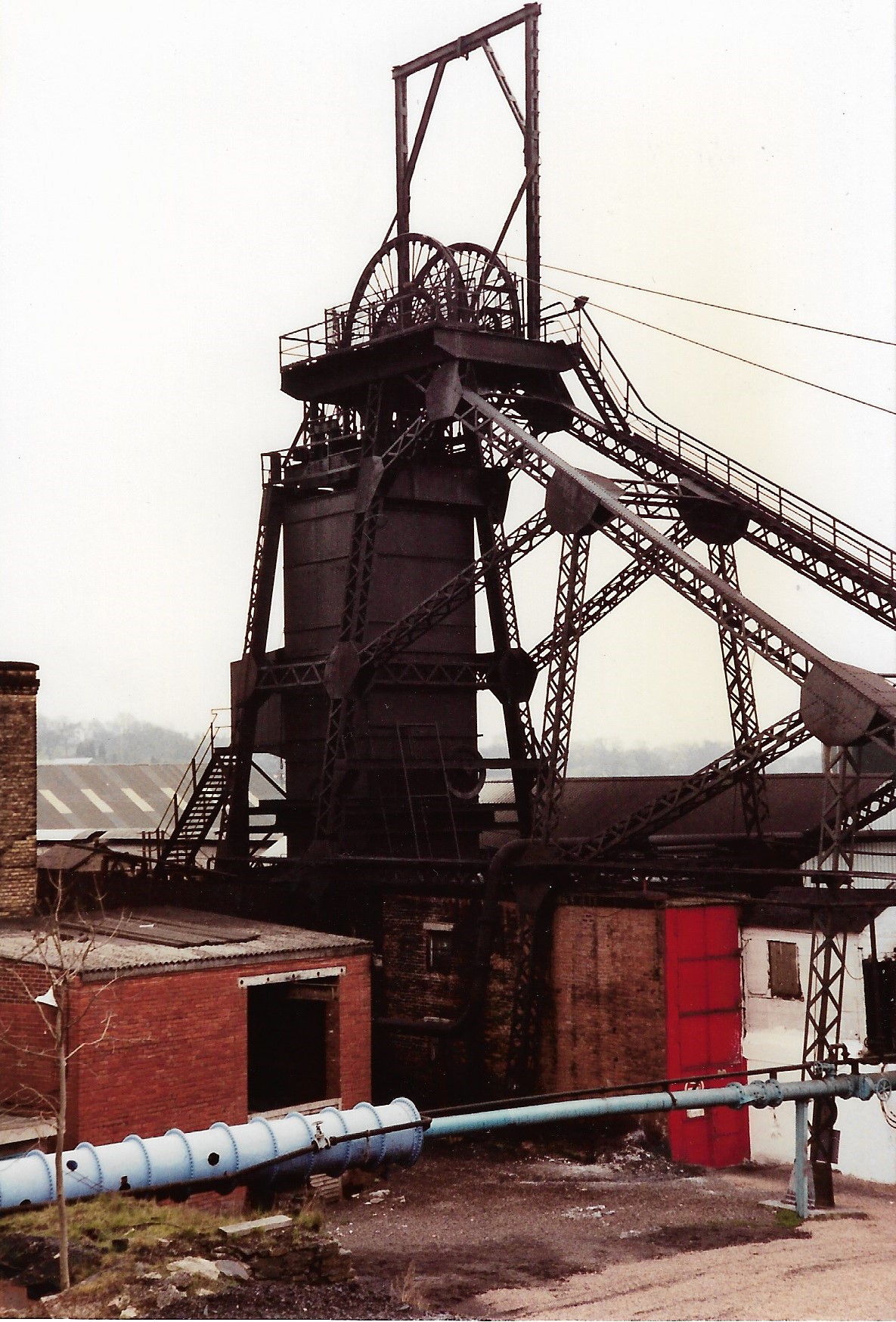

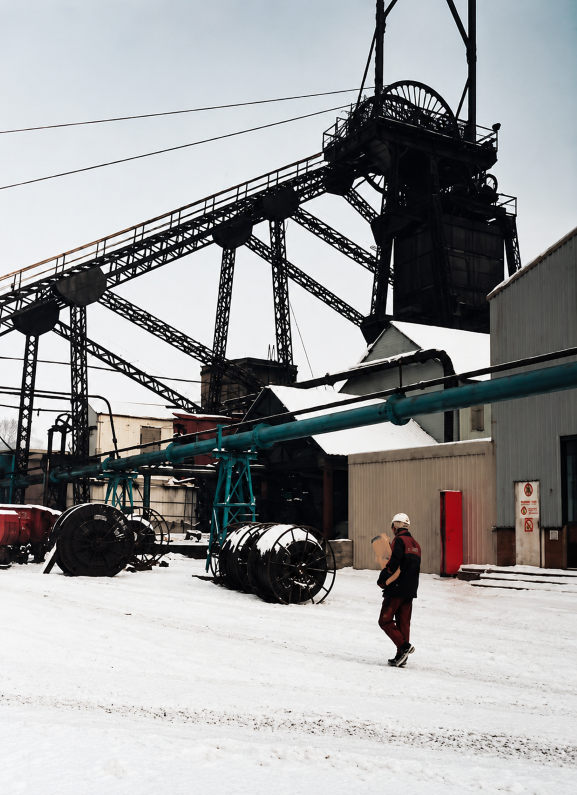

The “Head gear” is the structural frame above the mine shafts. They identify the mine to everyone, even non- miners and were normally made of steel.

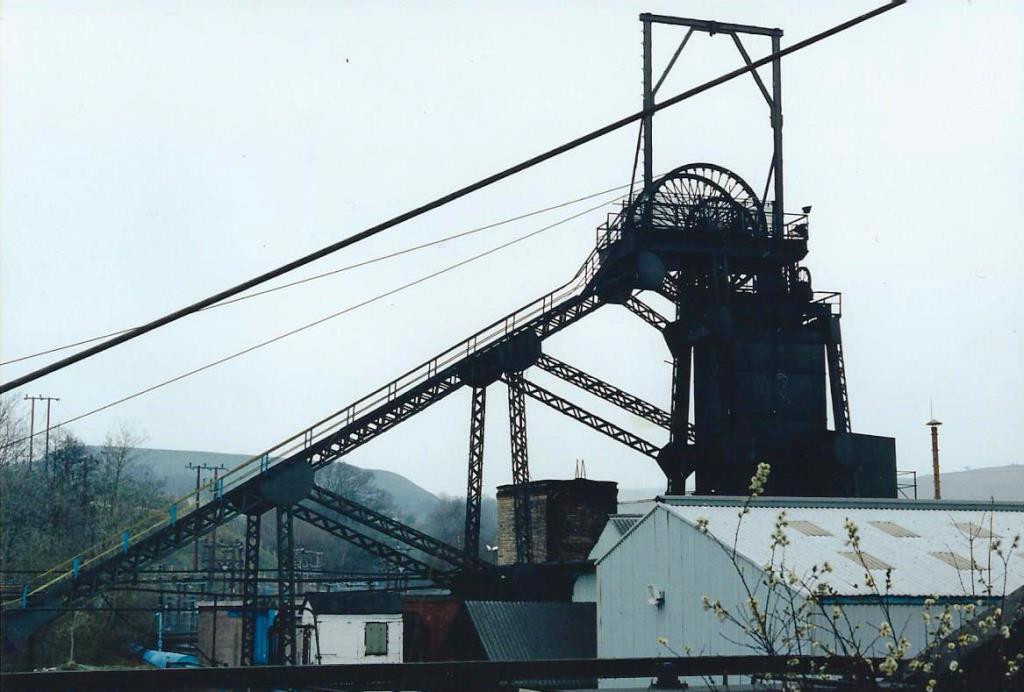

In Deep Navigation, the winding gear was used to bring the coal to the surface, as well as to allow men to reach the pit face. In addition, the cages could bring down necessary supplies and machines to the pit bottom.Cages were  suspended on a steel winding rope, attached to the drum of the winding engine via a pulley on the headgear , the cage is normally supported underneath by cage chains – four corner chains and two safety chains.

COLLIERY_SURFACE

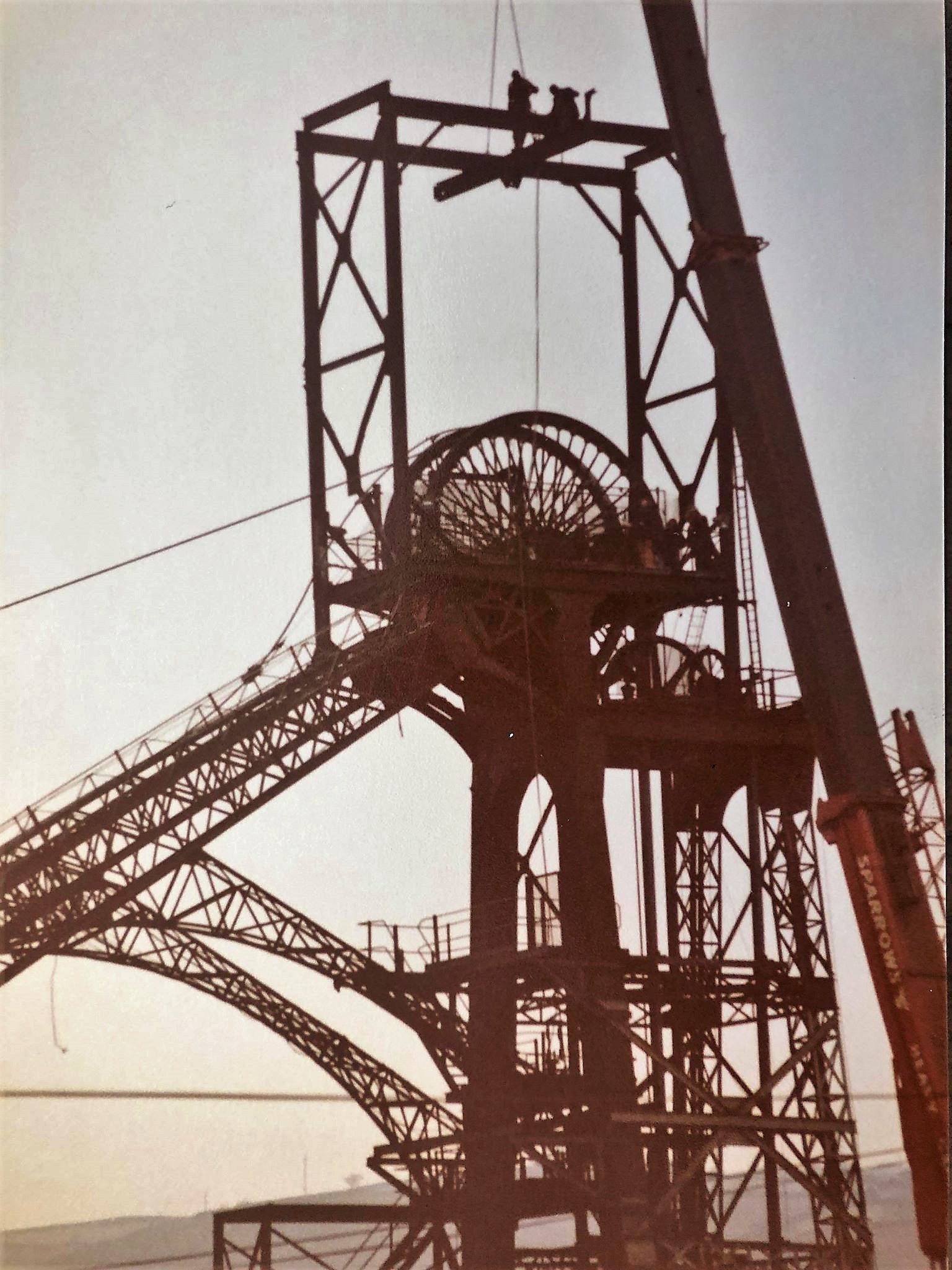

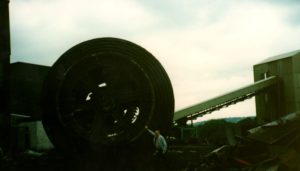

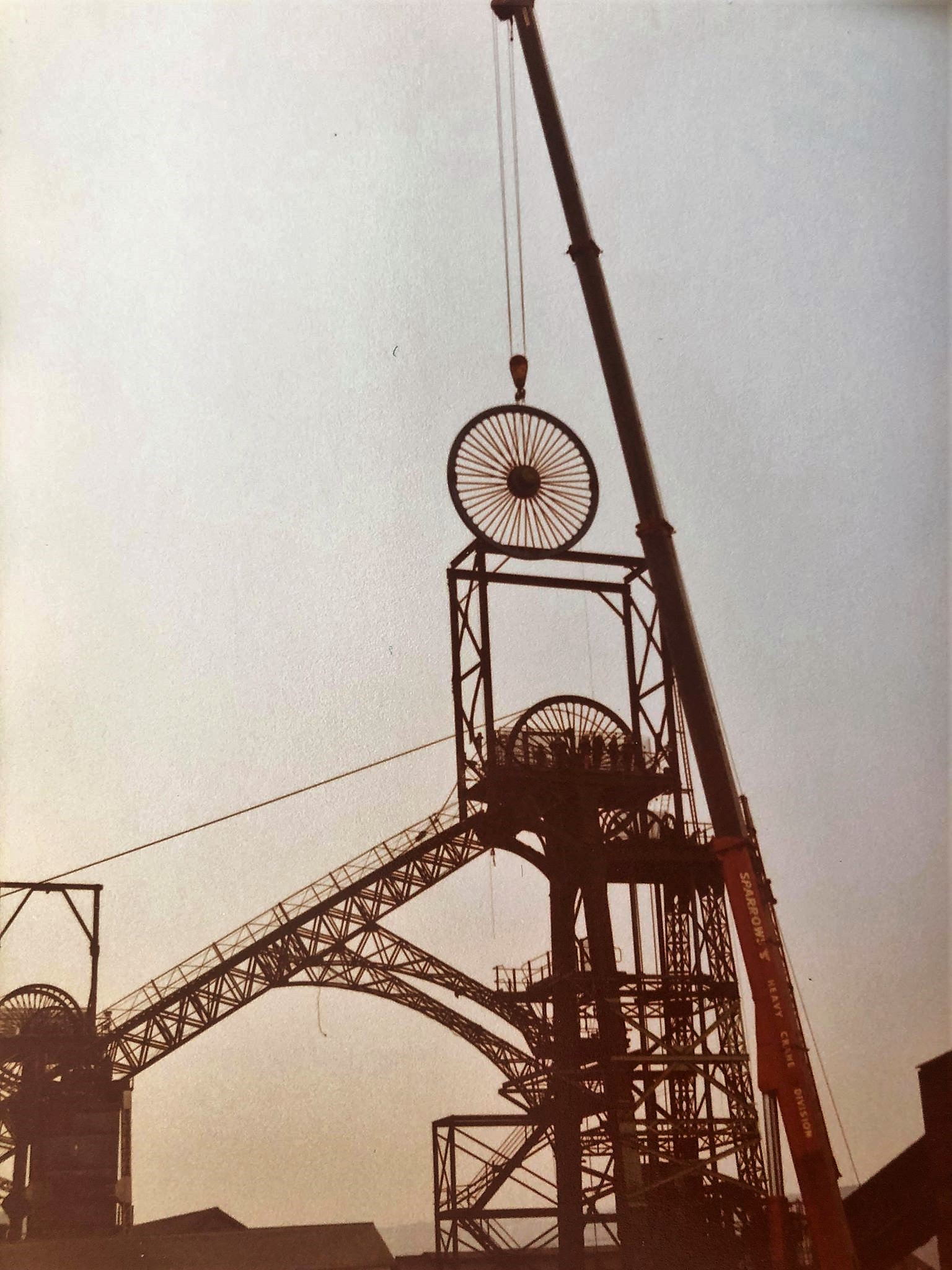

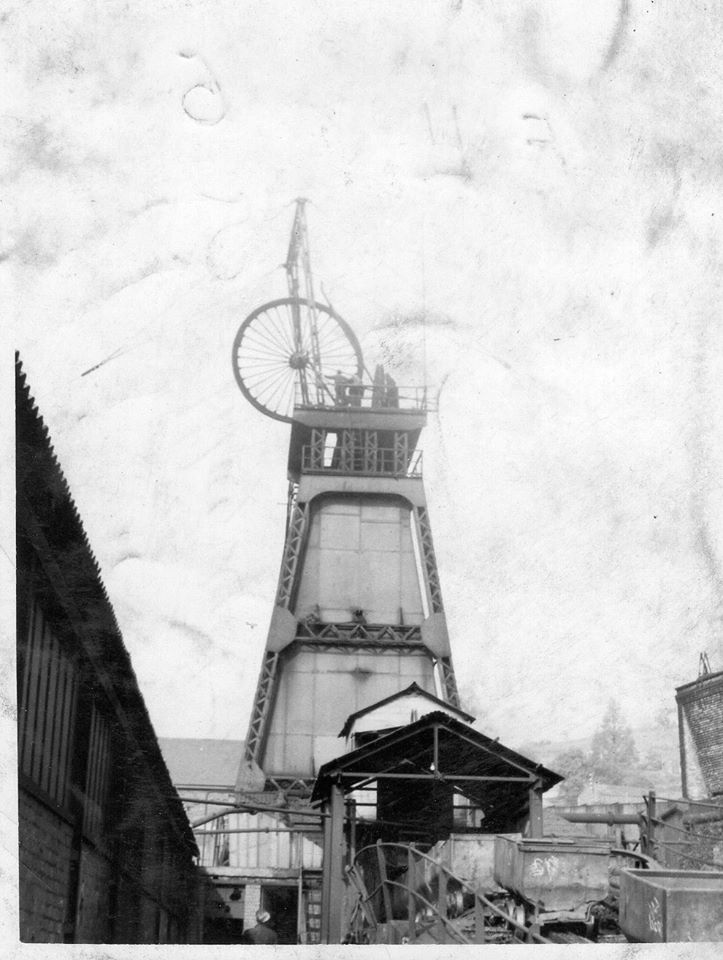

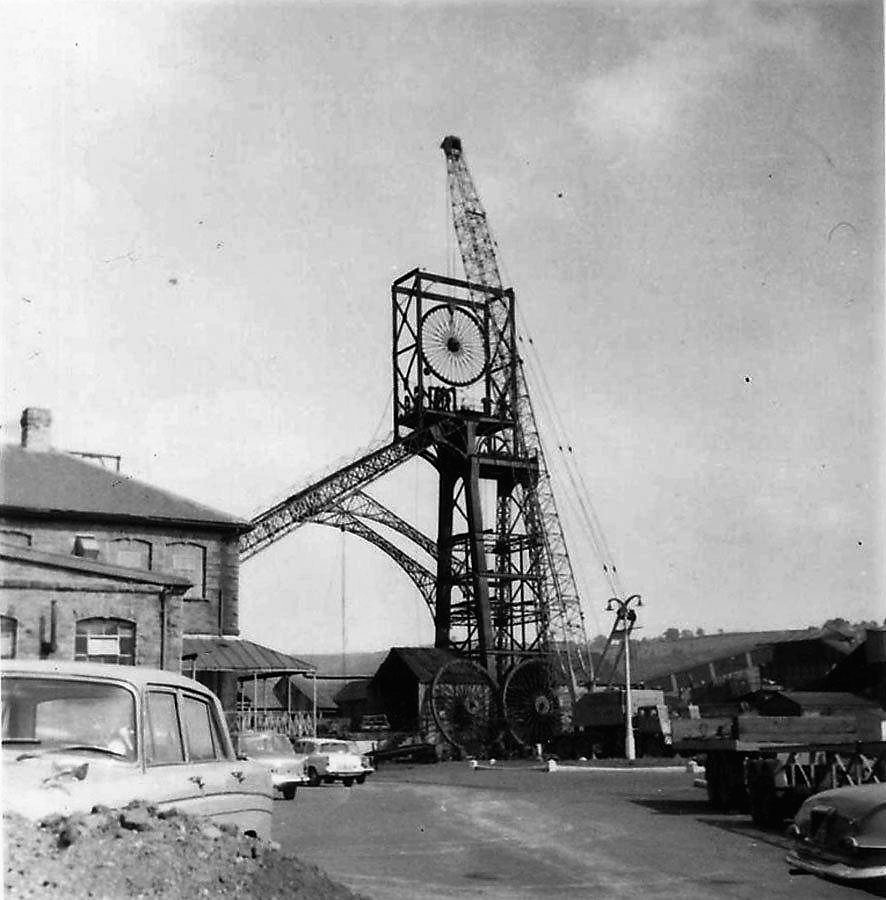

Changing the headgear at Deep Navigation (Dick Edwards Photographs)

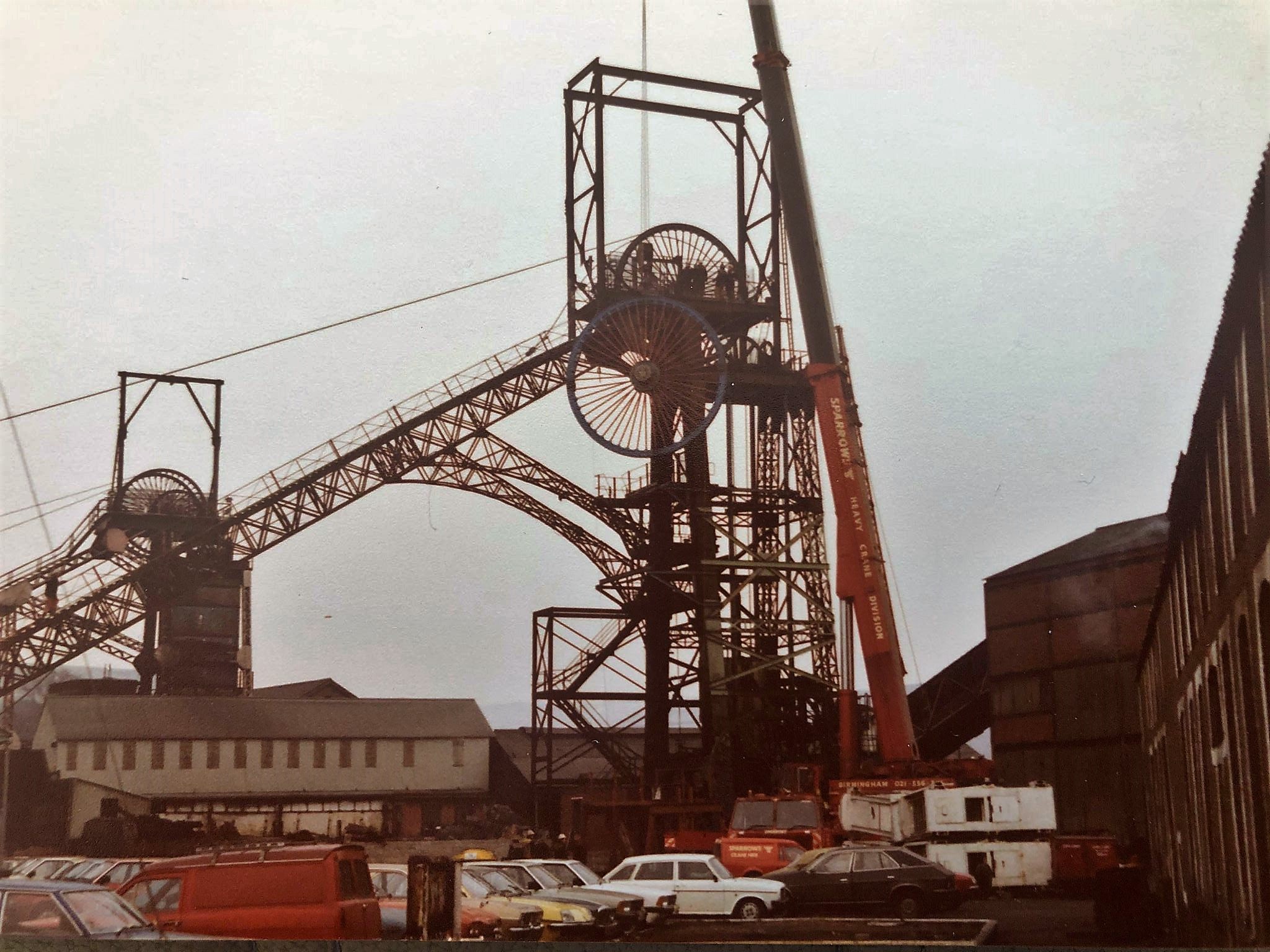

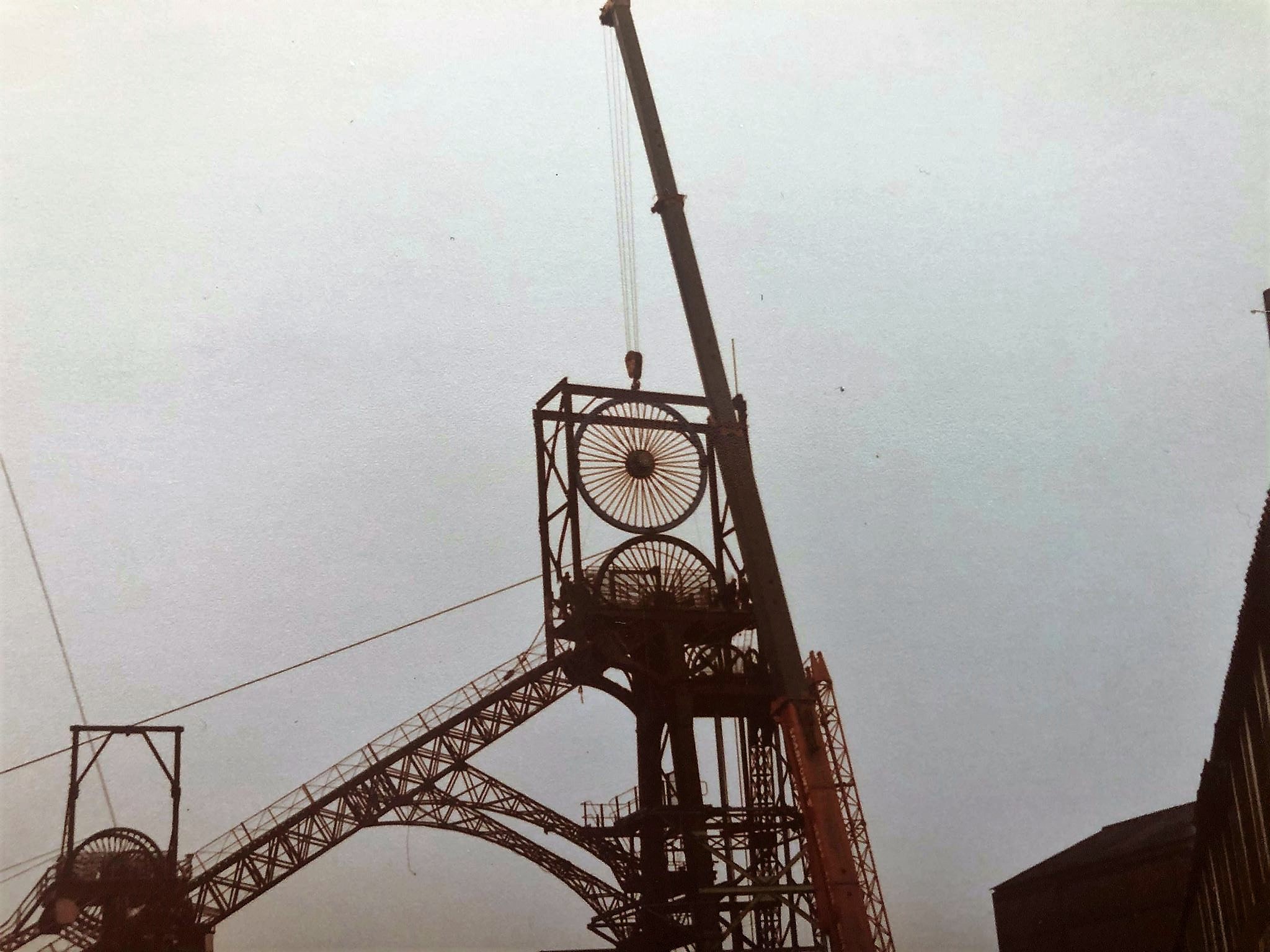

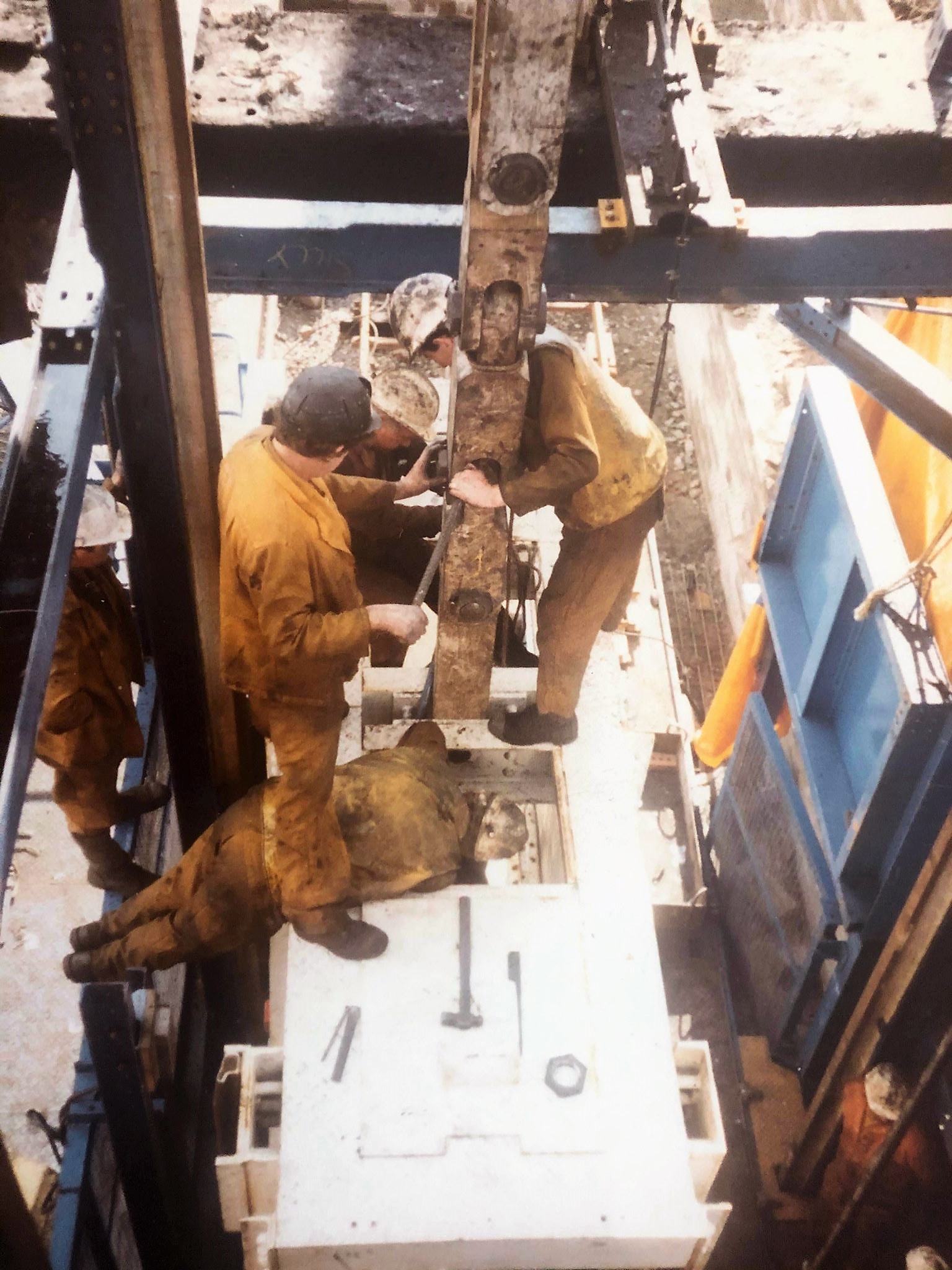

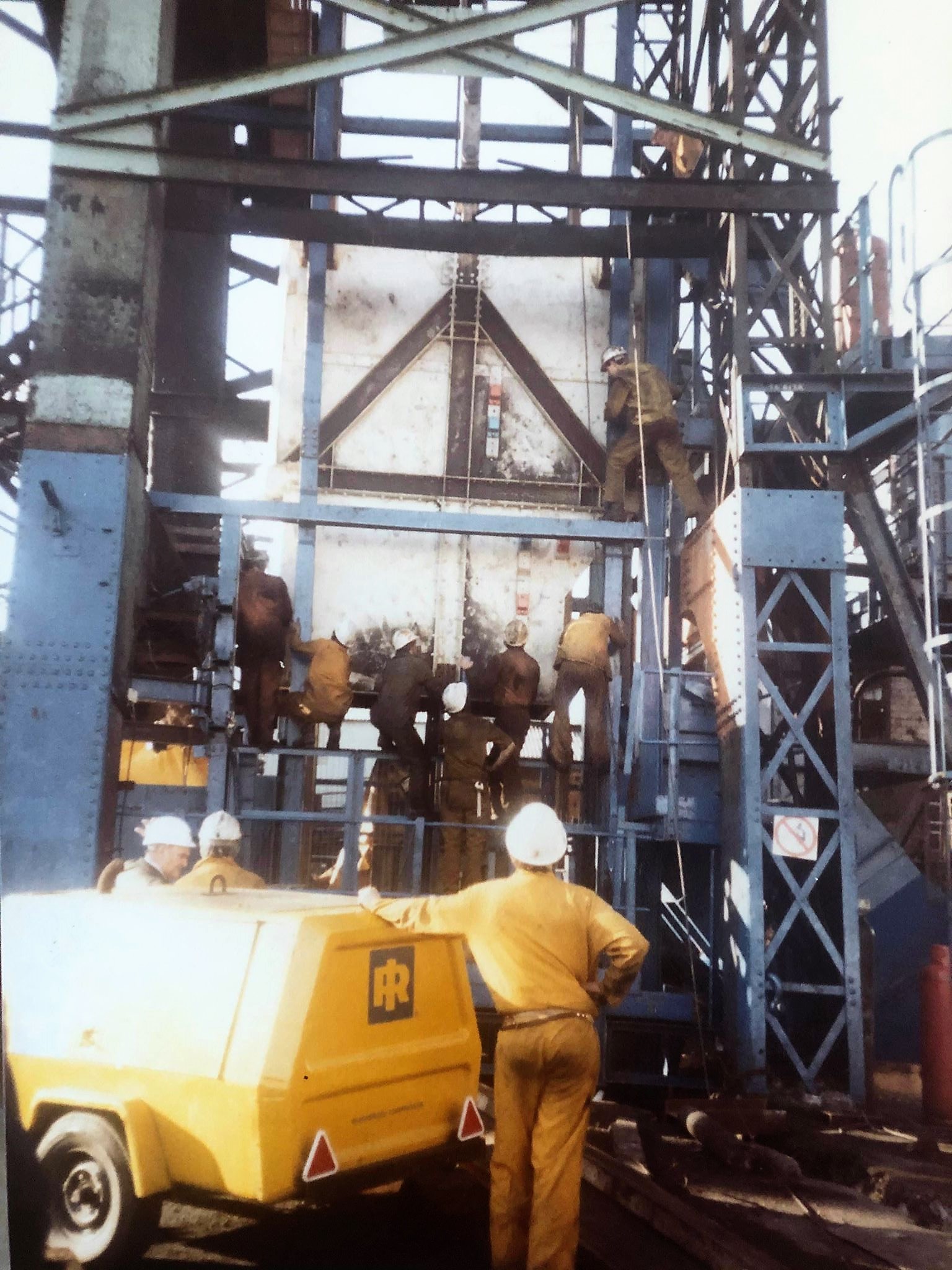

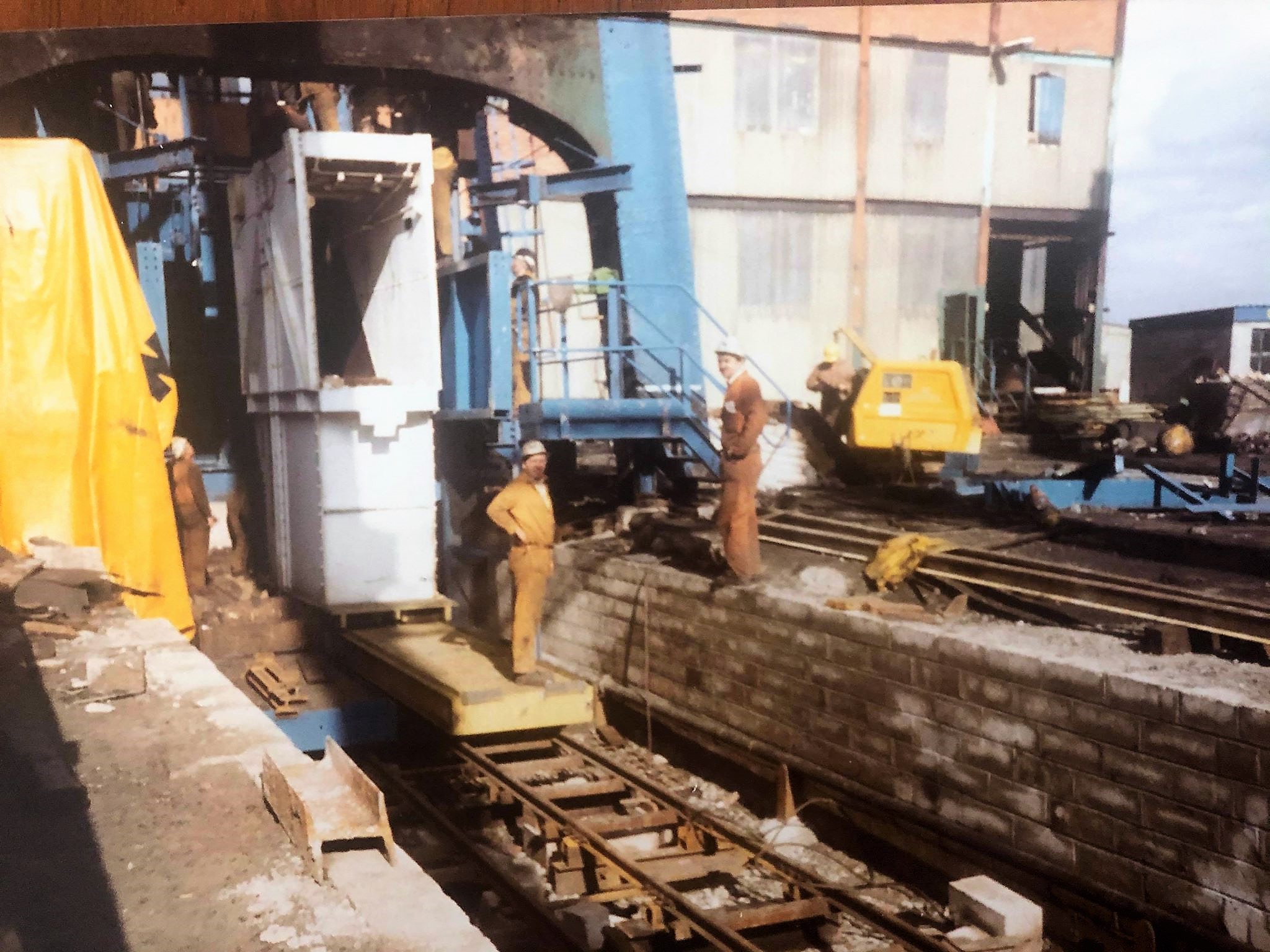

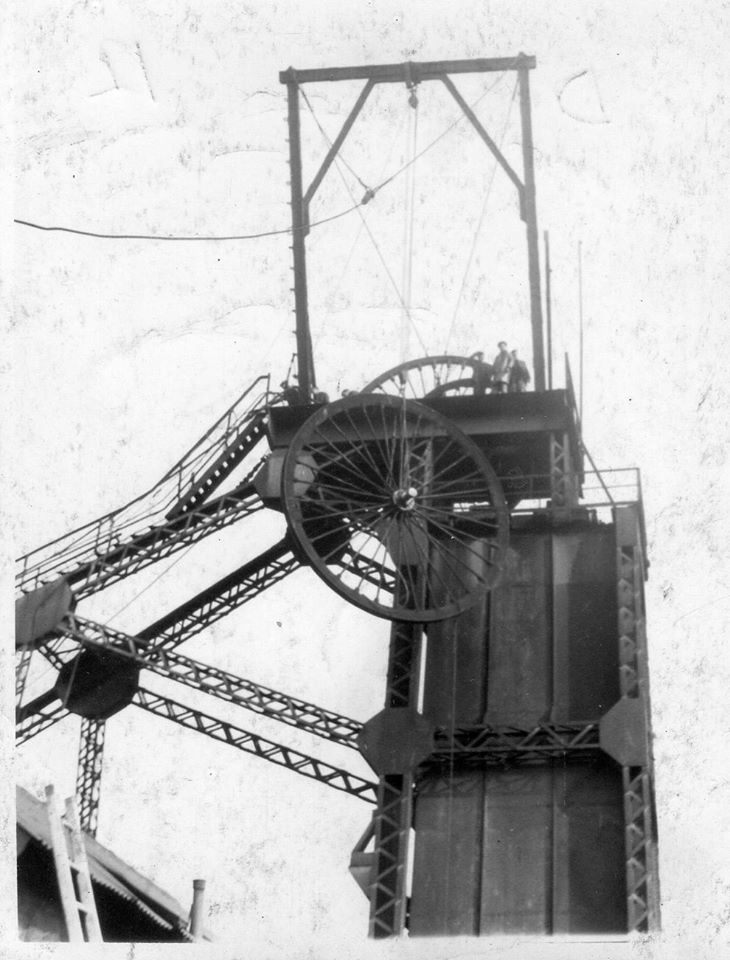

Richard Edwards recalls “we were changing the sheaves on the No1 pit at Deep navigation I was a fitter at that time it was Easter 1961 these sheaves were unique as they were larger than the normal size they were 21 feet in diameter and were all riveted together and were the original since the mine started one of the main things for changing them was that the rivets work loose and plates in track where the pit rope run on would loosen and could damage the pit rope and would make quite a noise people living nearby would complain to the management so most weekends the blacksmiths would spend time changing plates and renewing loose rivets.The men in the photo removing the lifting slings are from the top Tom Jones from Treharris Glyn Davis from Treharris and Evan foreman black from Nelson.”

changing_head_gear

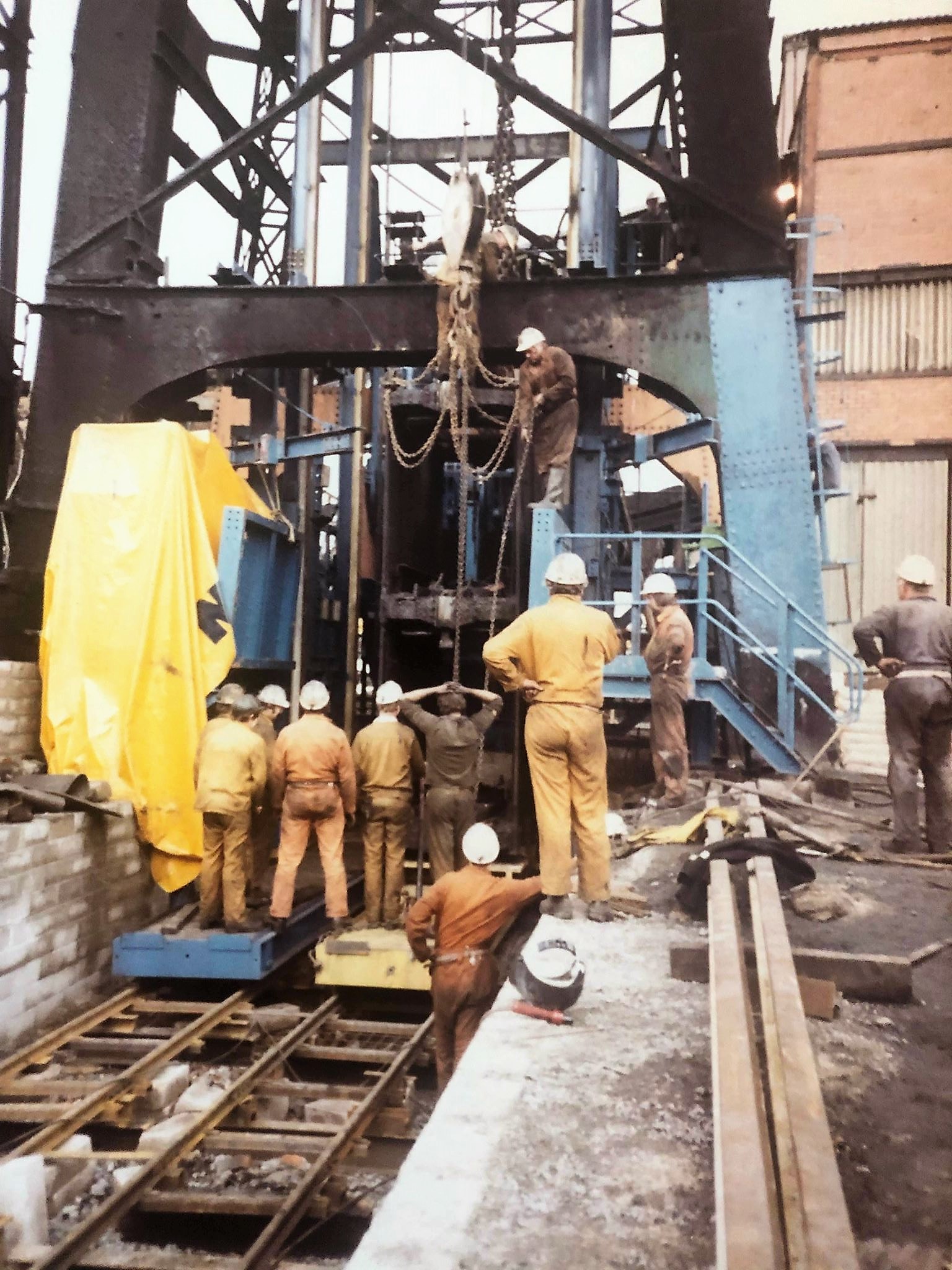

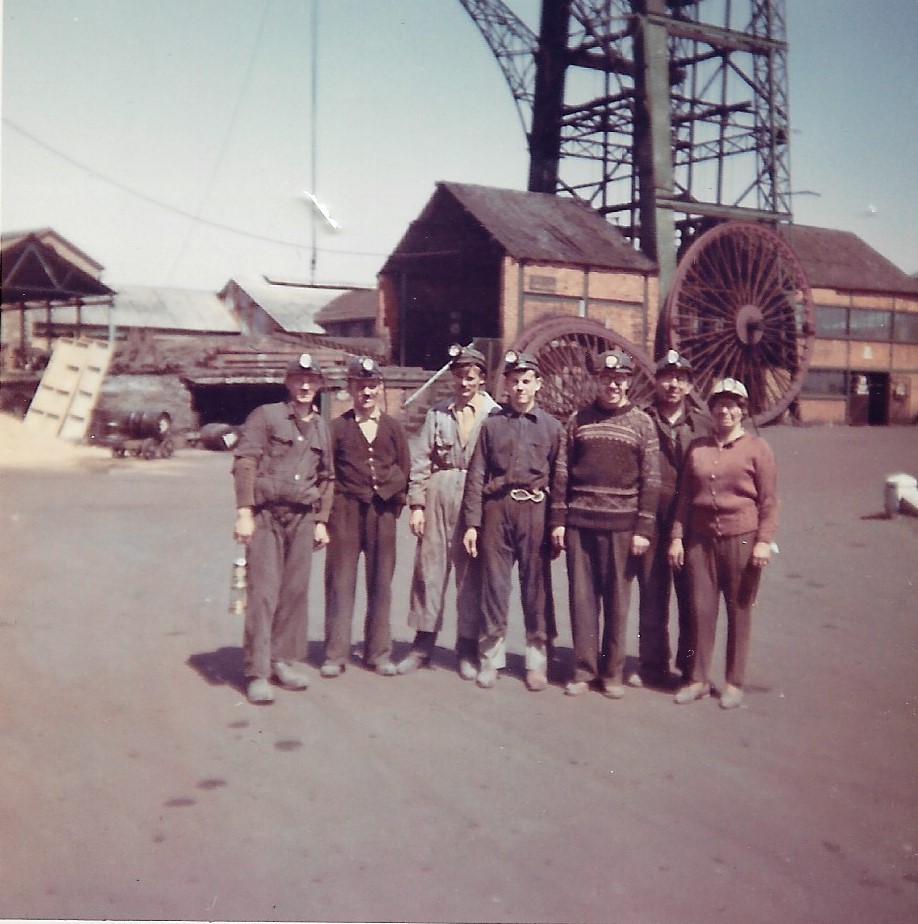

Changing No 2 Sheaves 1961

Fitters and blacksmiths that changed No 2 sheaves Easter 1961 , Richard Edwards is amongst these men

miners

More repairs to the Sheaths

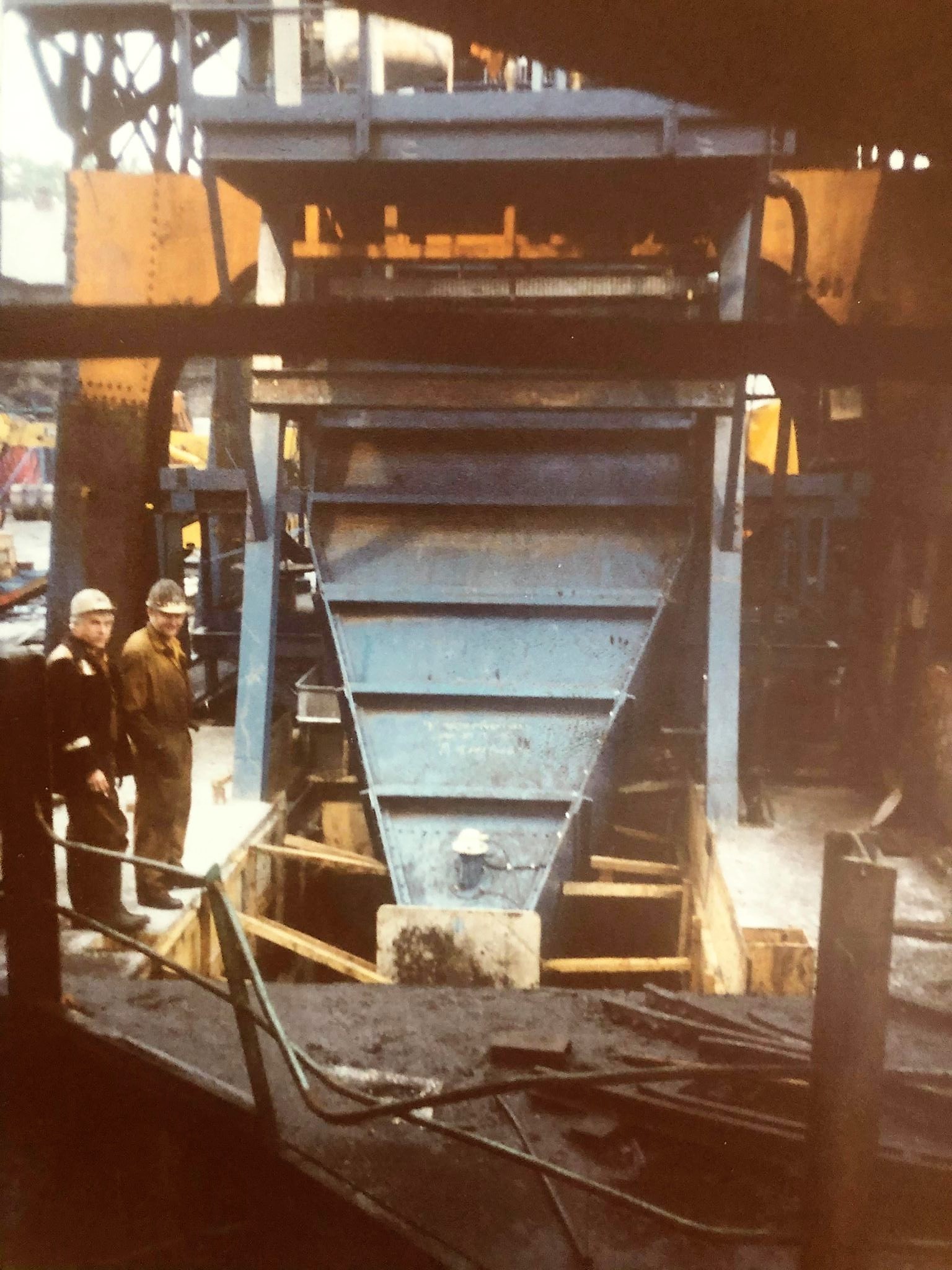

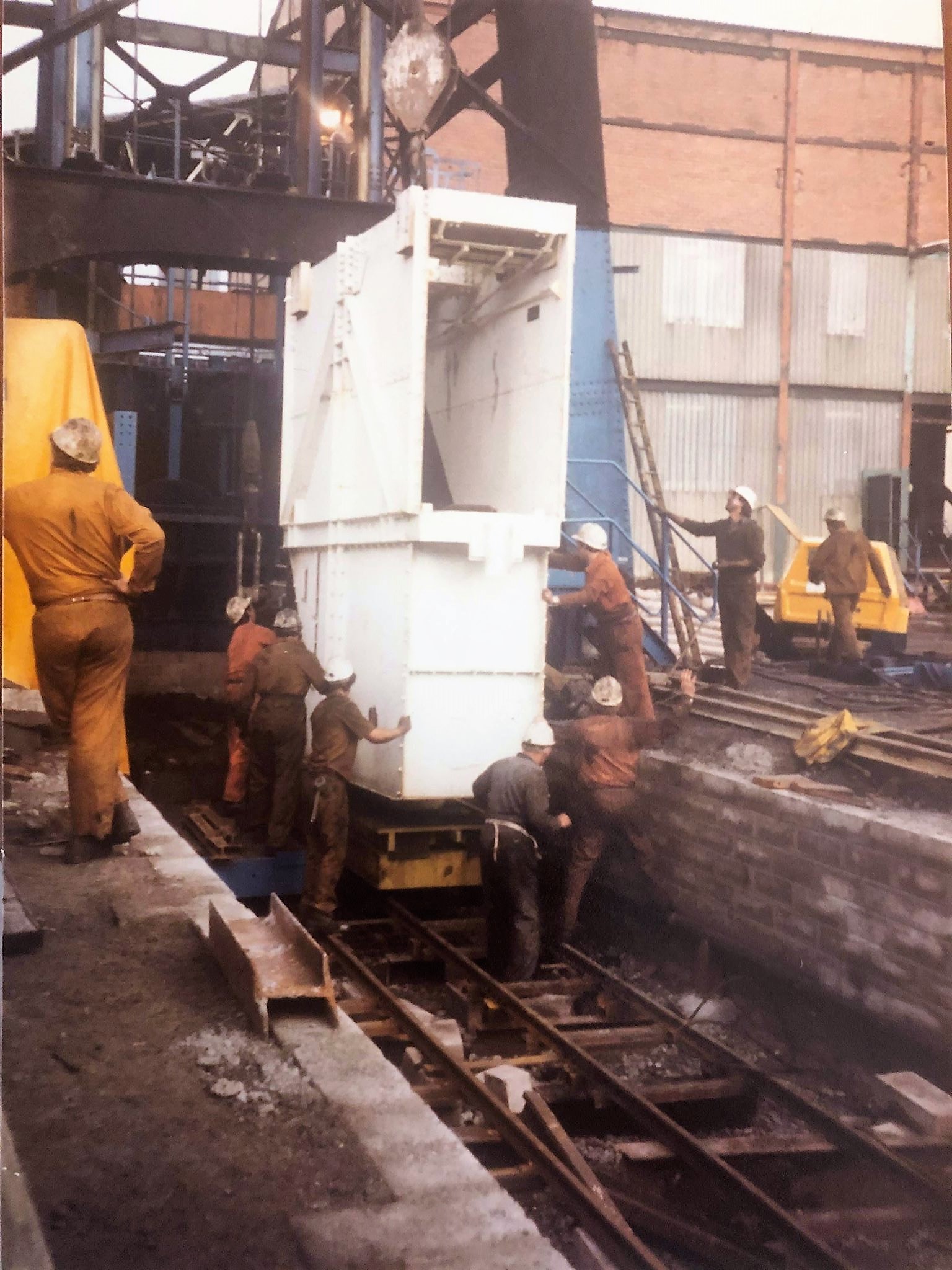

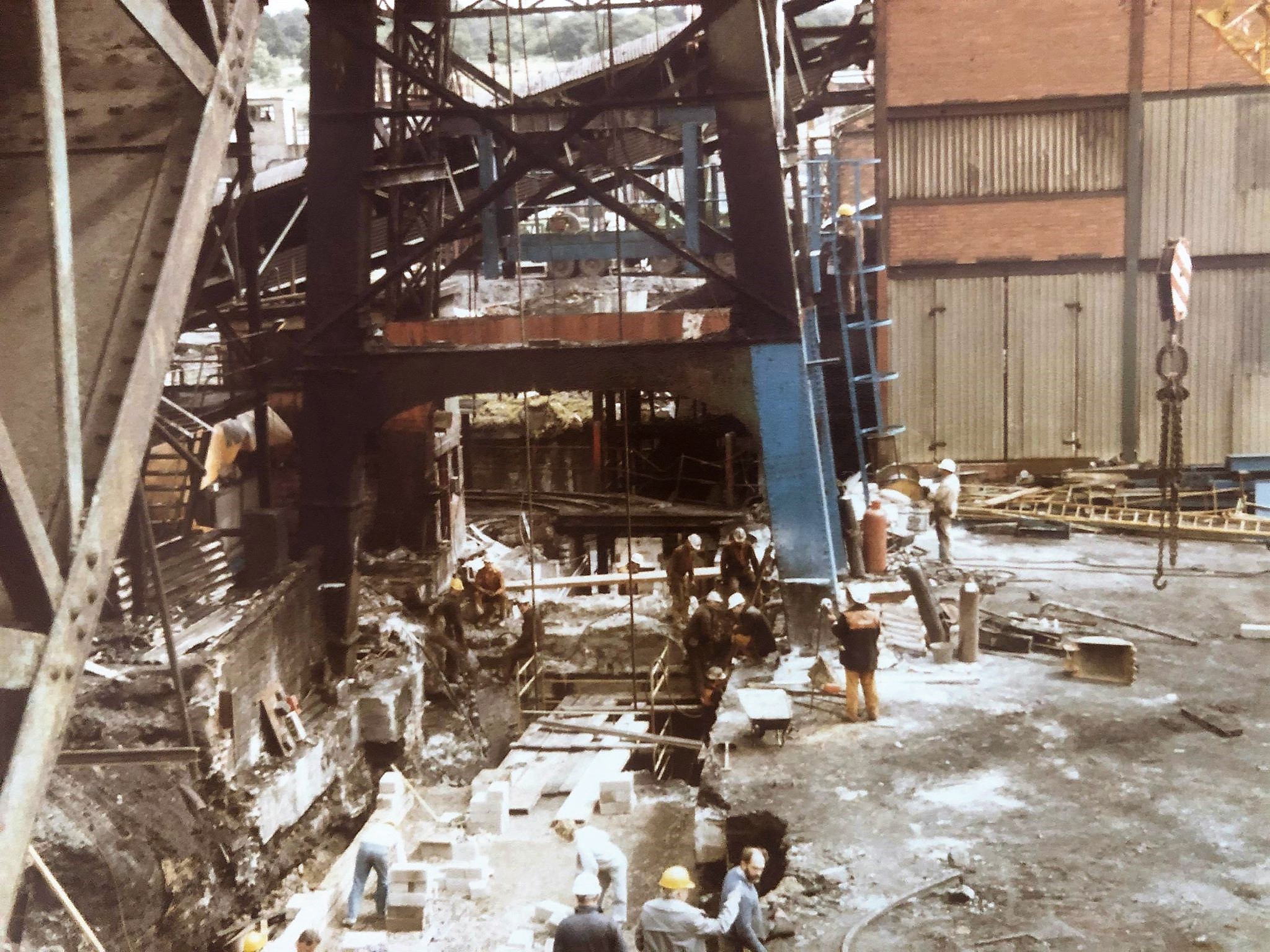

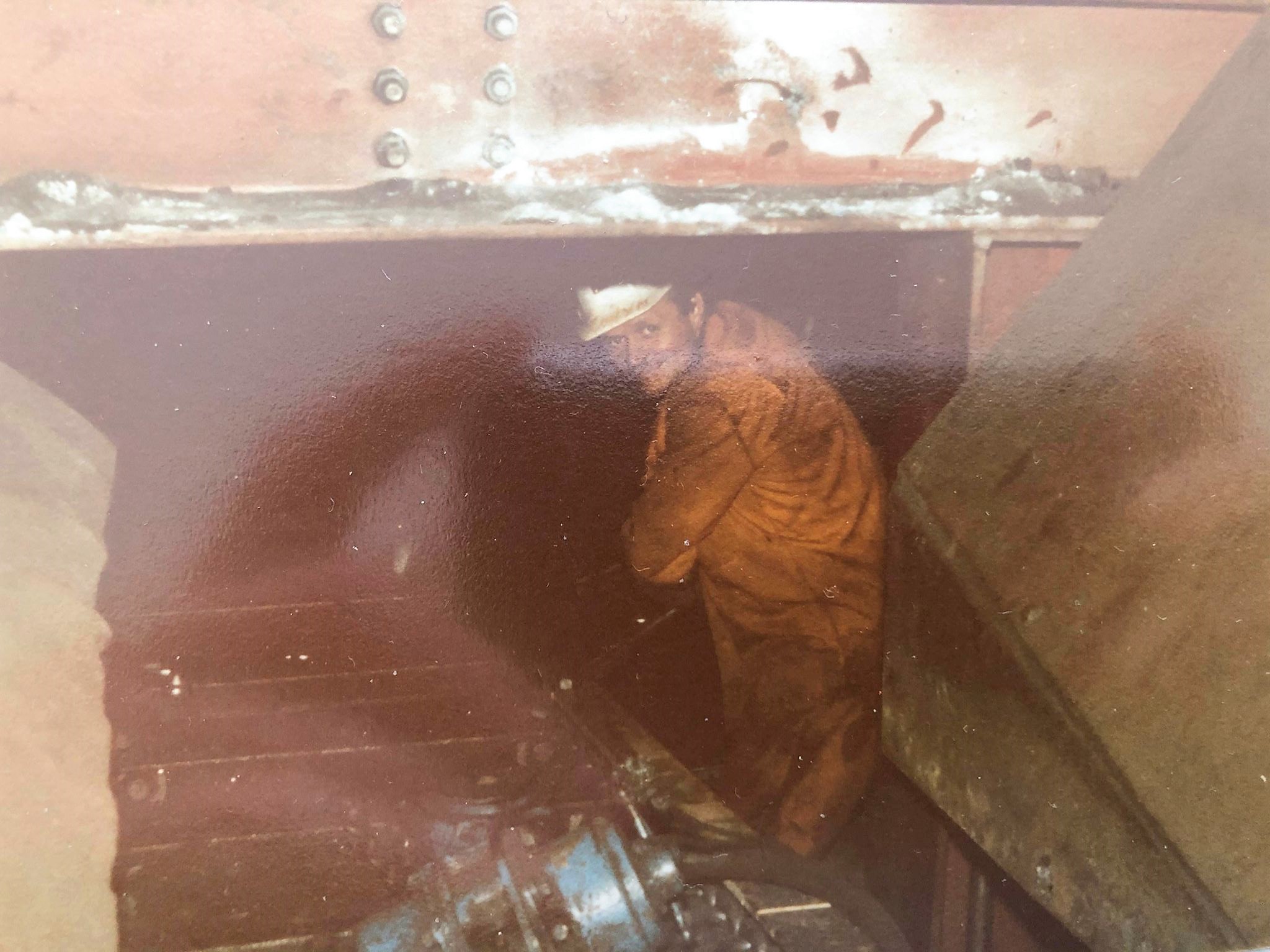

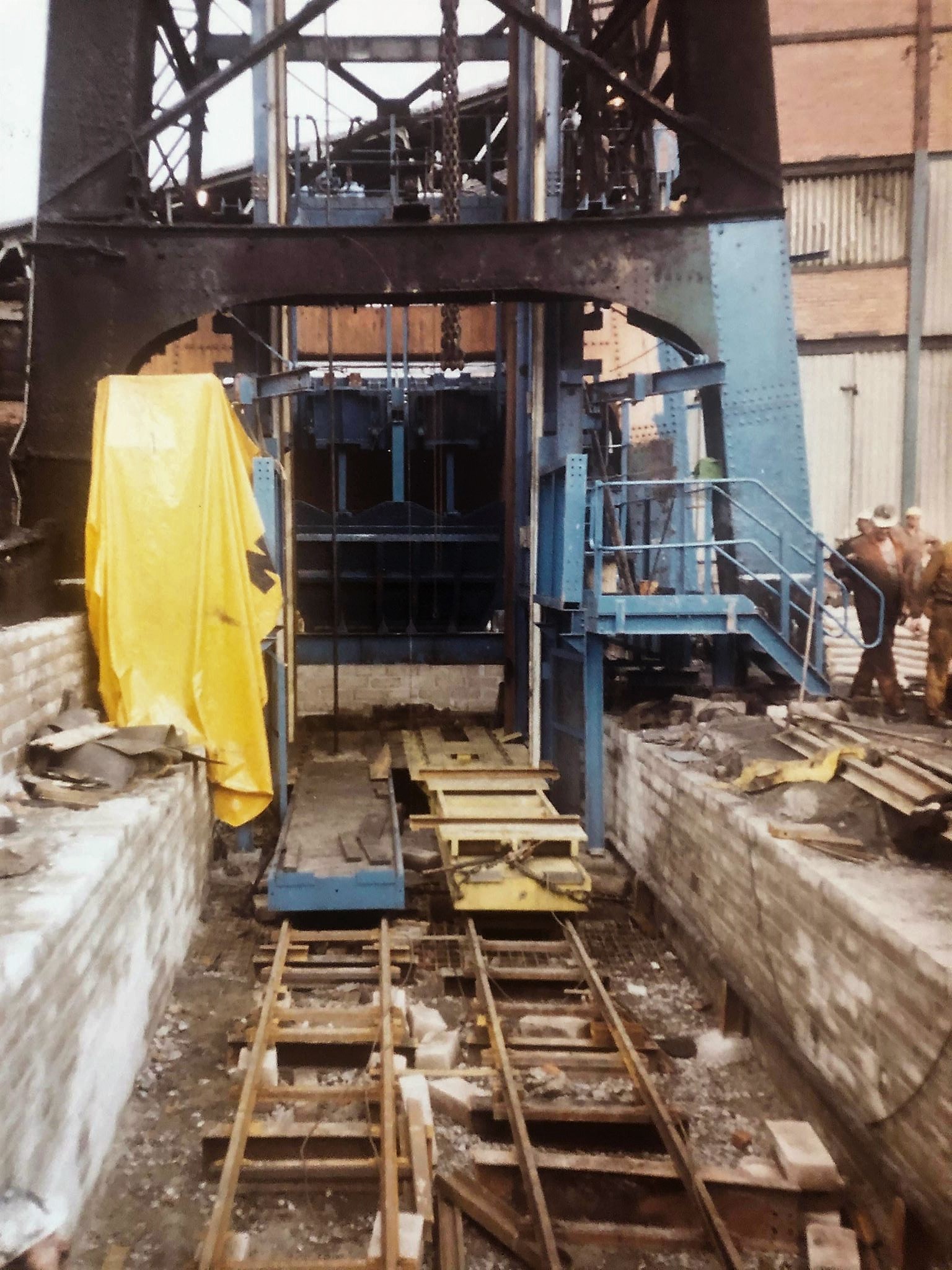

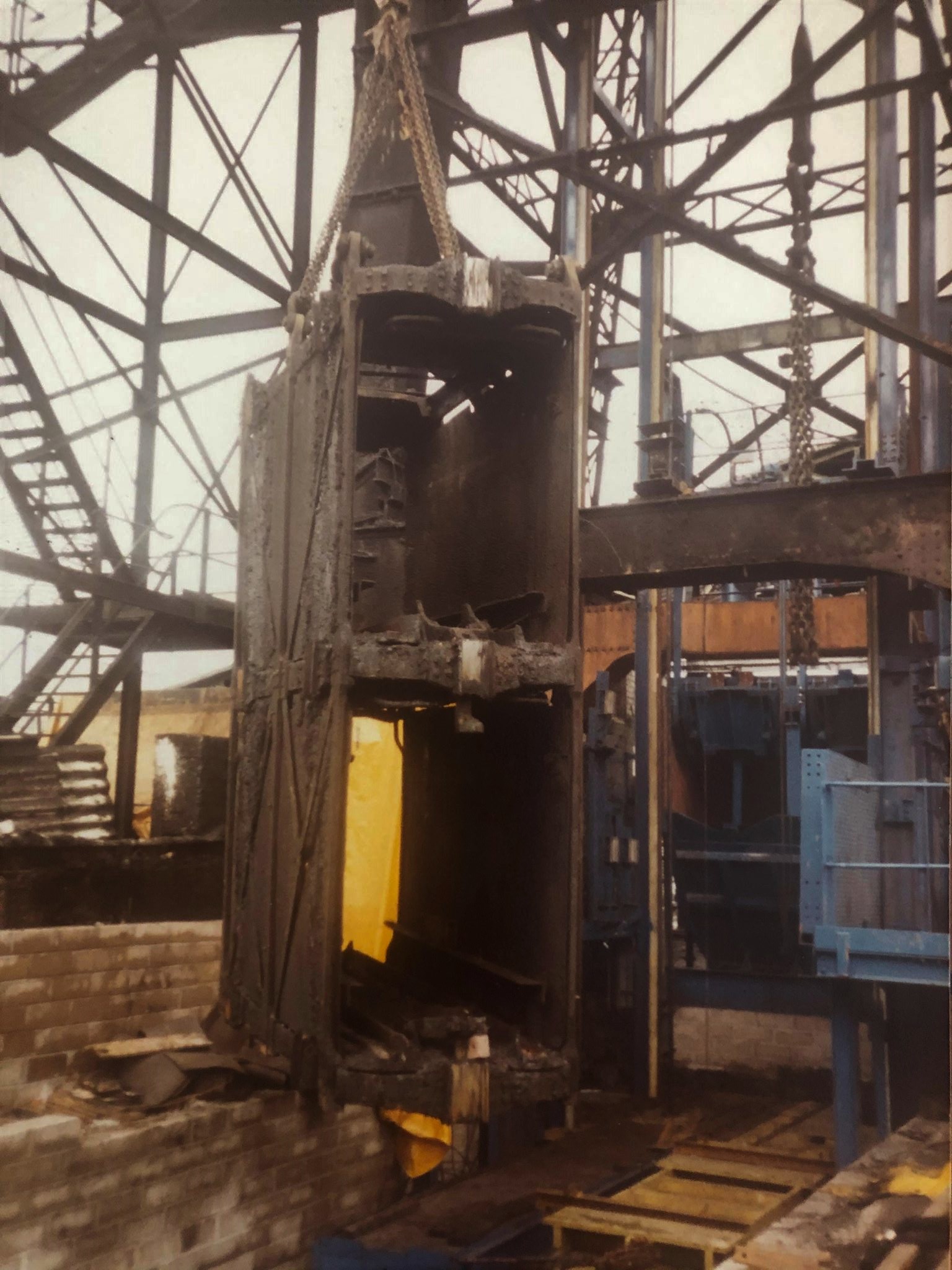

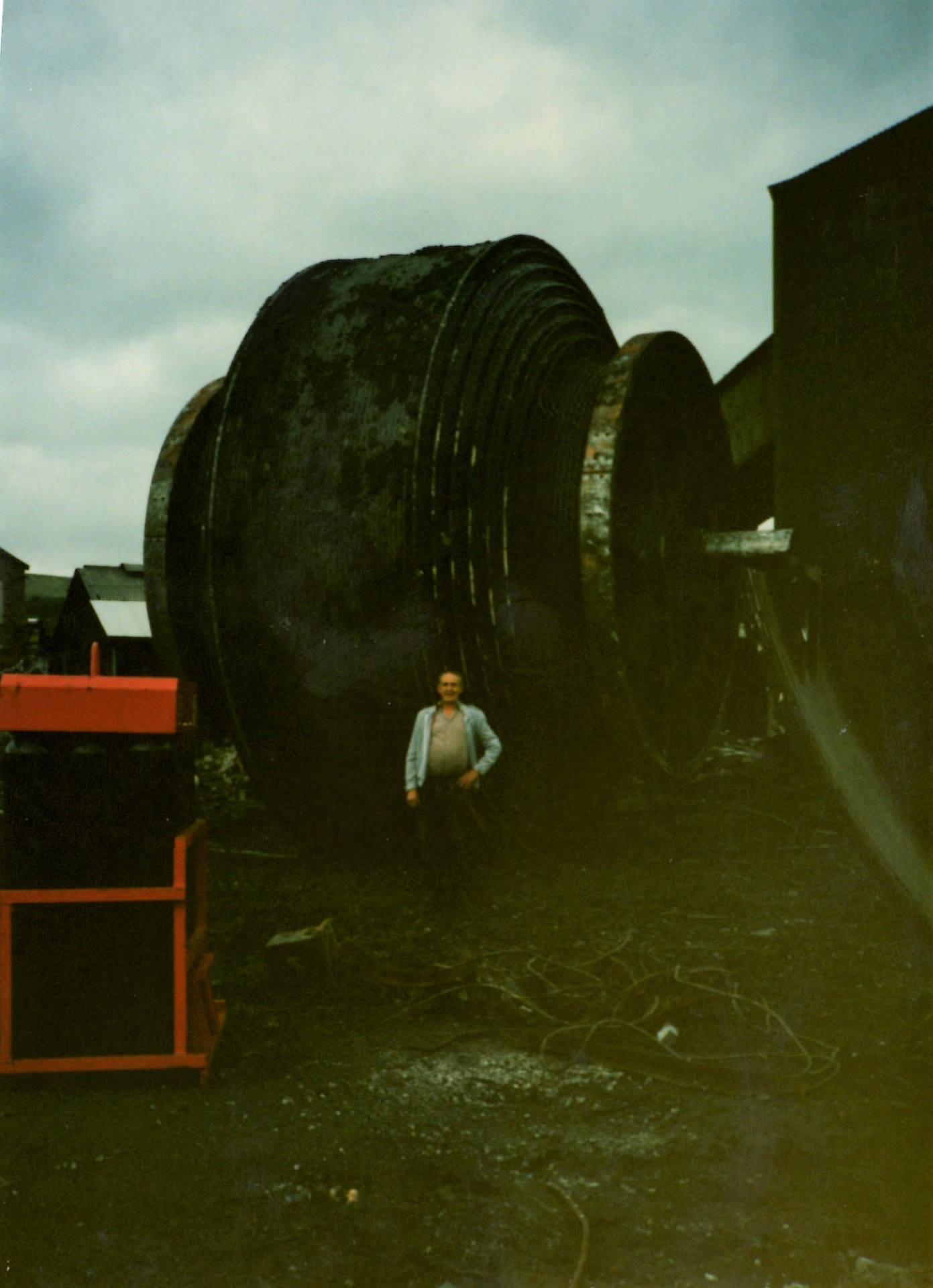

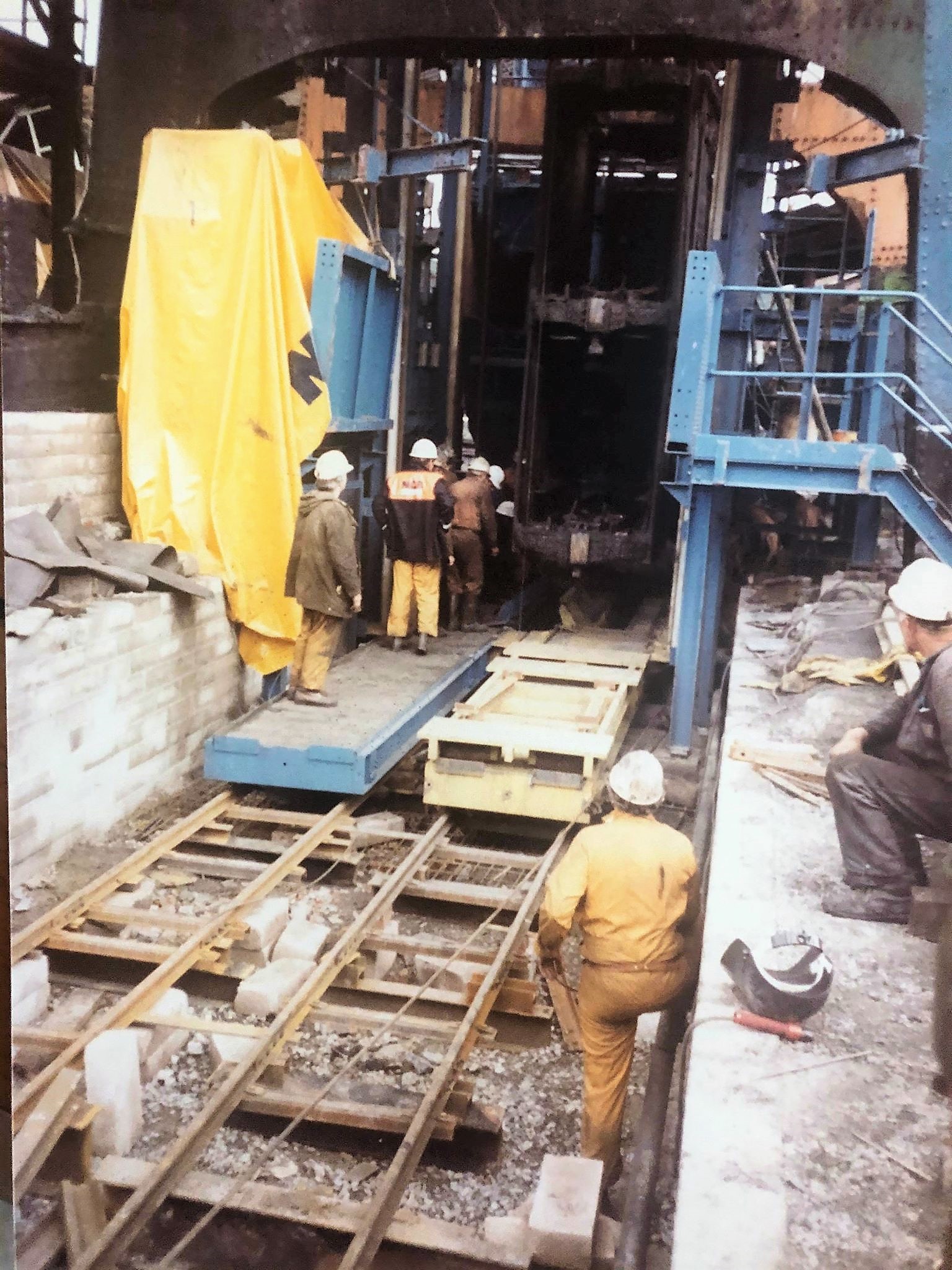

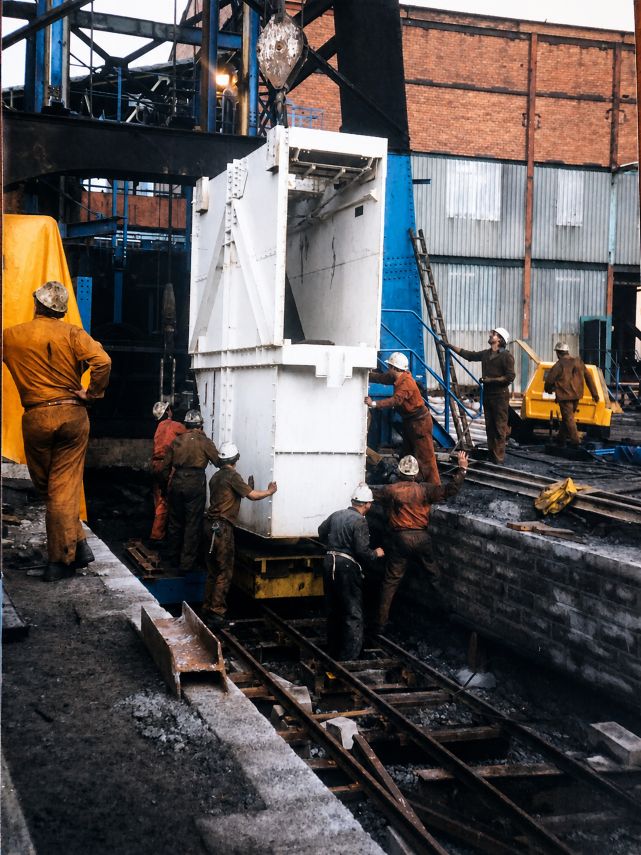

1985 miners fortnight saw a big change at the colliery when skip winding replaced the trams in Number one pit, Michael Wheeler and Dick Richards were amongst the men tasked with the big job, photos thanks to Mike Wheeler, first photos show removal of  the old cage , then the preparation then the skip winding in place

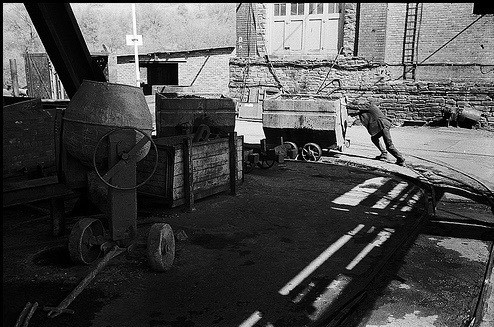

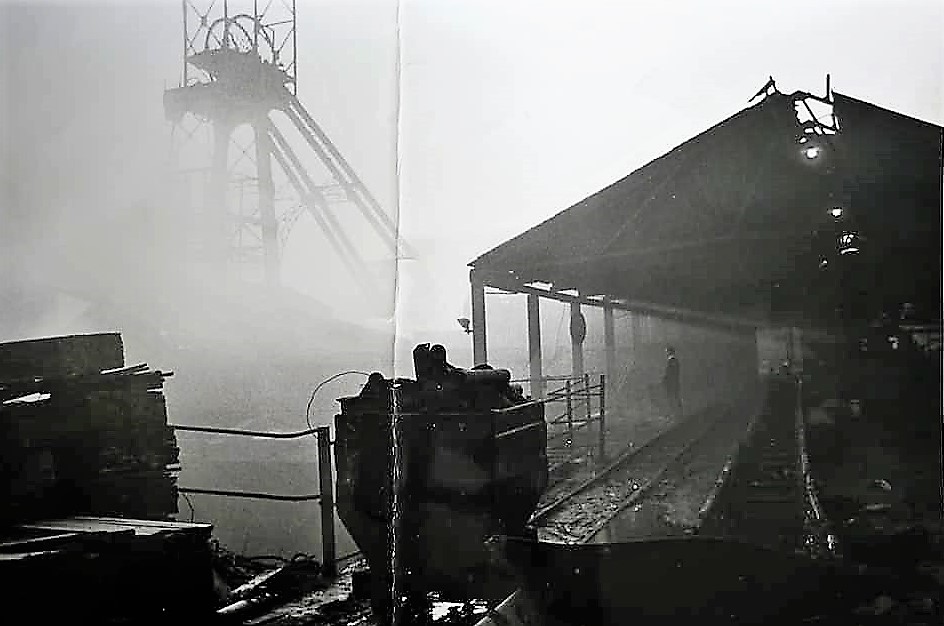

A Normal working day at the colliery surface and return from underground photos taken by Lindy Lee 1990

Ginger and Terry Price



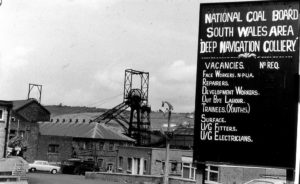

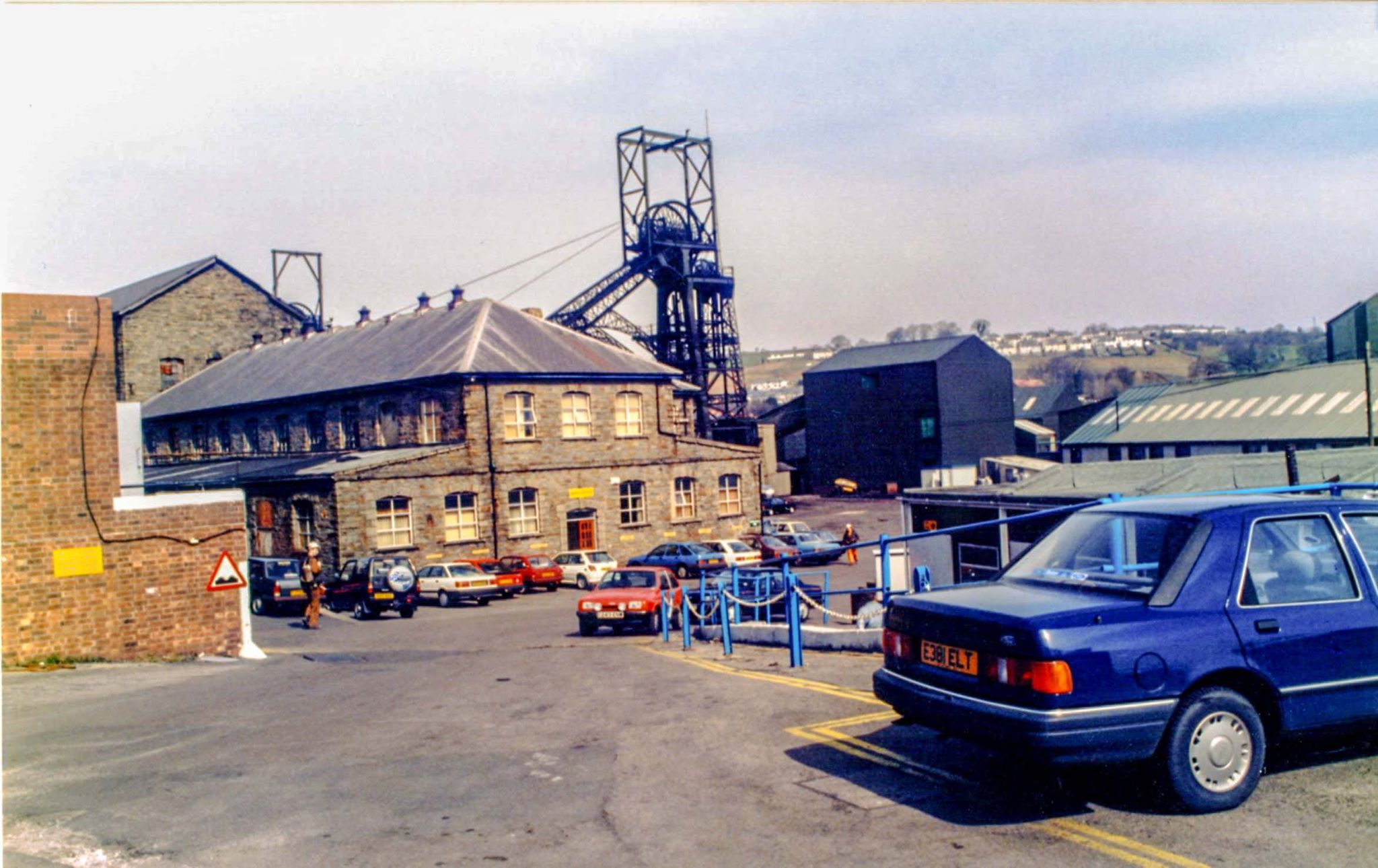

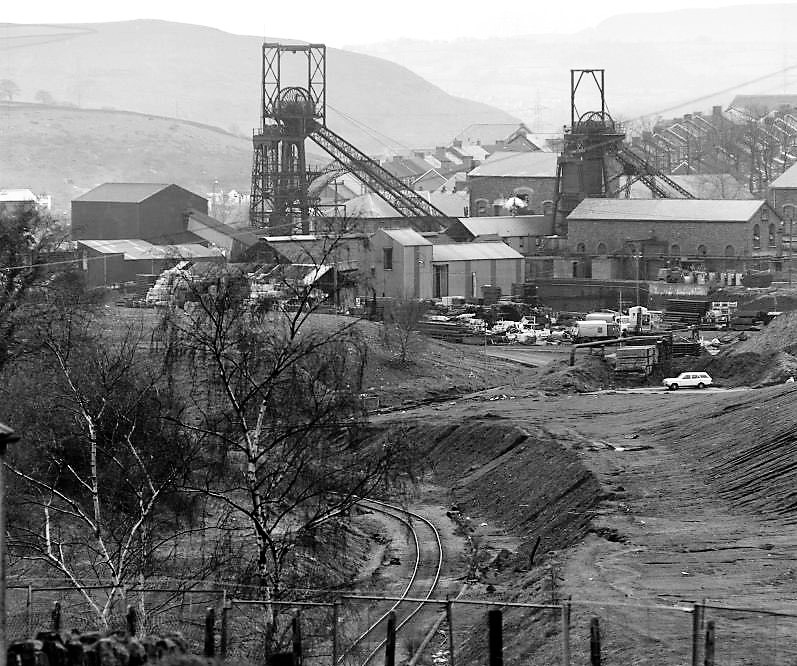

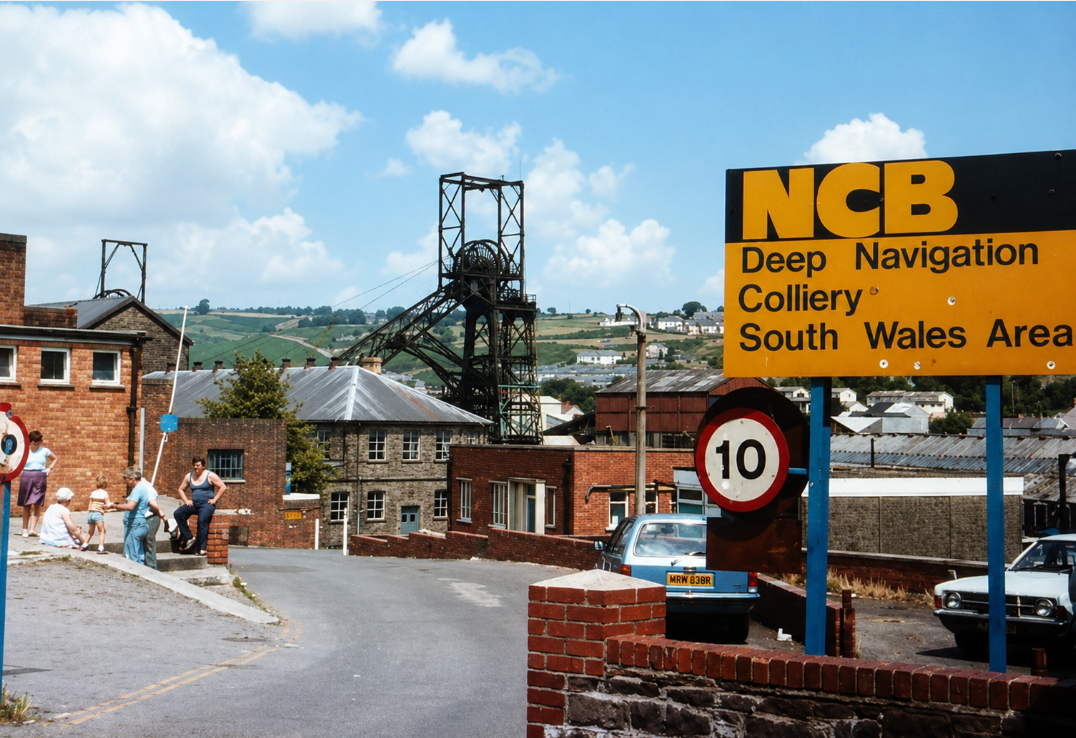

Colliery Surface Entry photographs

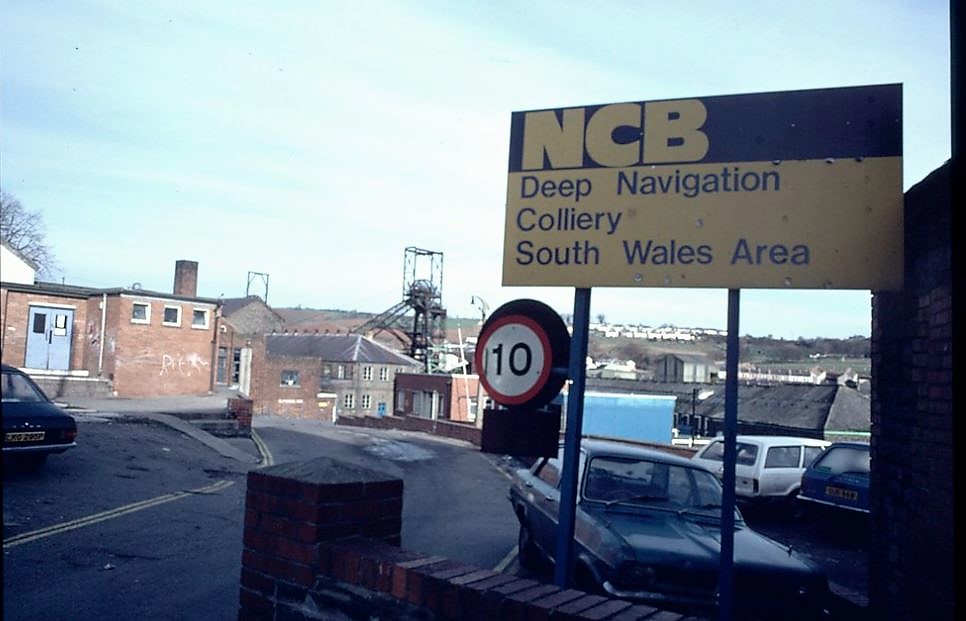

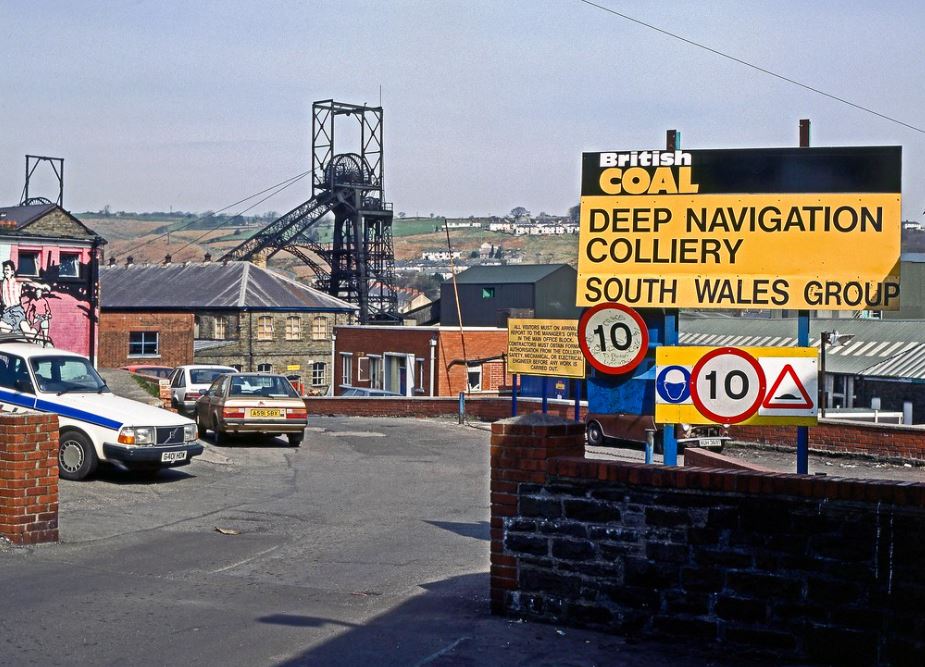

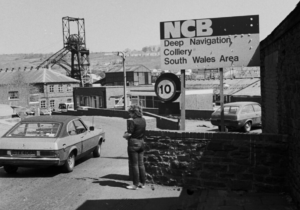

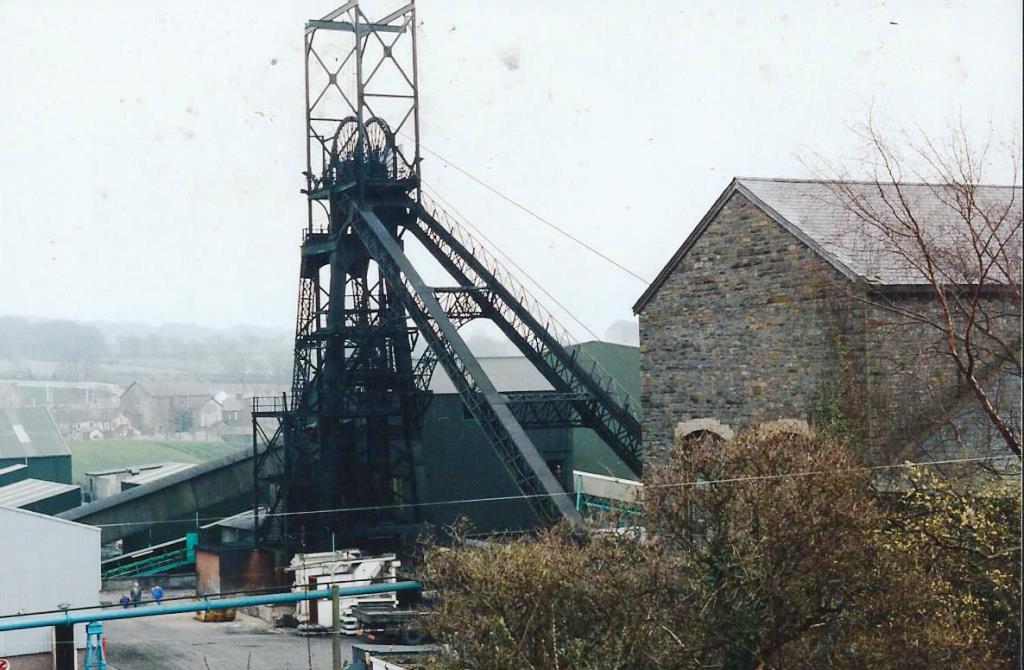

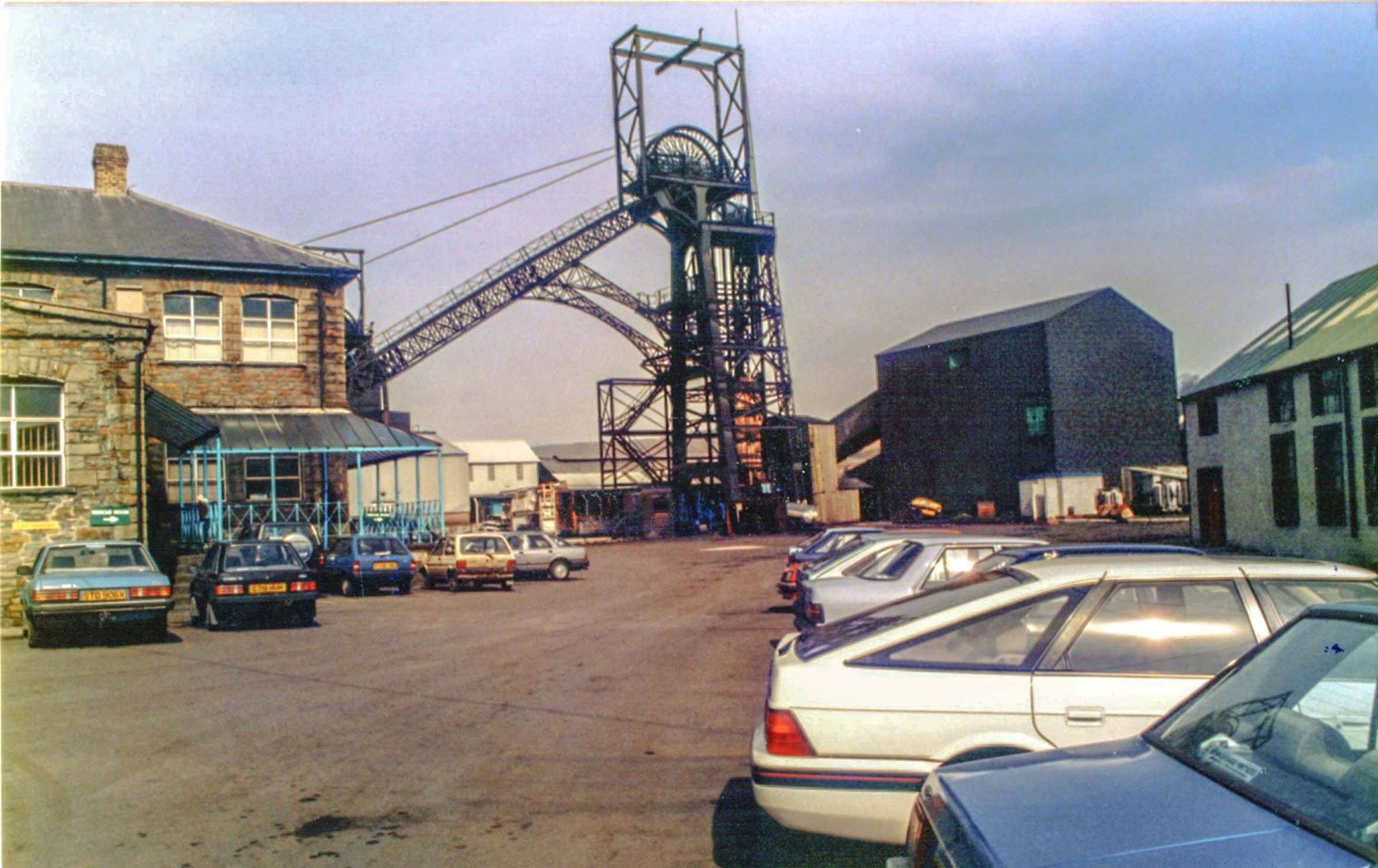

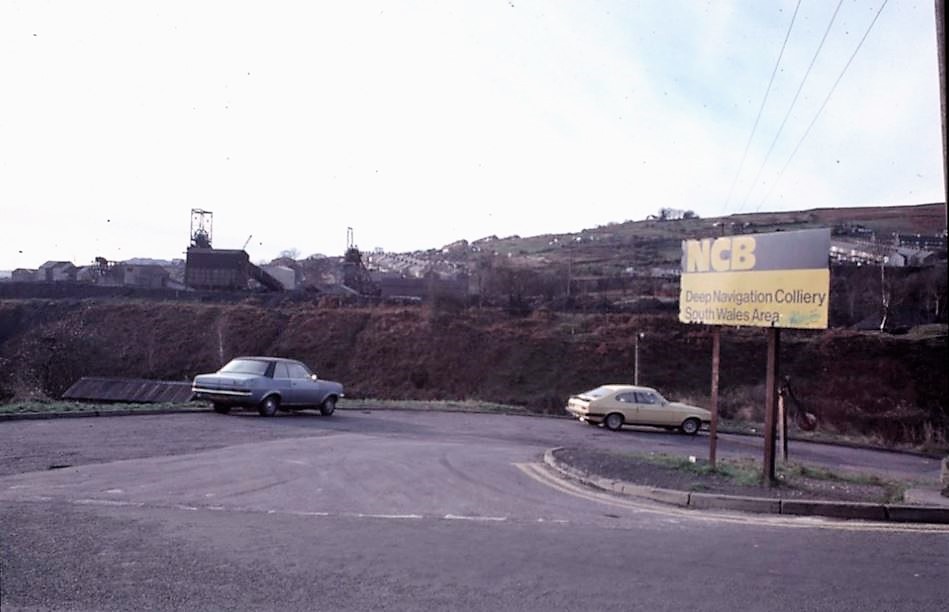

This is what most members of the public would see. the entrance to the coal mine. Deep Navigation was a large mine and had two main entrances, the men usually used the one at the end of Fox Street but supplies normally arrived through the Trelewis entrance . just off the High Street below Cherry tree way.

007g

enter_DN

ld4 (1)

Deep_Navigation_Colliery,_Treharris,_view_up_Fox_Street_-_geograph.org.uk_-_1728348

Trelewis Entrance mostly used for Supplies

ak

ad

???????????????????????????????

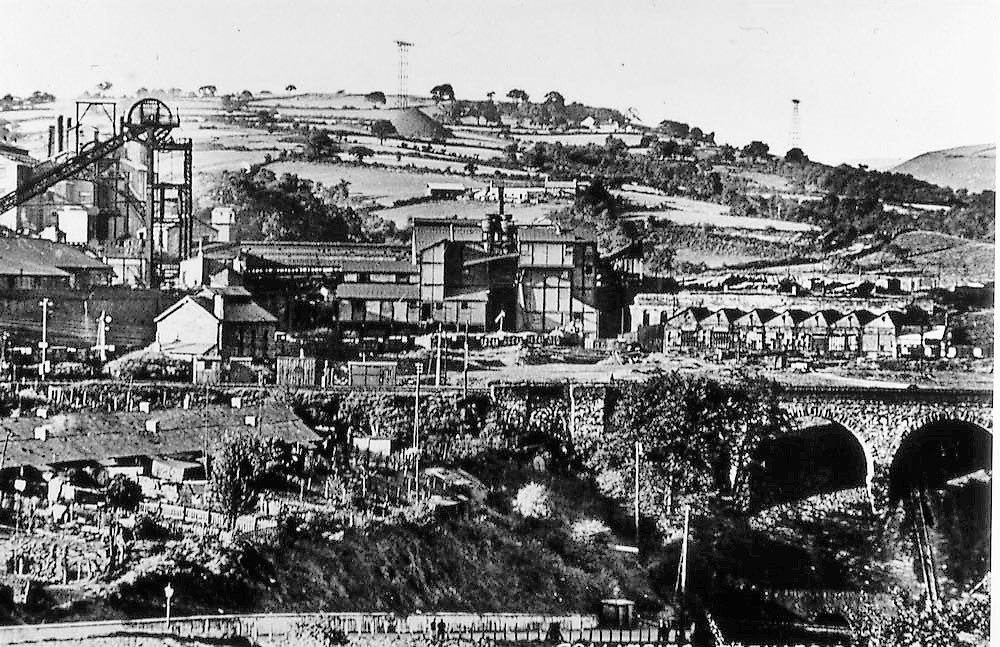

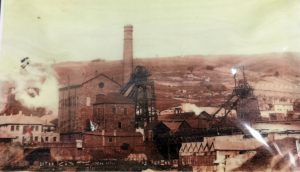

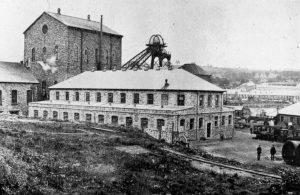

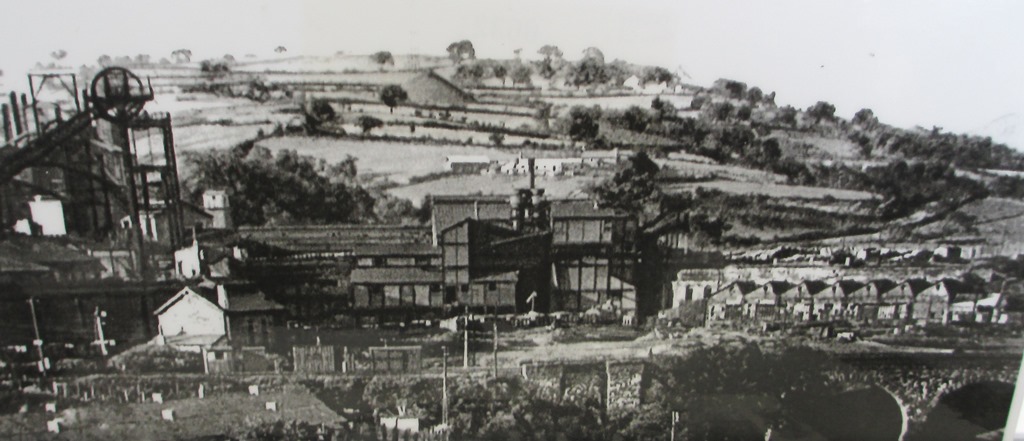

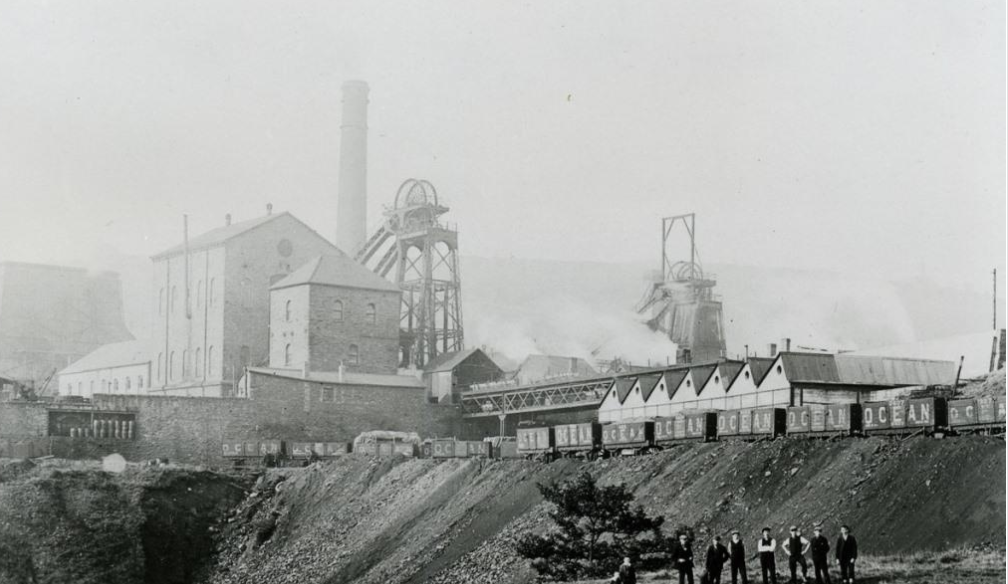

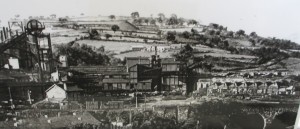

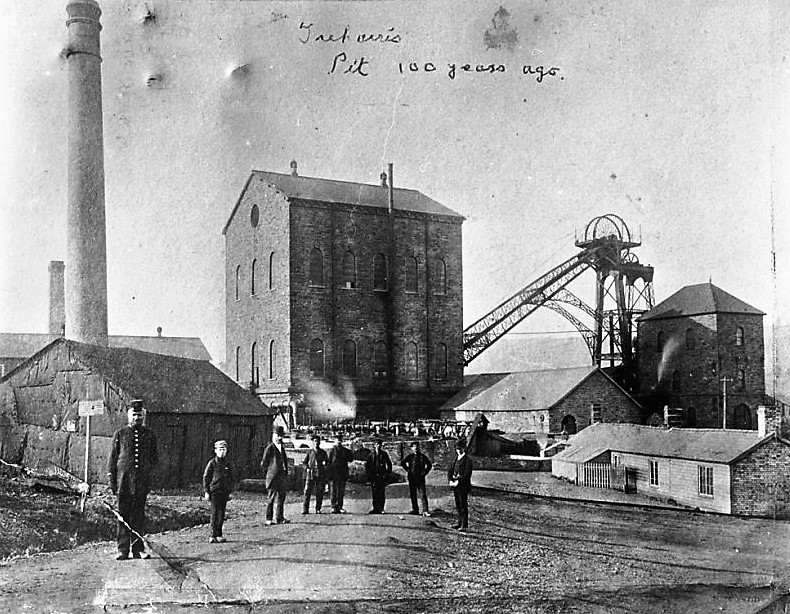

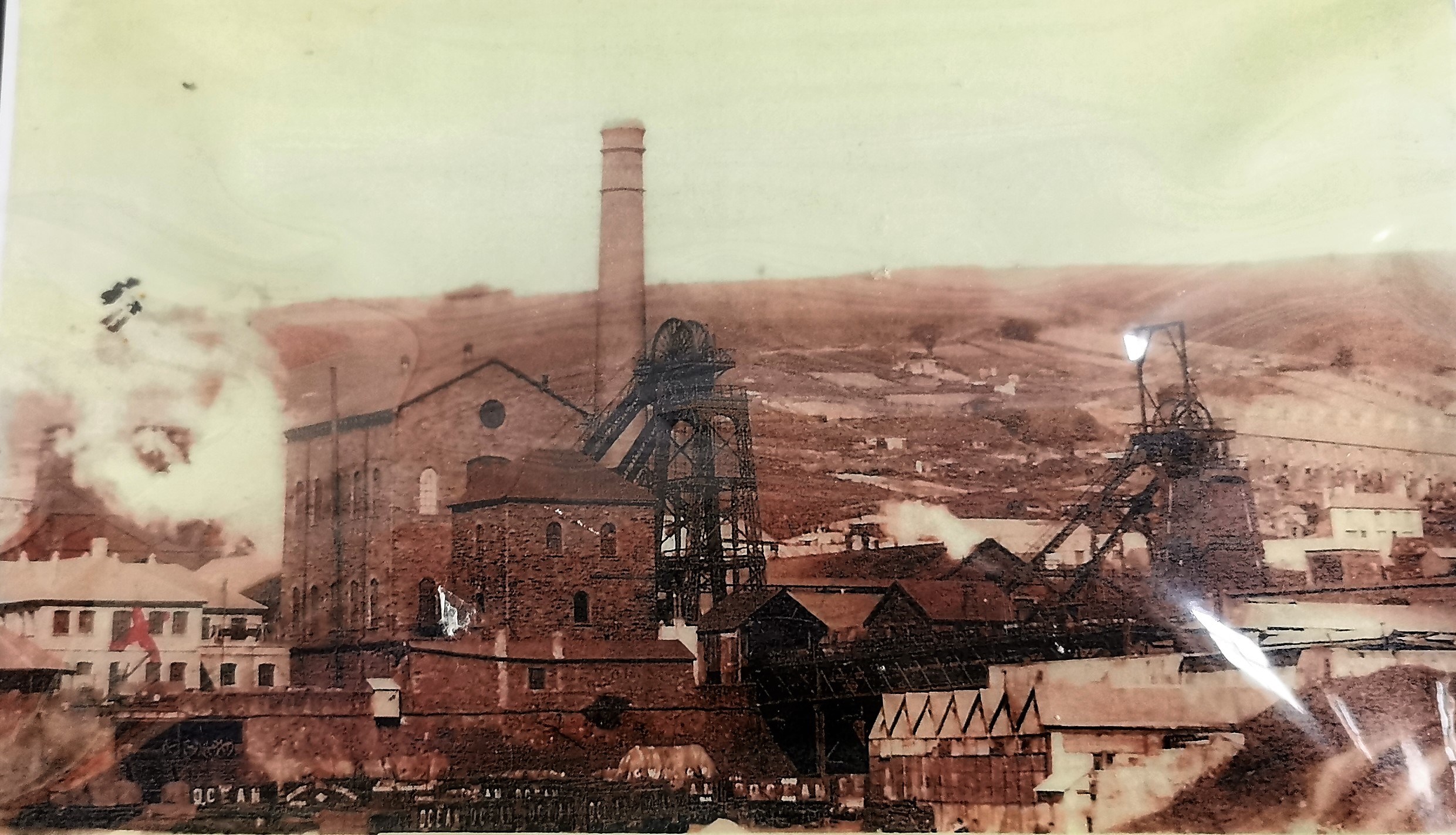

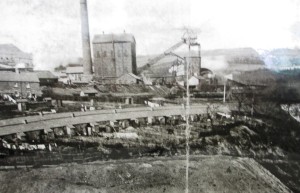

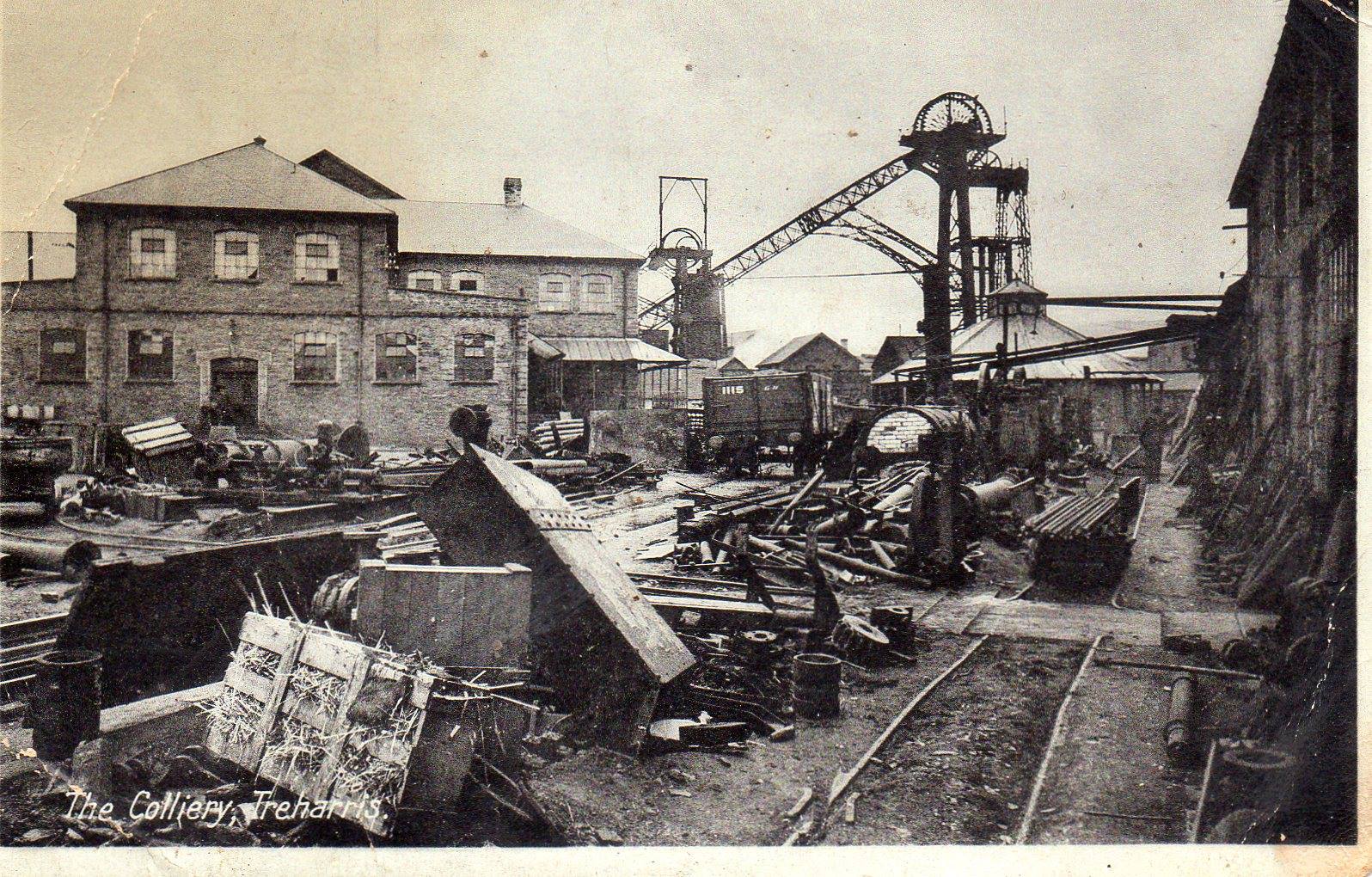

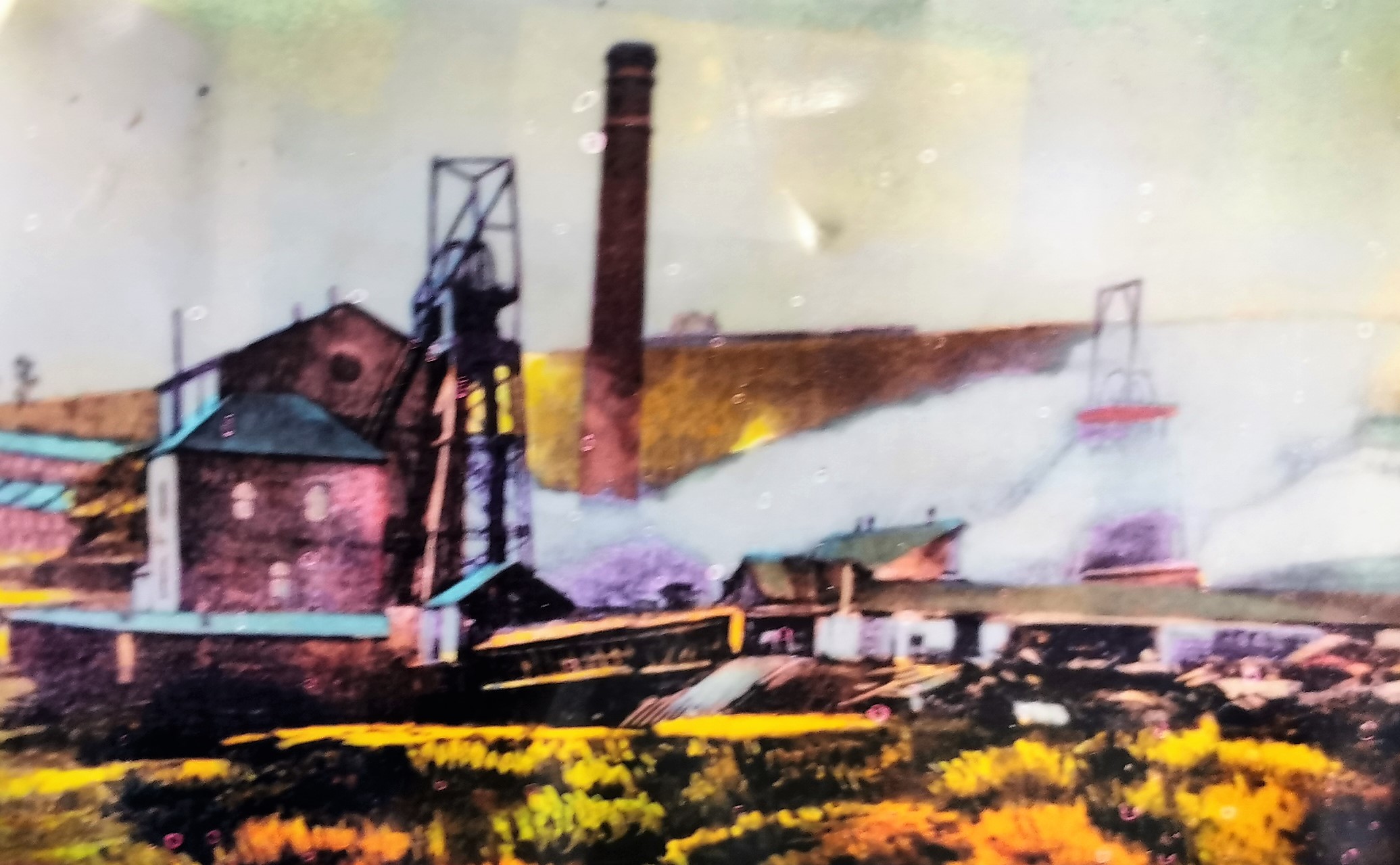

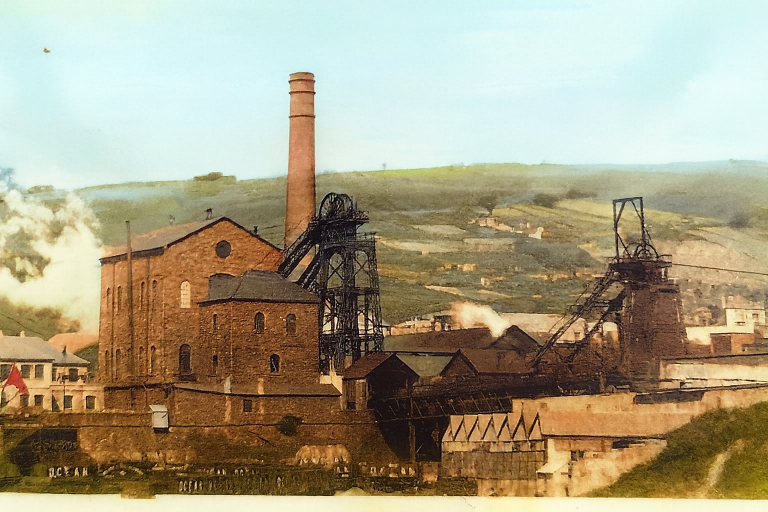

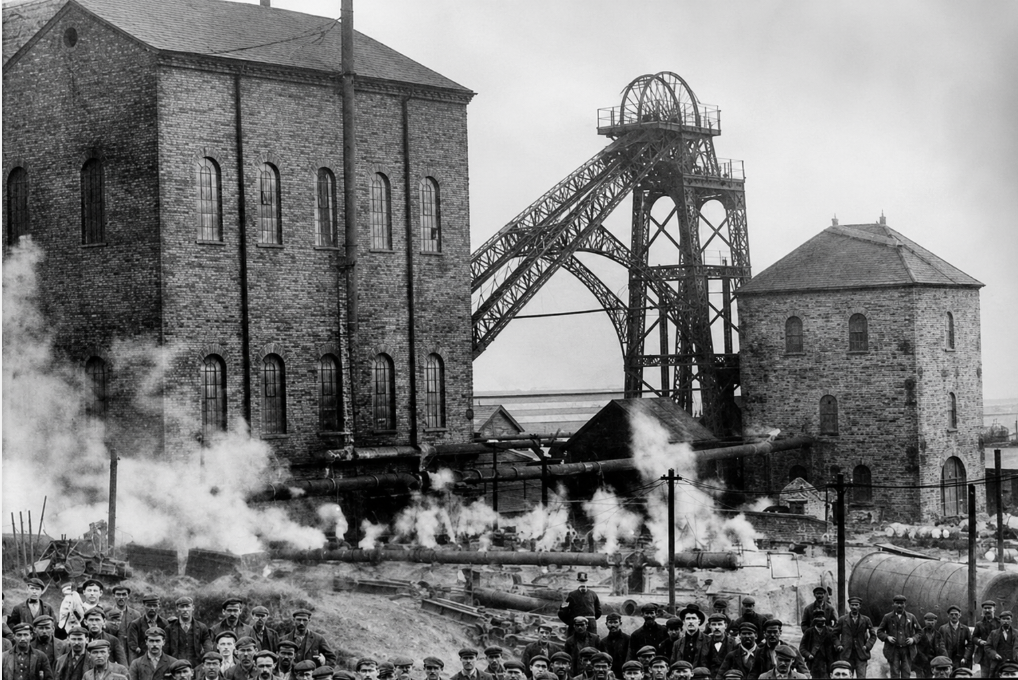

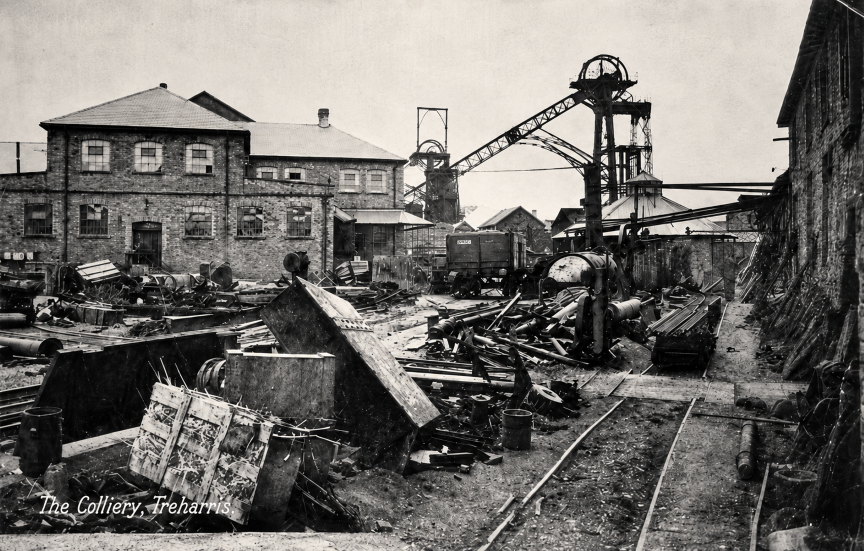

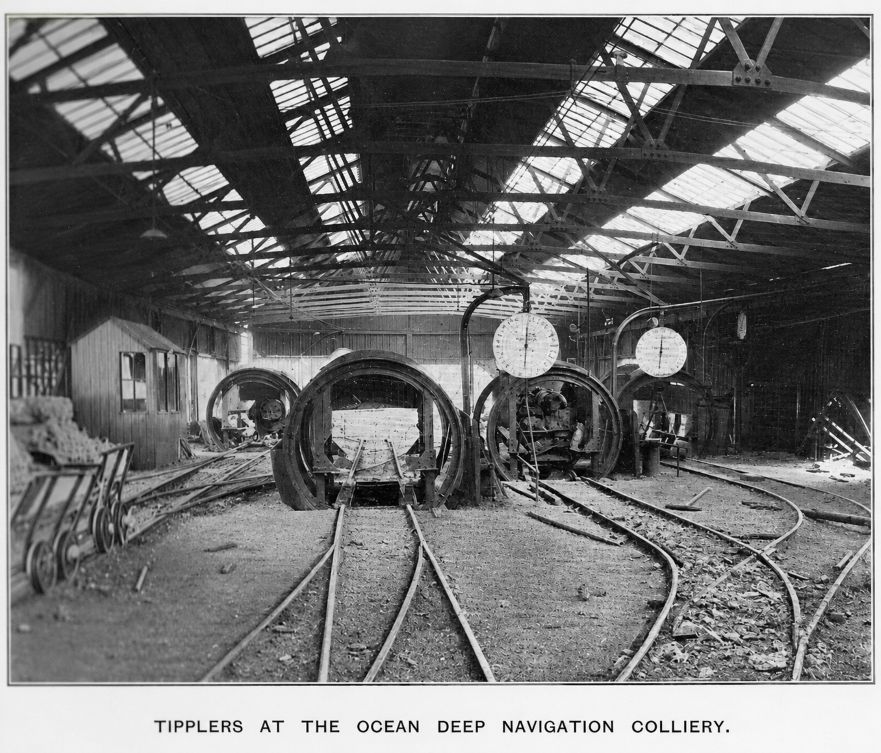

The Oldest Photographs we have in our collection

pitdn1

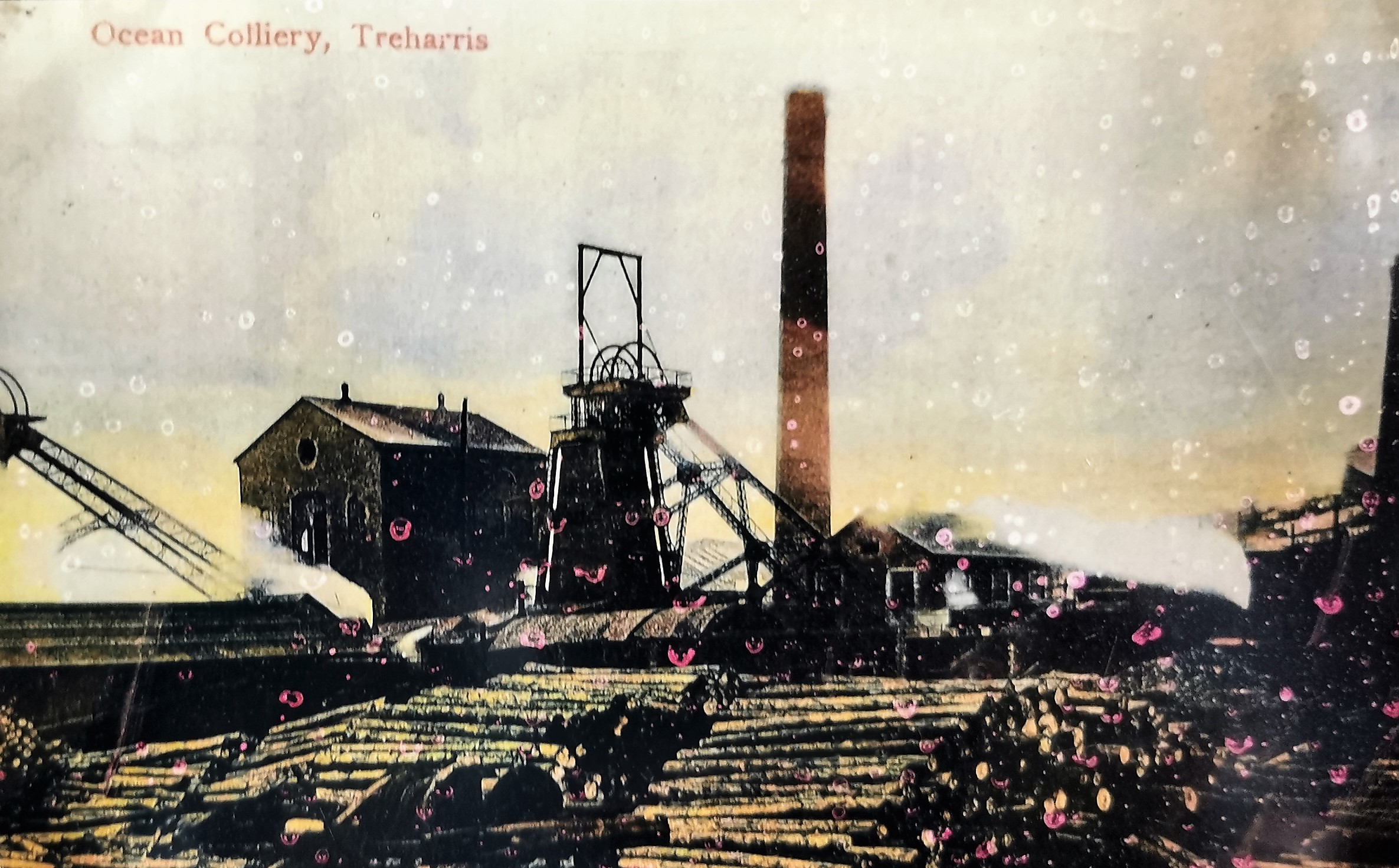

Colliery_1905_edie

1906 photographs of a gathering at the pit

DN_1906

Summer 1910 Major David Davies with large crowd

Excited children trying to see over the pit walls

The building to the front holds the electric shop + the lamproom + the time keepers + the deputies office + the Managers Office etc.

Deep Navi courtesy Tony Evans

treharris_dn

pit_2

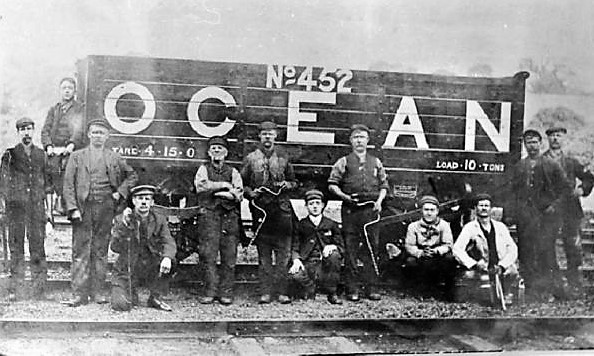

Coal wagon 1883 Deep Navigation colliery

truck

Colliery pit ponies

HorsedrawncoalwagonsDeepNavigationMine

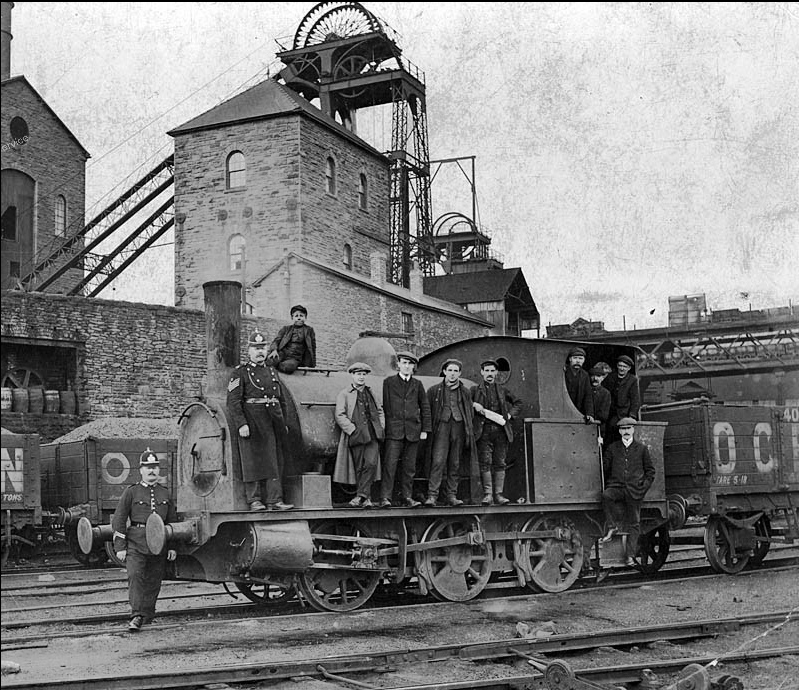

Police at the Colliery

New Picture

???????????????????????????????

DEEP_N

???????????????????????????????

DEEP_NAV_2

deeep_n_top_pit

DEEP_NAV

Some uncommon photos of the Colliery on display at Treharris girls and boys club.

The cooling towers below Cilhaul 1950,s

Deep_Navigation_Cooling_Towers (1)

top pit between Trelewis and Treharris often walked across as a short cut

Twynygarreg Huts originally first houses in Treharris built where Navigation close now stand

A view of the sinkers Huts 1910

huts

Treharris Huts, Anne Wheldon (nee Beynon) recalls  “the last lady to live in the huts was called Mrs. Hollister. I used to visit her with my mother, and it was like a new pin inside – all sparkling with polished brass and smelled of lavender polish.”

Women and girls of the Huts

???????????????????????????????

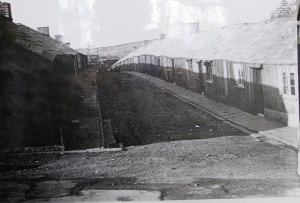

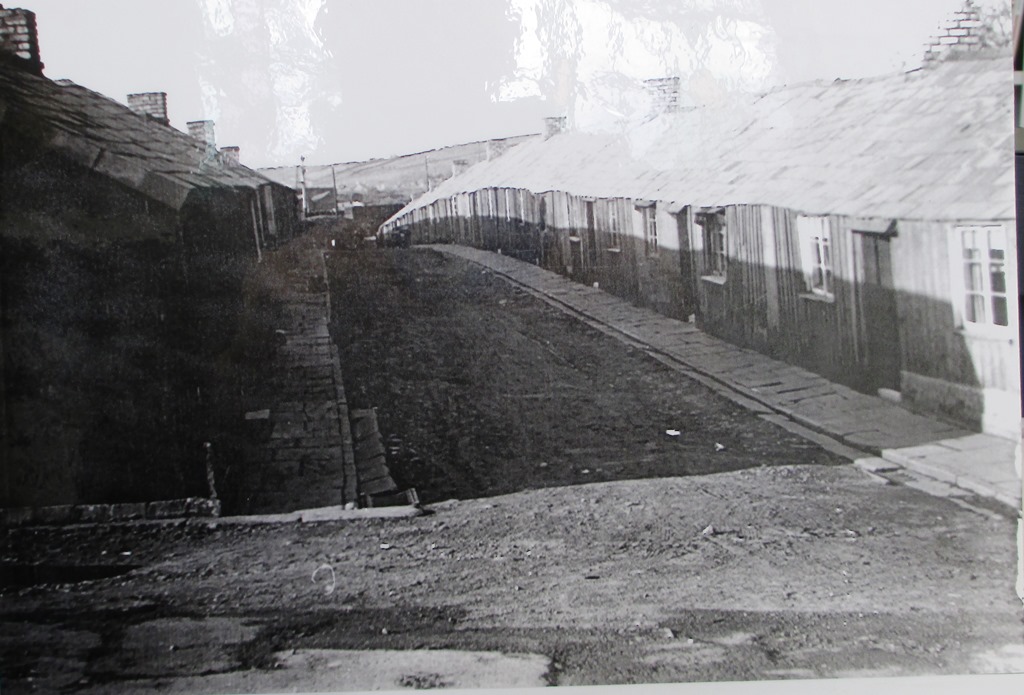

The huts in 1936

???????????????????????????????

The Workforce

Thousands of men worked at the colliery during its lifetime as well and women and children in the early days and female staff on the surface. Here is a collection from various sources of some of the workers throughout the years

Colliery and Treharris first aiders 1945

Deep Navigation Officials 1950 includes Idris Prosser Williams and Bob Powell

???????????????????????????????

Dick Munkley in the middle outside offices

Ian Meyrick,Malcolm  Rees, Dick Edwards, Paul Skipinski, Cecil Phillips (Parkins) behind

Deep Navigation National Union of Mineworkers lodge 1972

Back Row left to right Browell Jones (treasurer, Ron Jones, Michael Mcquire, Fred Davies, Eddie Collins, David Bengough

dn_lodge_1972

Treharris fitters

Left to right. Batty Marshall from Pentrebach, Ian Meyrick (Ianto), Tyrone Lewton(Waldo) both from Treharris, Gershwin Davies from Fochriw and Michael Wheeler from Abercynon taken 1974

L/R ?, Mel James,Martin Bridges, Darren Edmunds,? Jupiter,on break

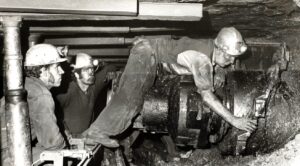

Eddie Collins, Vic Andrews and Mick Evans making repairs to the Face cutter

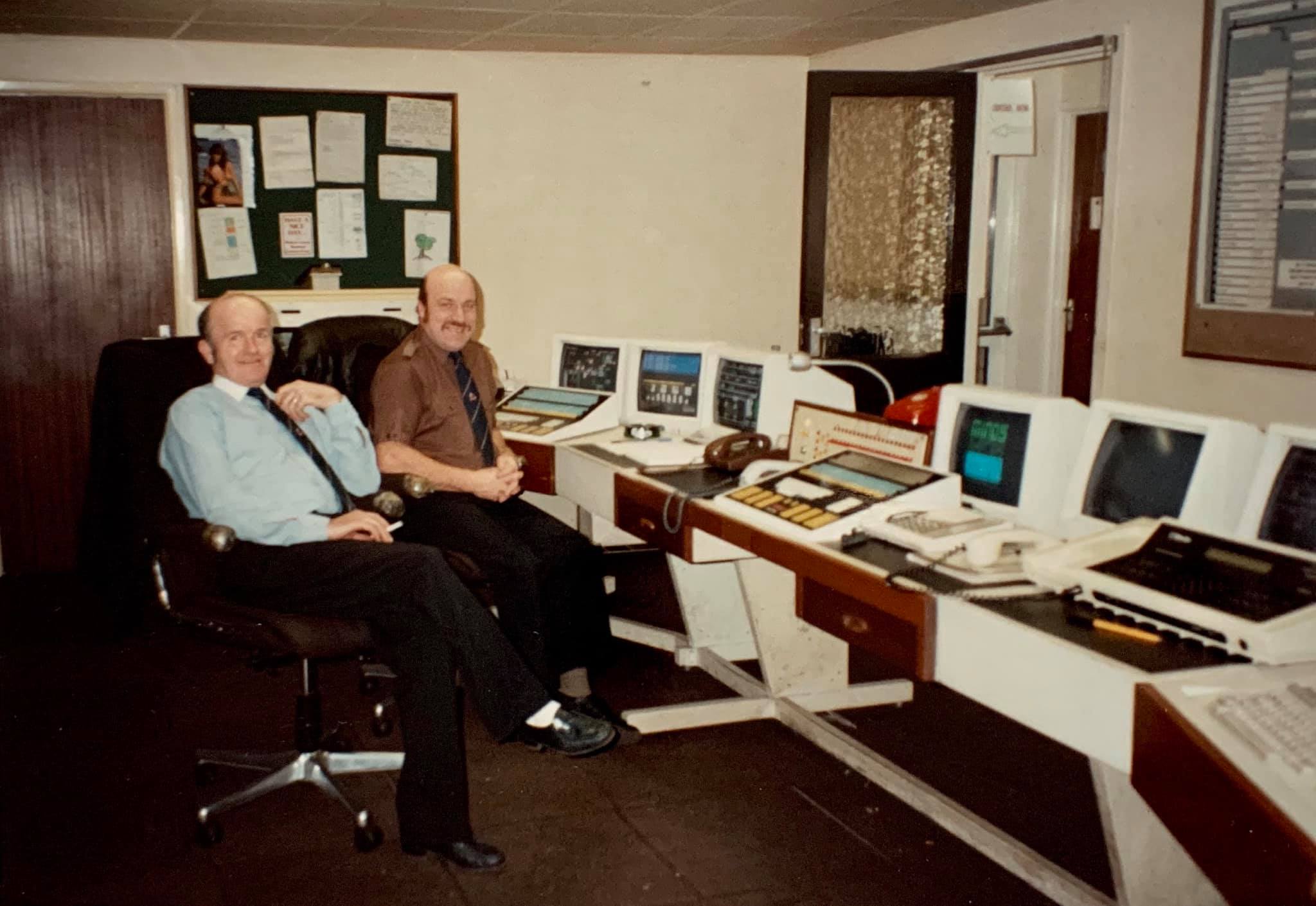

Deep Navigation miners and staff

The pit men, Morris Carpenter, Phillip Price, Graham John and Keith Davies (Cappo)

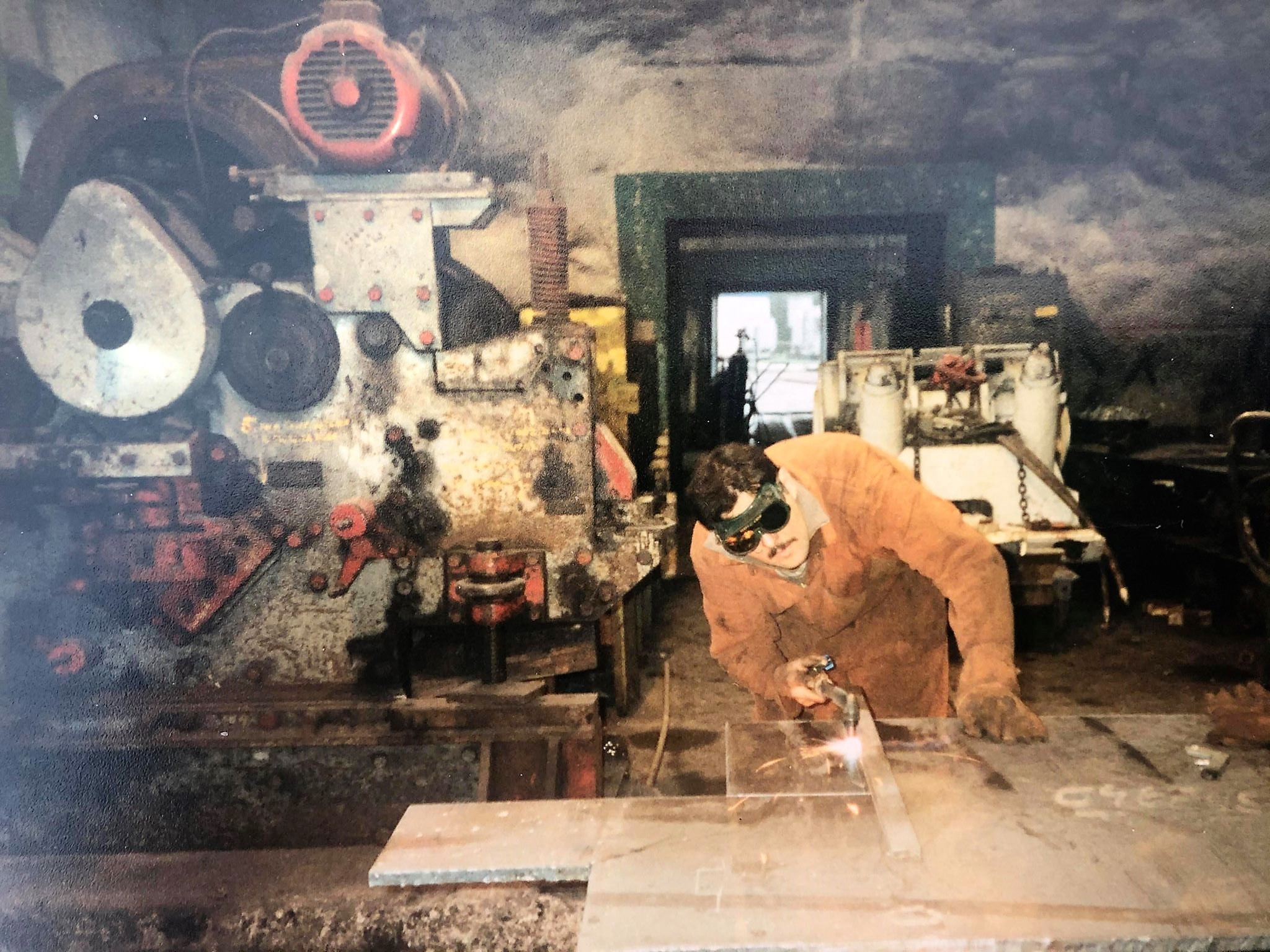

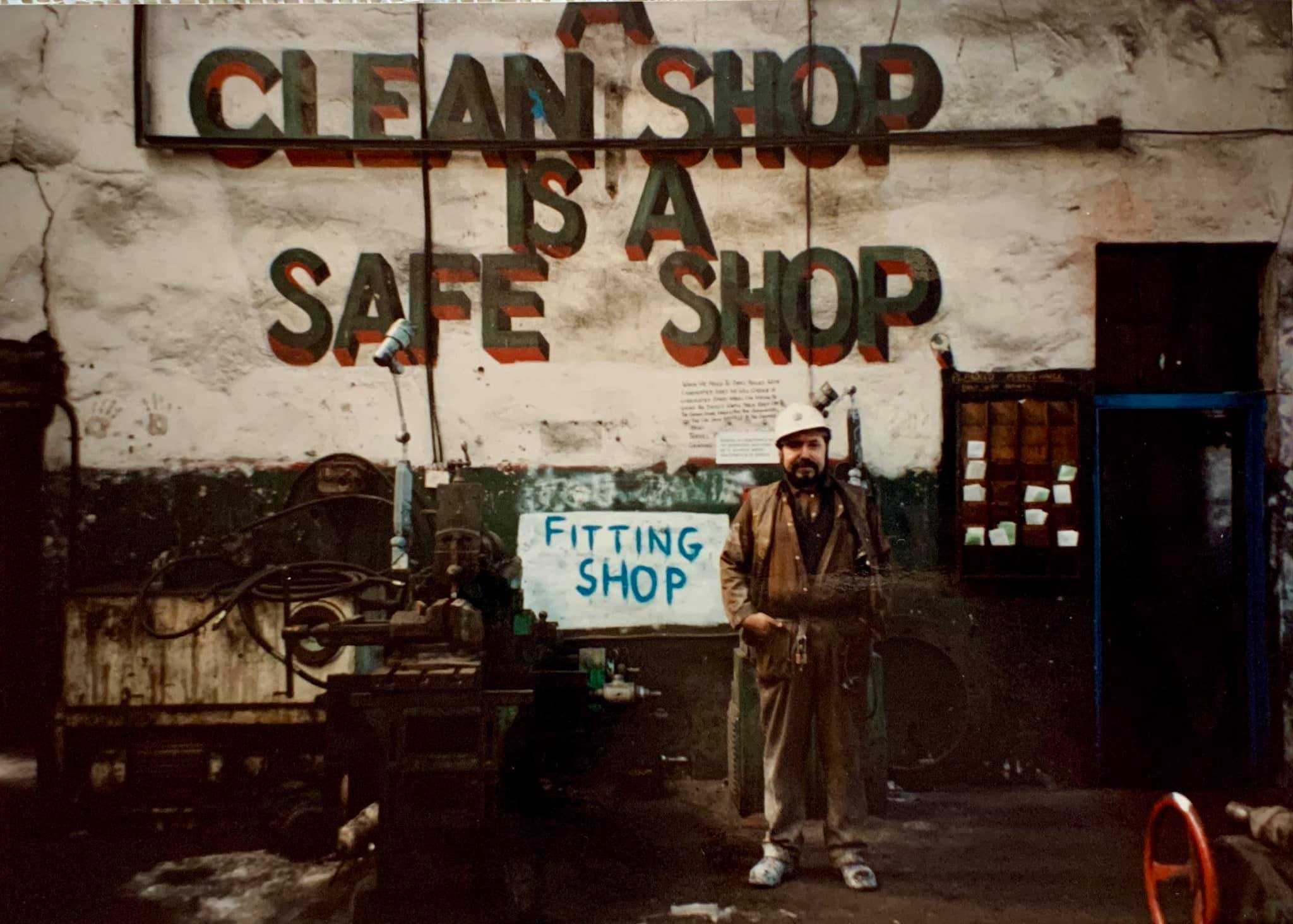

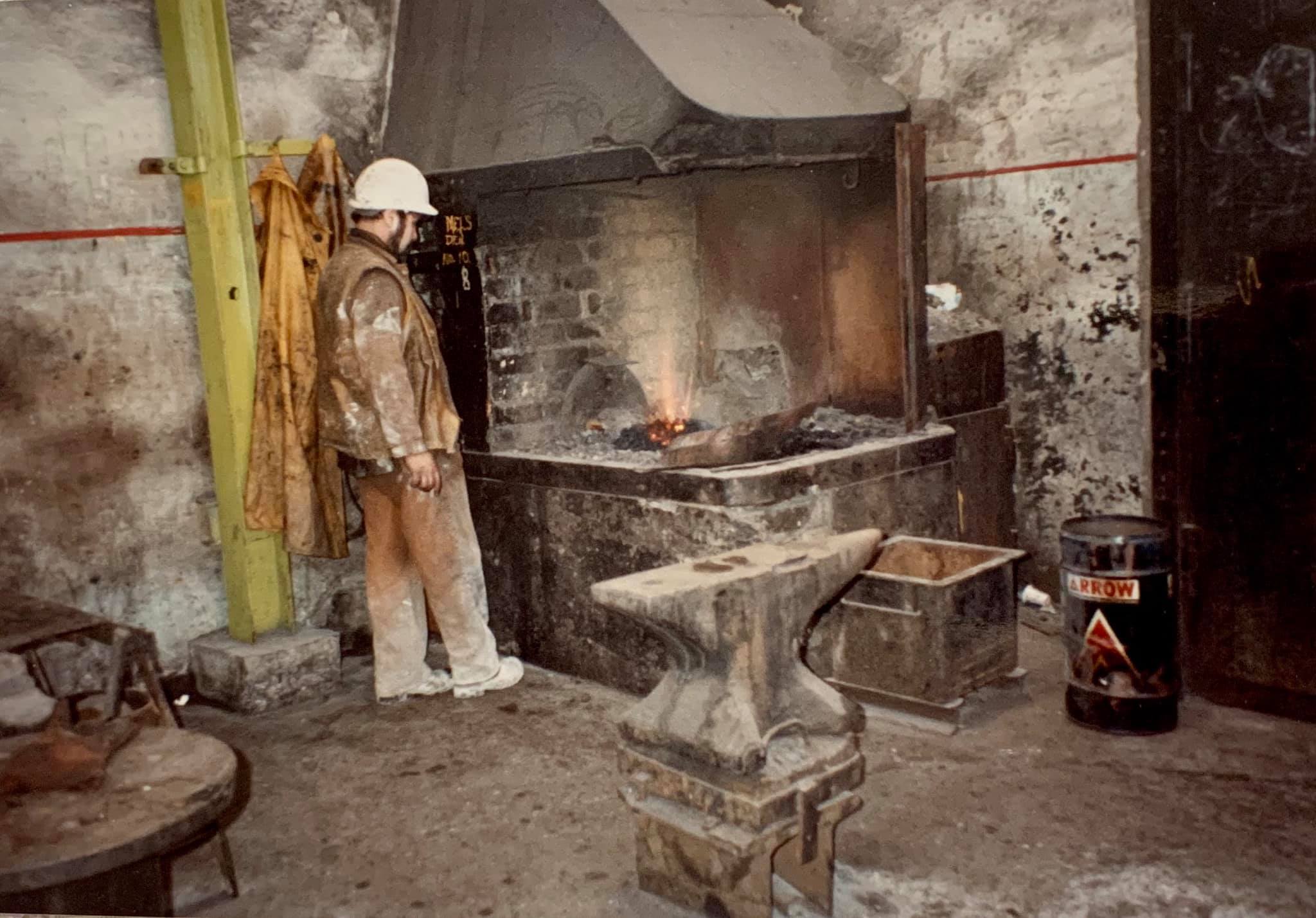

A collection donated by ex Deep Navigation mineworker Michael Wheeler, many of the photos are of the fitters and smiths who worked mainly but not exclusively on the surface of the pit.

miners_in_baths

Steve Fluck and Mike Weaver

Below we see Jeff Lee and Martin Jones

miner_deep_n

Below we see Michael beechey, Jeff Arthur, Mike cusack, Alan Bryant Dai Roberts, Mike Harrison

Colliery carpenters including Dai the Saw

Idris Joseph and friends late 1960’s (below)

The much loved Mair Roberts from Cilhaul working at the Deep Navi Pit canteen

Below we see a couple of photographs donated by Alan Davies 1985 approx.

George Gardner with Bryn Davies and his son Andrew, all sadly no longer with us

002w

Miners Terry Parry,Raggy and mates

Deep_Navi_Miners

Deep Navigation Rescue team 1952, George? Trelewis, Will Slogger Williams (Merthyr)Mostyn? and Edmund Giles Trelewis

miners

???????????????????????????????

Below we see Karl Smith, Trelewis

???????????????????????????????

James Munkley and friends

???????????????????????????????

Philip Anthony at the coal face

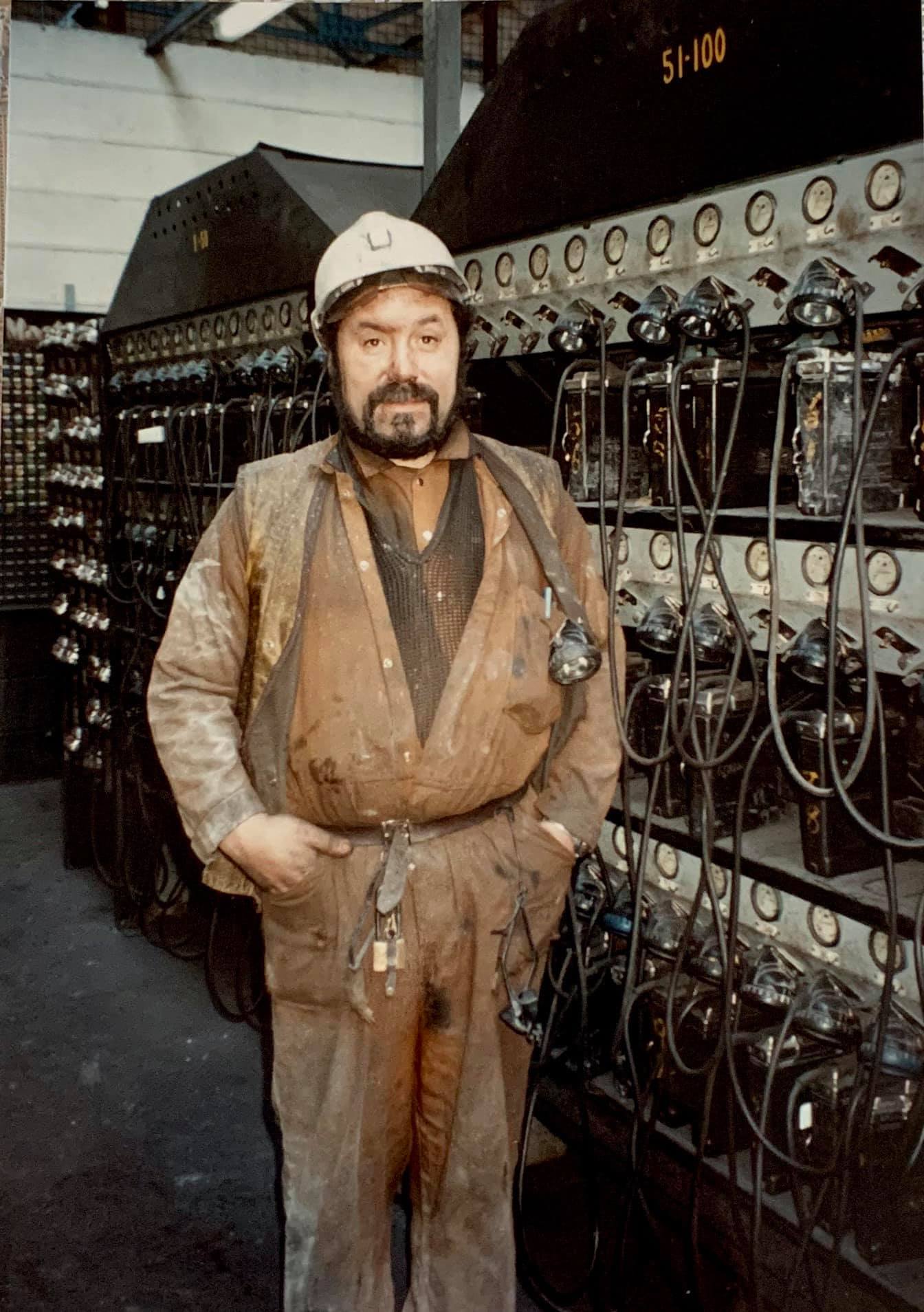

Hugh Hughes head Lampman

???????????????????????????????

Malcolm Cowles and mates on Sandwich break

mal cowles

Photograph courtesy of Roger Vowles Deep Navi Safety award winners

Will Jones, Safety Officer, Derick Davies Ventilation Officer, Cyril James, ( Satch) Alan Bryant, and Martain Bridges,(thanks to Duncan Edwards for the names)

D970B120_edited

nuiy

m2

Heading for a bath after shift

aevlast

Possibly Joe Barry Penn Street with the manager Mr Priest

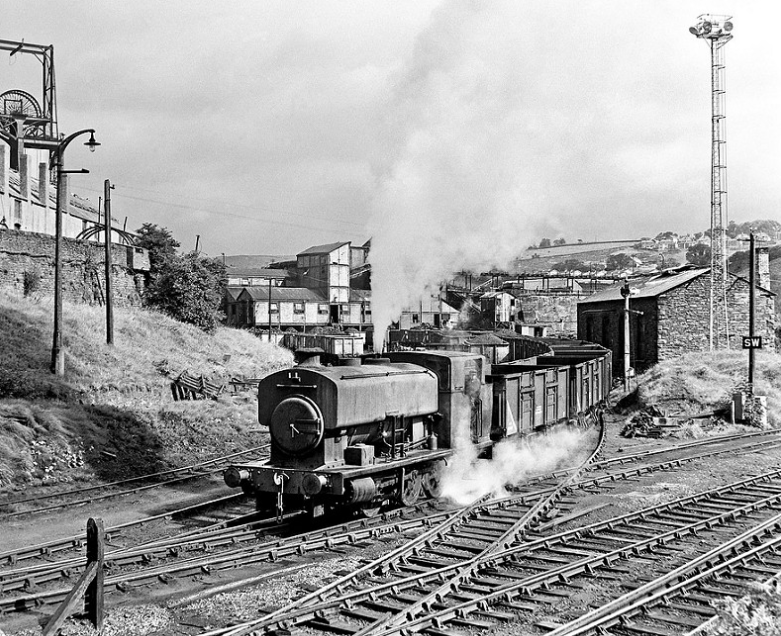

Colliery surface including the coal shunters and sidings

2337022757_5041907c36

View of Trelewis above and from Trelewis below

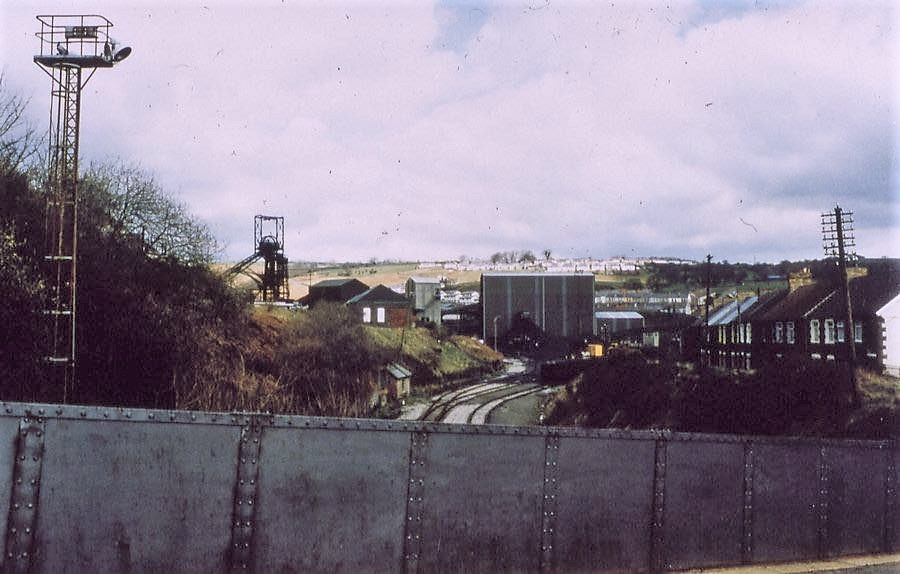

View from Railway Terrace 1989

View from the old Cardiff Road bridge

New Picture (19)

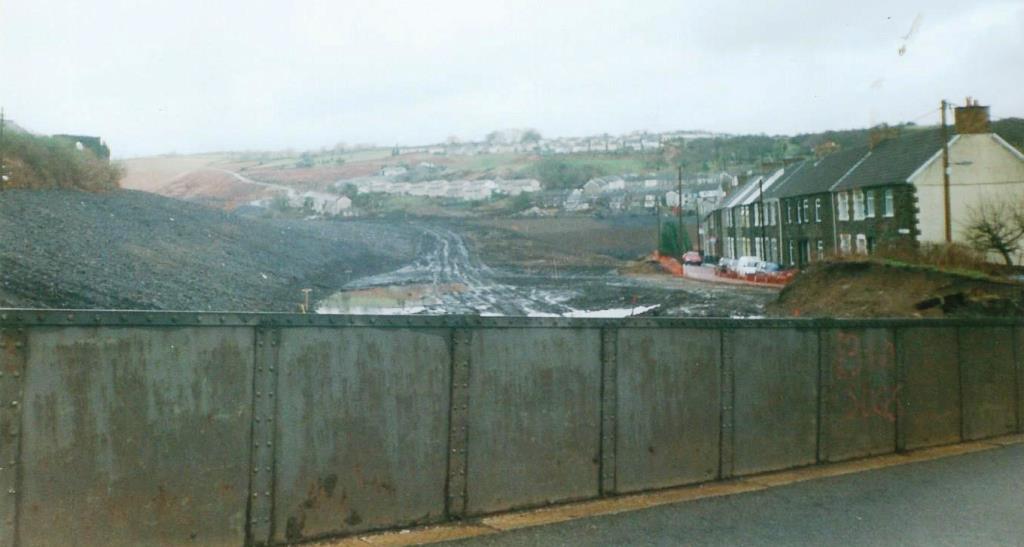

Below we see a Before and After couple of photographs by Thomas Williams

tom34

The other side of the bridge now a car park behind library

Later when most of the sidings had gone

New Picture (18)

always mucky walking through top pit

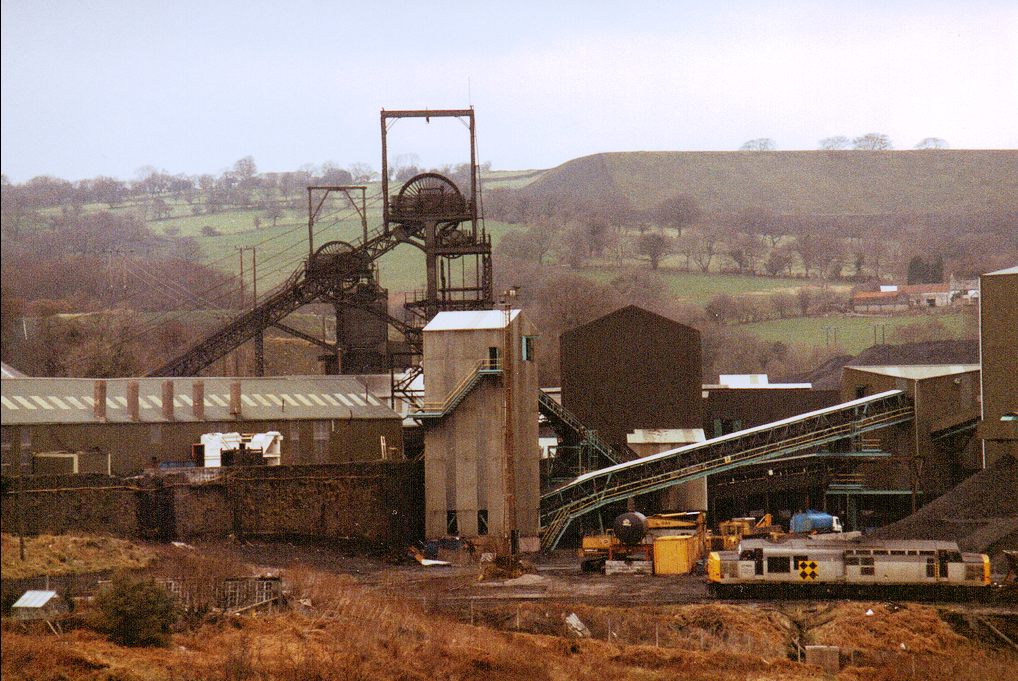

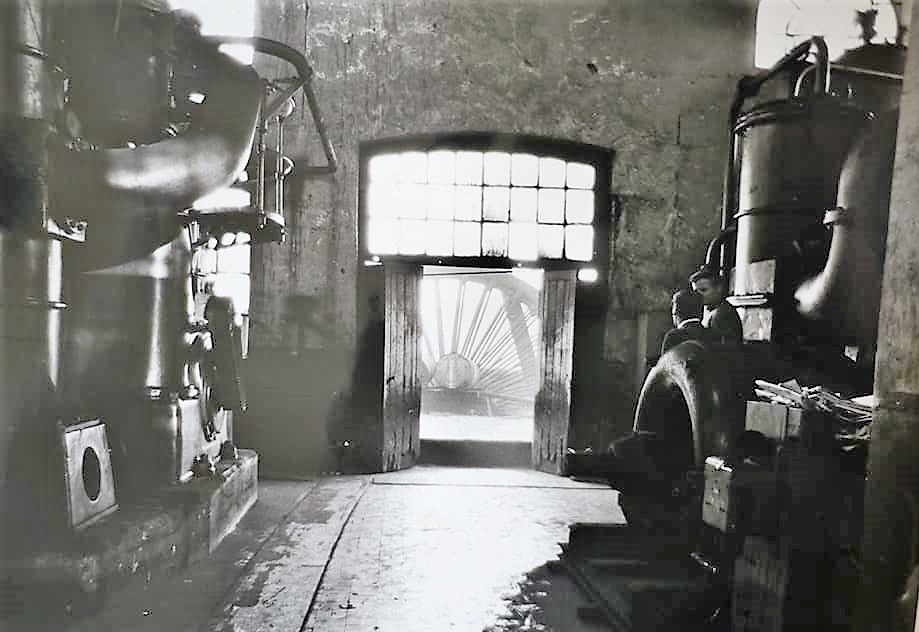

Engine houses

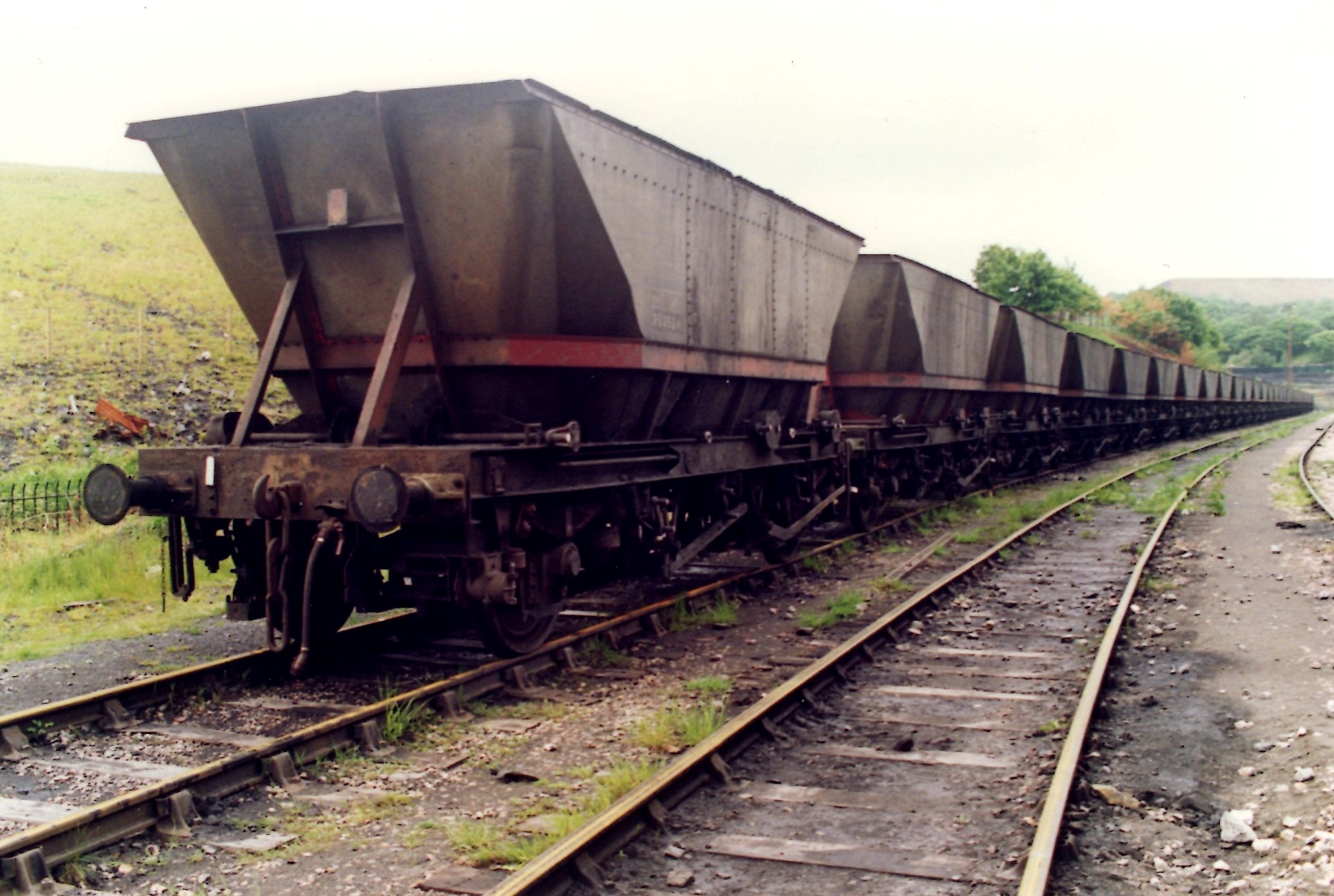

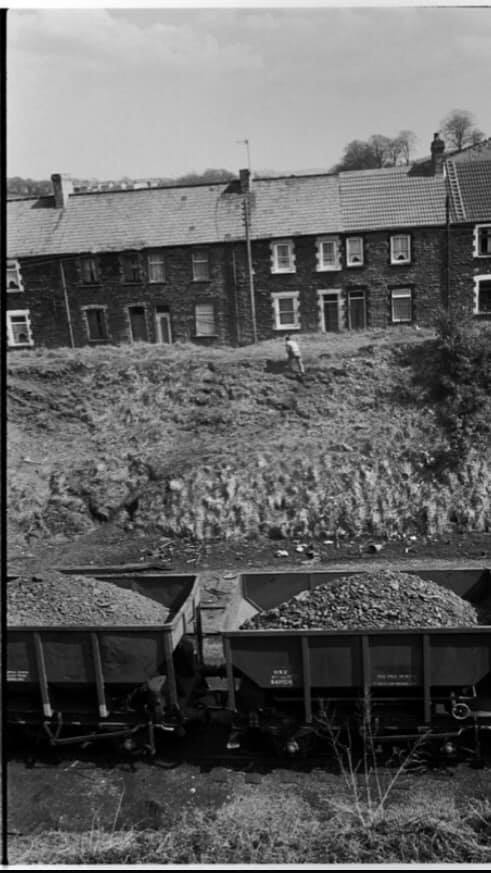

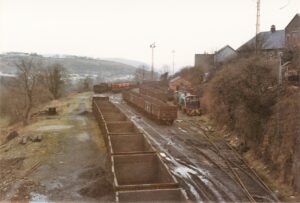

trucks opposite the pit below Railway Terrace

The sidings opposite Bontnewydd Terrace

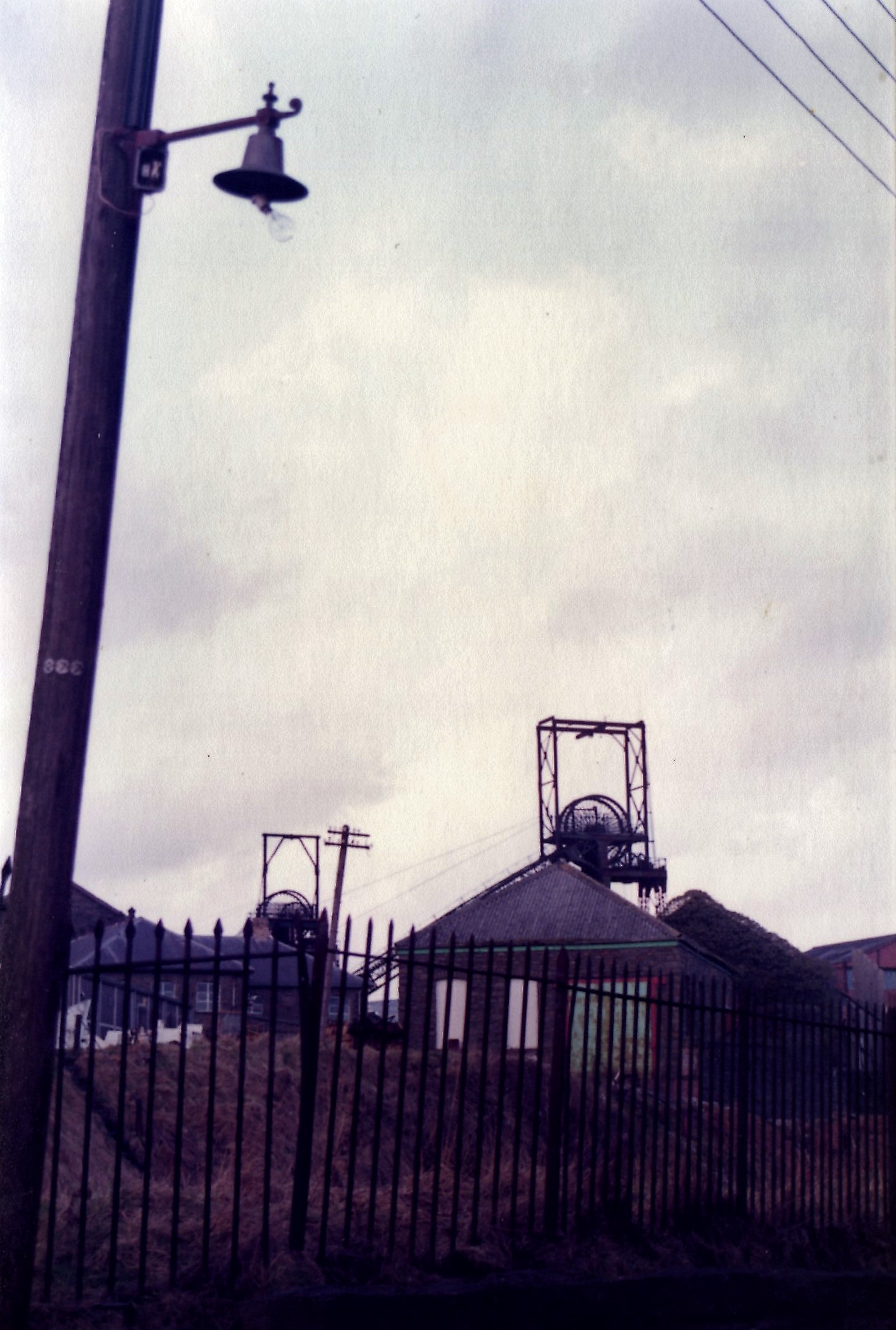

Looking through the black railings of Railway Terrace

Top pit looking towards Railway Terrace

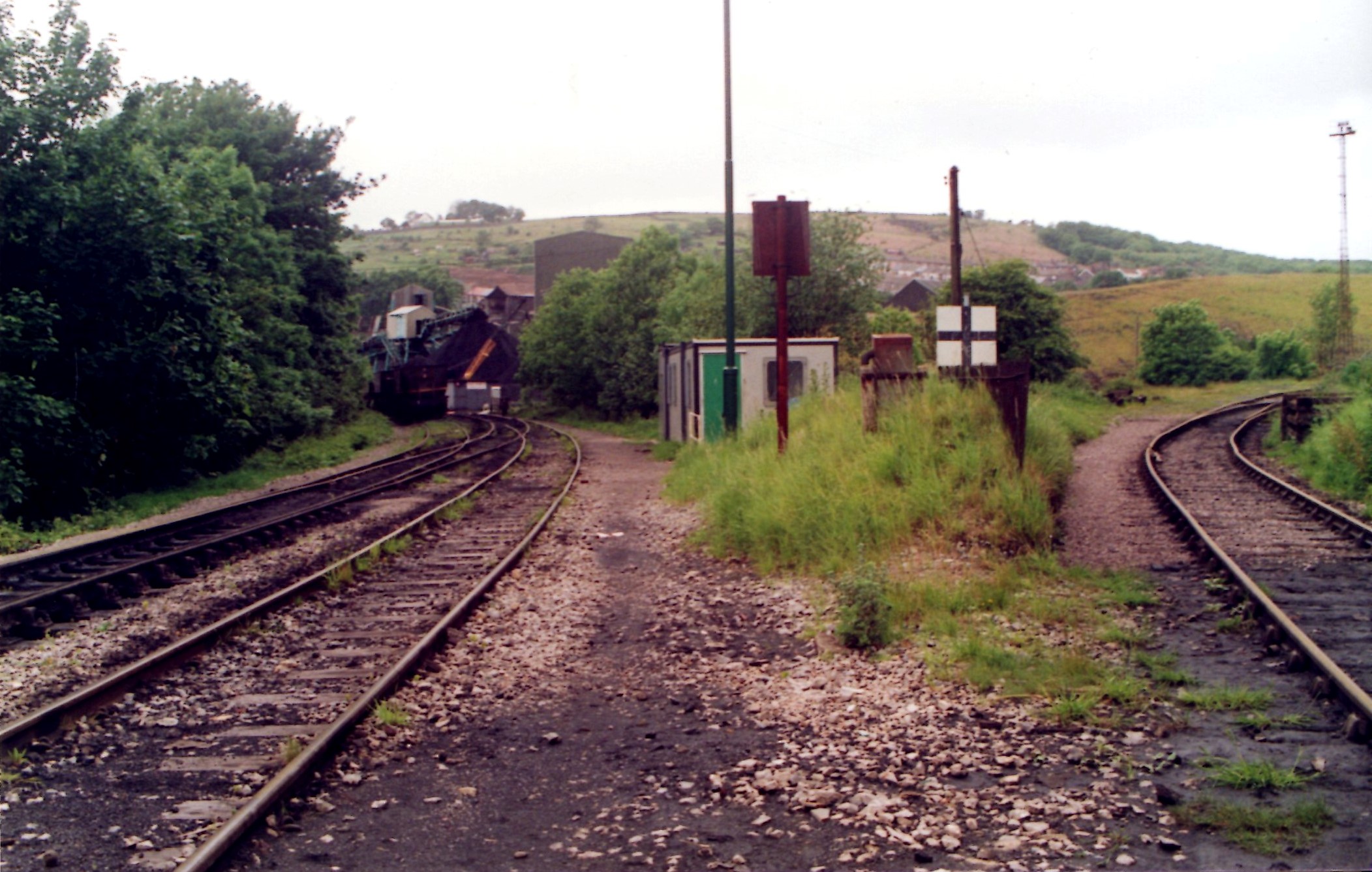

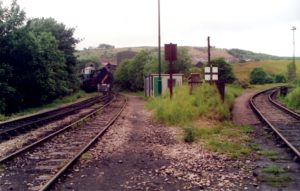

Junction for Deep Navigation and Taff Merthyr at Bontnewydd

Between the Royal Hotel and the Library car park

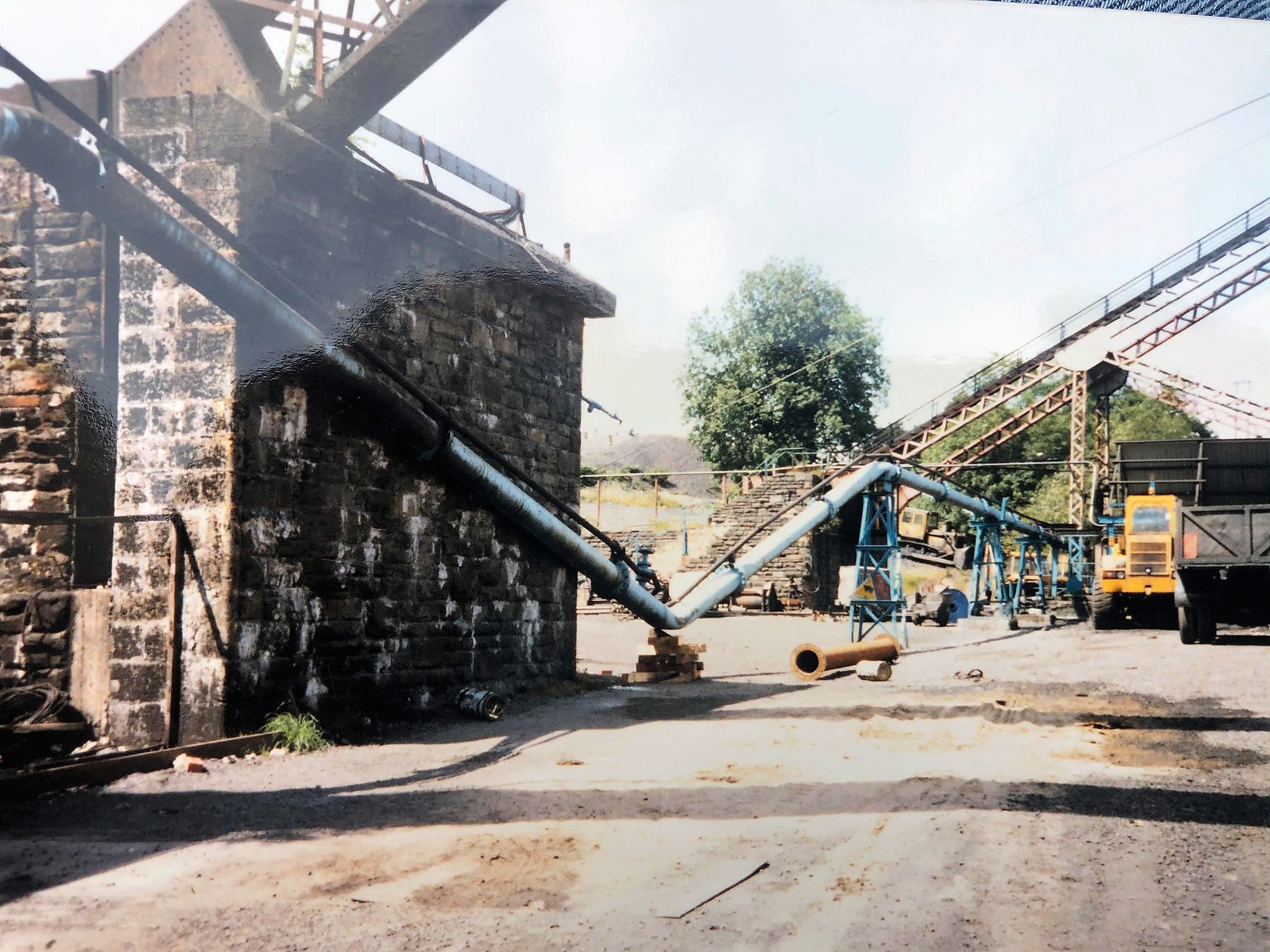

Surface photographs 1985 from Mike Wheeler

ld13

Again we see the stock and supply yard , this time looking towards Trelewis

ld15

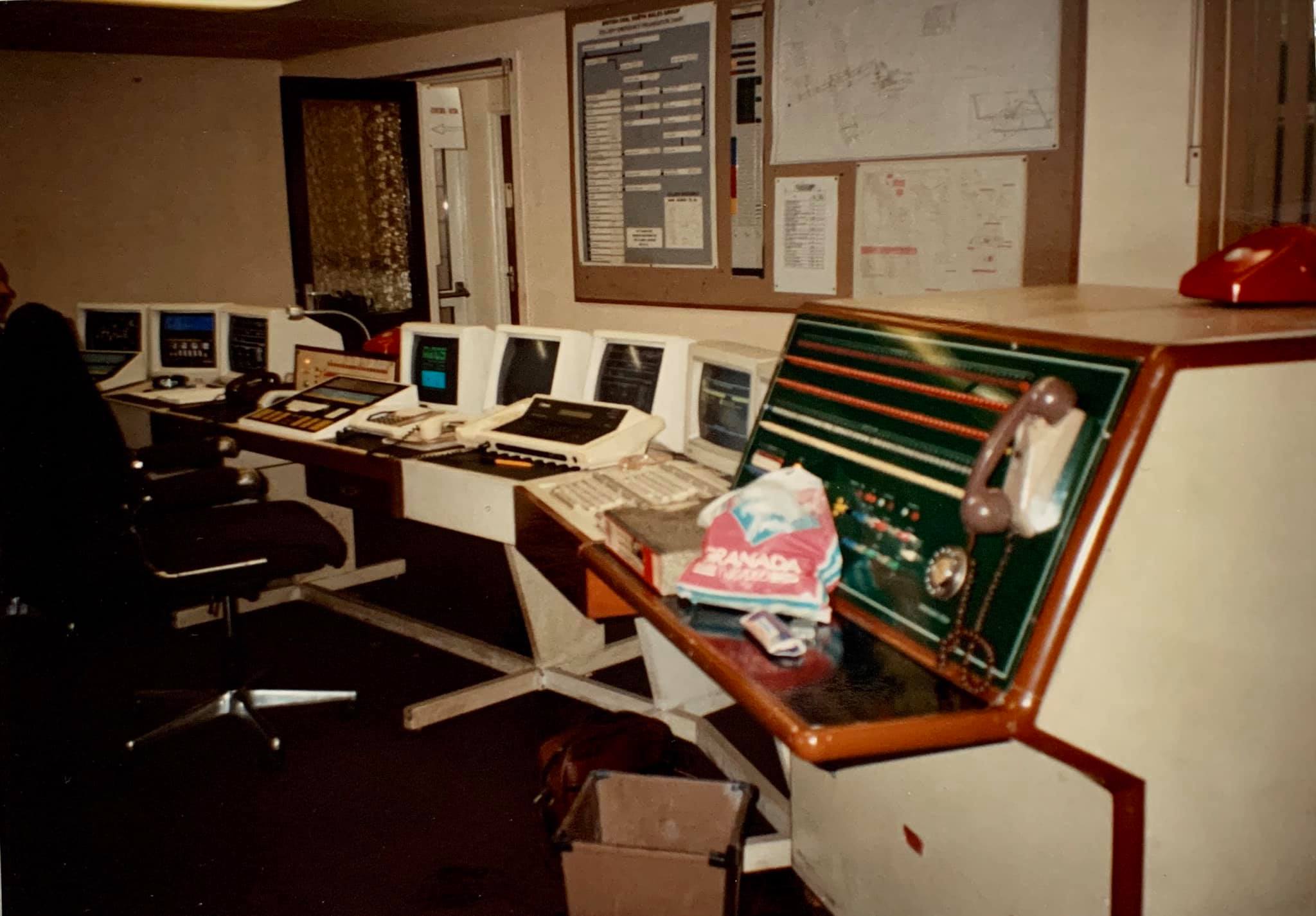

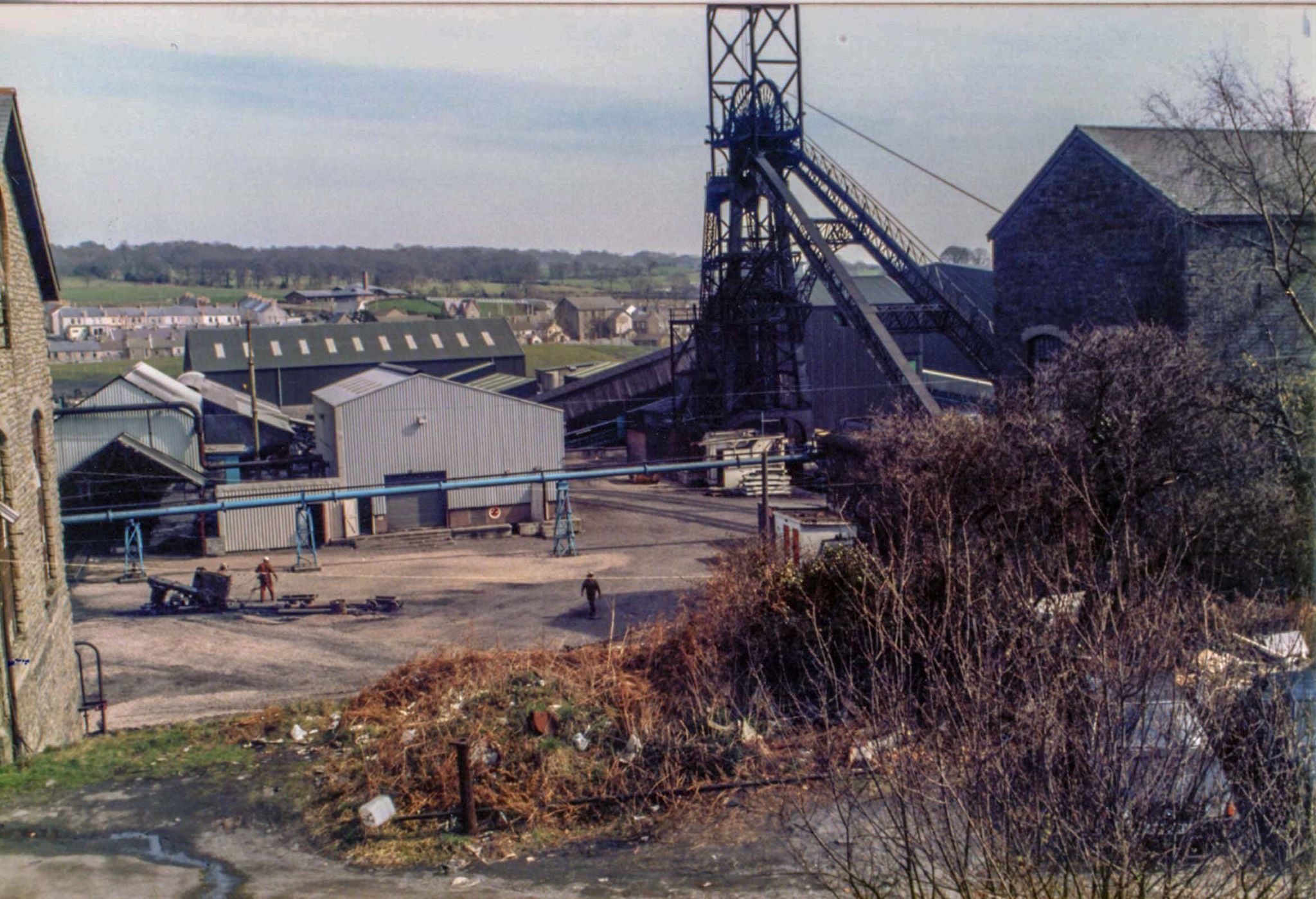

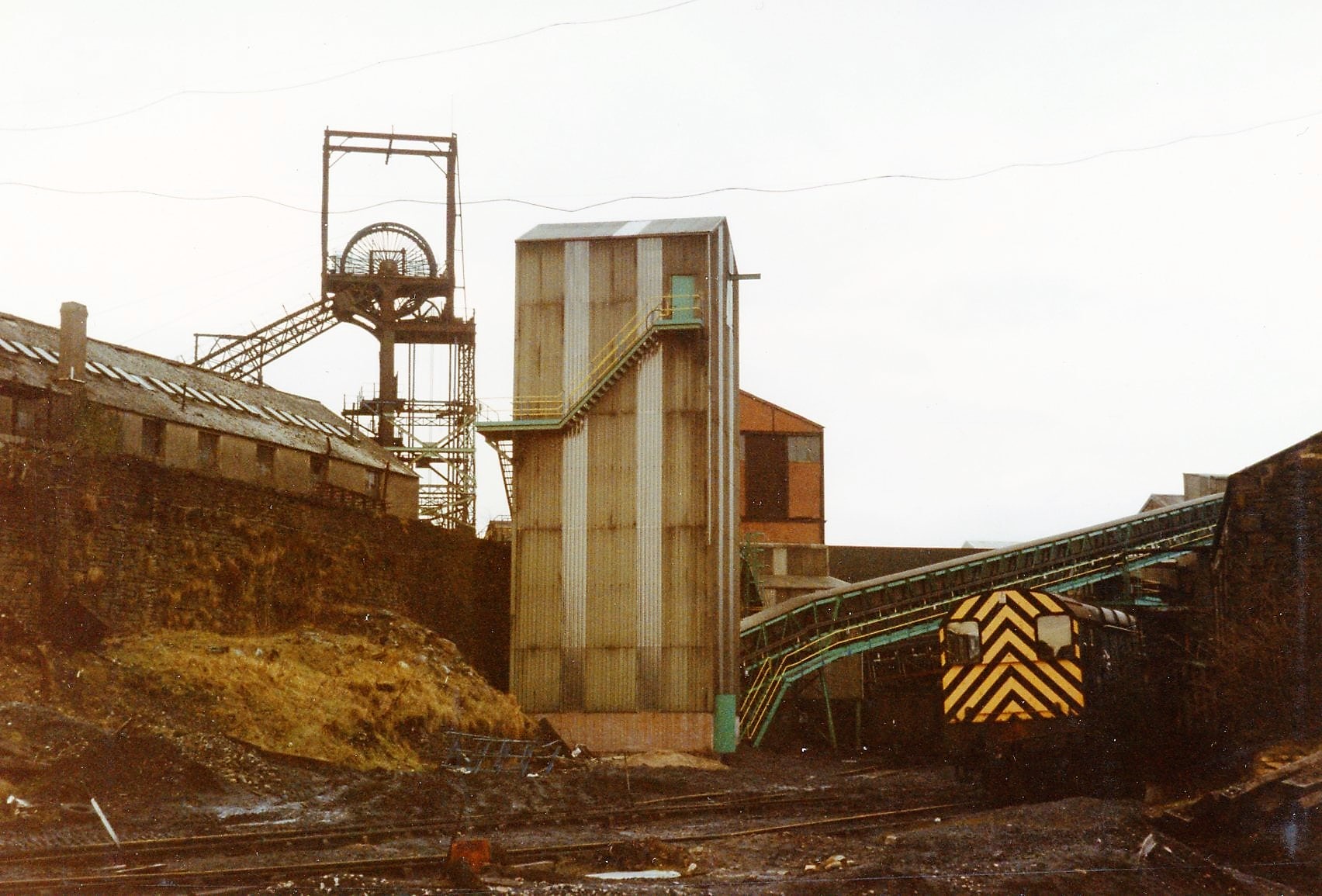

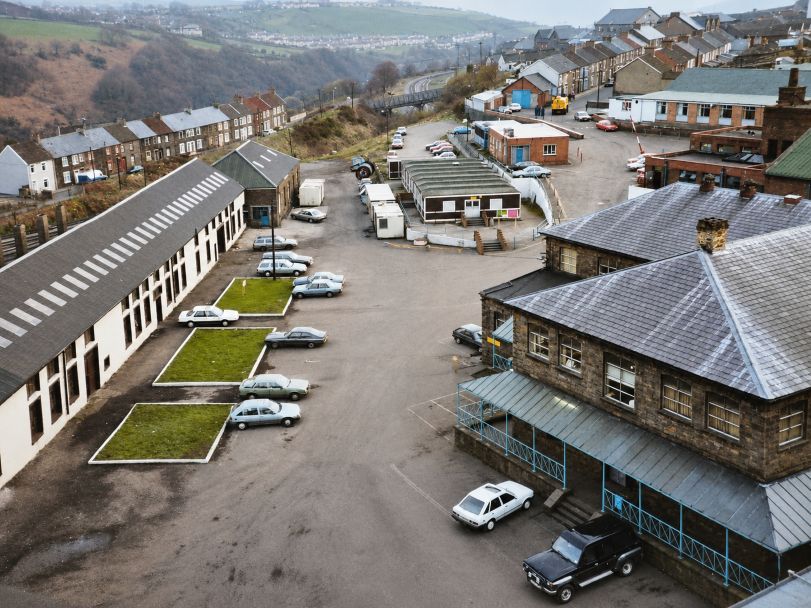

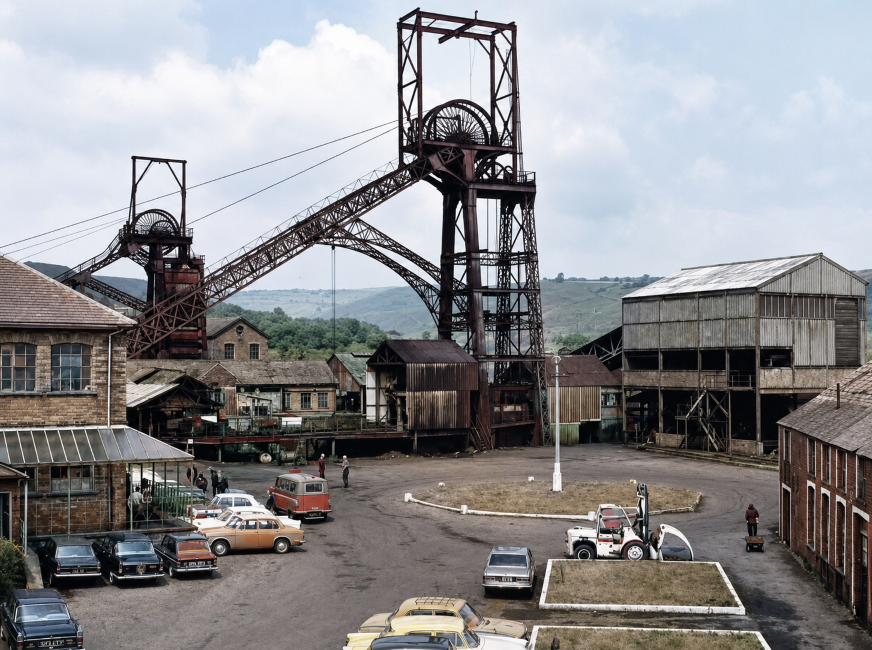

Colliery surface buildings

ld17

The pit canteen , car park, the boys club, all of which is now a new clinic and a new one way road system 1990

Top pit and offices

First aid room

et

deep_2

deep_3

dn_6

dn_7

dn_8

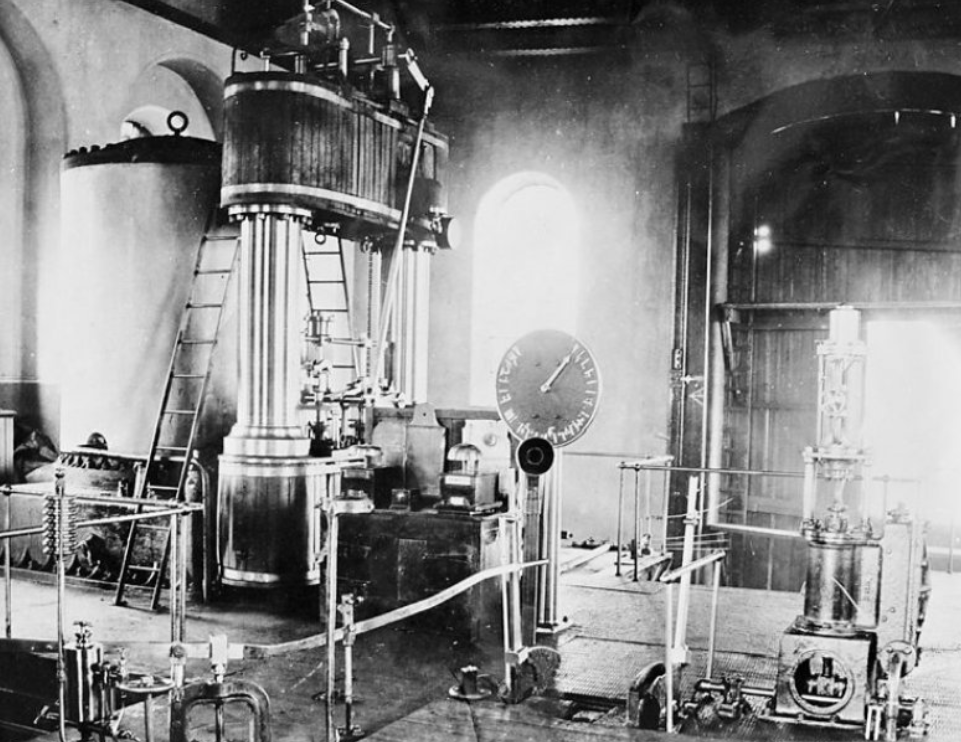

dn_power

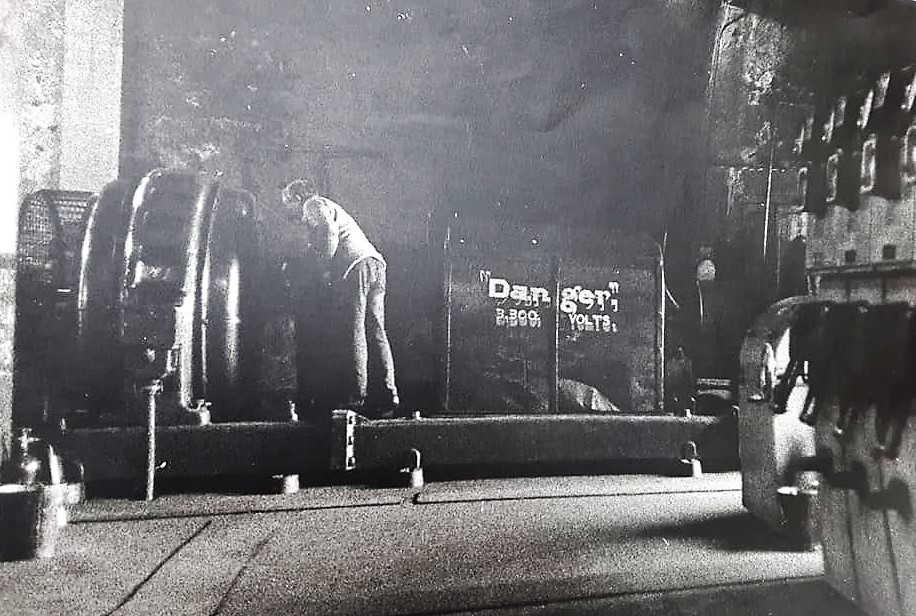

Above we see some of the huge machines that powered the pit.

Below we see a collection from Graham Dale

dn_chocs

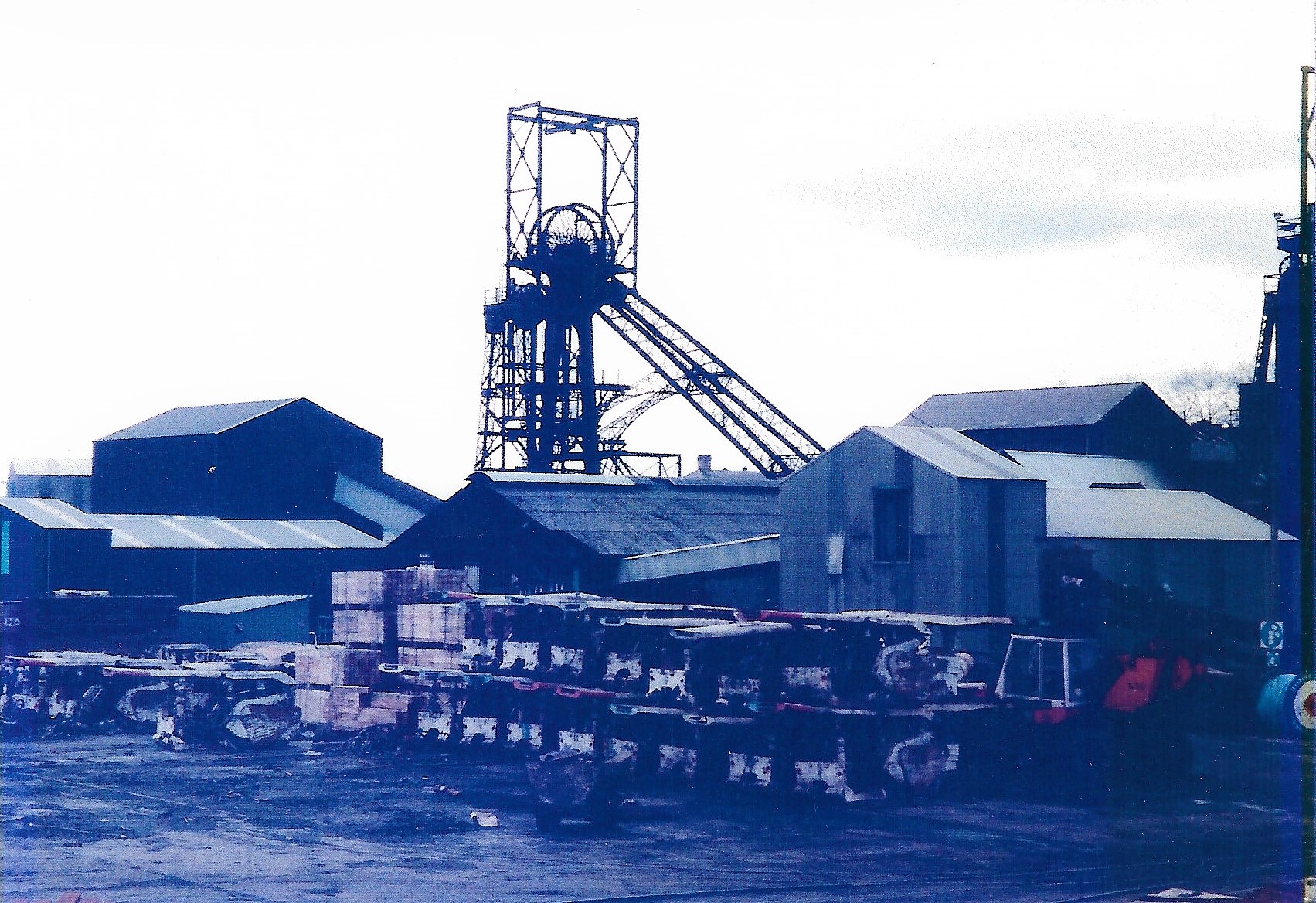

Walking Chocs used in the coal face to support the roof

dn_suppliers

pit_photo

Top Pit

pit_photo2

deep_Navi_19991

Deep_Navigation_1990

ab

an

deep_3

gb.3.308000.195000.2.1986

deep_Navi_19991

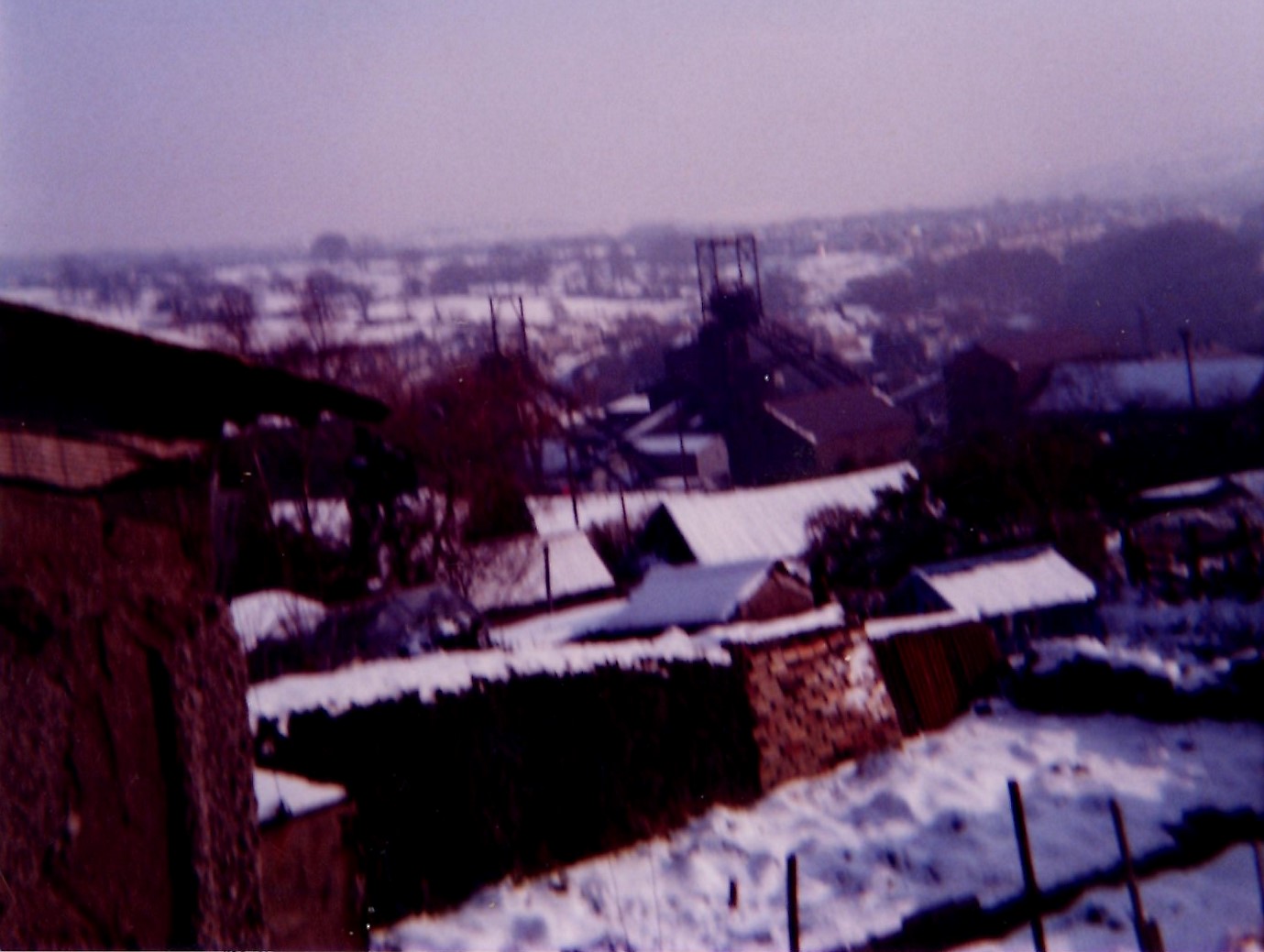

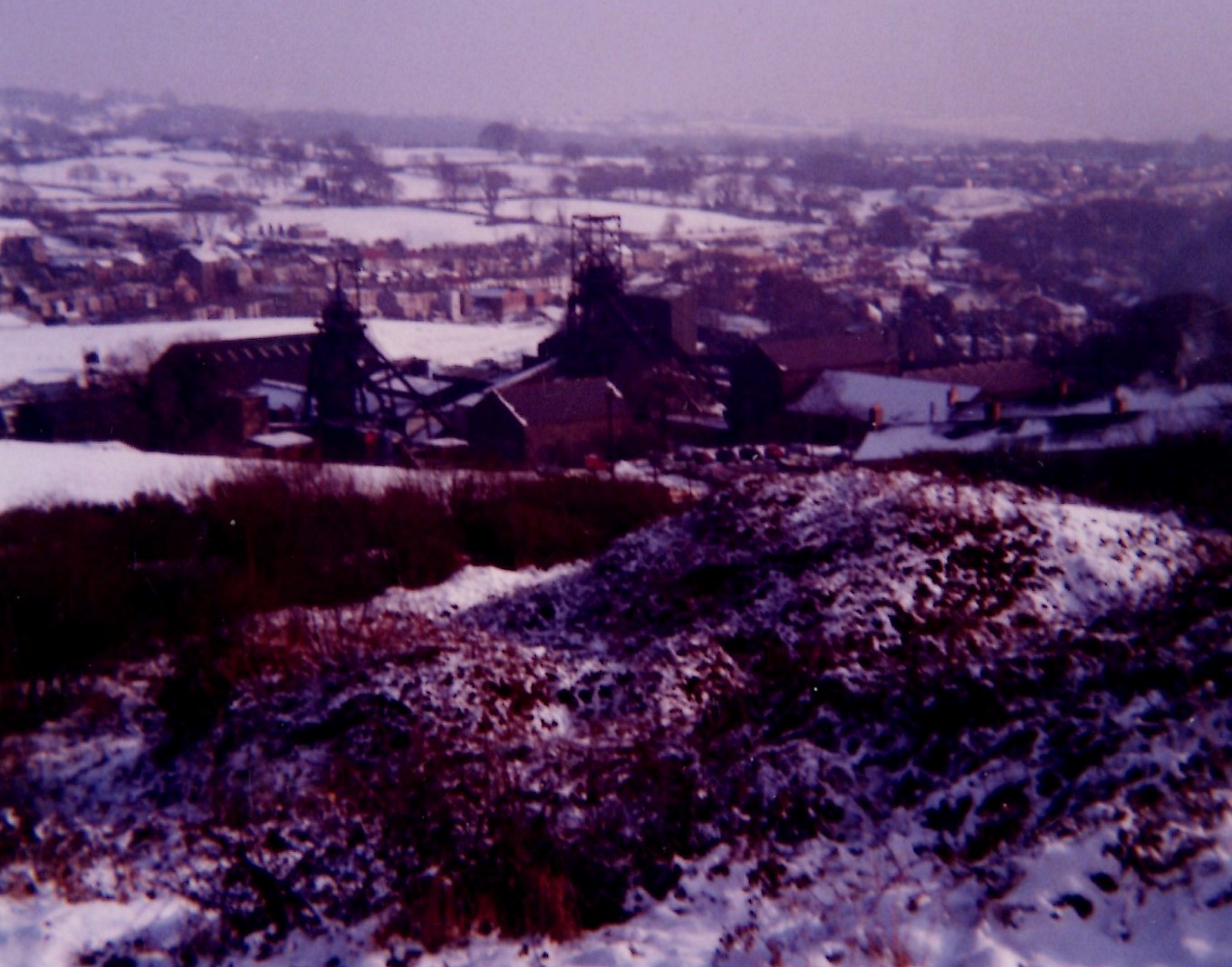

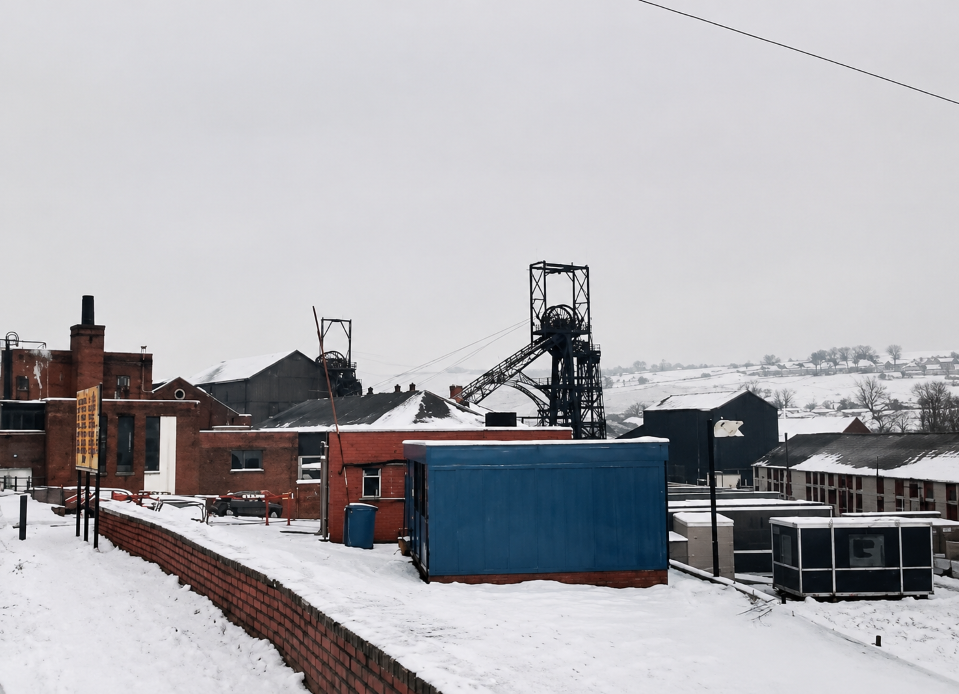

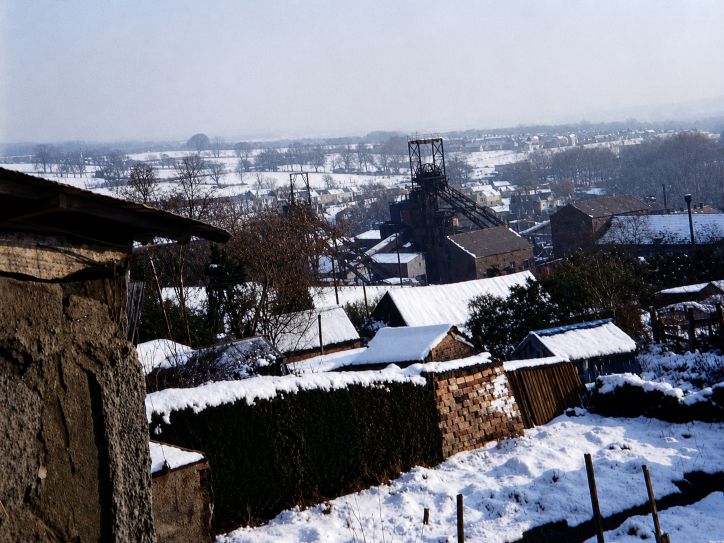

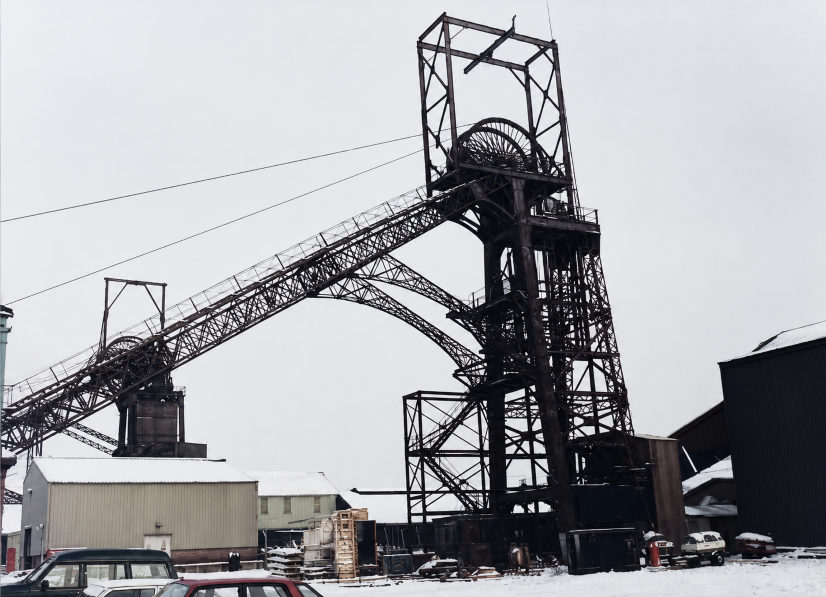

A Snowy top pit

dee_Navi

Top_pit_Trteaharris_1991

A collection taken at the colliery or very close by from Ray O ‘Neill who took his camera out one afternoon late 1980’s

Firstly looking down above Fell street

Old favourite Penn Street

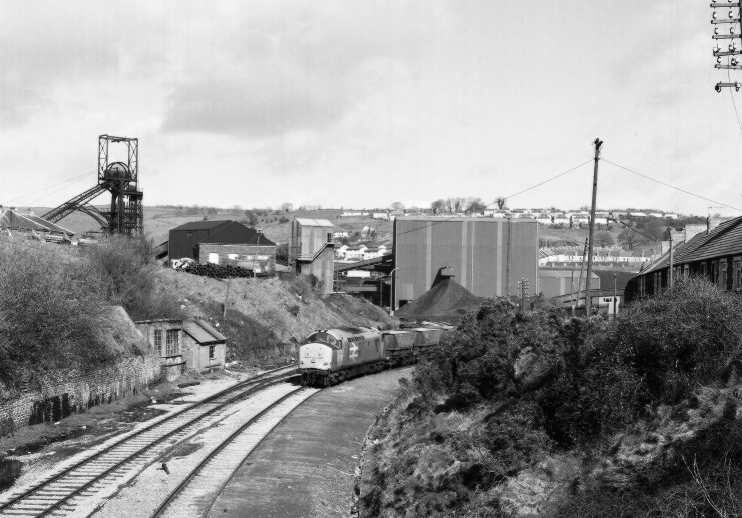

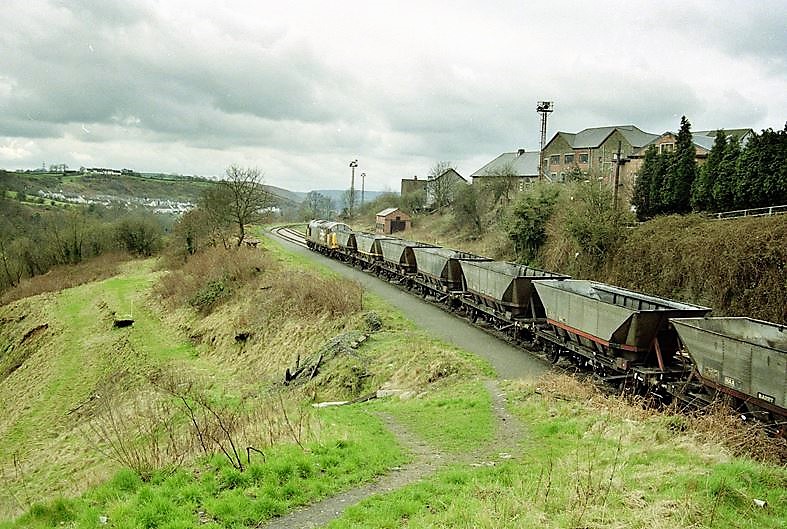

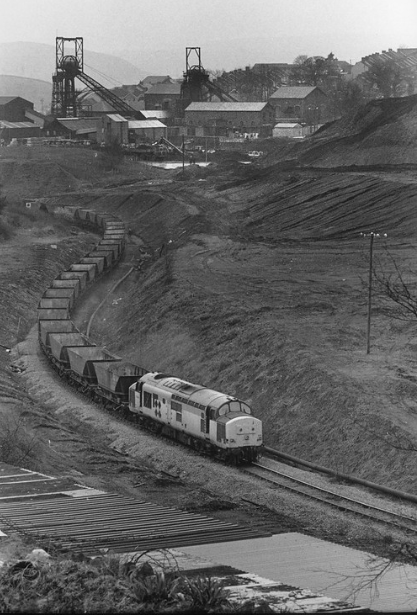

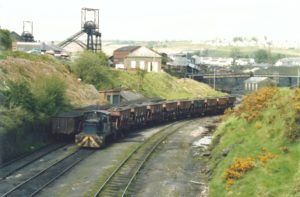

Coal train heading to Taff Merthyr with Deep Navigation behind

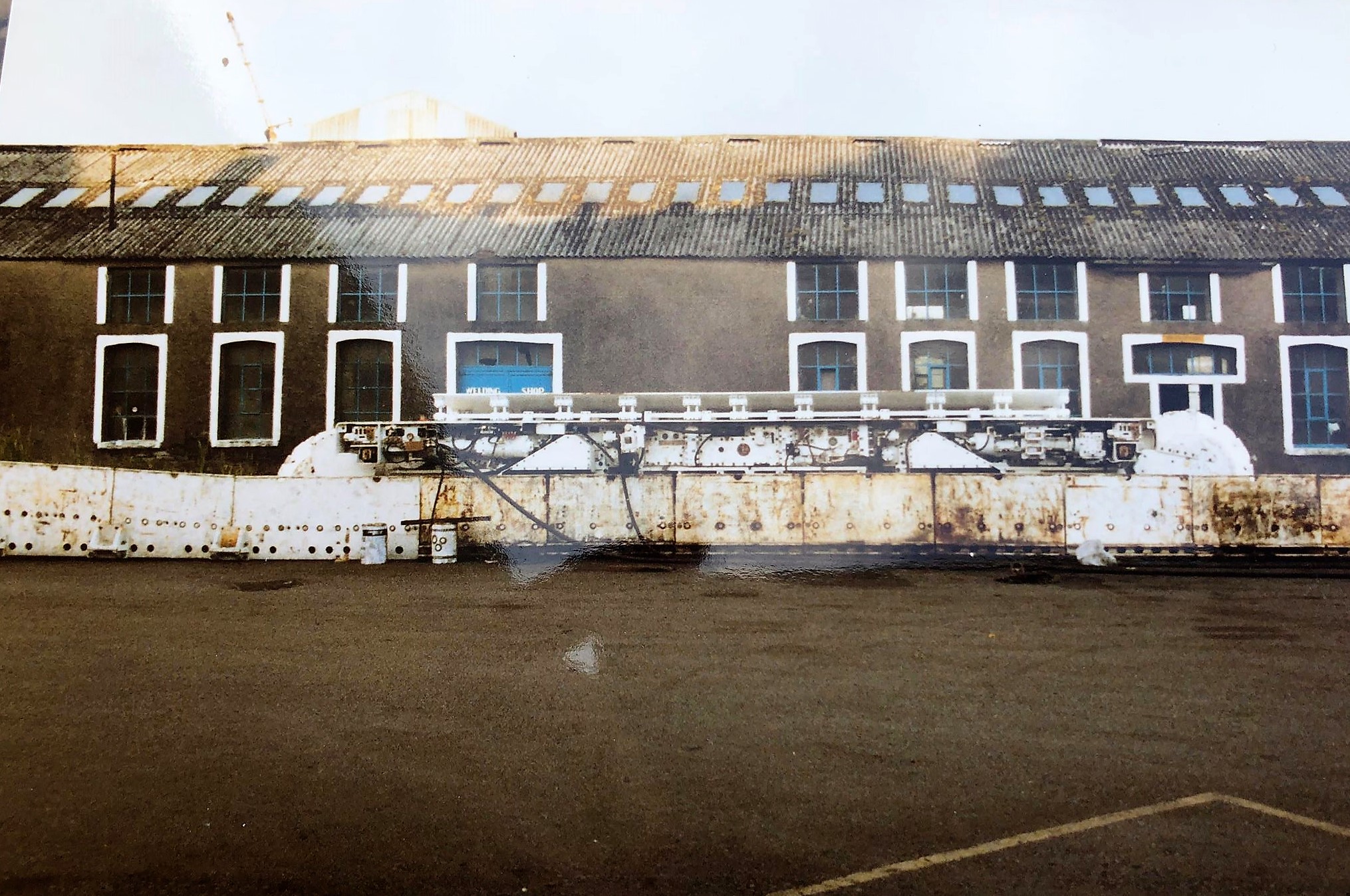

Repairing the Panzer

DN_1970

1970 on the surface

dn_trucks

1970’s

tre_1978

1978

colliery_BW-4580-12-27.03.1990

Some of the photographs are credited to Harald Finster

2197152643_169108f796_o

deep_navi

Thumb635x353 (1)

colliery_BW-4580-13-27.03.1990

pics library 067

Top Pit

???????????????????????????????

004s

11760_2

Bjorn Rantil

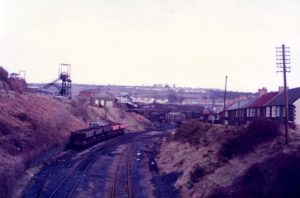

Railway sidings Railway Terrace

formetw

ld14

Lee Dares photo of main offices

ld_9

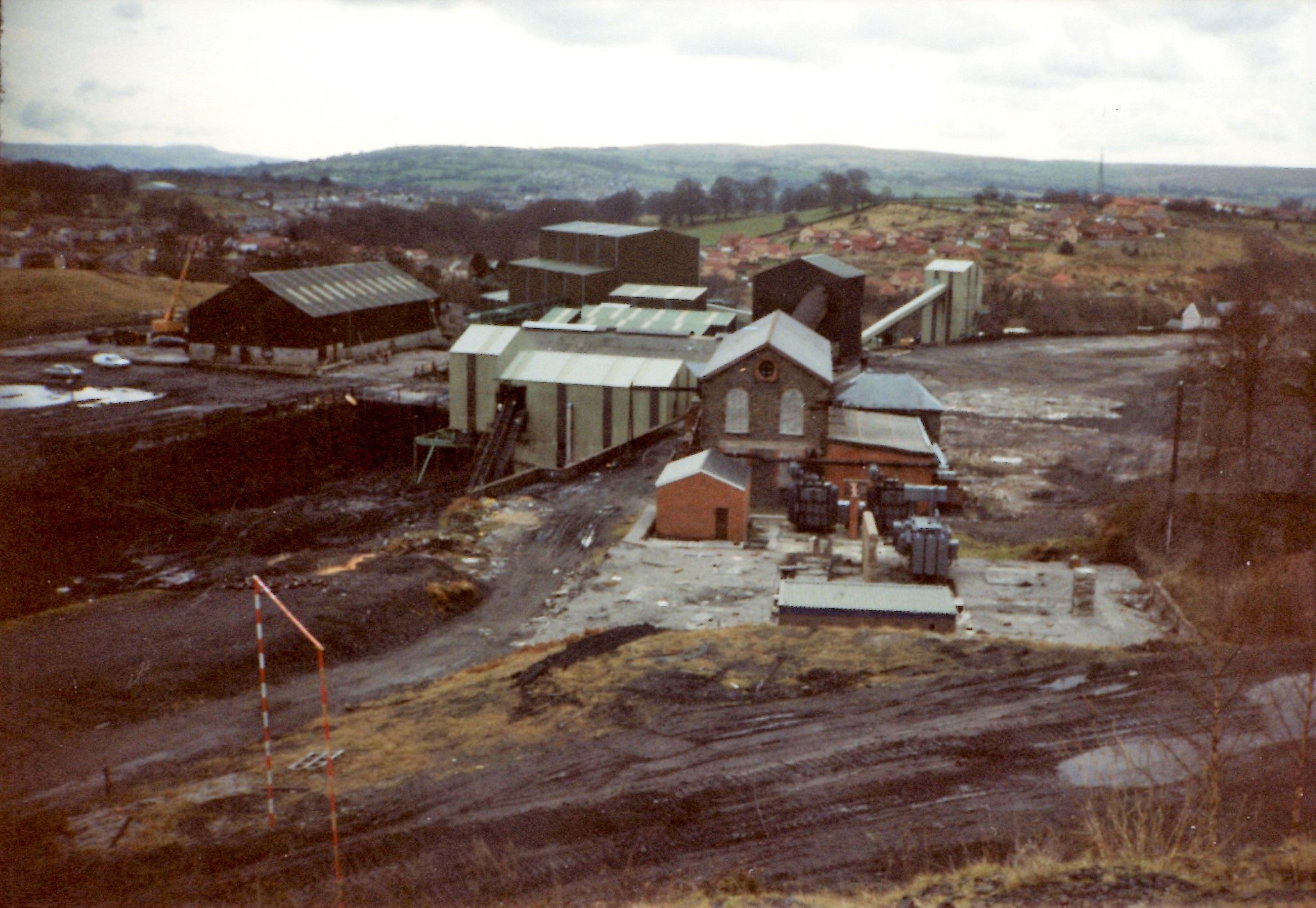

Colliery surface looking over towards the Mill road new houses

ld1

The colliery entrance and the Boys club (1990)

ld5

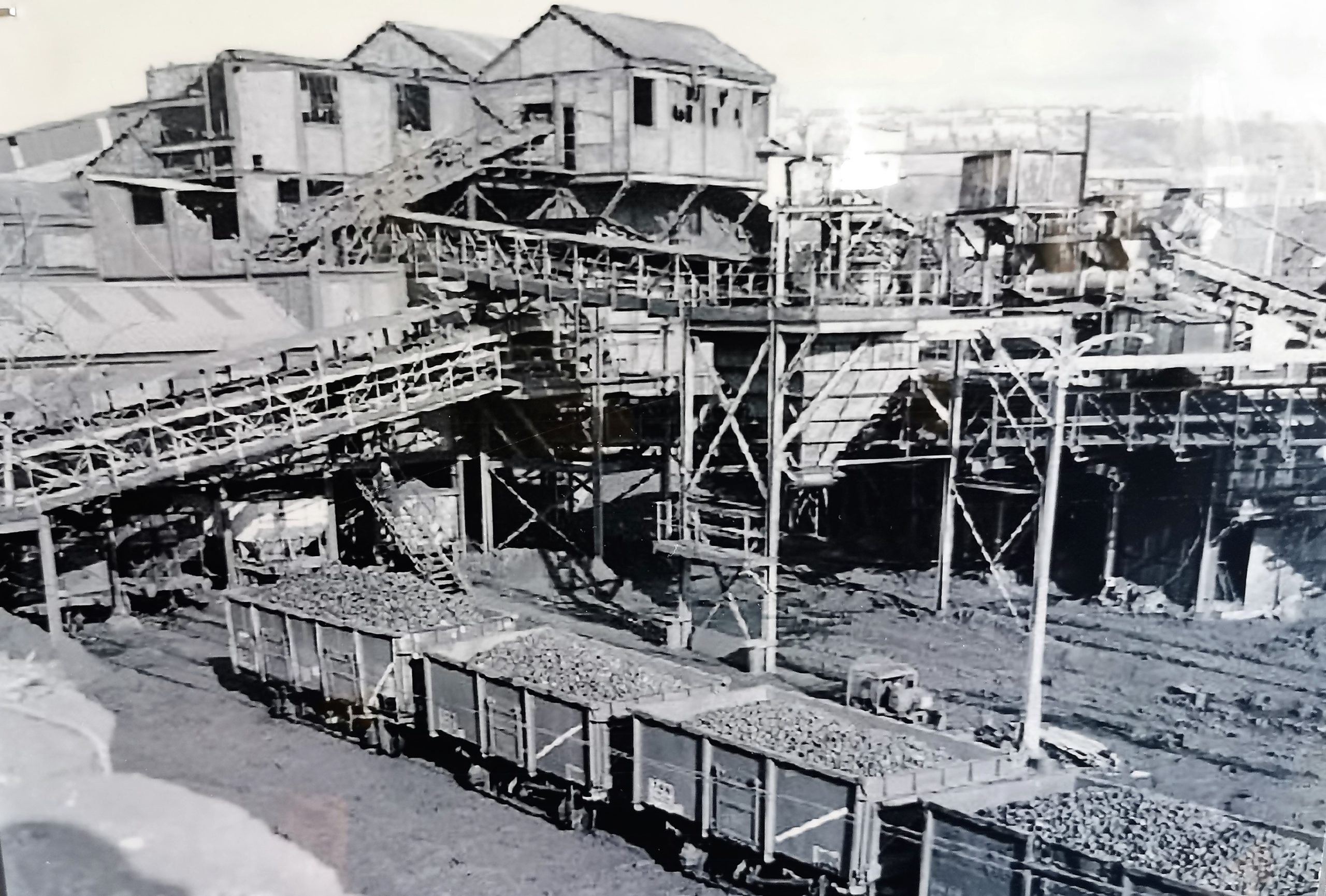

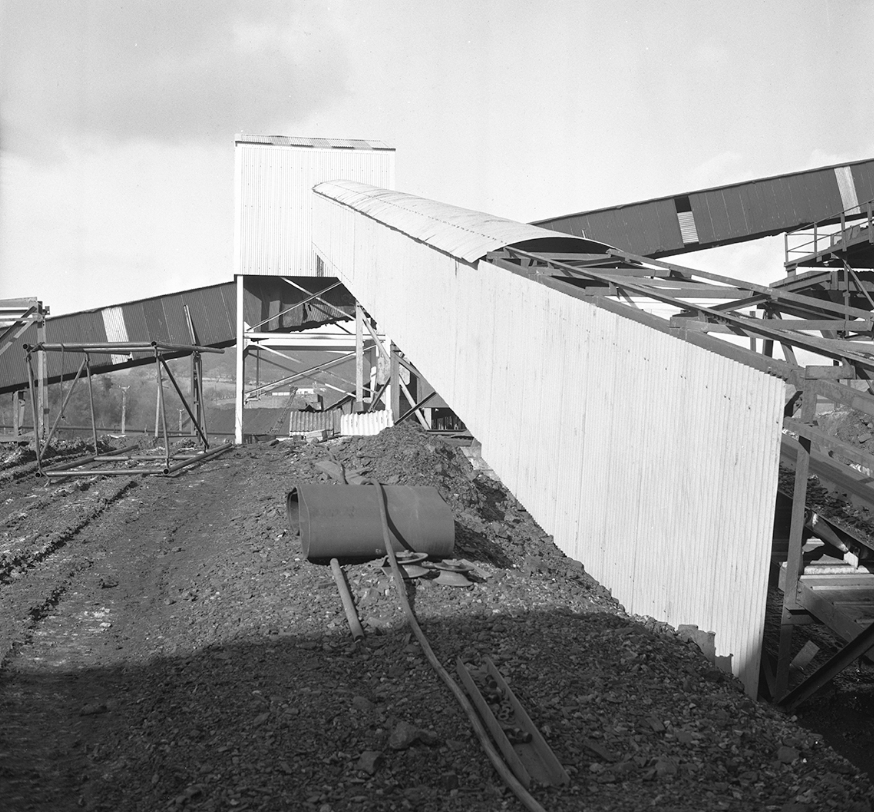

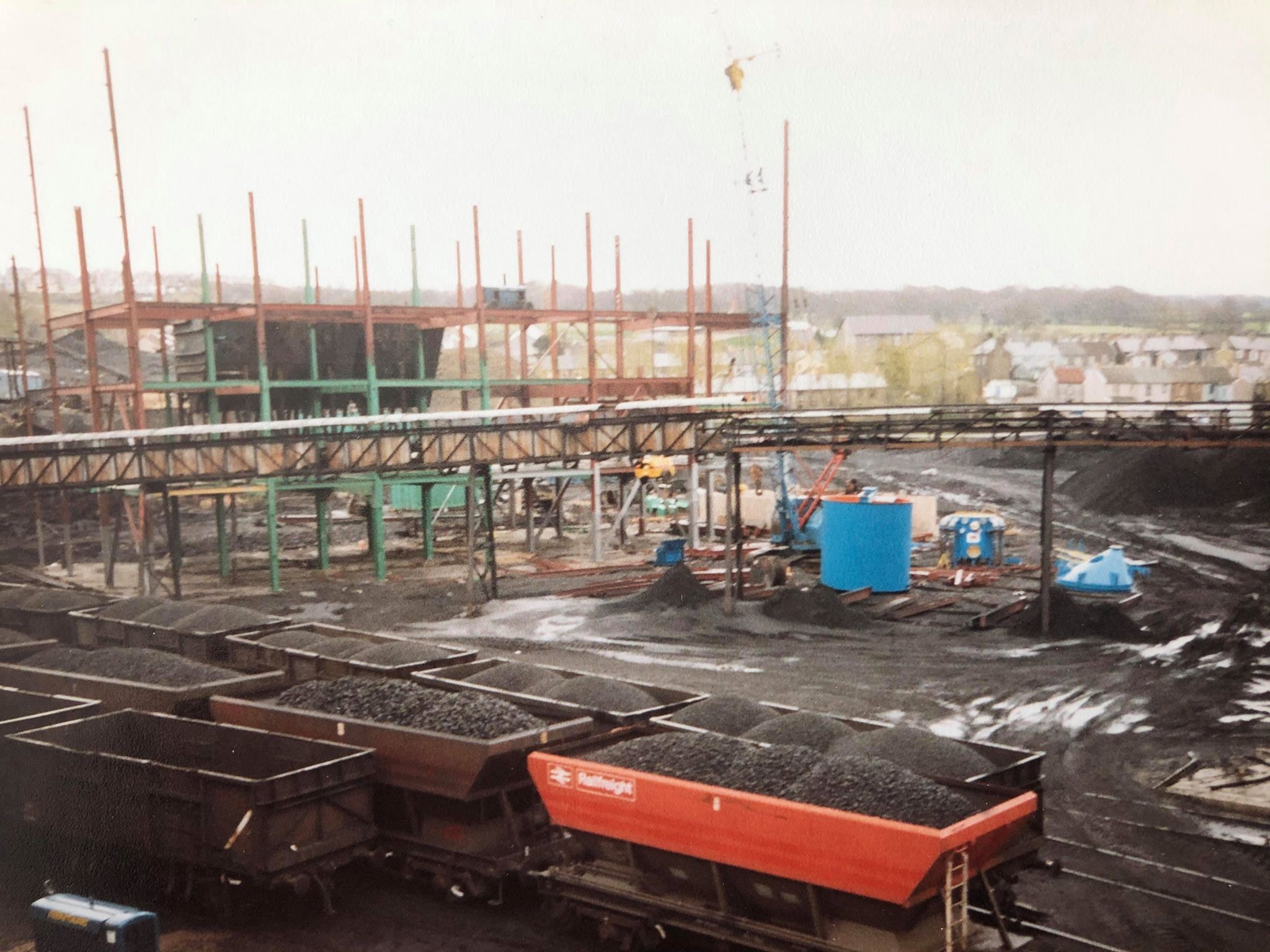

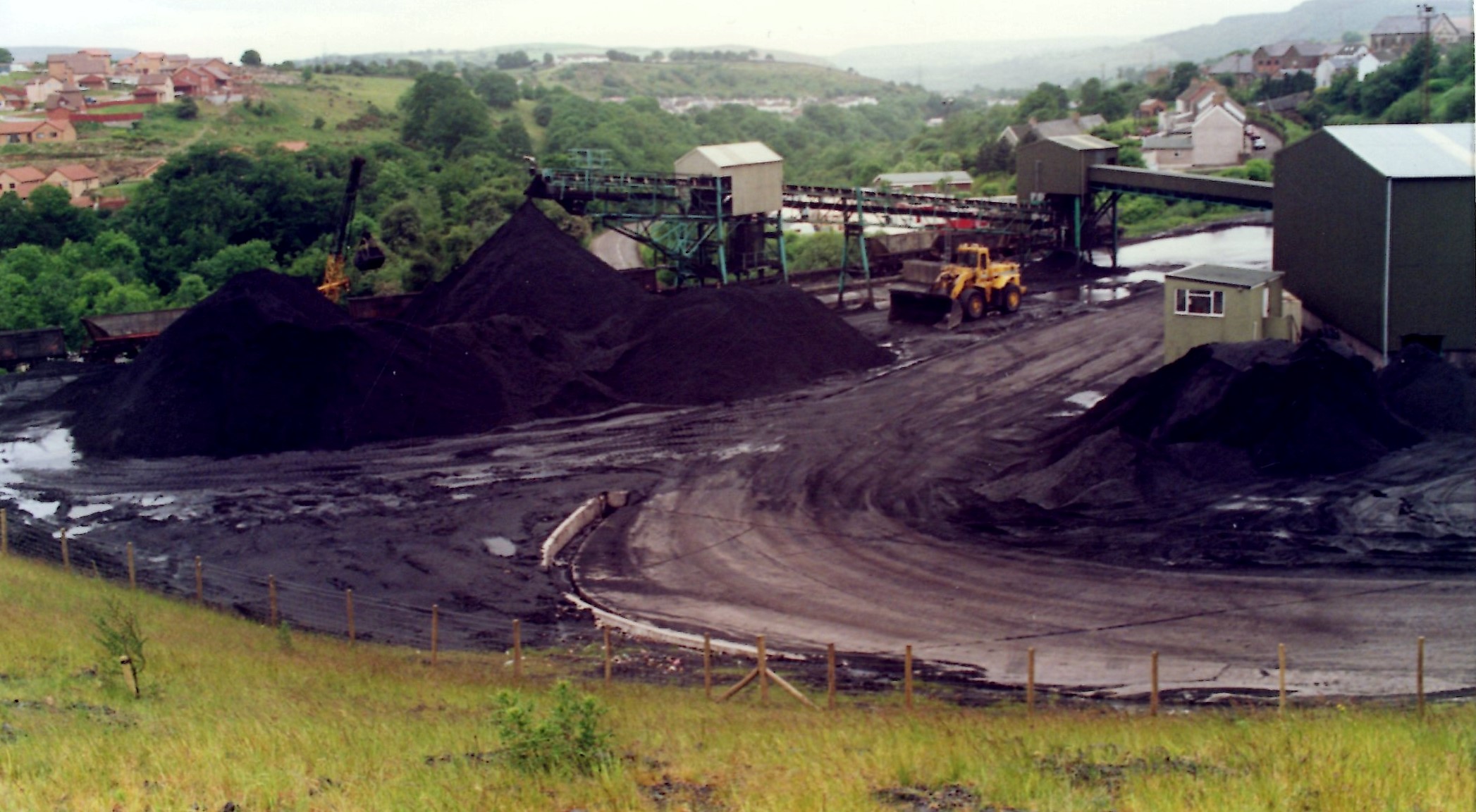

The colliery washeries and screens

ld6

ld7

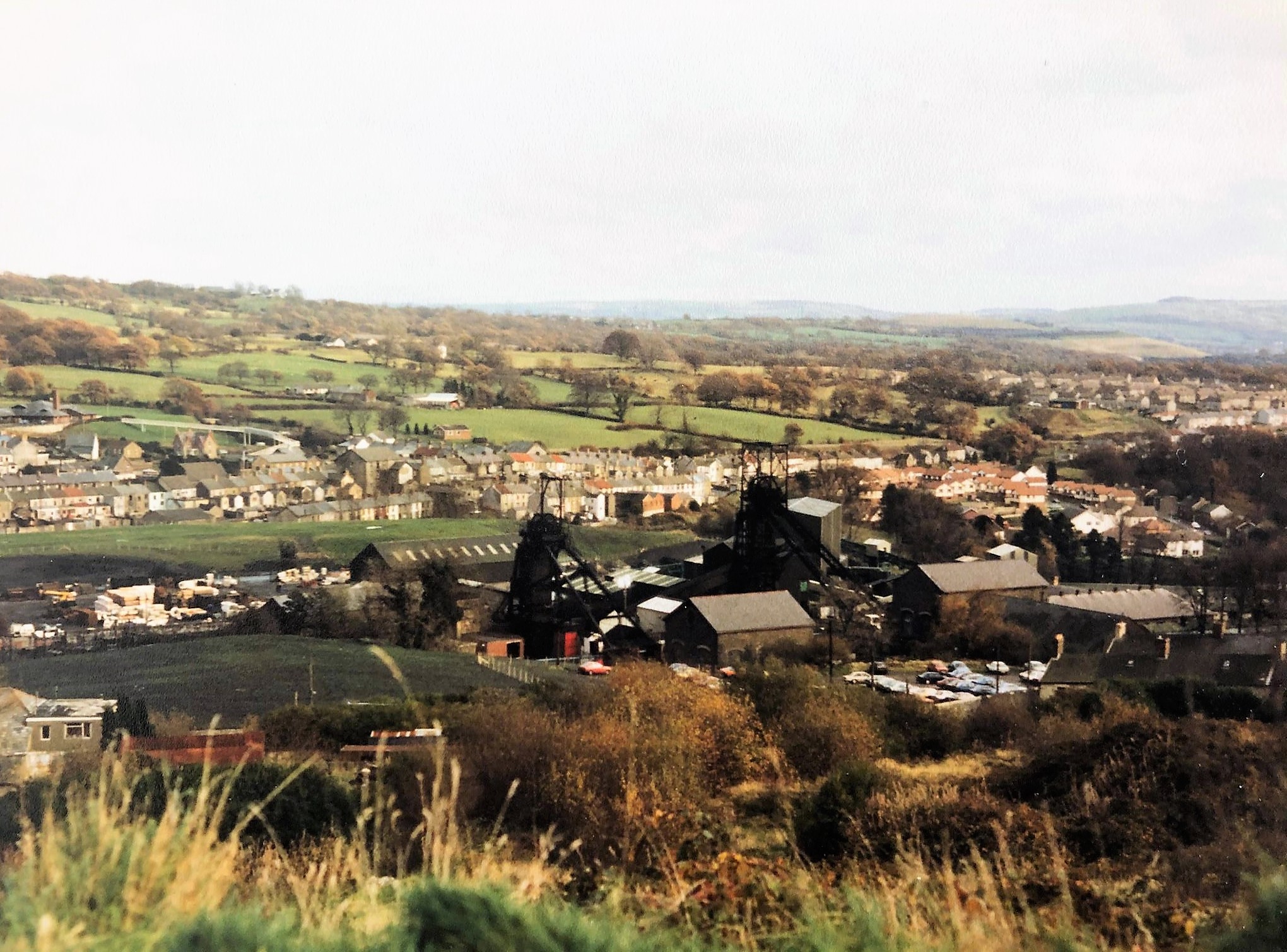

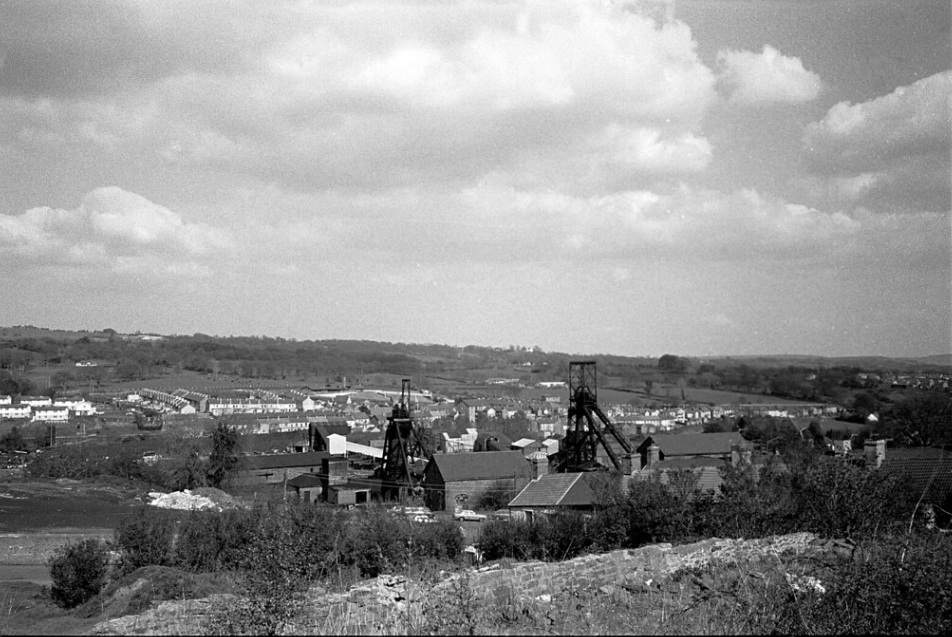

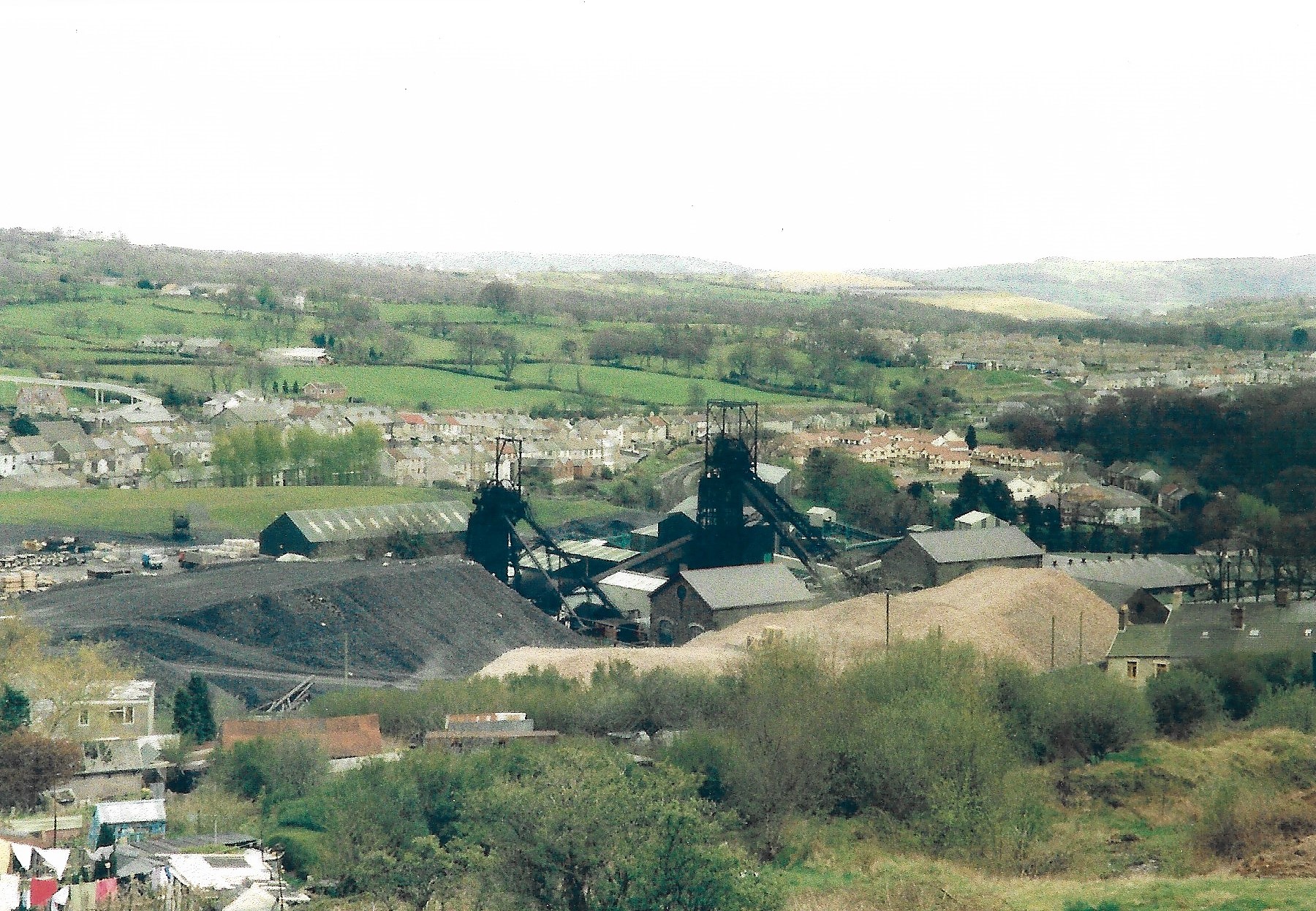

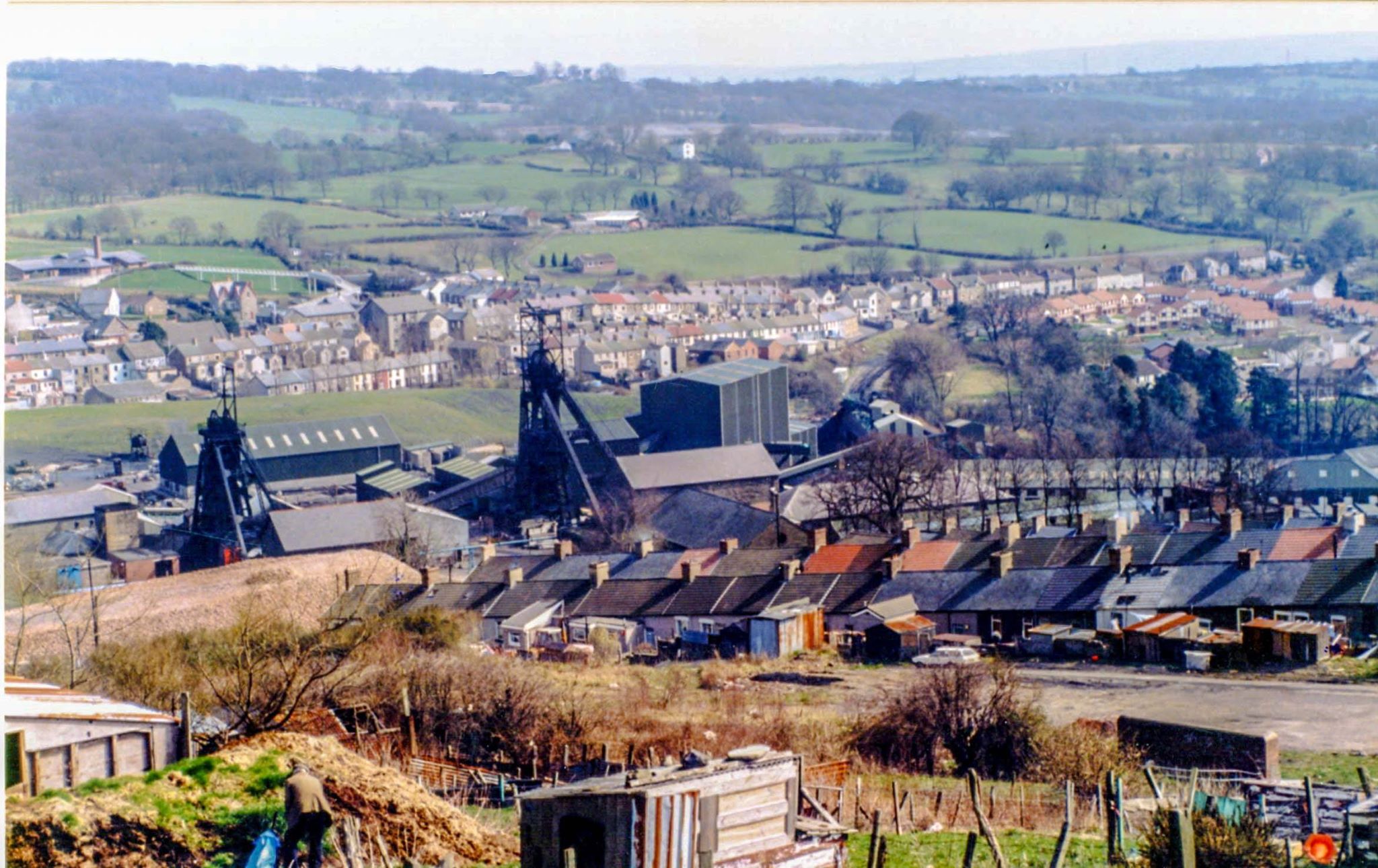

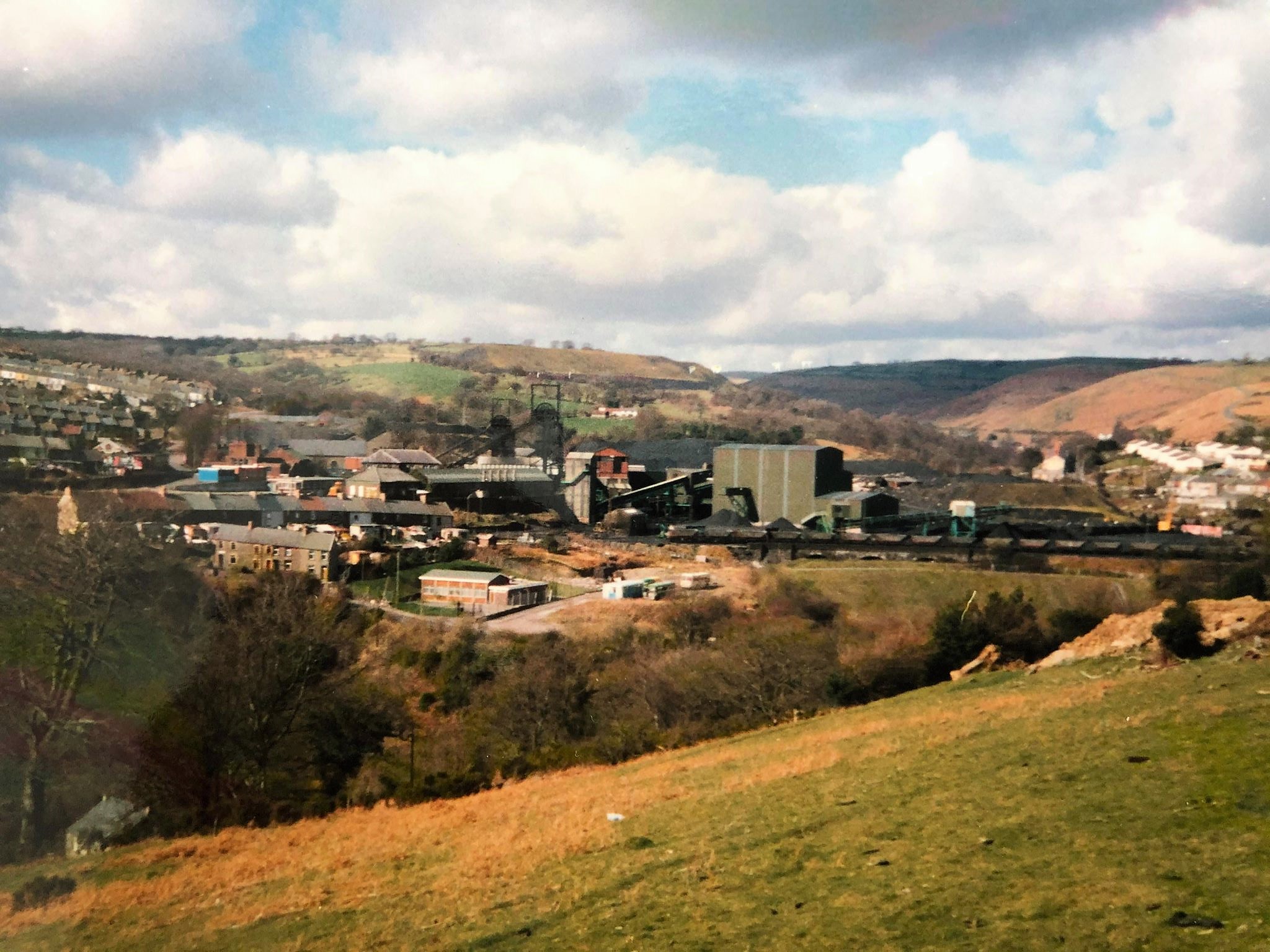

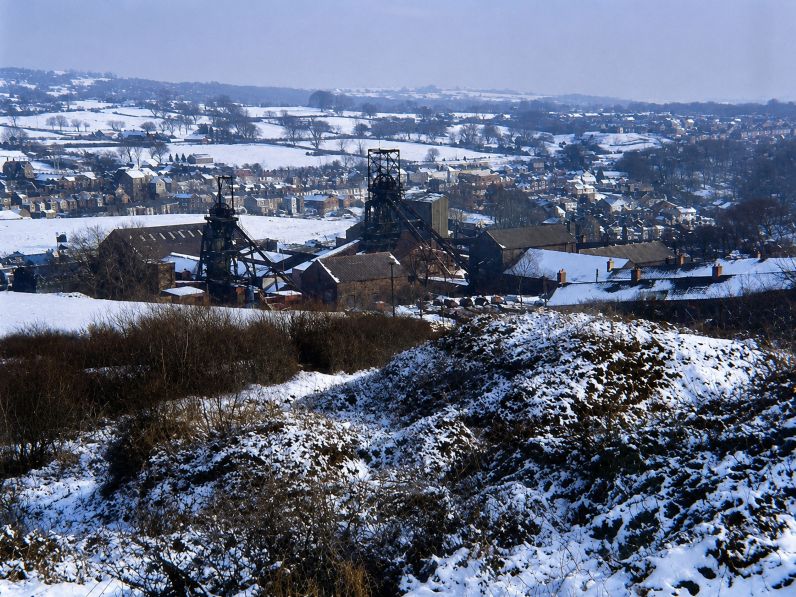

Mountain view of the Colliery

ld10

???????????????????????????????

???????????????????????????????

The colliery surface stores and supplies

ld11

A photograph looking towards Trelewis taken from above Evans street

ld12

A mucky top pit photograph not far from where the new clinic is now ld12a

The colliery washery

aj

af

Above two views from Trelewis

208762_1631430148183_2518326_n

A photograph by Cyril Hank Jones Nelson

av au

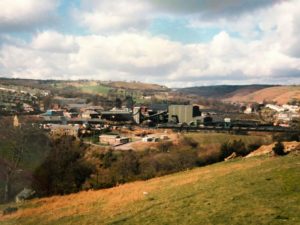

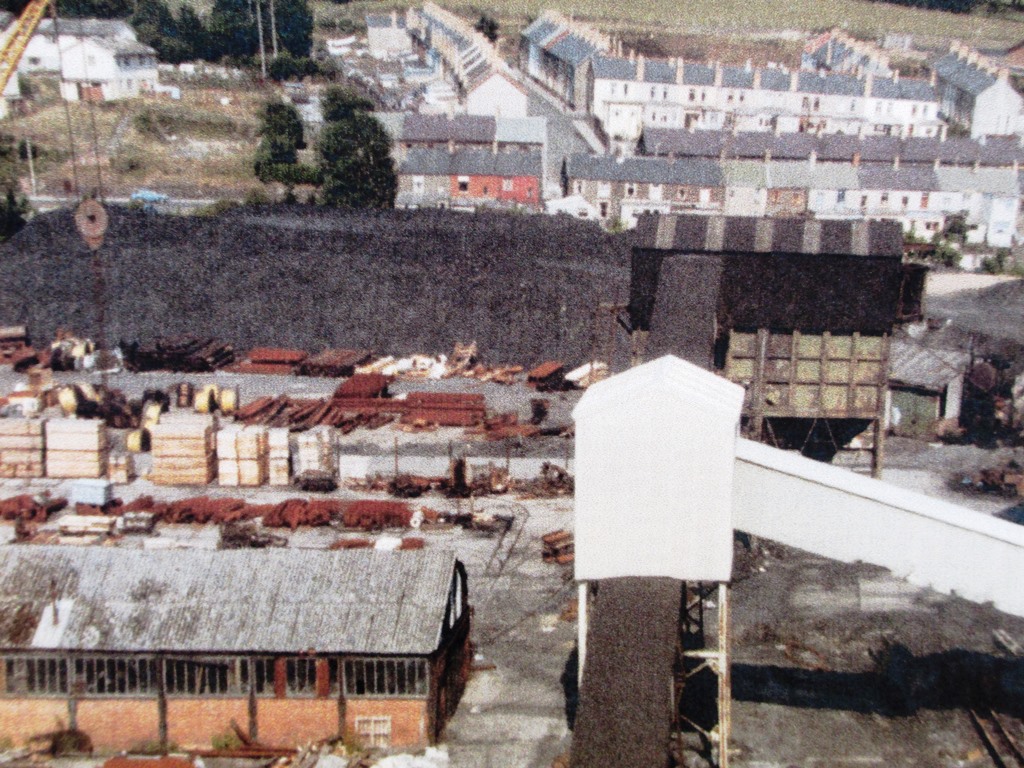

Pictures above of Supply yard.

am

ab

pit_good

top_pit_tre

top_pit_dn

Parking at top pit

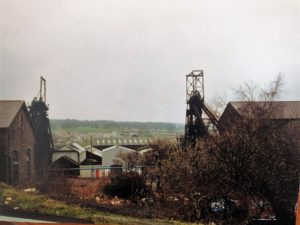

tre_pit_1990

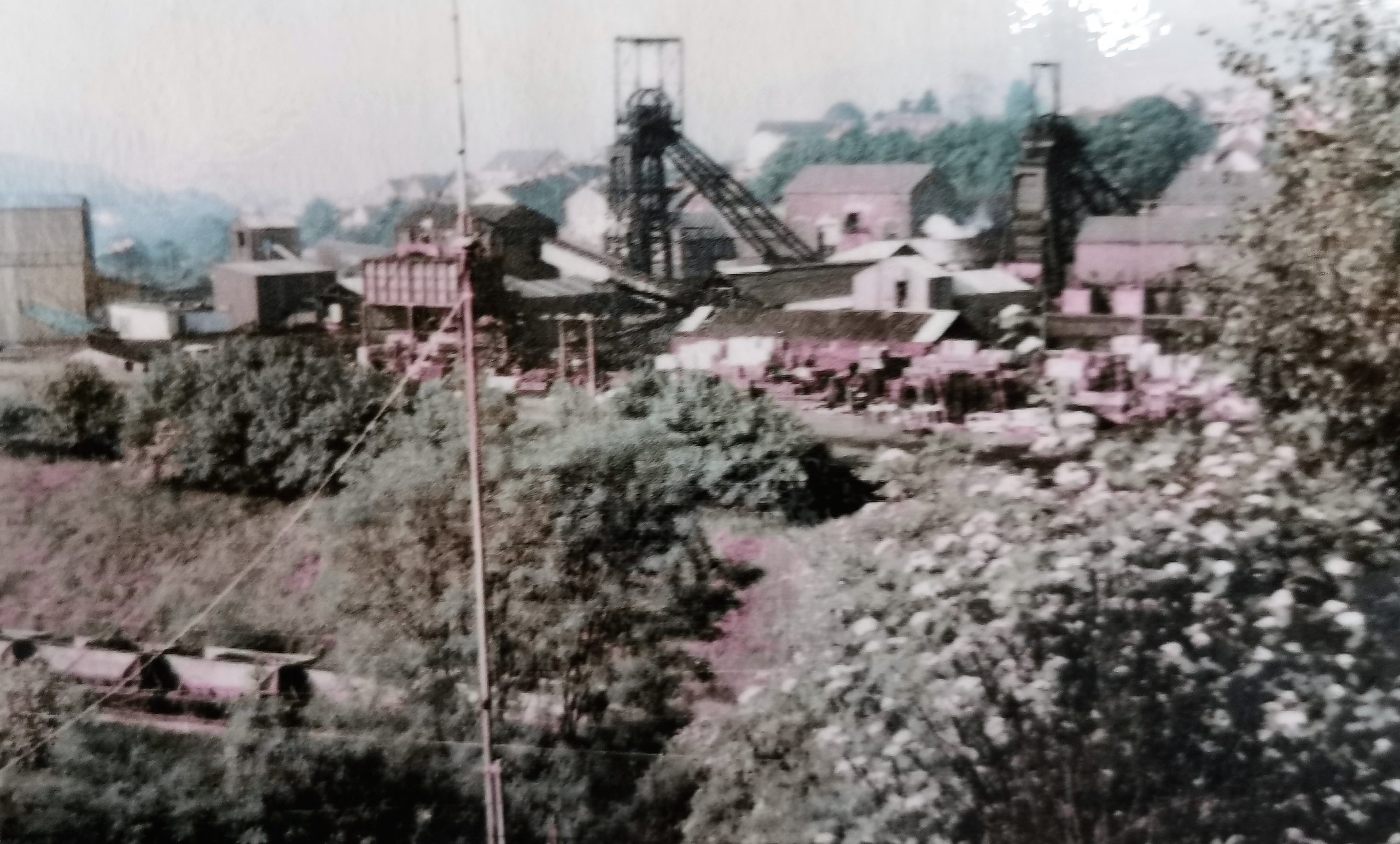

The view from the garden of Number 1 Railway Terrace. 1984

288826_2223772123545_6373273_o

The NUM marching with Arthur Scargill through Edwardsville

The 1984 -85 miners strike at Deep Navigation

Dibber and Bun
Nigel , Jeff Munkley, Ken Smith in van on way to Picket duty

A strike breaker passing pickets outside Treharris boys club

The locals are very unhappy with the strike breaker

The people of the UK donated food to the miners here we see Clive Buster Williams help unload a lorry full of potatoes with Barry Yoxall

Terry Smith facing camera and Glyn Chard with red hat miners strike 1984

Philip Anthony , bun and a few lads in the union office January 1985

When Deep Navigation gave Nora Stuart from Devon a plaque to thank her for all her support in the strike,  Paul Andrews,Ken Smith Paul o’Neil Allan Burt Ken Bassett Terry Smith amongst the grateful miners.

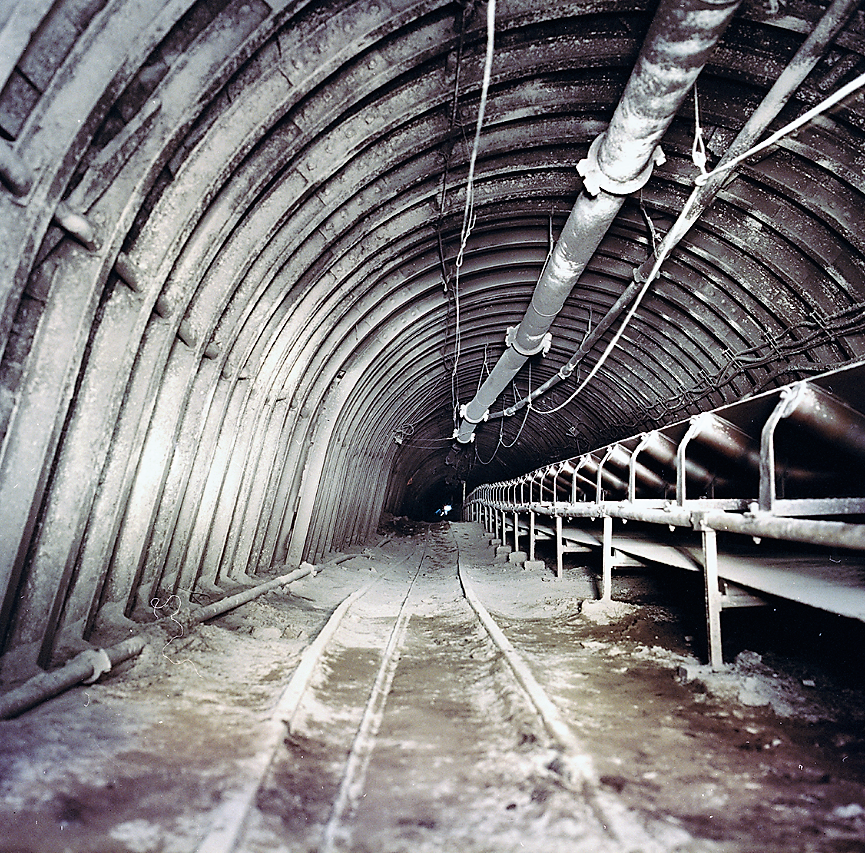

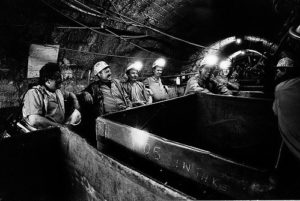

Underground photographs

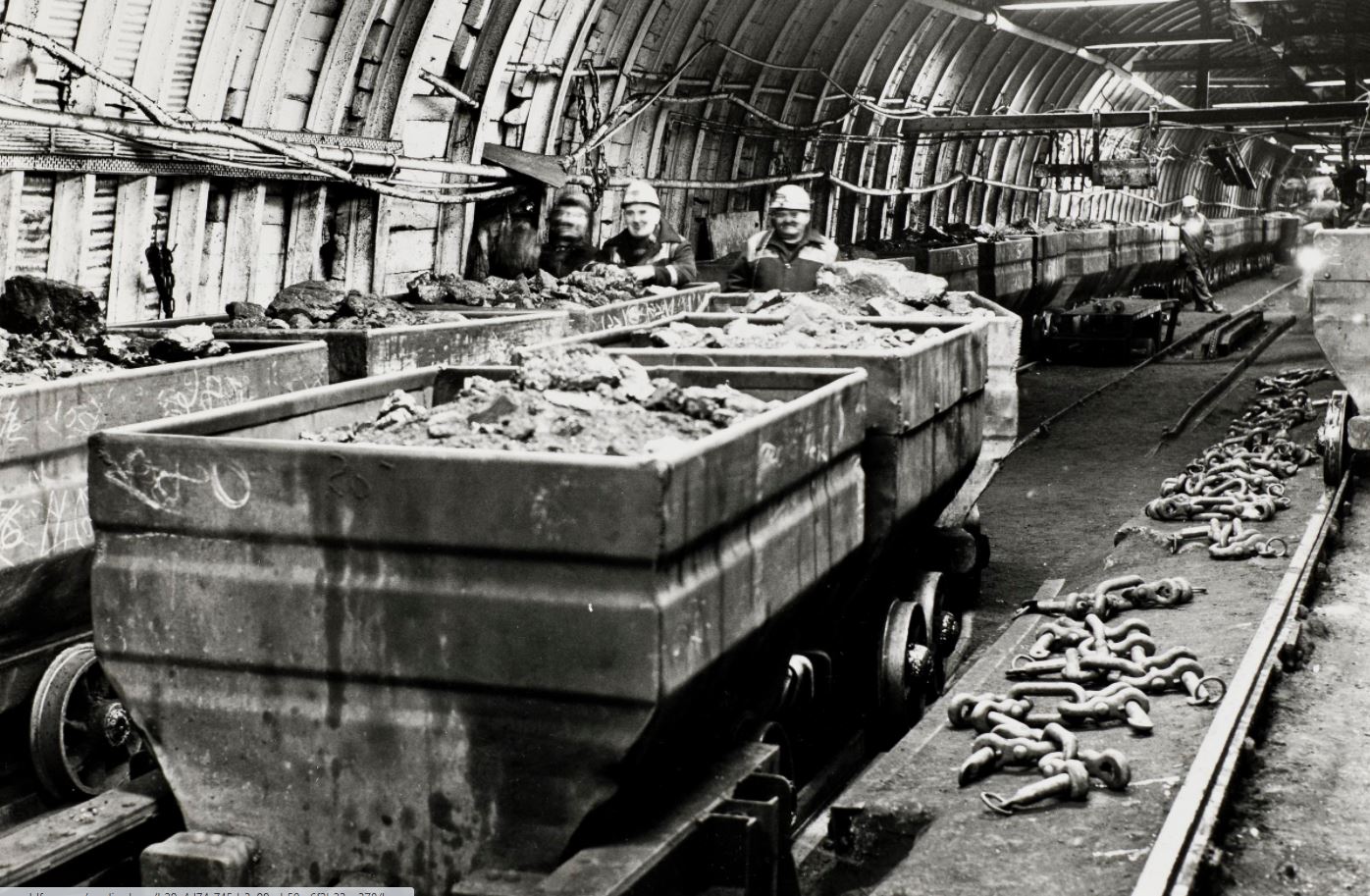

One of the coal faces at the Colliery the dusty V 105 10 foot

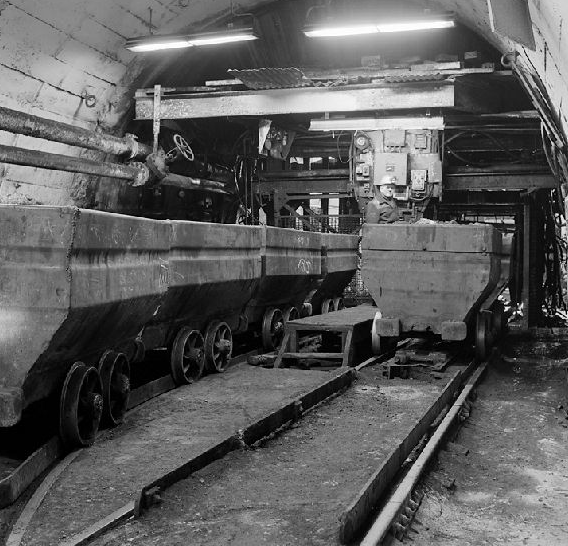

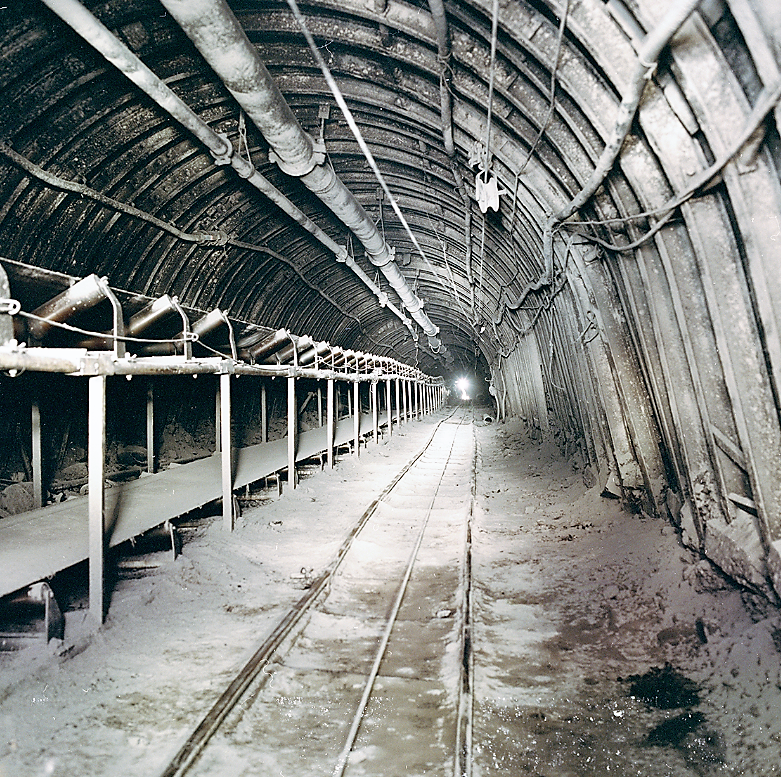

Close to pit bottom

11806_2

Underground Deep Navigation

working_below

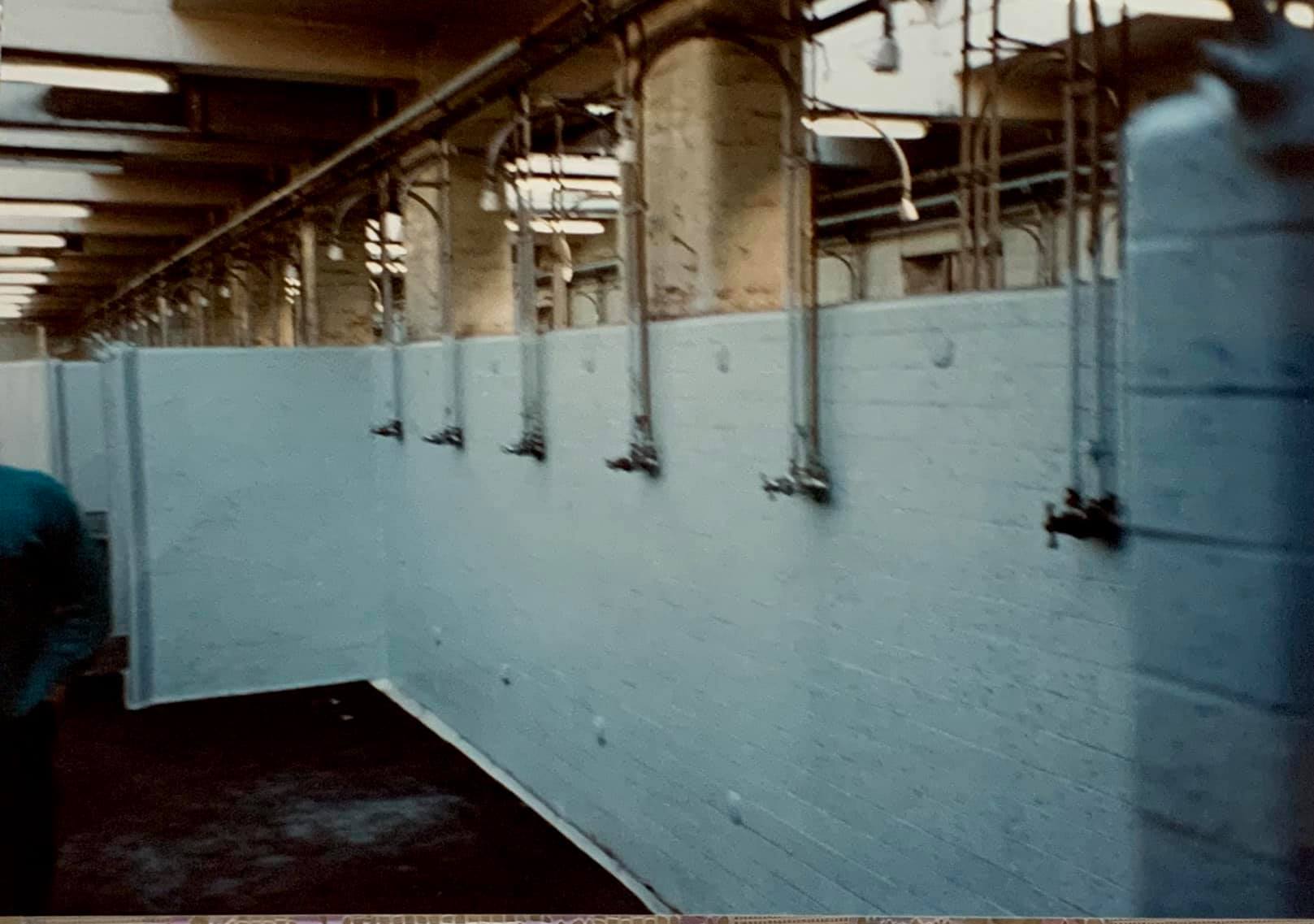

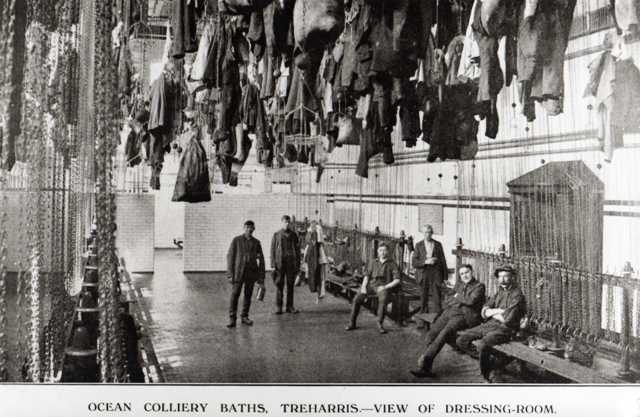

The Famous innovative Deep Navigation Pit head Baths

While pit head baths form a natural part of mining life today, it was not always so. Deep Navigation was the first mine in south Wales to introduce baths for miners. Lord Davies of Llandinam, who launched the Ocean coal company, the former owners of Deep Navigation colliery, sent a party of 15 men to the continent in 1913. Following their report, Ocean coal built the first Treharris baths in 1916 at a cost of £8,000.

plan

Plan of the Baths 1916

1916_pit (1)

New baths, constructed by messers Nicholls & Nicholls of Gloucester, were officially opened on November 1 ST 1933 BY Mr Thomas Evans O.B.E. of Pentyrch, a director of Ocean coal. The new baths provided accommodation at that time for 1,824 men, who were provided each with two lockers, one for clean and the other for dirt clothes. A report at the time said “This is a great improvement on the old baths, where clean and dirty clothes hung together on chains in the main hall.” It Continued “The whole building is electrically lit, there is also an up to date lavatory accommodation and a marvellous machine which cleans the men’s boots by electricity.” The reconstructed baths in 1933 were the 18 Th in Wales and the 121st in the whole country. Ocean coal had at that time provided baths at Risca, Wattstown, Lady Windsor, Garw, Nantymeol and Nine mile point collieries. Councillor Enoch Morrell. At the same opening ceremony said “he was pleased to see so many ladies present.” The baths meant a lot to them. They stood for cleaner homes and a higher standard of life. He appealed to the women to use their influence with the men that they should patronise the baths.

treharris_baths

officials_baths

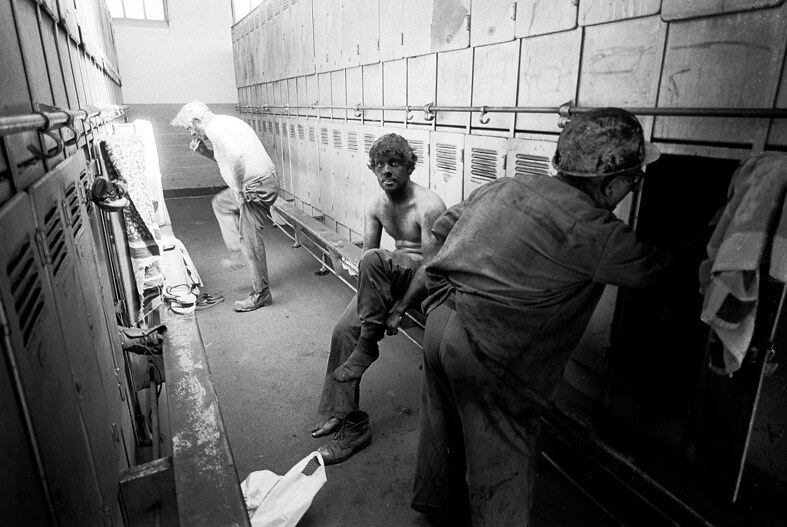

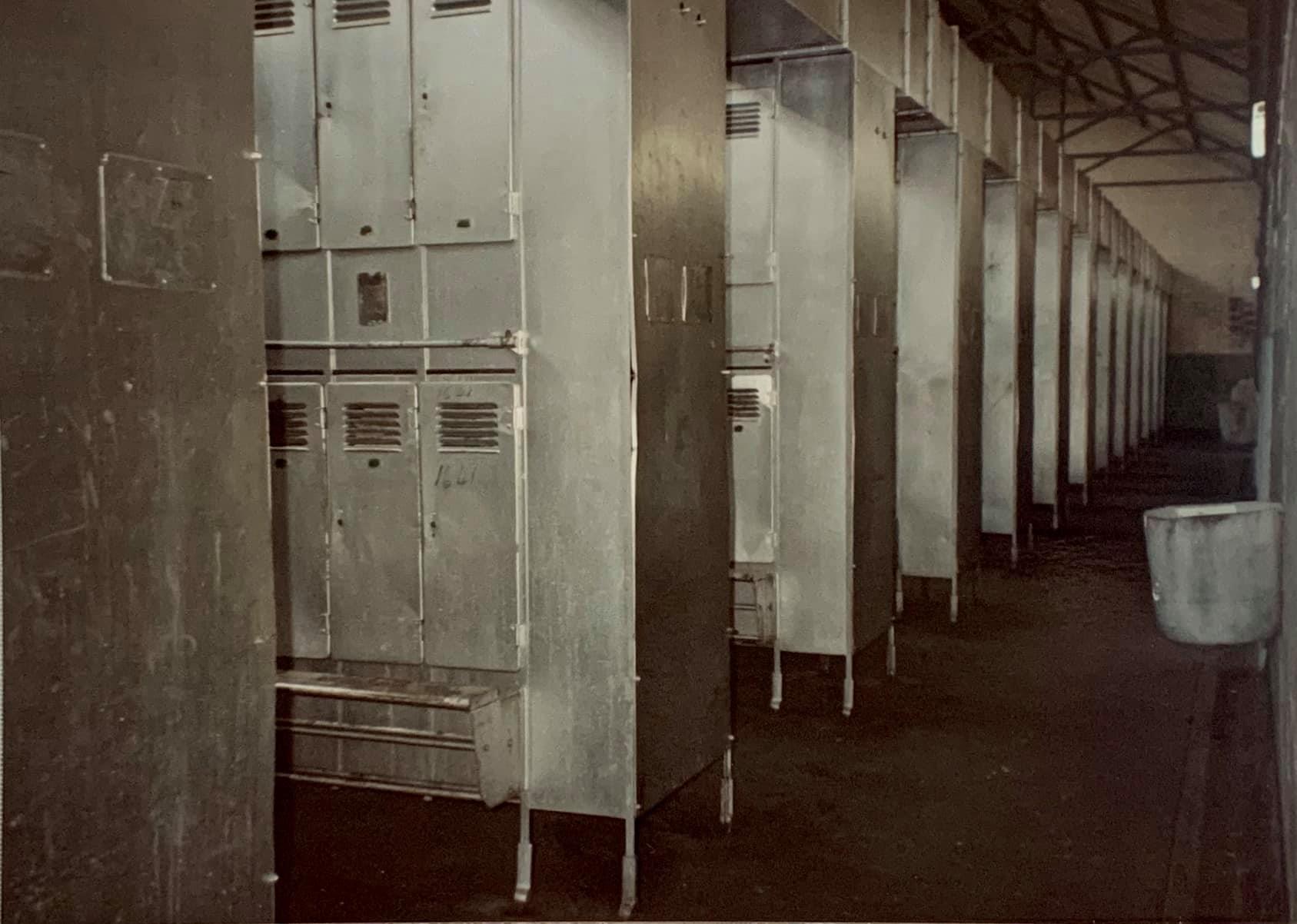

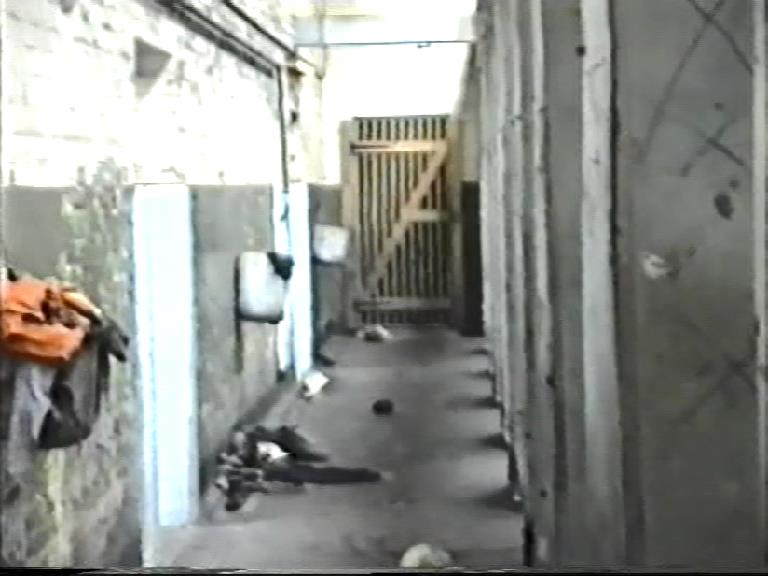

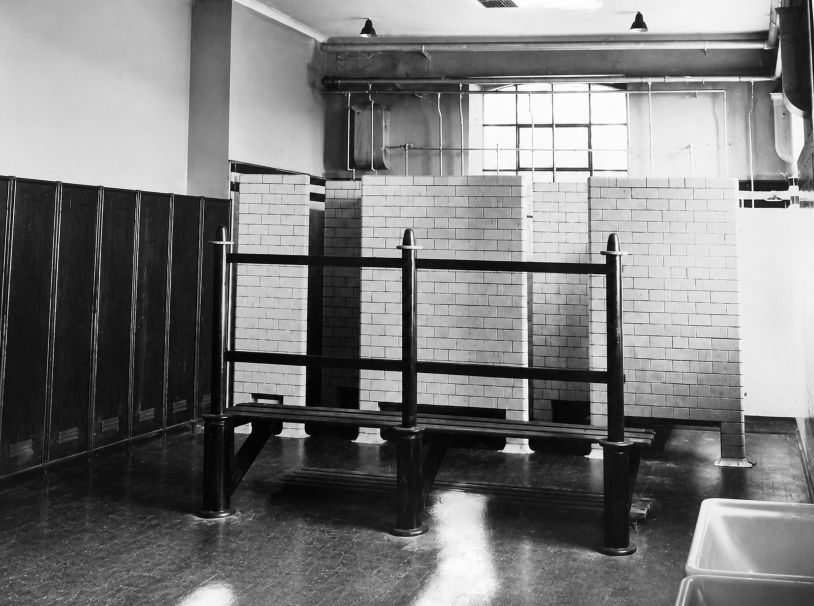

Dirty end of Baths

Canaries kept in Baths

A collection thanks to Ray Locke

The following photos are a collection donated by Jonathan Locke from and album compiled by his late dad Ray Locke, a miner and union man from Treharris, here he is walking with the pit banner in support of the nurses.

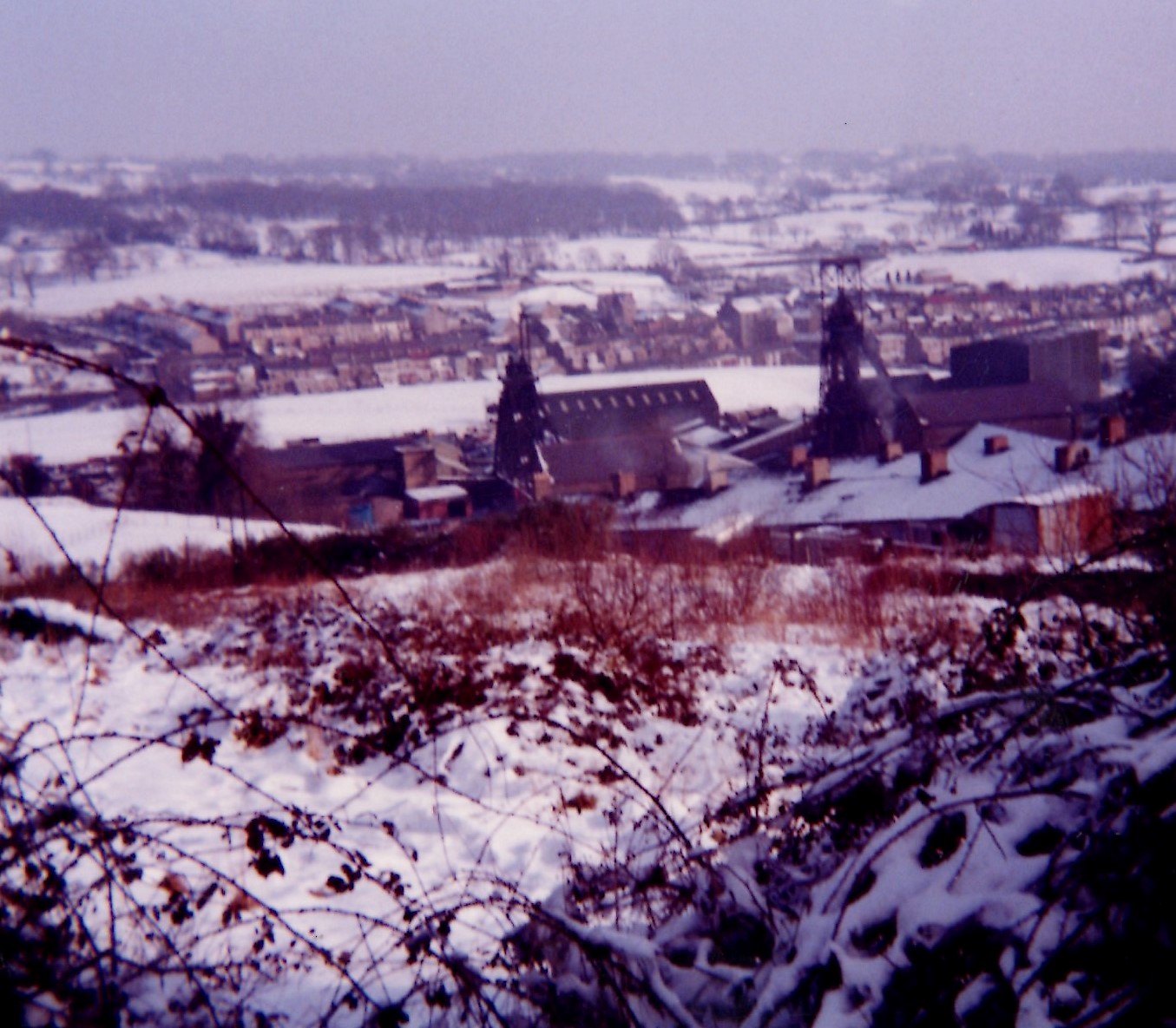

The first five show a winery scene from the1980’s in Treharris

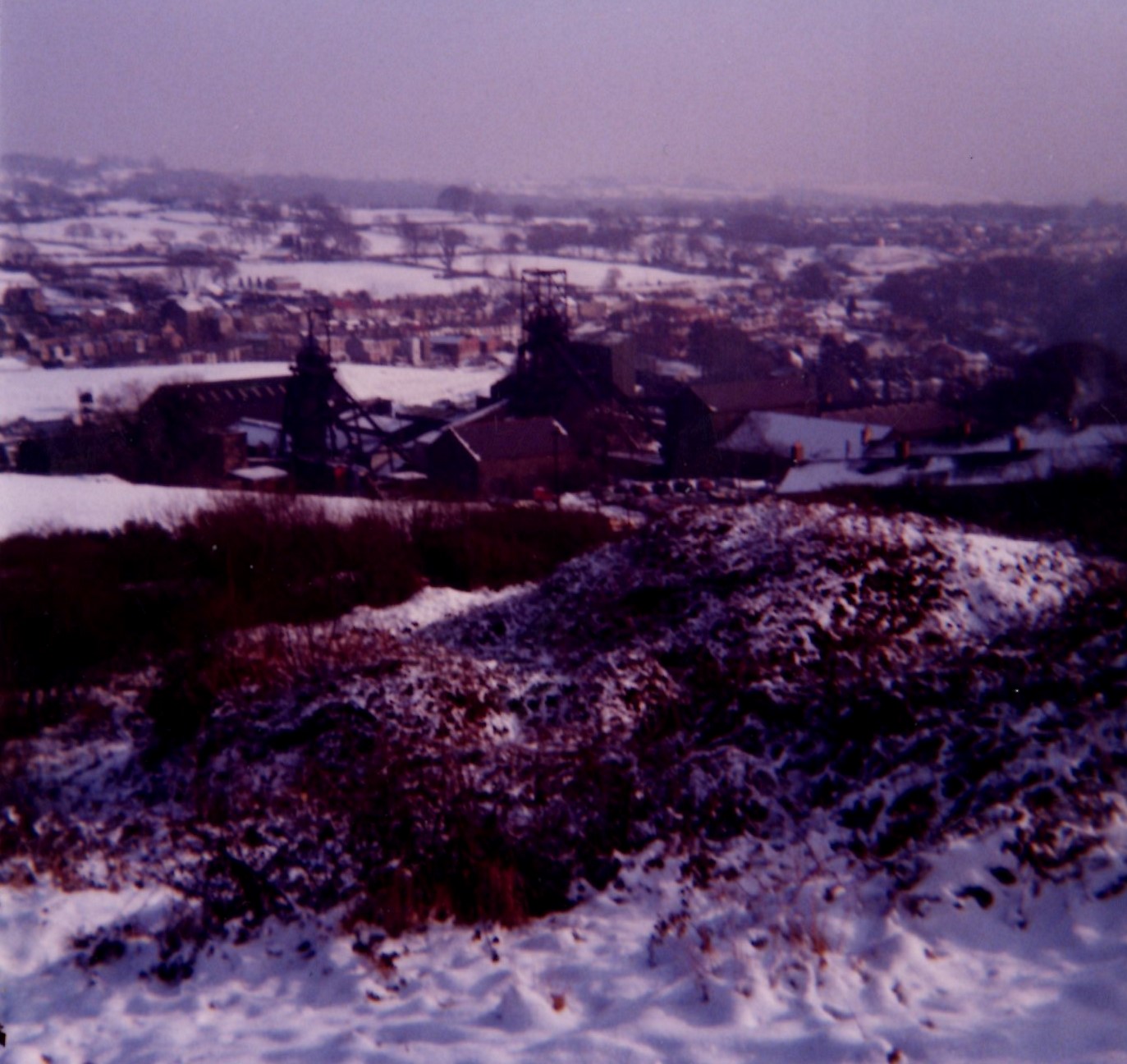

A view from Penn Street

Items associated with the colliery and often used by the workforce

014ch

Checks used at the Colliery over the years (Robert Amos collection)

imore_dn_che

track_layer_check

deep_N_check

(Photographs are courtesy of Robert Amos)

deep_navi_checks

A medal cast to commemorate 100 Years at Deep Navigation Colliery

deep_navi_medal

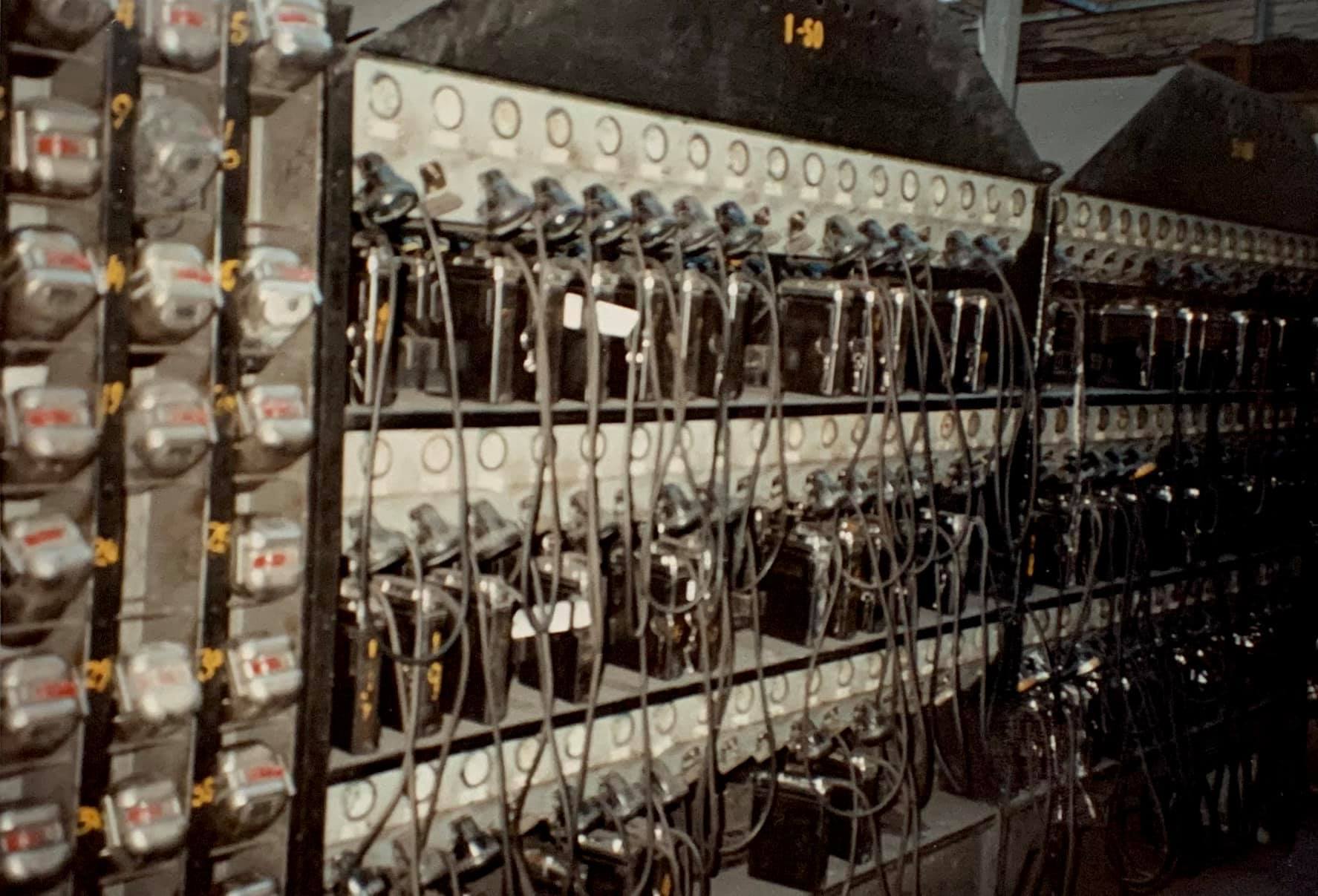

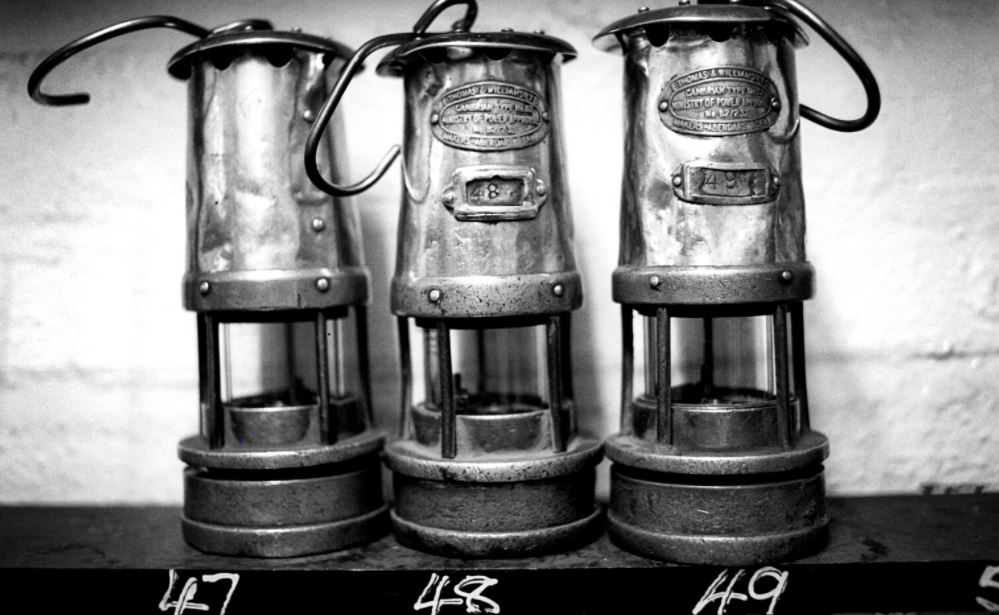

Deep Navigation safety lamps

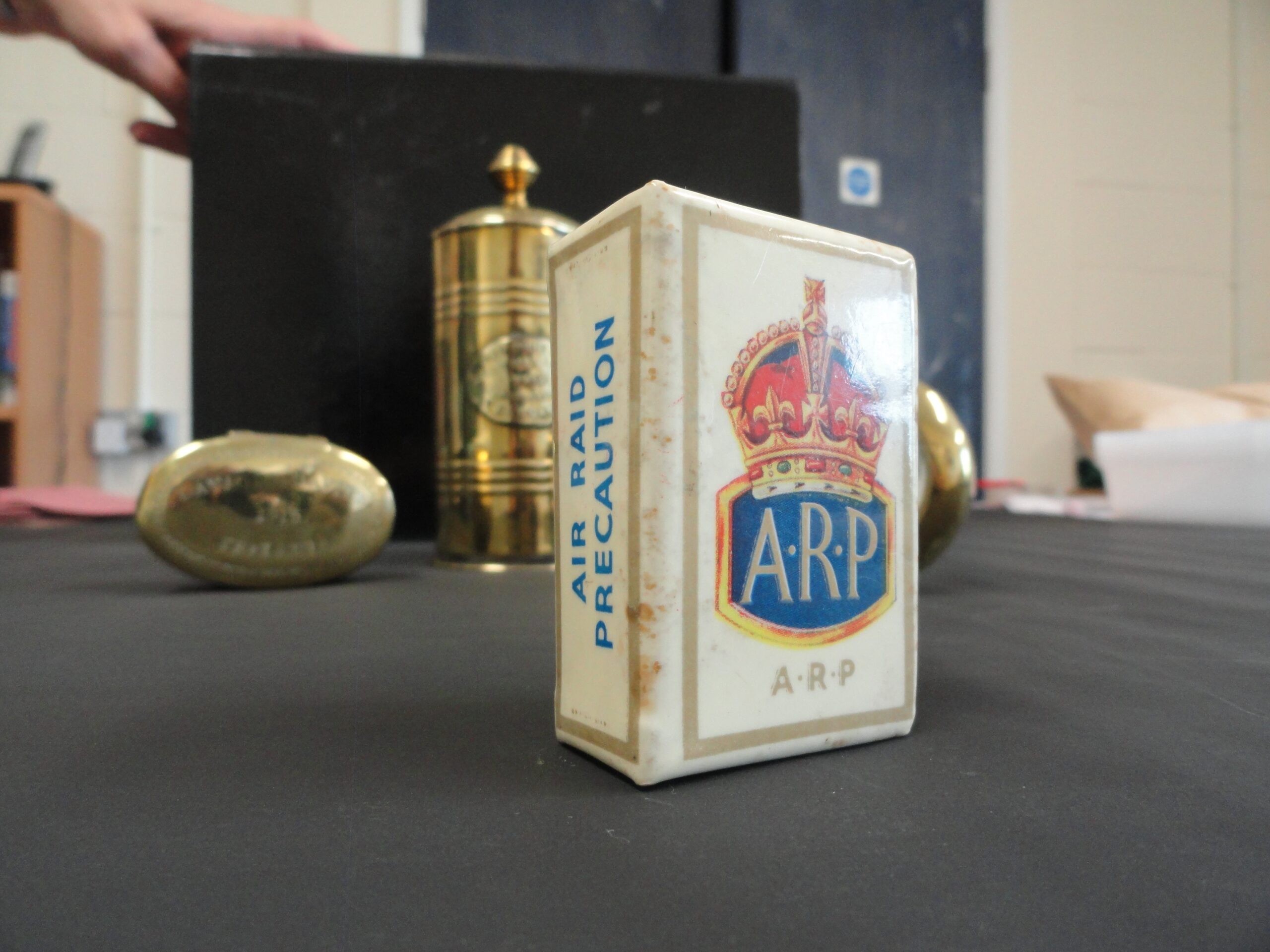

Some of the items miners took underground wartime

Badges in memory of the strike

TaffBargoed11

1991 an Epitaph to the colliery and the final days

Deep Navigation 1879-1991 OLDEST PIT LEFT IN WALES First for Innovation After 112 years of active mining life, Deep Navigation closes on Good Friday, March 29th 1991, as the oldest mine in south Wales. Reserves of economically workable coal have dwindled to the point where the cost of mining the remaining coal in the pit outweighs any profitable benefit.

Deep Navigation has a long and proud record in the history of south Wales mining. #. When it was first sunk, it was the deepest pit in the coalfield. #. Before the start of this century it was equipped with a unique pumping engine, built in Cornwall. #. It was the first colliery in south Wales to be equipped with pithead baths. #. It was one of the first pits in Wales to use electricity. For decades Deep Navigation has been a major supplier of fuel to Aberthaw Power Station, at the rate of over 500,000 tonnes annually. All 371 men on the Deep Navigation books at closure have been counselled individually concerning their future and a “job shop” has been established on site to help those taking voluntary redundancy to find alternative work. The Collieries coal preparation plant will continue to operate after closure for a period of about 9 months, so that stockpiles containing 370,000tonnes of fuel can be cleared and prepared for the market Later, proposals for the demolition and clearance of the site will be drafted and will form part of a consultation programme to involve people from the community. Mr Steve Reece, Deep Navigation’s colliery manager observed “I extend my best wishes to all the colliery employees. Deep Navigation established a long and proud record for Quality products and quality mining. There is no doubt that this colliery helped to create the Industrial wealth of south Wales as a cornerstone of the mining industry.

It has earned a rightful place in the industrial development of south Wales” Lamps for all One week before the last shift was worked at Deep Navigation, the colliery played host to all its employees, who were invited to bring two visitors each to the mine. On Sunday March 23rd they were wound to pit bottom for a tour of the pit bottom circuit. Deep Navigation NUM lodge have devoted funds to provide each working miner at the colliery with a presentation lamp and are extending the same gift to recently retired colleagues. Some 800 lamps will be distributed in total. On the last working day, the colliery will play host to the M.P. for Merthyr Tydfil, Mr Ted Rowlands and the M.P. for Pontypridd, Mr Kim Howells, formally NUM South Wales research officer.

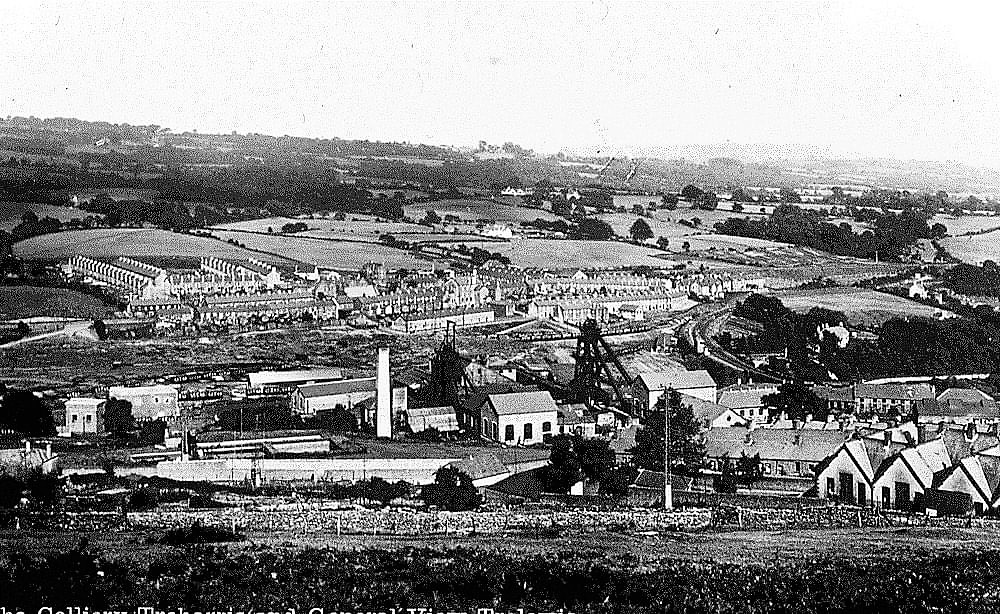

Rescued in 1890,Deep Navigation topped 100 years of mining life Deep Navigation marked its centenary in 1979, 100 years after the first coal was raised up the No 2 North pit shaft. The Colliery came into existence in the early 1870’s as a direct result of prospecting on land belonging toTwynygarreg, Pantannas and Cefn Fforest farms. Some strange “formally attired gentlemen” appeared in the district where they made a casual survey of the farmlands, especially in the Taf Bargoed valley. Some time later the district was sent into turmoil when it was announced that a mining company was going to sink a pit on land belonging to Twynygarreg farm. In February 1873 the first sod was cut for the sinking of the colliery enterprise. The business was originally known as Harris Navigation pits, after the principal shareholder, who also gives his name to the village which grew up around the activity. Two shafts were completed in May 1878 and were the deepest at that time in South Wales-760 yards to the Nine feet seam, around 200 yards deeper than any other shafts in south Wales. The South pit shaft came into operation raising coal by1881. A remarkable feature of the enterprise was a massive Cornish pumping engine supplied by the Perran Foundry of Truro, Cornwall. A decline in mining production in the early 1890’s brought about a crisis for the Harris Navigation company, which had run deeply into debt, with public fears that the colliery was about to close. Ocean coal, one of the giants of south Wales mining, came to the rescue in 1873, they bought out Harris Navigation at a knockdown price, renaming the mine Deep Navigation. By 1897 Deep Navigation employed 2,500 men and Treharris had become a thriving community of 7,000 people.

By 1902, Ocean coal had invested a further £600,000 on developments, introducing labour saving schemes and mechanical plant. The scheme was masterminded by William Jenkins, a director of the business and general manager of Treharris. The North and South Shafts were now 768 yards deep intersecting the four foot seam at 693 yards, the six foot seam at 718 yards and the nine foot seam at 760 yards, coal was hauled in main roadways by horses , of which, 150 were employed underground. By 1920 there were 1,946 men employed at Deep Navigation using the “Barry of Nottingham” system of coal cutting, a forerunner of long wall mining. Deep Navigation’s centenary celebrations in 1979 attracted around 2,000 people and included a trip to pit bottom, an exhibition of mining machinery, road races, a balloon race and a brass band concert.

Open day and pit visits before closure

The Final days of the Colliery were sad days and we have lots of photographs from 1990-91 Firstly we will see the weeks after the the pit was closed for production, there was still a lot going on there and many visited the site before it was demolished. There was a day of Celebration in the streets of Treharris which we have some photographs of and then finally we see the colliery demolished.

dn_invite

???????????????????????????????

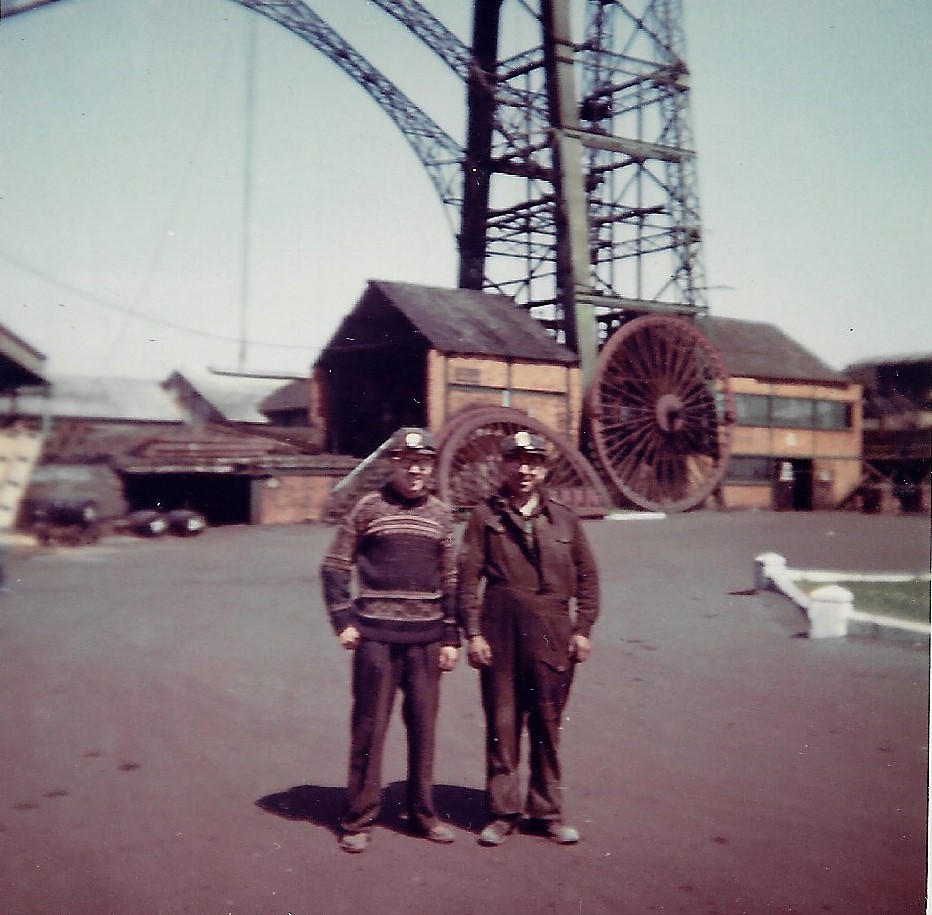

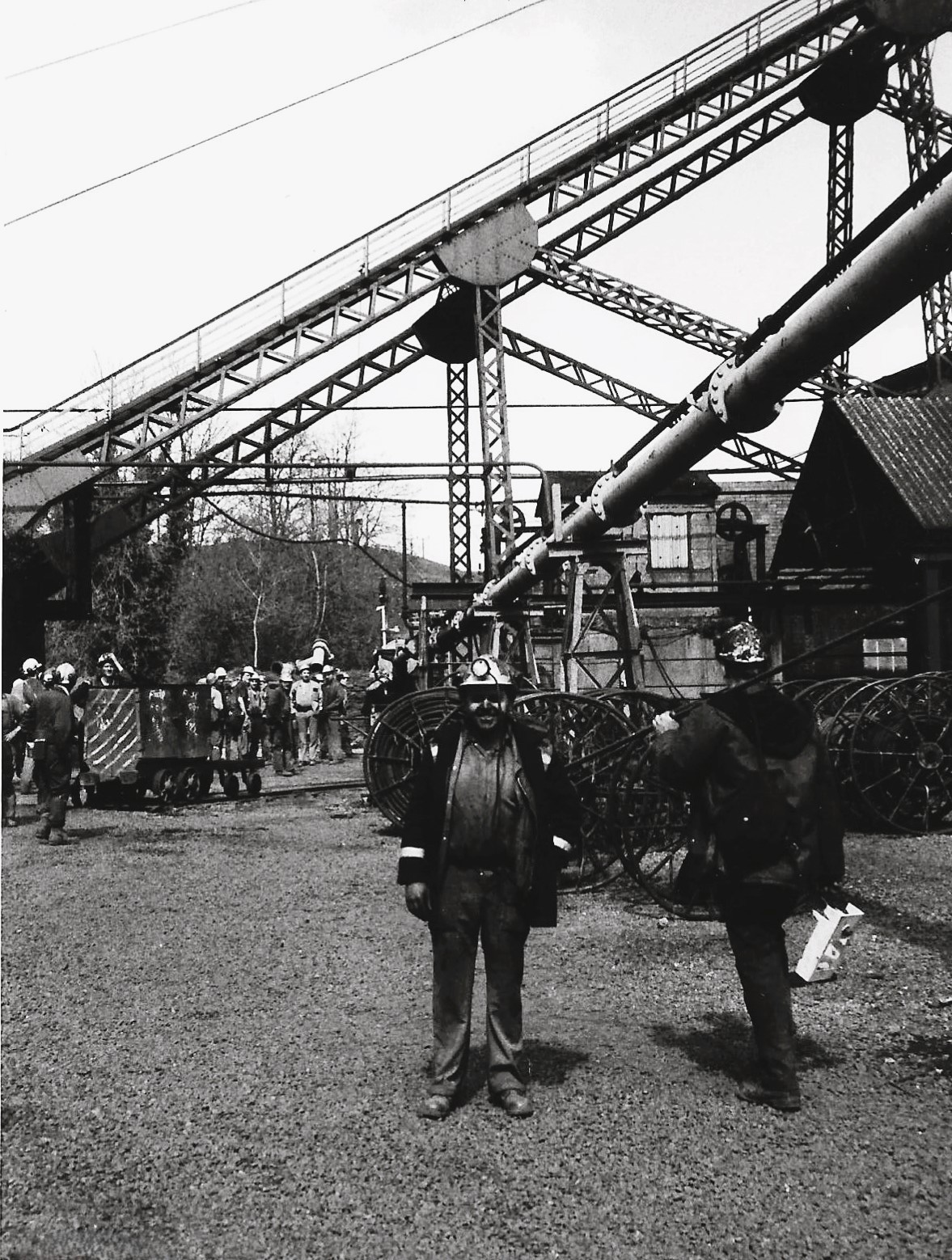

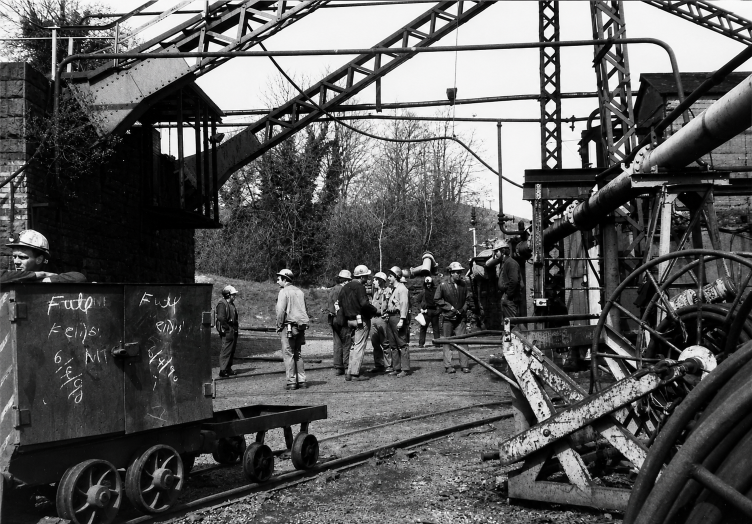

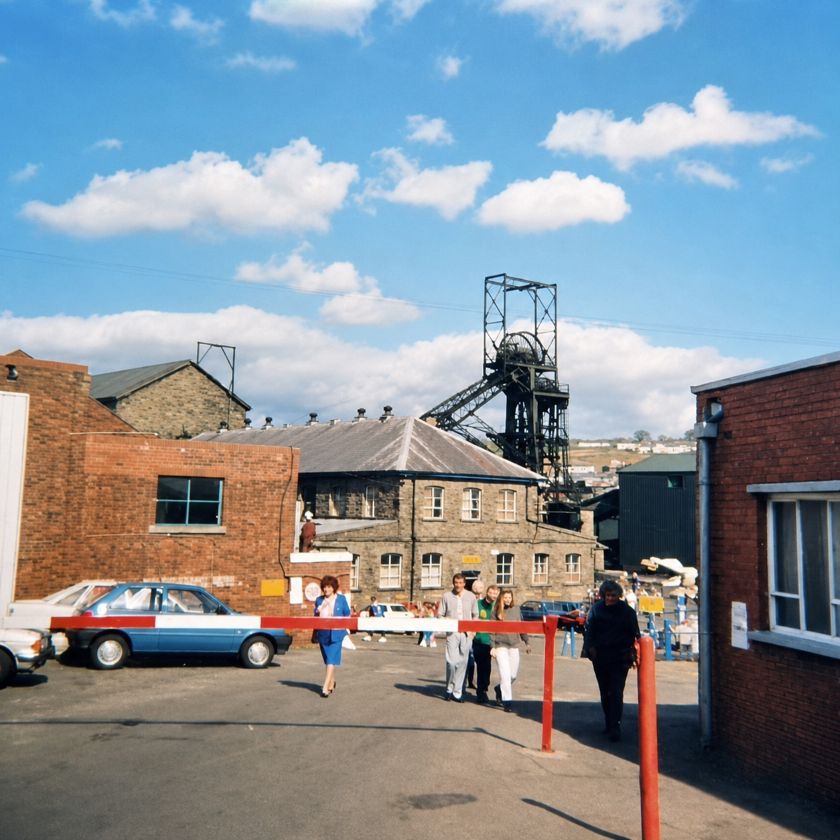

Before the colliery closed local visitors were allowed access

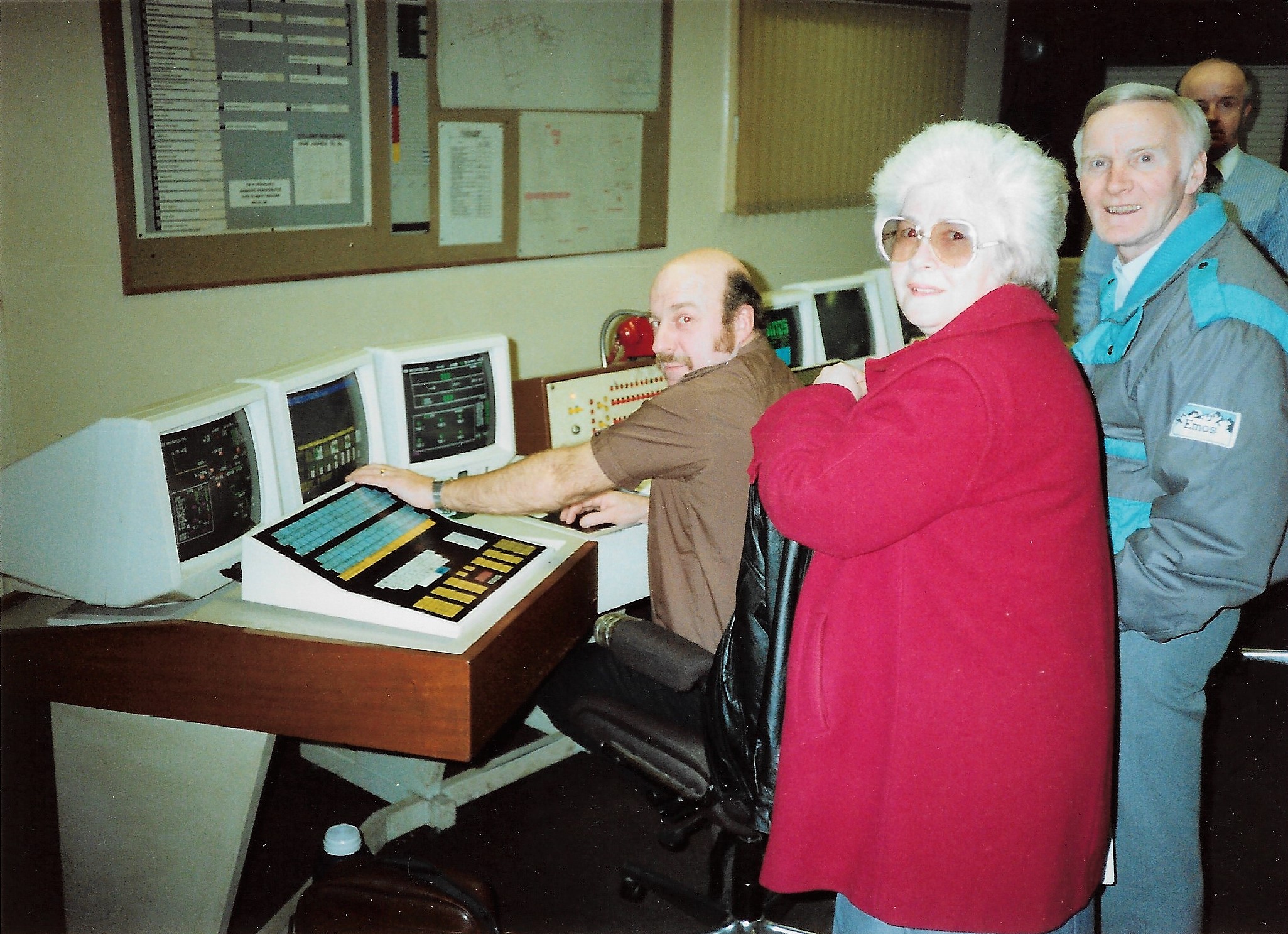

The next collection were shared by Margaret Hawke and they include visits to the pit by her family and the general public late in the life of the colliery.

Below we can see some more pictures of the Deep Navigation , this collection is courtesy of Lynda Collins. The first few show Lynda and her sister Theresa being shown around the pit head baths days before the colliery closed. Mac is their guide

at

as_mac,theresa,lynda

ar

ao

aq

al

Below we have a collection donated by June Morgan weeks before demolition

ju32

10830878_785132121523978_3730765552641778517_o

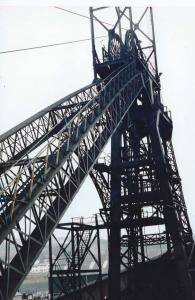

ju31

ju30

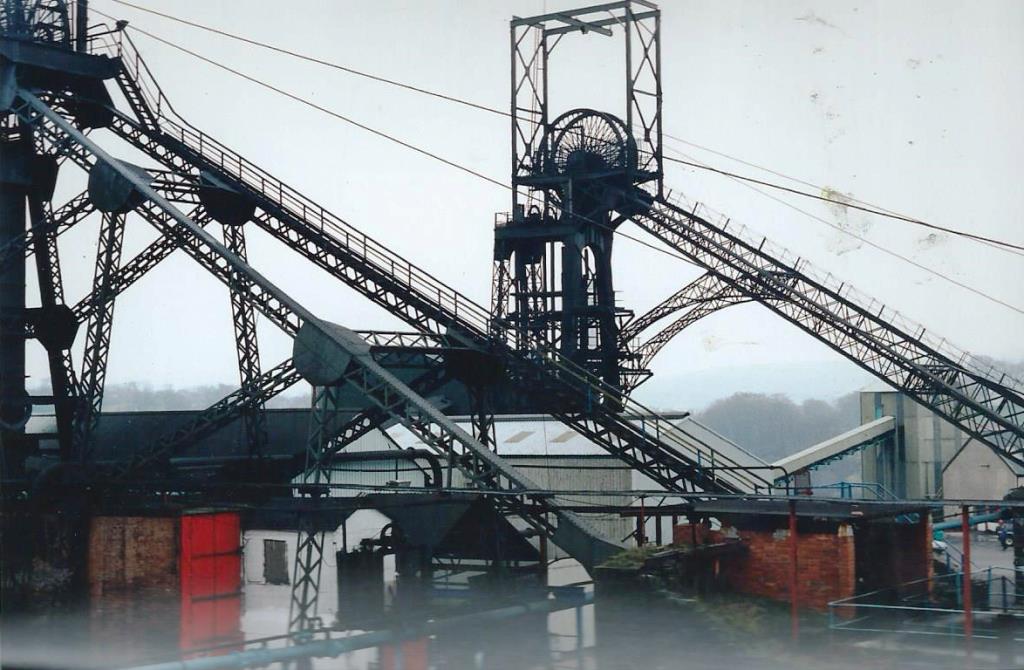

ju29

June Morgan and her Niece

ju26

Glyn Francis 1991

glyn

ju23

ju24

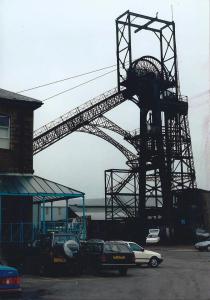

ju18

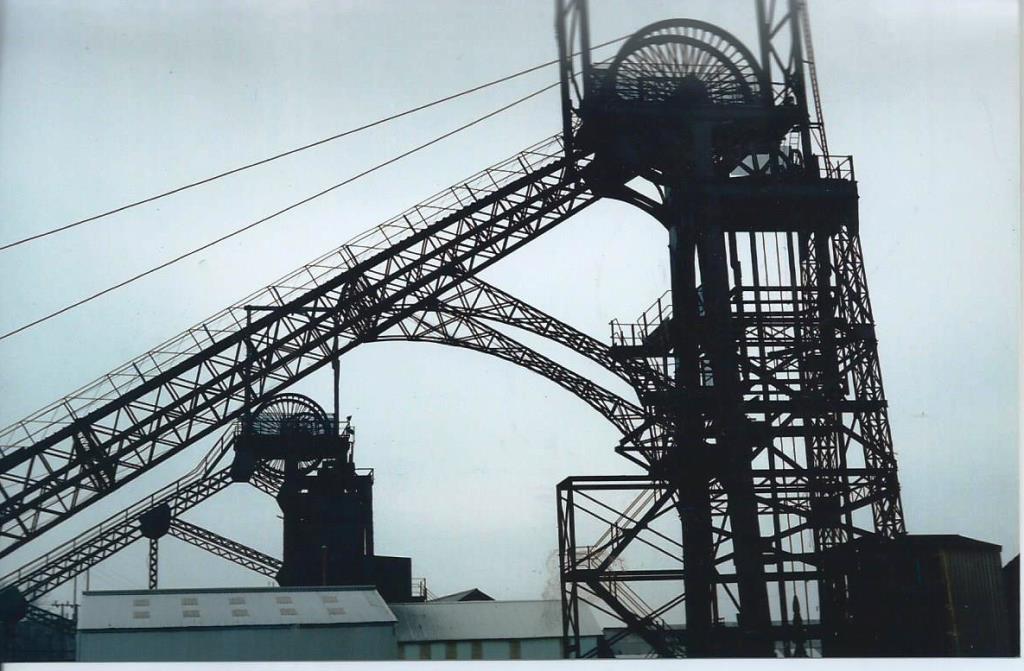

ju14

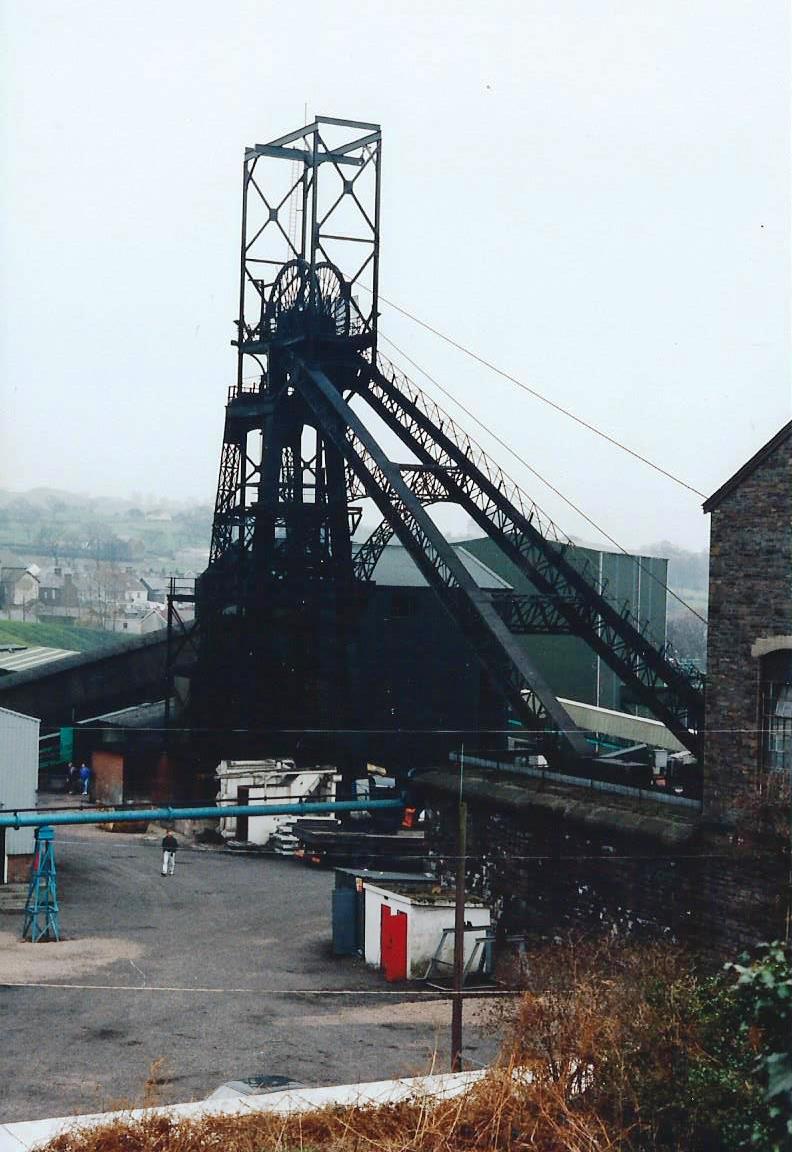

ju8

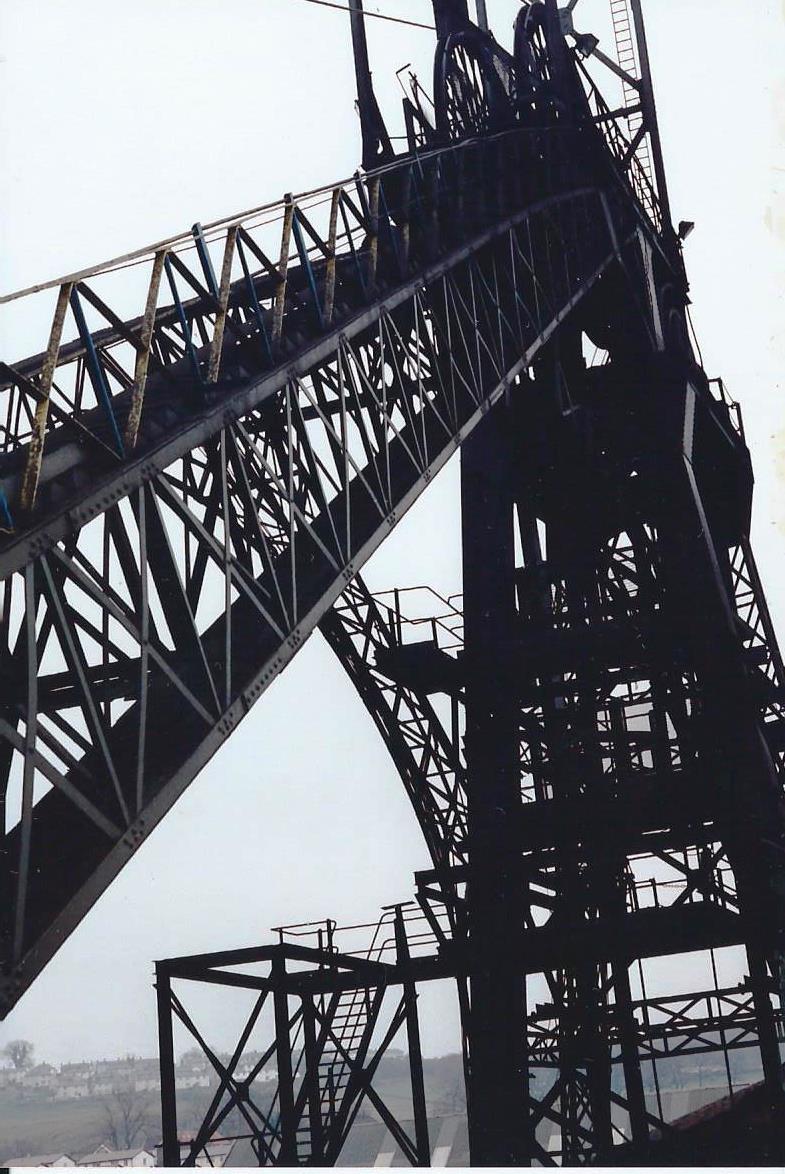

ju7

Some miners days before closure

last_days_3

last_days_2

last_days_4

The March through Treharris 1991 ( June Morgan)

Please follow this link for more end of an era photographs

https://www.treharrisdistrict.co.uk/deep-navigation-end-of-an-era-photos-1873-1991/

ju28

ju27

ju25

ju20

ju17

ju16

ju15

ju10

ju9

ju6

ju4

ju5

ju3

ju1

Preparing to Demolish the colliery

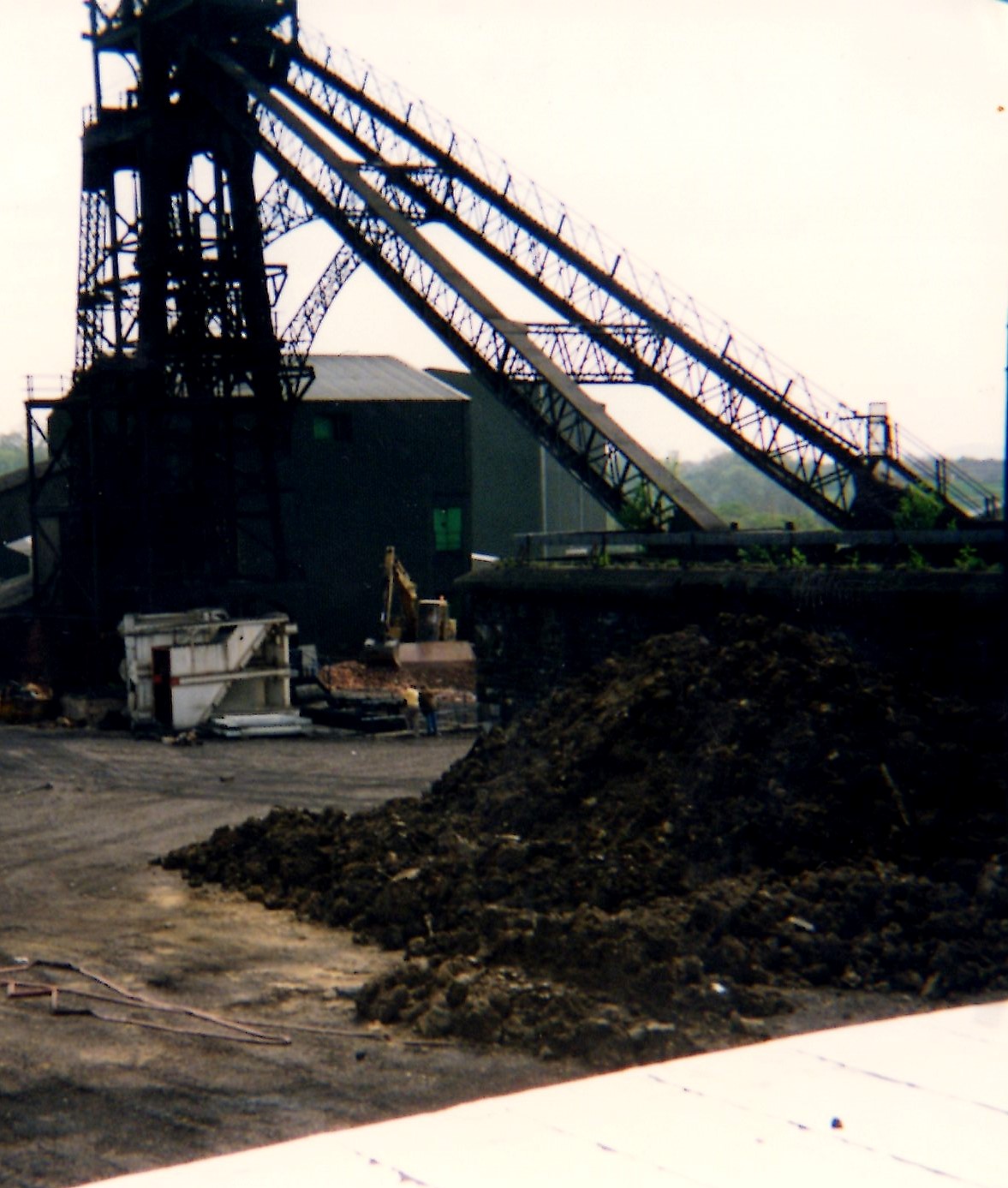

Getting ready to fill shafts a photo by Richard Edwards

top_pit_demo

More material to fill shafts

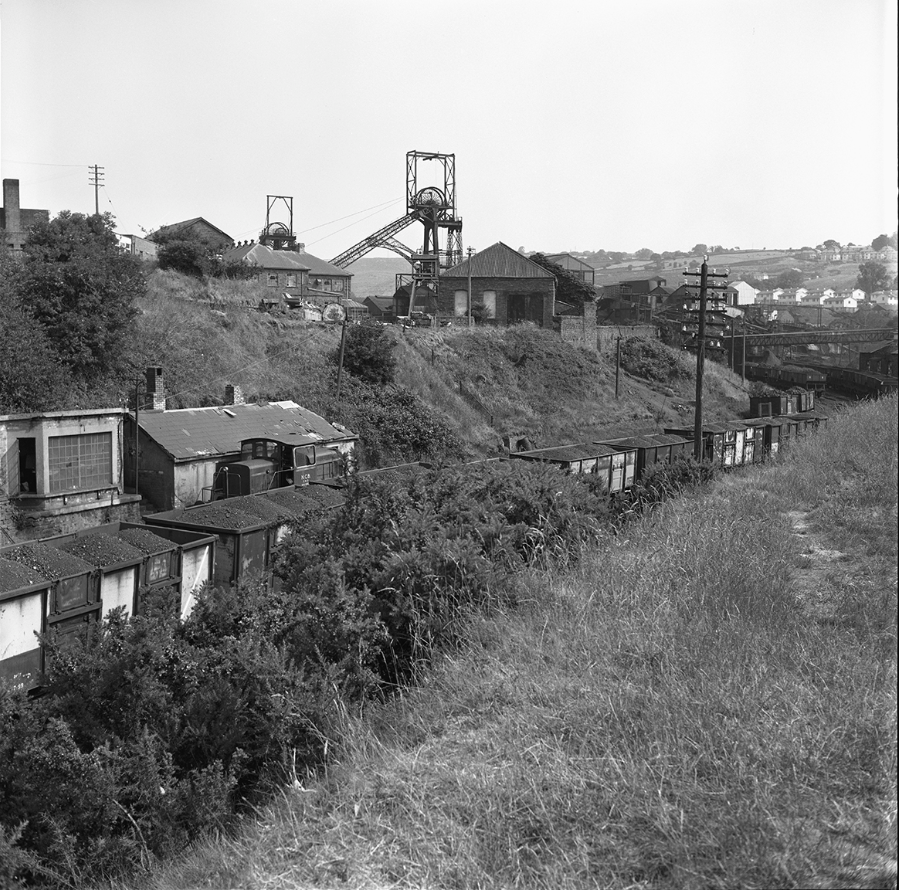

. deep

Forest Road material to fill the colliery shafts

Number one shaft full

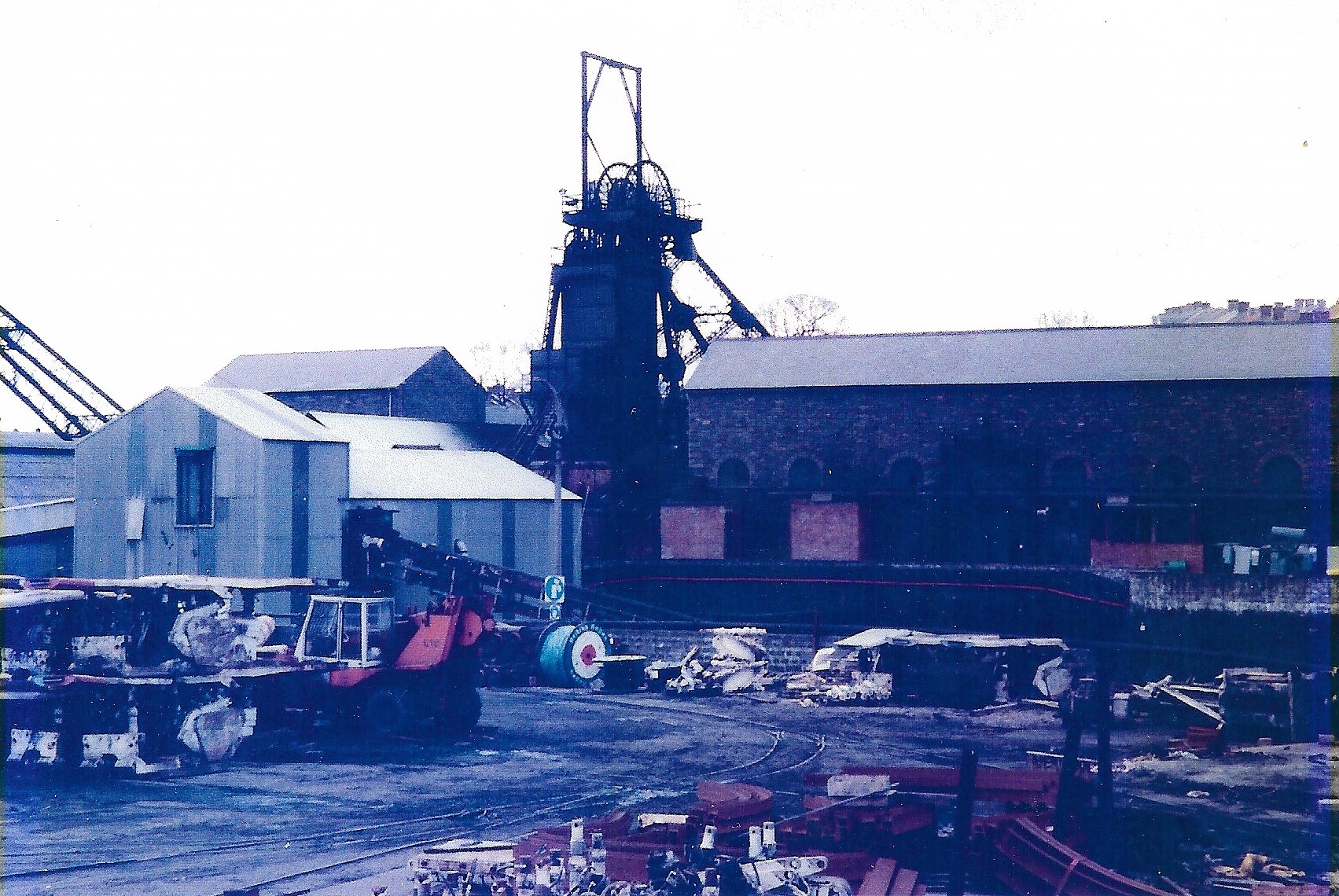

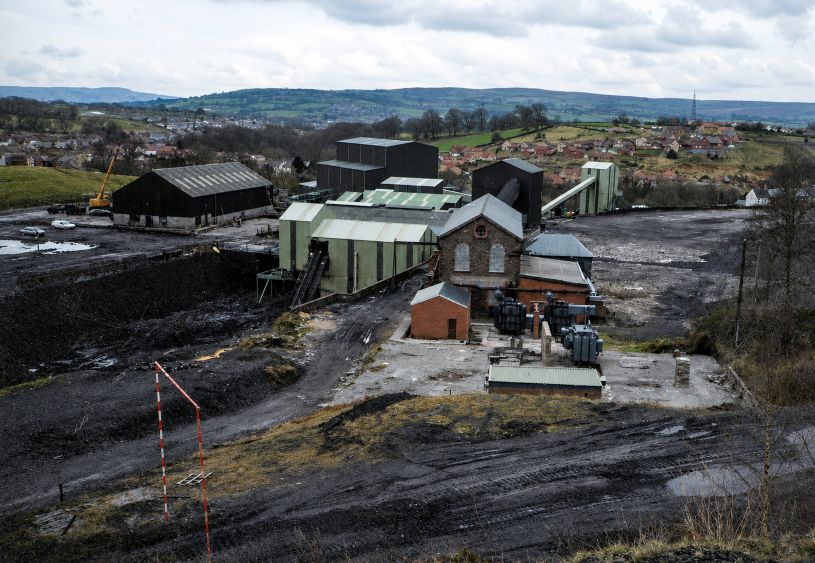

The days of the Demolition

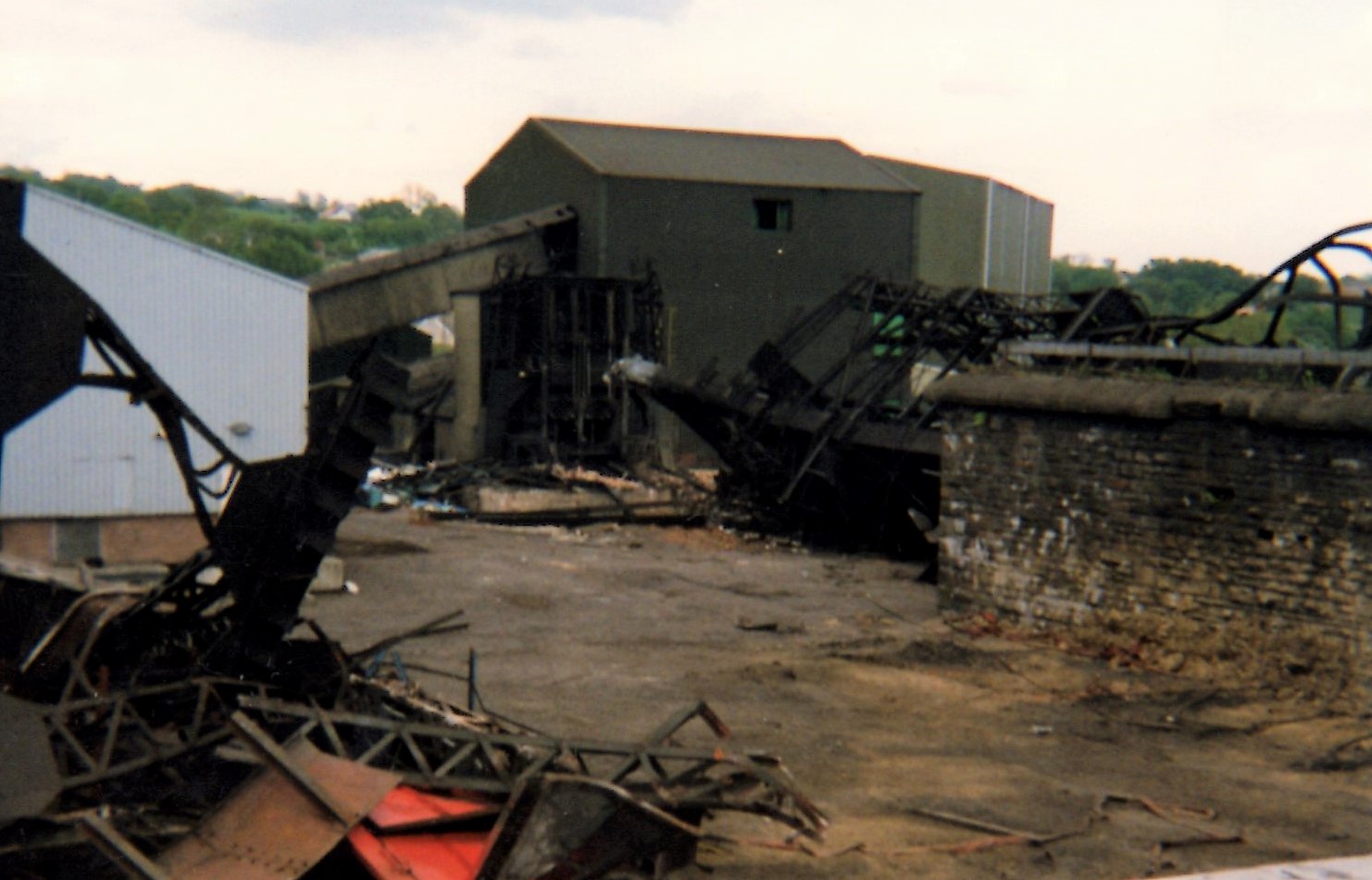

Two views from From a distance

ac

a_addd

DN_KNOCKED

DEEP_NAVI_DYING

D_Navi_dmons

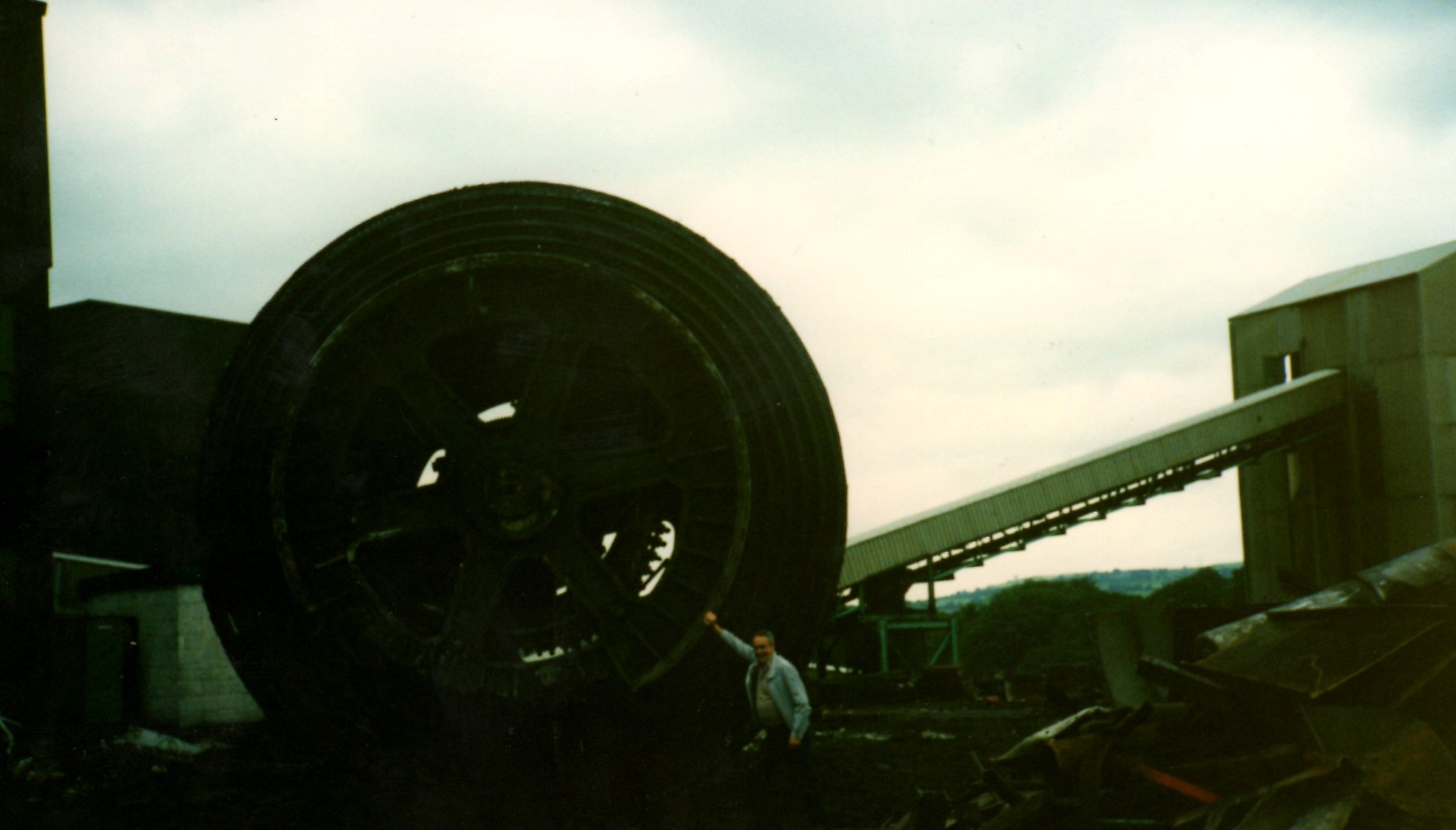

DEEP_DEMO

DN_FALLING

DEMOLISH_DN

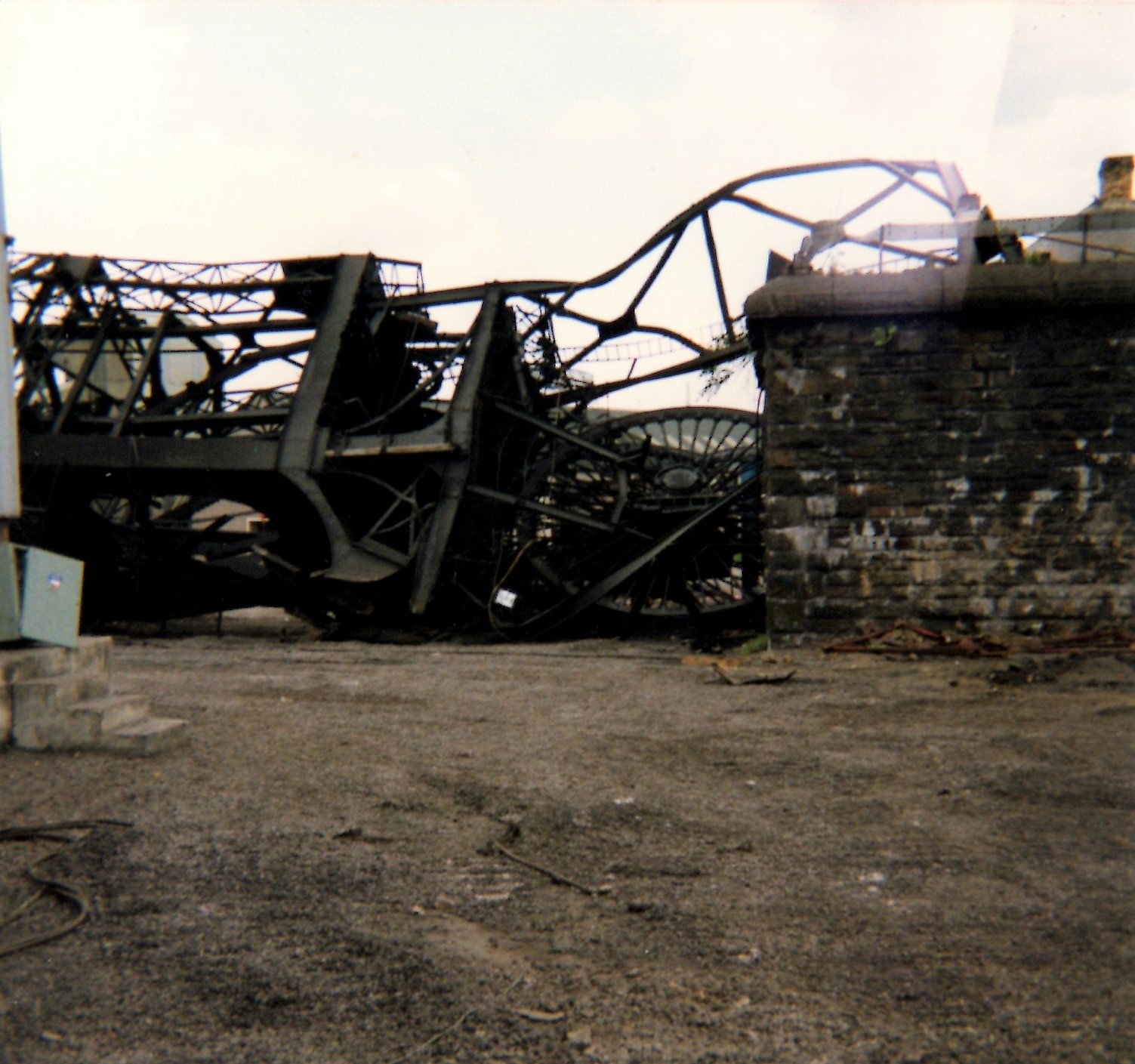

DeepNavigation_No1HeadgearPulledDown_02_DickEdwards

last_days_1

last_days_5

last_days_6

NAVI_GOING

xag

dEEP_nAVI_dEMO

pitgoing

???????????????????????????????

dn_5

The Baths ready for demolition

???????????????????????????????

Treharris miners recieving lamps after colliery closed

Johnny Molloy receiving a lamp from Booby Brain at Nelson RFC

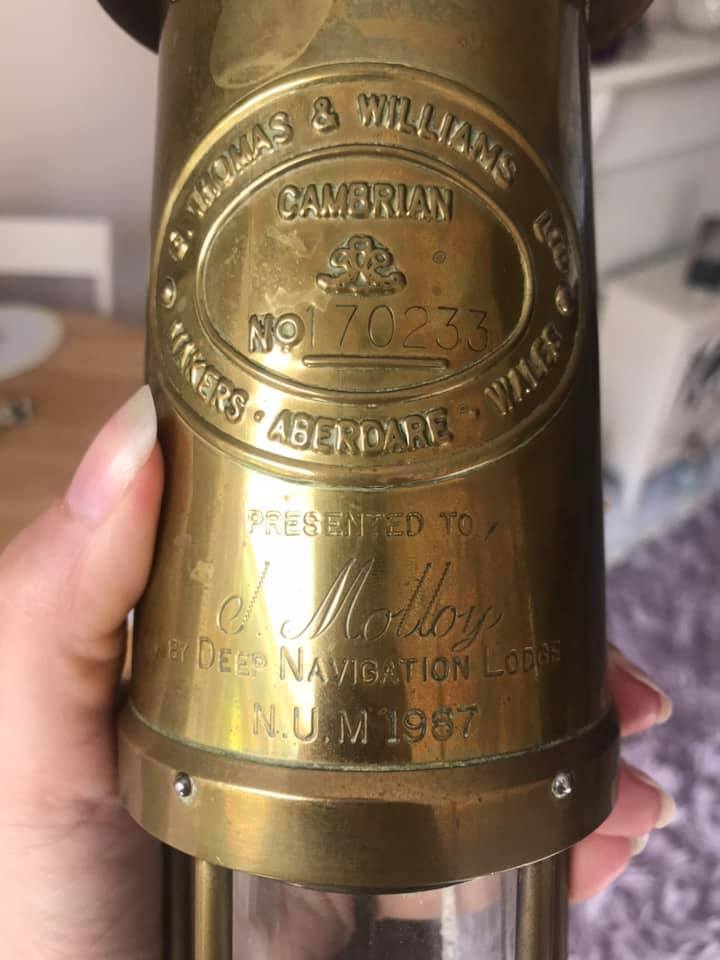

Kelly Sims sent me this 2020 photo of the lamp

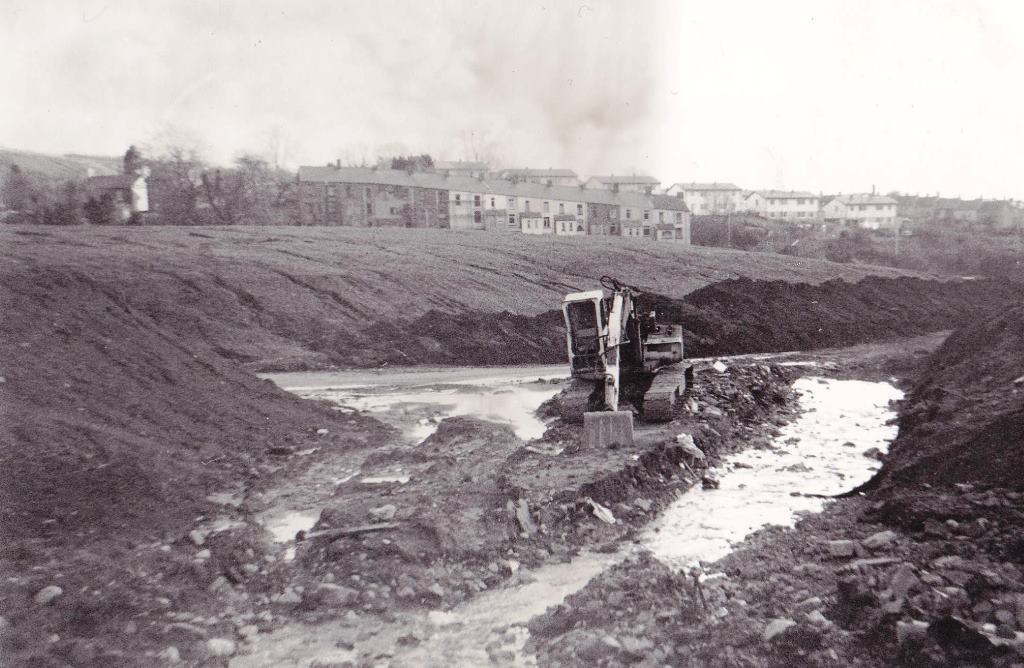

After demolishision clearing the surface for the new park

Preparing to cap Number two shaft

DeepNavigation_CapingNo2Shaft__No2_DickEdwards

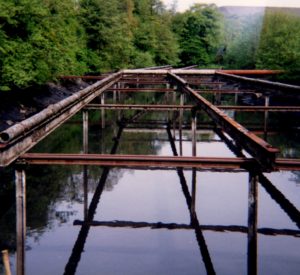

The Pit pond

Clearing the fish away before filling in the old pit pond

ytrt

The old railway bridge Captains hill

The pictures below are the tunnel that carried the Taff Bargoed river under the surface area of Deep Navigation Colliery…Robert Amos of Nelson took these photographs in 1999, just as they were preparing to raise the river back to the surface and bury the now redundant tunnel forever.

BLOCKING_OLD_TUNNEL_TAFF_B

OLD_TUNNEL_EXIT_TAFF_BARGOED

WHERE_tAFF_bARGOED_RIVER_USED_TO_ENTER_TUNNEL

(Photographs are courtesy of Robert Amos )

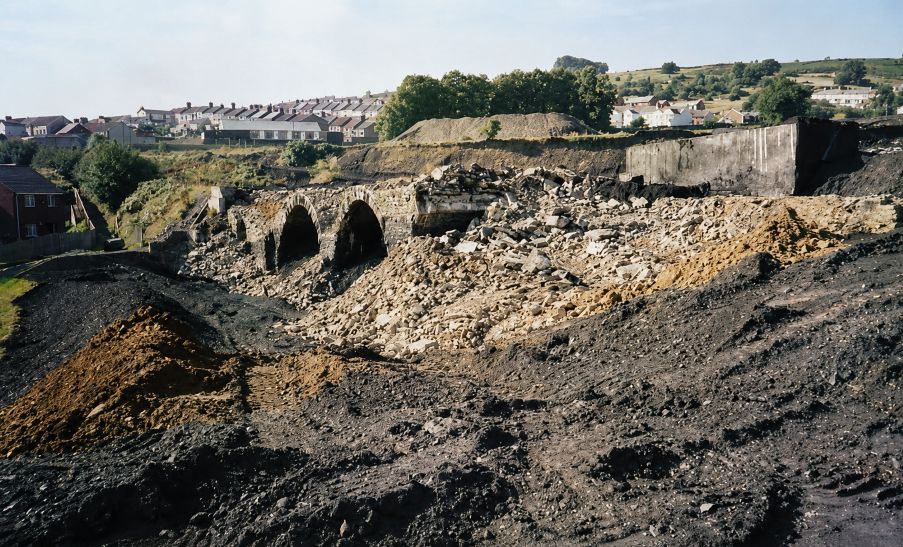

Tunnel gone

na3

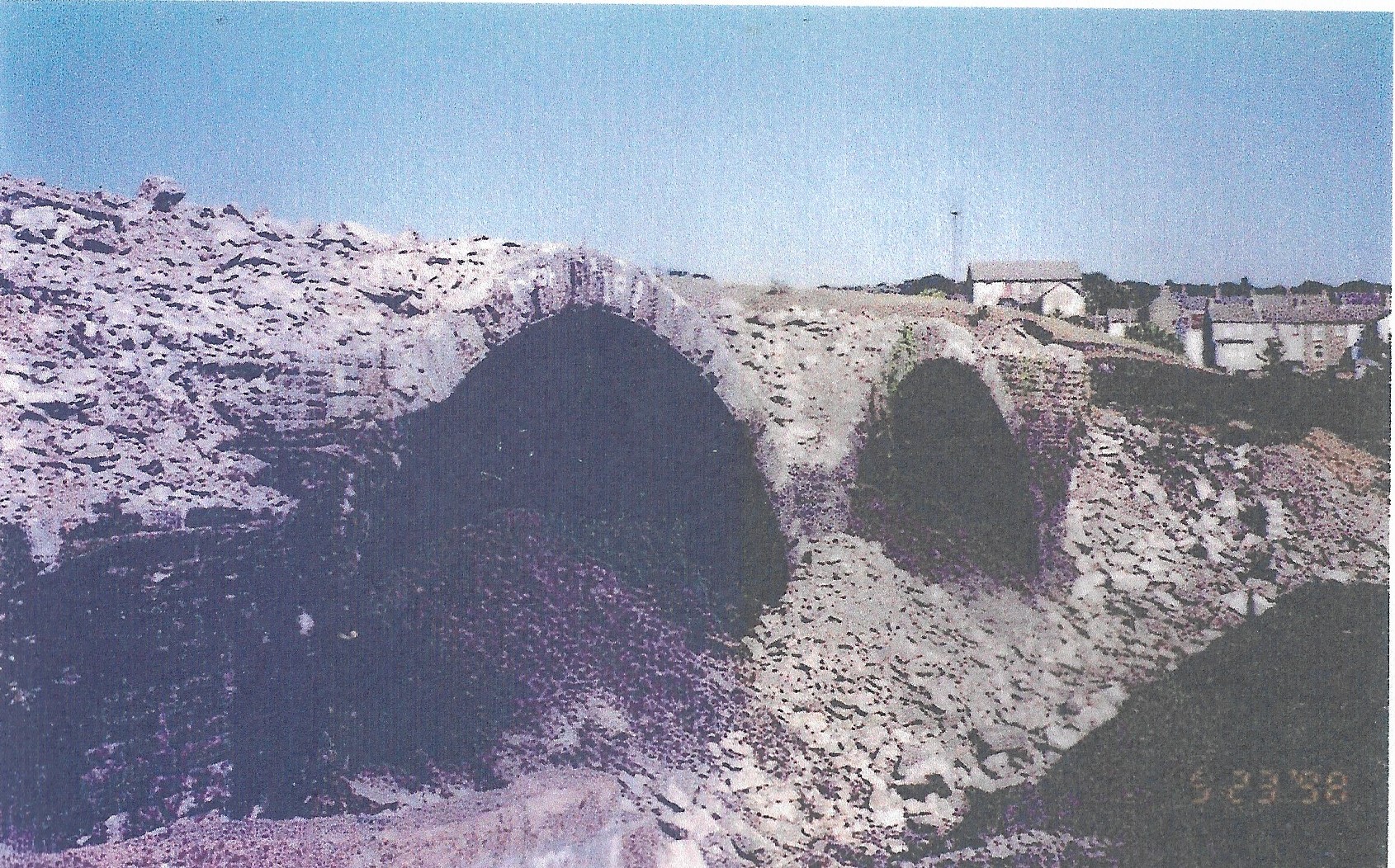

The Brunel Viaduct finally demolished late 1990’s used to link Trelewis to Treharris

Memorial plate gifted to the miners of Deep Navigation

285021_1891038798237_1317539_n

Gone but not forgotten
